Electric Lifts for Glass Handling and Stacking

Customization:	Available
After-sales Service:	Lifelong Maintenance
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

XDL-1000kg

Cup Quantity

Max Loading Cap

500kg-2000kg (Configurable)

Max Loading Size

1500X3000mm to 2000X6000mm

Suction Cup Dia.

200mm

Electric Power

220V/380V (50/60Hz)

Vacuum Pressure

0.04-0.06MPa

Vacuum Pump

Oil-Less Vacuum Pump

Safety Alarm

Yes (1.5 Second Response)

HS Code

8428909090

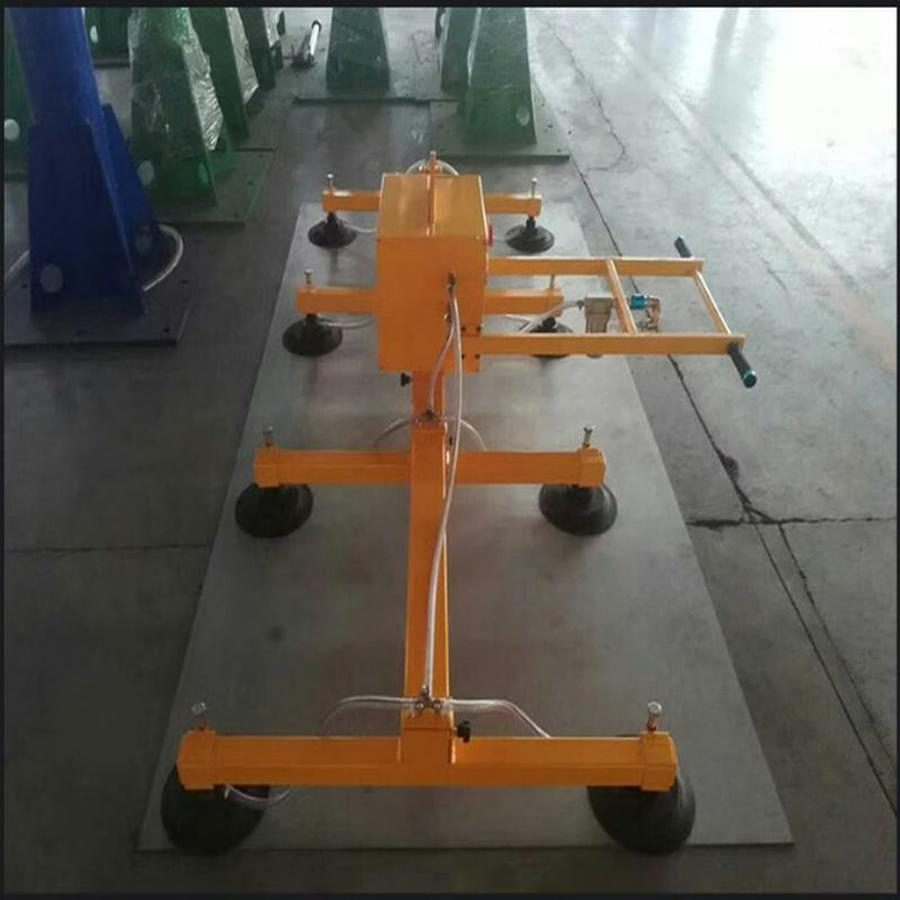

Industrial Vacuum Lifter Solutions

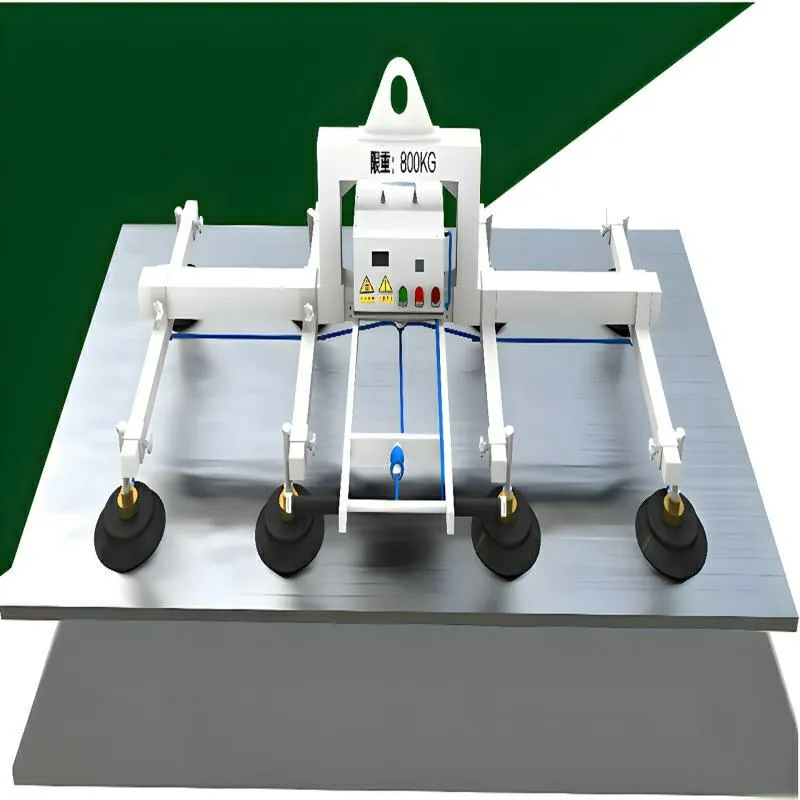

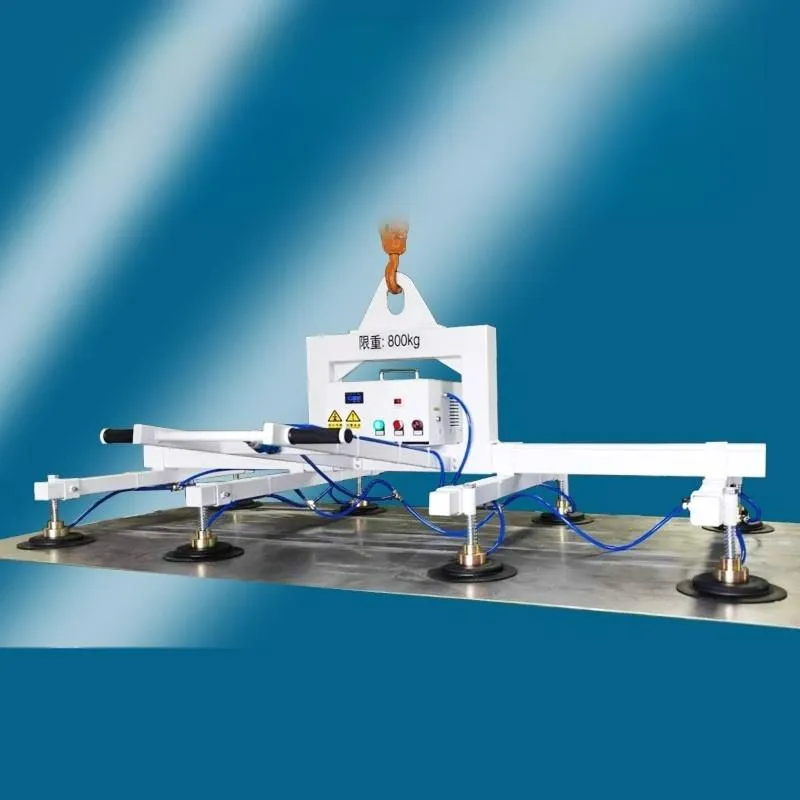

The electric-powered vacuum lifter employs an electric vacuum pump to create a vacuum that adheres to and lifts workpieces securely. This device is extensively applied in laser cutting, manipulation, and hoisting of facade glass, stone, steel slabs, and other flat materials.

Key Industrial Features

Automation Efficiency: Full automation for unmanned operation, enabling 24/7 laser loading and unloading.
High Safety Performance: Equipment air-cut protection and automatic braking device. If power disappears, the plate remains in place for a safe duration.
Versatile Application: Suitable for construction sites, glass factories, and window manufacturing.

Technical Parameters

Model	Length	Capacity	Sucker Qty	Sucker Diameter	Voltage	Gross Weight
XDL300-2M	2m	300kg	4pcs	200mm	220/380V	110kg
XDL600-2M	2m	600kg	6pcs	200mm	220/380V	120kg
XDL800-2M	2m	800kg	8pcs	200mm	220/380V	125kg
XDL1000-3M	3m	1000kg	10pcs	200mm	220/380V	180kg
XDL2000-5M	5m	2000kg	20pcs	200mm	220/380V	290kg

Usage Scenarios

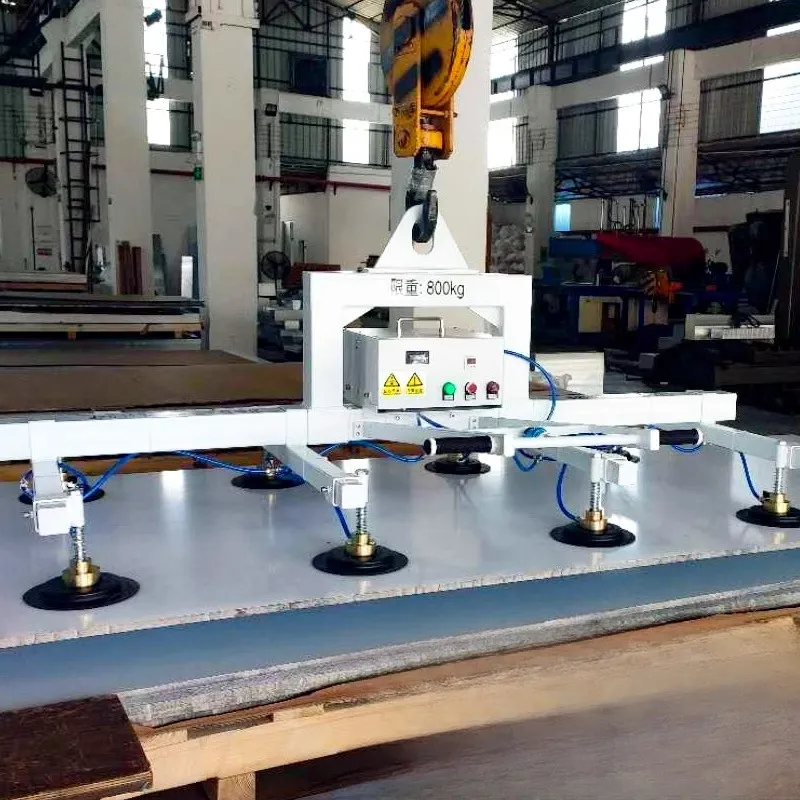

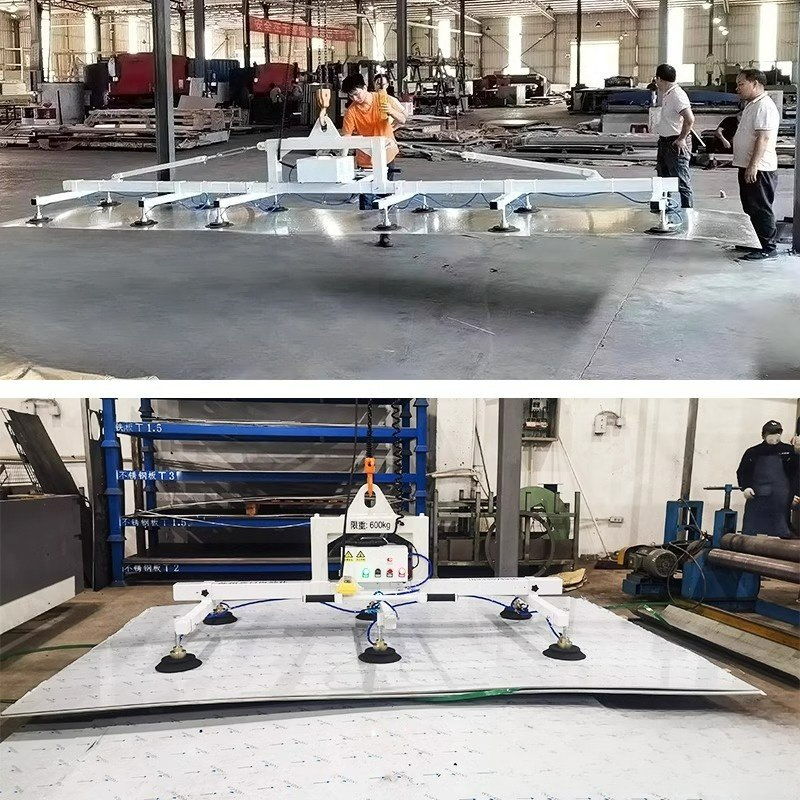

Perfect for open-air warehouses, material yards, railway cargo stations, port terminals, and indoor workshops. Supports rotation methods from manual to electric (0~360 degrees).

Compatible Materials

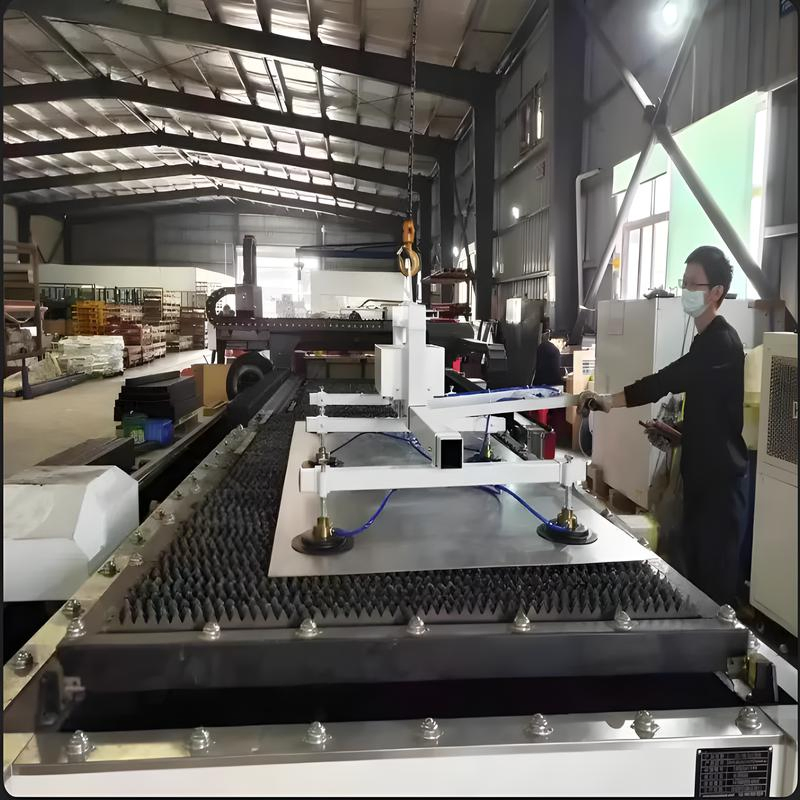

Specializes in loading aluminum sheets, stainless steel, and plates up to 400 degrees Celsius. Highly compatible with global laser cutting brands.

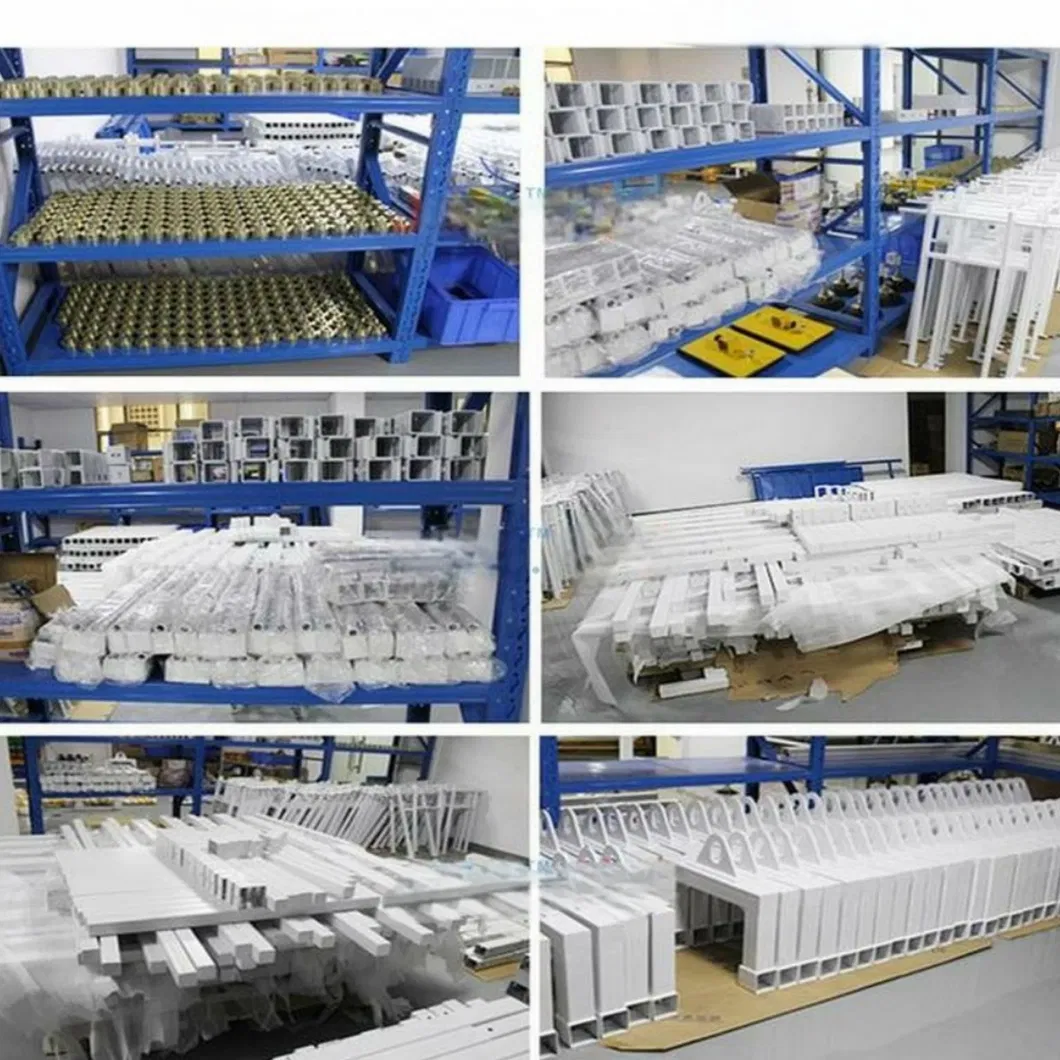

Quality Assurance & Testing

7 Rigorous Inspection Stages:

1. Seal integrity 2. Pressure retention 3. Leakage identification 4. Overload stress 5. Acoustic evaluation 6. Aesthetic review

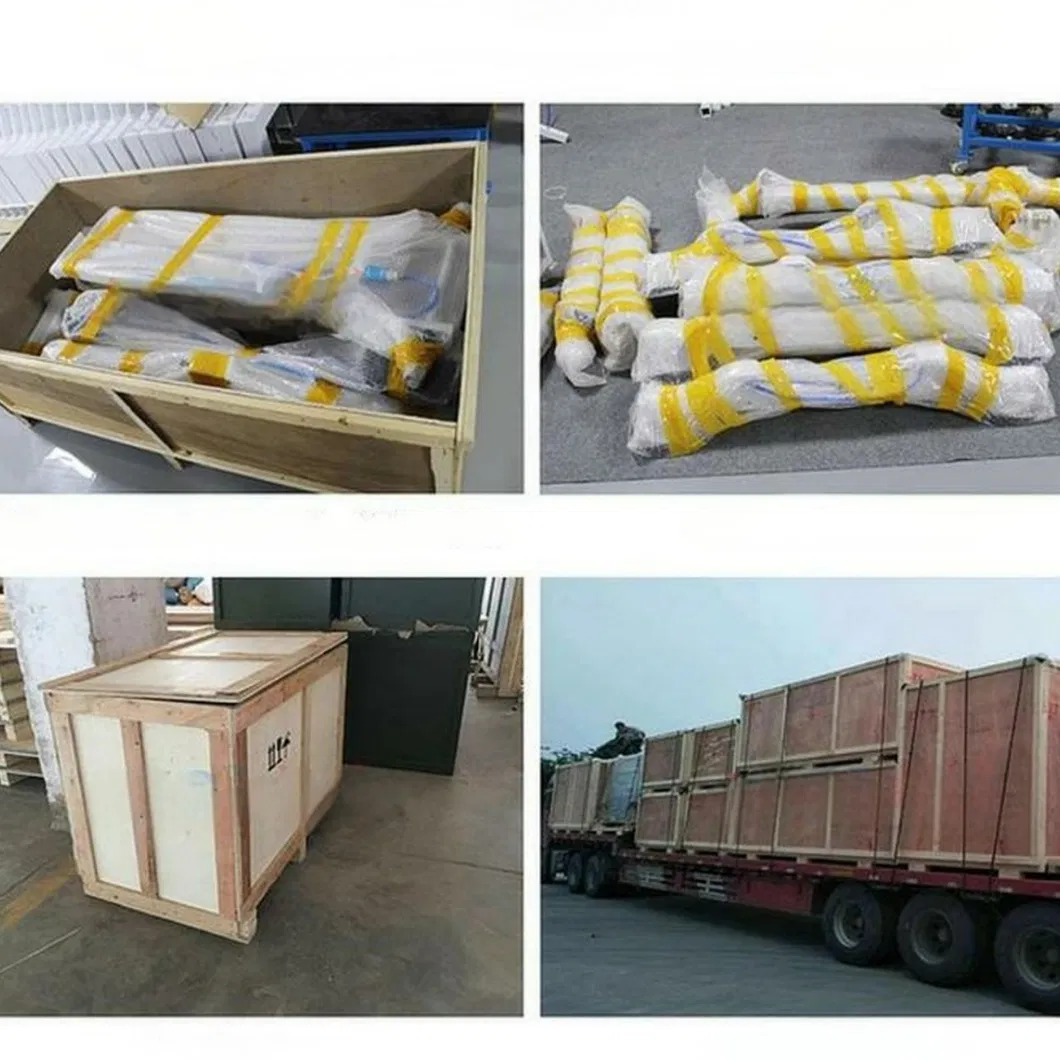

Packaging & Logistics

Transport Package: Professional Plywood Box

Standard Package Size: 345.00cm * 80.00cm * 80.00cm | Gross Weight: 390.00kg

Frequently Asked Questions

Q1: What is the maximum weight capacity of the vacuum lifter?

The system supports various models ranging from 300kg up to a maximum of 2000kg, depending on the configuration and number of suction cups.

Q2: How does the safety alarm system work?

The lifter is equipped with an acoustic vacuum alarm that triggers within 1.5 seconds if pressure drops. It also features an accumulator to maintain suction during sudden power loss.

Q3: Can this equipment handle high-temperature materials?

Yes, we offer specialized configurations capable of supporting plates at temperatures up to 400 degrees Celsius, ideal for laser cutting applications.

Q4: Is the suction cup quantity adjustable?

Standard models come with 4 to 20 suction cups, but we offer customized solutions where the cup quantity and beam size can be tailored to your specific material dimensions.

Q5: What power supply is required for operation?

The equipment is compatible with standard industrial power supplies, including 220V and 380V at both 50Hz and 60Hz frequencies.

Q6: What materials can the vacuum lifter handle?

It is designed for any flat, non-porous materials including glass, stone slabs, steel sheets, aluminum, and stainless steel panels.
