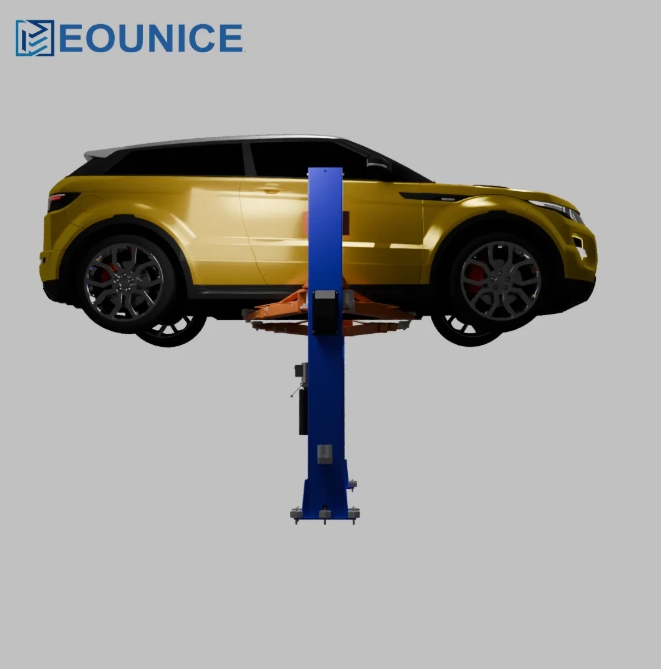

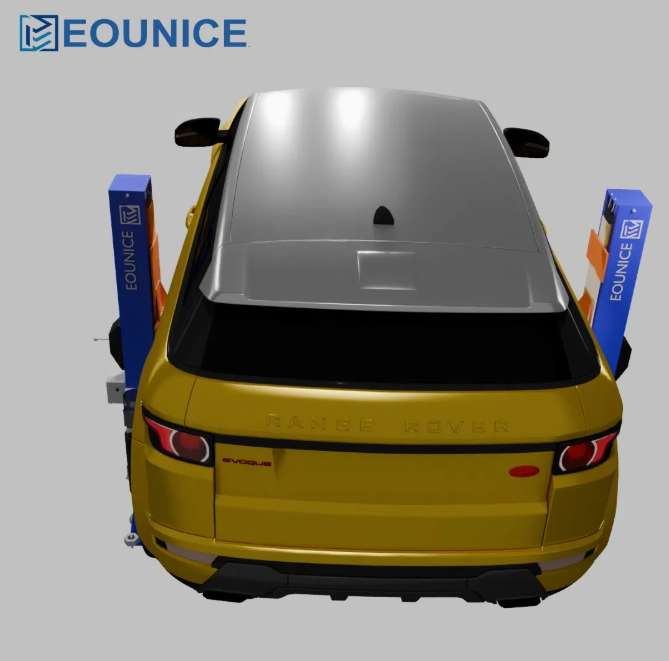

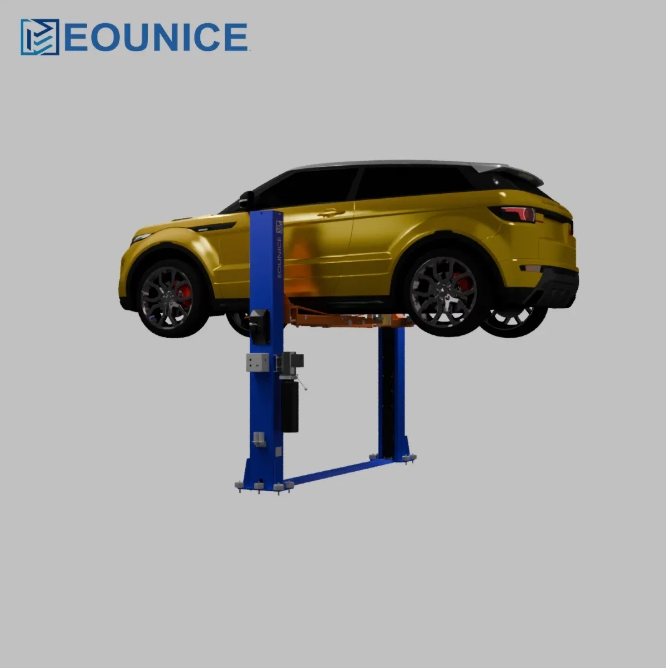

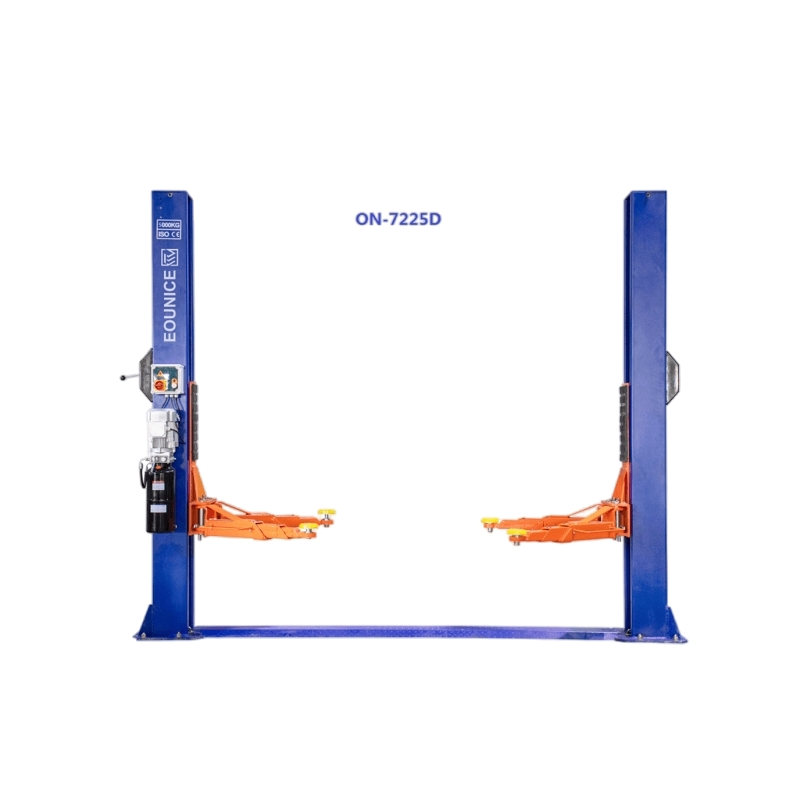

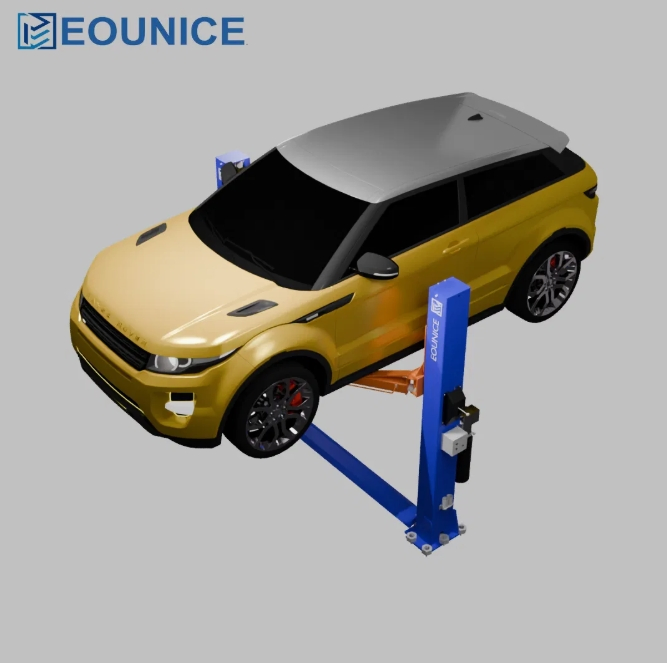

Heavy-Duty Floor Plate Two Post Lift with 5000kg Capacity
Heavy-Duty Floor Plate Two Post Lift with 5000kg Capacity
Heavy-Duty Floor Plate Two Post Lift with 5000kg Capacity
Heavy-Duty Floor Plate Two Post Lift with 5000kg Capacity
Heavy-Duty Floor Plate Two Post Lift with 5000kg Capacity
1 / 5
Heavy-Duty Floor Plate Two Post Lift with 5000kg Capacity
Heavy-Duty Floor Plate Two Post Lift with 5000kg Capacity
Heavy-Duty Floor Plate Two Post Lift with 5000kg Capacity
Heavy-Duty Floor Plate Two Post Lift with 5000kg Capacity
Heavy-Duty Floor Plate Two Post Lift with 5000kg Capacity

Heavy-Duty Floor Plate Two Post Lift with 5000kg Capacity

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
ON-7225D
Lifting Capacity
5 ton (5000kg)
Type
Double Cylinder Hydraulic Lift
Driving Type
Hydraulic
Certification
CE, ISO
Lifting Height
1810mm
Overall Height
2876mm
Overall Width
3570mm
Heavy-Duty Two Post Lift

Technical Data

Model Capacity Lifting Time Lifting Height Min. Height Total Height Total Width Motor Power
ON-7225D 5,000kgs ≤55S 1810mm 95mm (3 3/4") 2876mm 3570mm 2.2KW (3HP)

Product Introduction

  • CE Approved: Adheres to stringent European standards for safety and reliability.
  • 5,000Kg Capacity: Robust engineering to manage heavy vehicles with ease.
  • Single-Point Lock Release: Manual operation supported by a secure 24V low voltage setup.
  • Chain Drive Cylinder: Equipped with cutting-edge anti-surge valves in each column.
  • Versatile Arms: Standard 4 two-stage lifting arms for various vehicle types.
  • Low Profile: Screw-up rubber pads provide a minimum height of 95mm.
  • Safety Switches: High limit switch included for precision control and safe operation.
  • Superior Finish: Sleek professional powder coating for durability and aesthetics.

Main Features

  • Ultra-Thin Adapter: 95mm ground clearance specifically for low-chassis vehicles.
  • Thin Cover Plate: Only 33mm above ground for effortless vehicle gliding.
  • Safe Pulley Positioning: Inner pulley prevents displacement even during component failure.
  • Robotic Welding: Expertly welded structural components for consistent high strength.
  • High-Temp Curing: Imported powder spraying process for strong adhesion and vibrant color.

Factory Overview

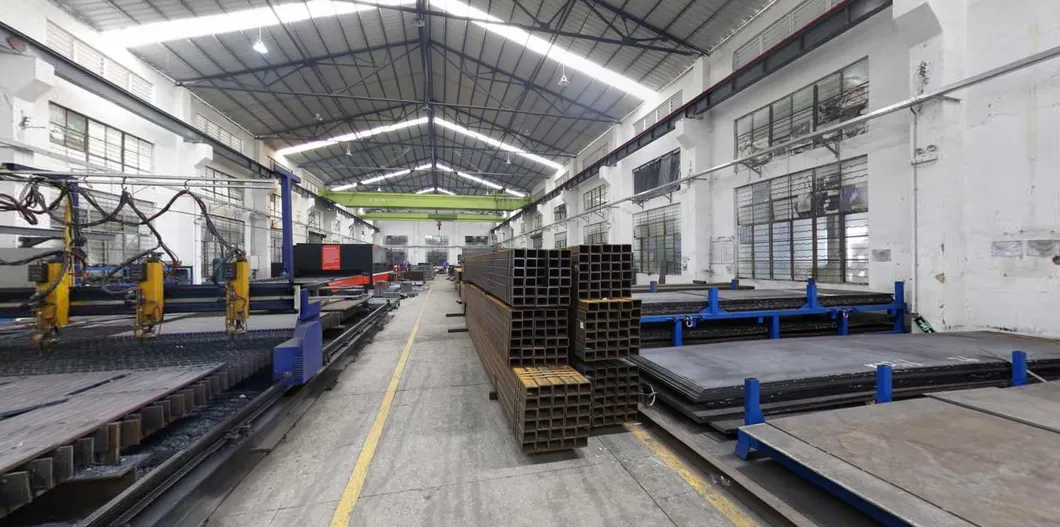

Factory View 1

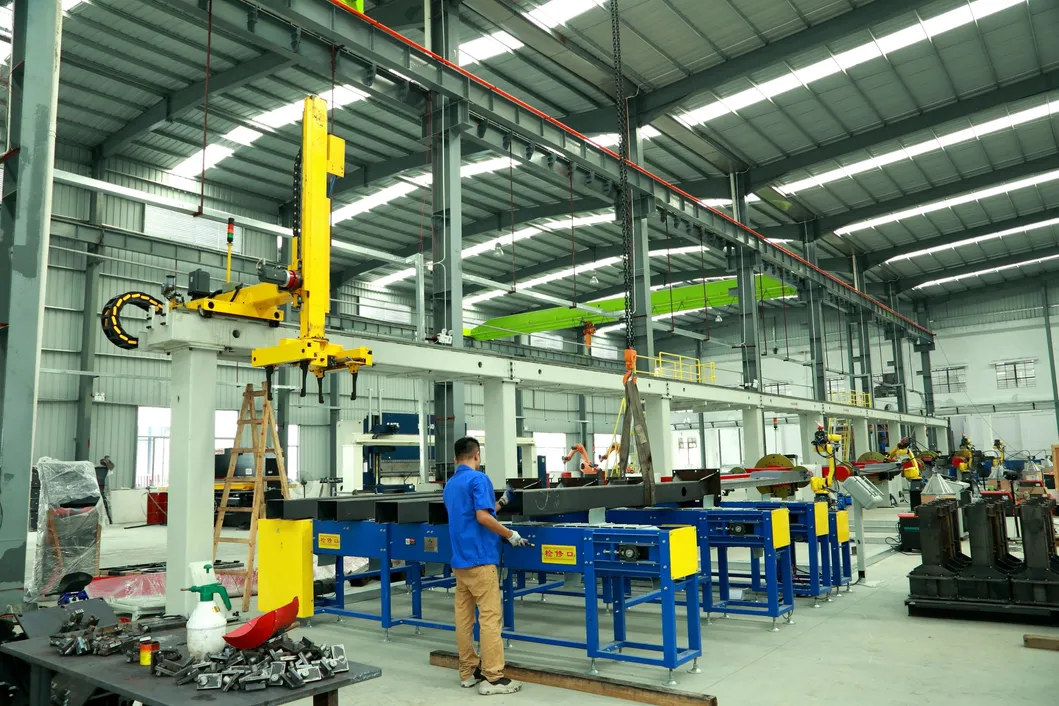

Factory View 2

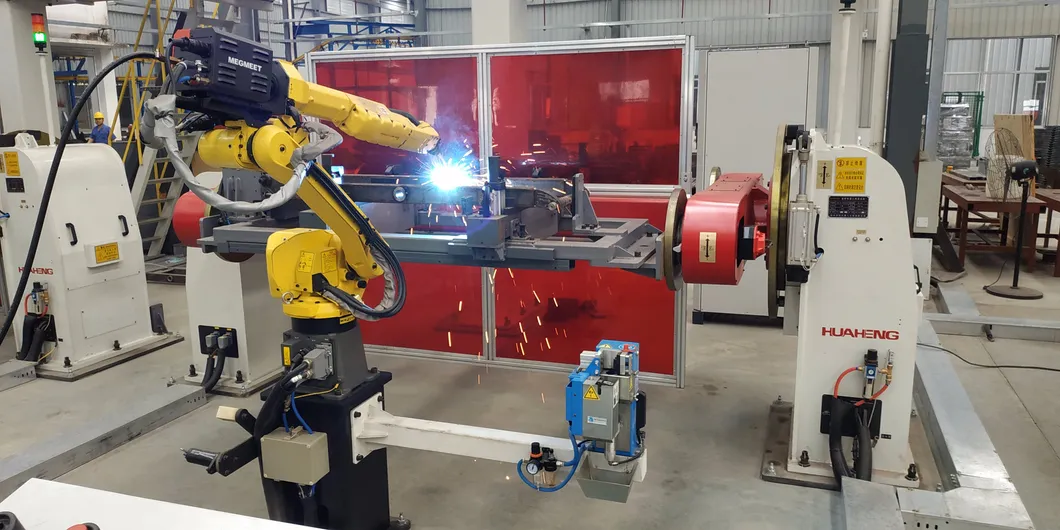

Factory View 3

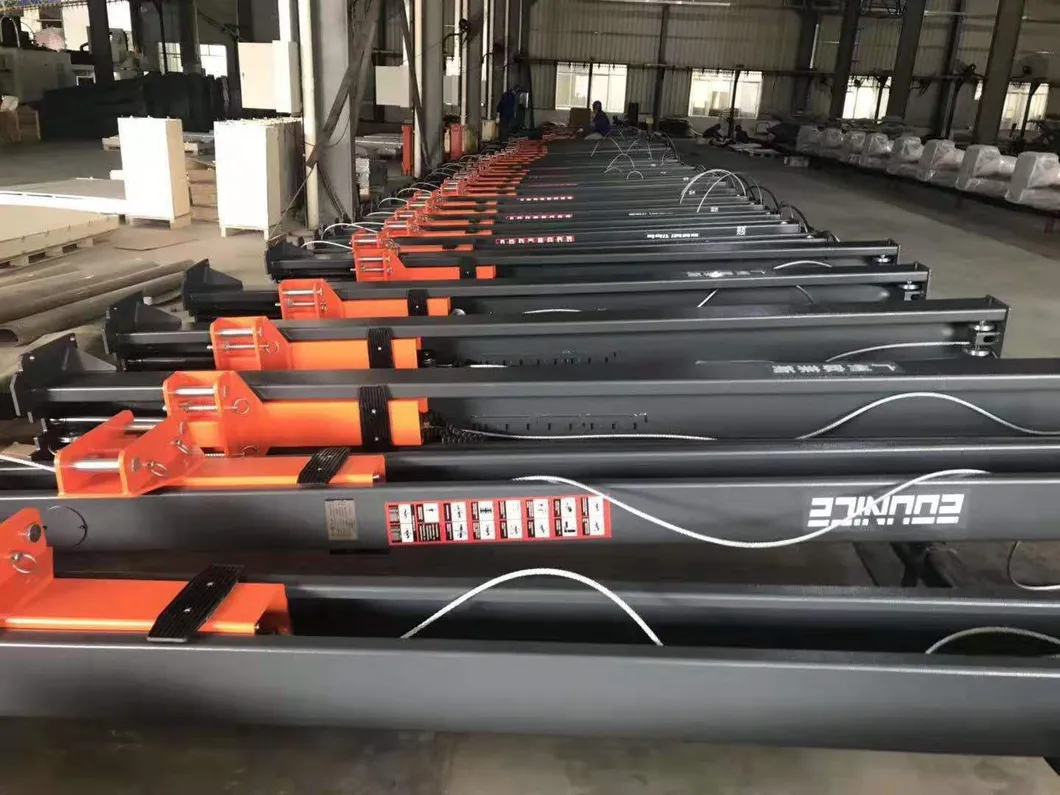

Production Line
Equipment

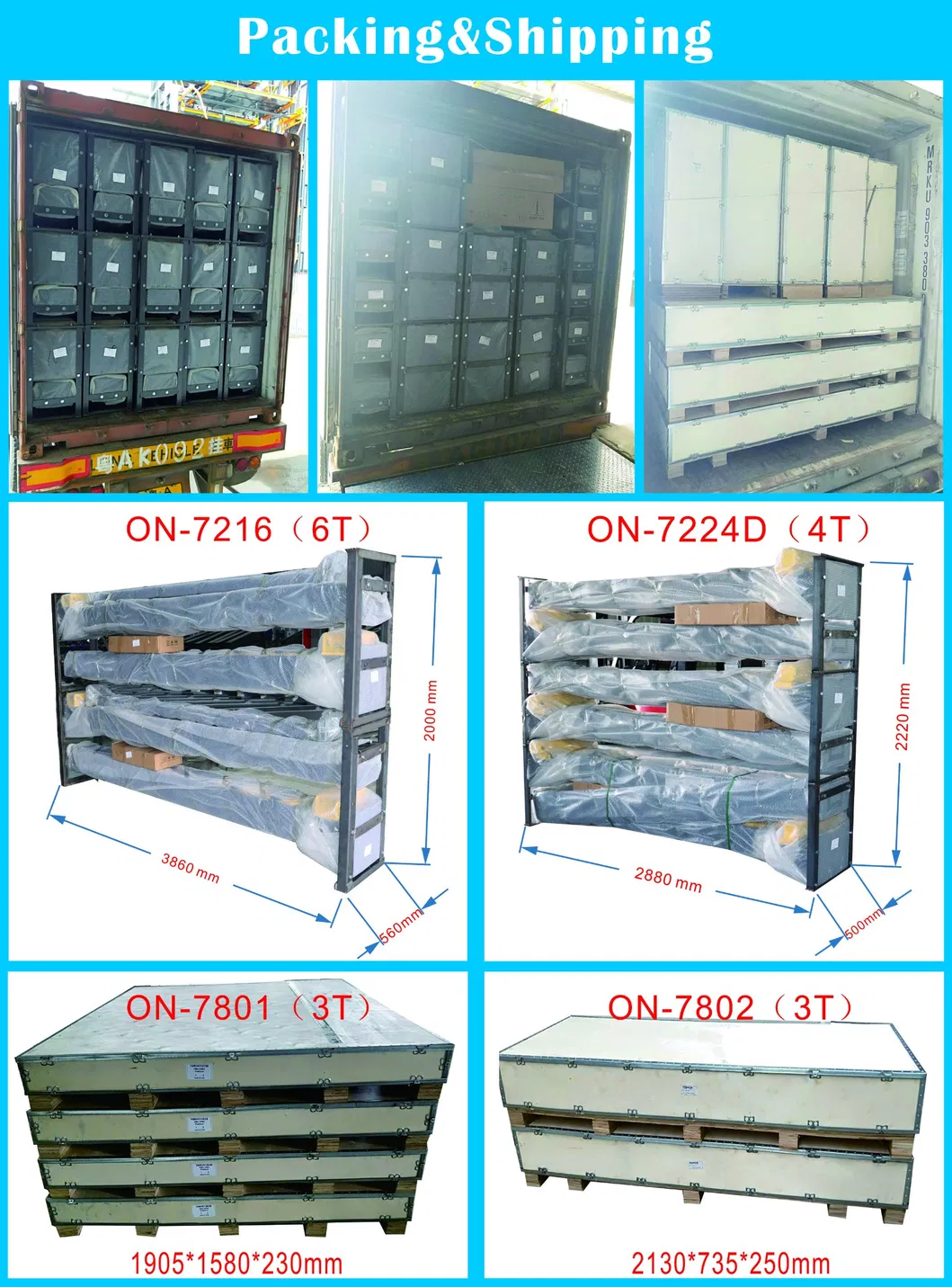

Quality Control

Certifications & Warranty

Certifications

Warranty Terms: We provide a one-year warranty covering the equipment structure, assuring freedom from material and workmanship defects. Motors, power units, hydraulic cylinders, and all assembly components are protected for 12 months under normal use.

Frequently Asked Questions
What is the maximum lifting capacity of this model?
This heavy-duty two-post lift is engineered to handle up to 5,000kg (5 tons), making it suitable for a wide range of heavy vehicles.
Is this lift suitable for low-chassis vehicles?
Yes, it features an ultra-thin adapter design with a minimum height of only 95mm (3 3/4") and a thin cover plate of 33mm, allowing low-chassis vehicles to pass over easily.
What is the typical lead time for production and delivery?
Standard delivery is typically executed within 15 days after receiving the deposit, depending on order volume and current sales status.
Can I customize the color of the lift?
While our standard colors include Blue, Red, and Yellow, we are happy to accommodate special color requests to match your preferences.
Does the lift come with a warranty?
Yes, we offer a comprehensive one-year quality warranty on the structure and major components like motors, hydraulic cylinders, and switches.
Are custom sizes available for specific workshop needs?
Certainly! We offer customization options for dimensions to ensure the equipment fits your specific space or container requirements.
