Laser Cutting Lifts for Loading Steel and Galvanized Sheets

1 / 5

Laser Cutting Lifts for Loading Steel and Galvanized Sheets

Customization:	Available
After-sales Service:	Lifelong Maintenance
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.

XDL-500KG

Cup Quantity

Column Material

Seamless Steel Pipe

Color

Orange Color

Suction Cup Material

Rubber

Energy Use

Gas Source

Gas Pressure

0.6 to 0.8 MPa

Maximum Load

500kg-2000kg

Max Plate Size

1500X3000mm

Lifting Height

1100mm

Rotation

270°

Cantilever Length

Packaging & Delivery

Package Size

410.00cm * 80.00cm * 80.00cm

Gross Weight

460.000kg

Package Type

Plywood Boxes

Product Description

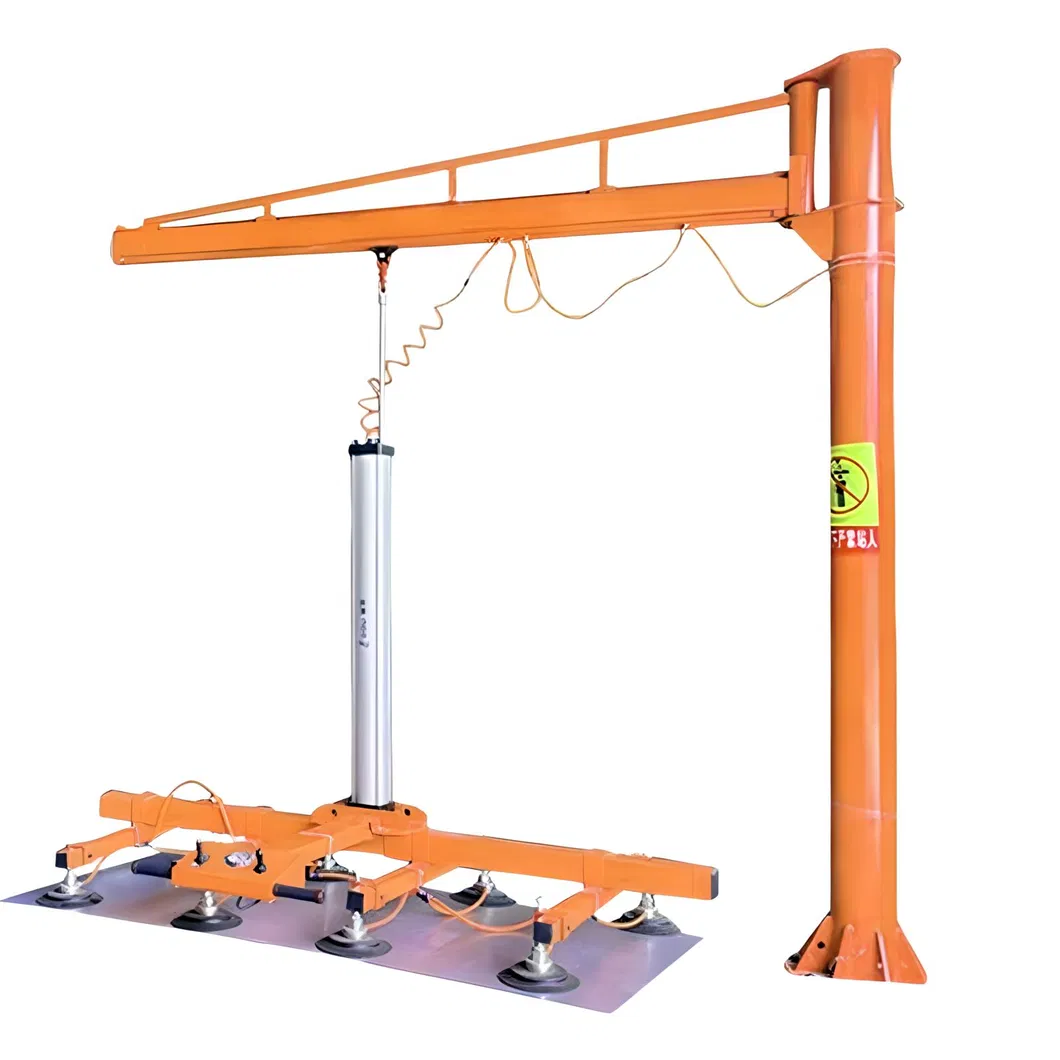

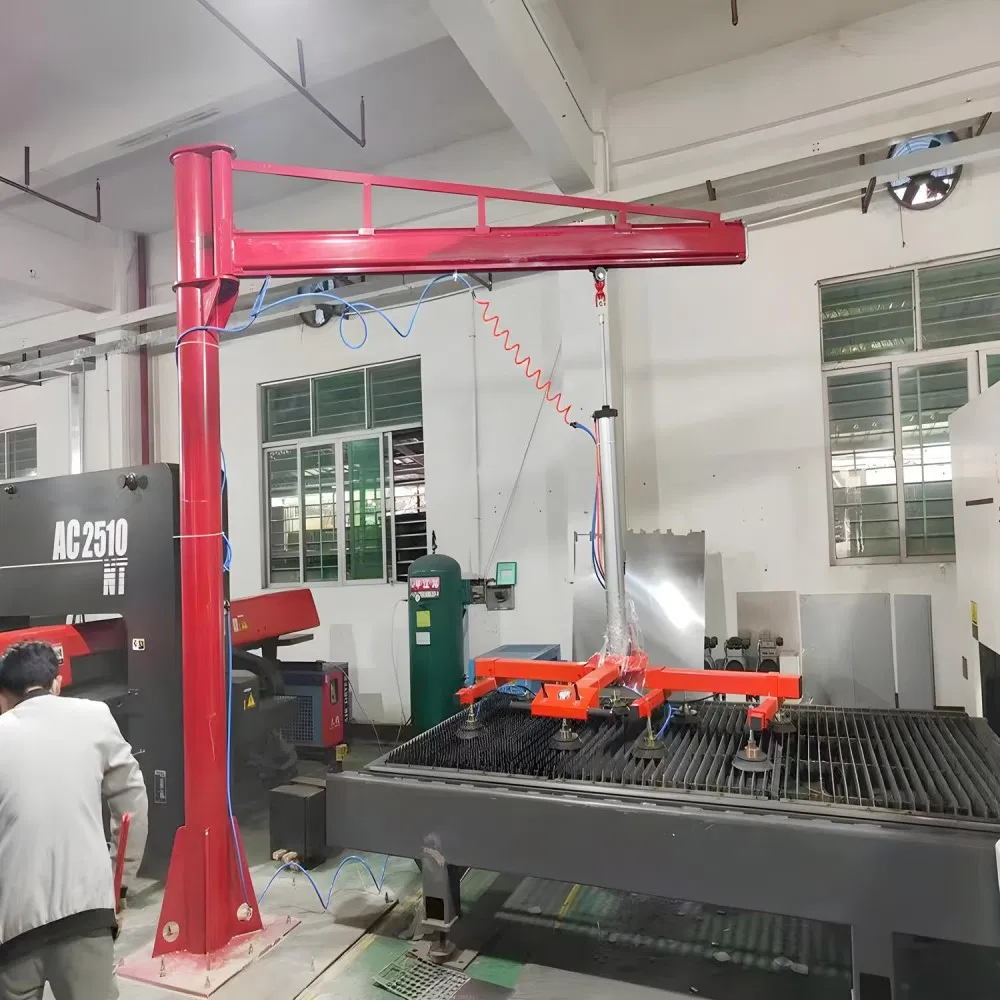

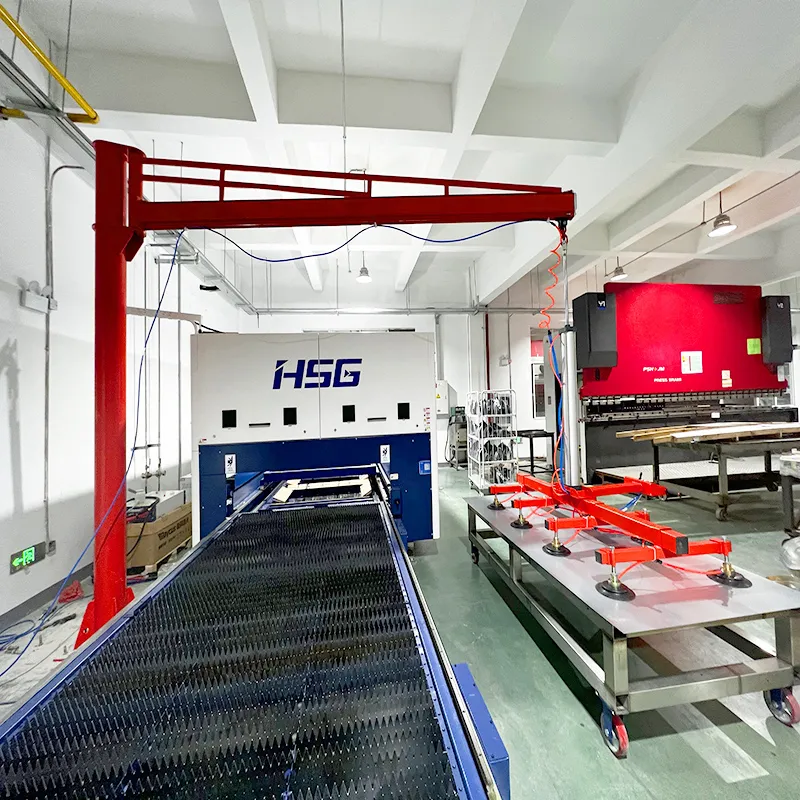

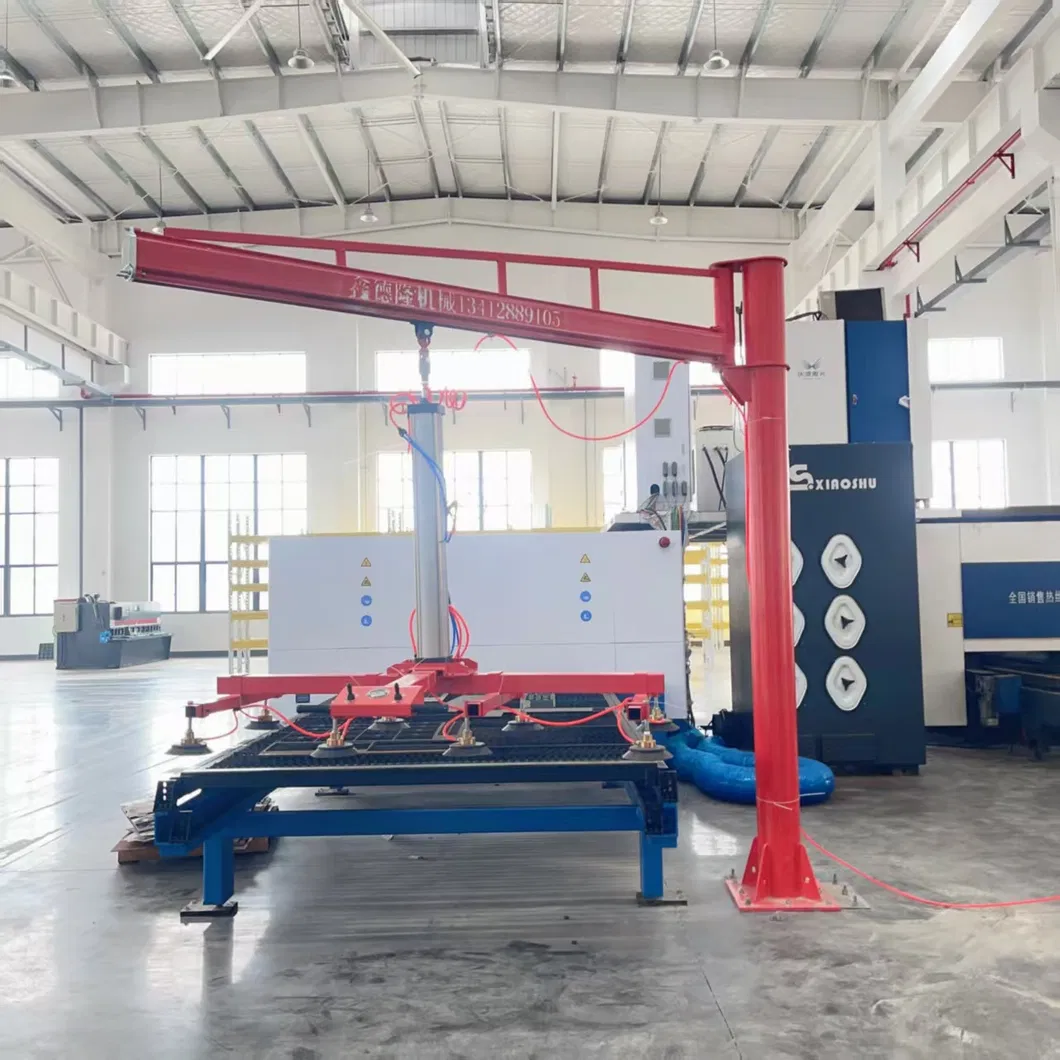

This product adopts a cantilever structure, and the size of the working range is determined by the length of the track. The track car can move back and forth, making it more convenient than a hard arm manipulator. This product can be used to transport products weighing less than 500kg.

This material handling system represents the latest generation of lightweight lifting machinery designed for contemporary manufacturing, offering superior efficiency, energy conservation, effort reduction, and ease of manipulation.

Technical Specifications

Model	Carne	Rocker Arm	Stroke	Capacity	Max Workpieces	Air Pressure
XDL-L100-B3M	3300mm	3000mm	100~1100mm	100kg	3000*1500mm	0.6~0.8Mpa
XDL-L300-B3M	3300mm	3000mm	100~1100mm	300kg	3000*1500mm	0.6~0.8Mpa
XDL-L500-B3M	3300mm	3000mm	100~1100mm	500kg	3000*1500mm	0.6~0.8Mpa
XDL-L500-B4M	3300mm	4000mm	100~1100mm	500kg	3000*1500mm	0.6~0.8Mpa

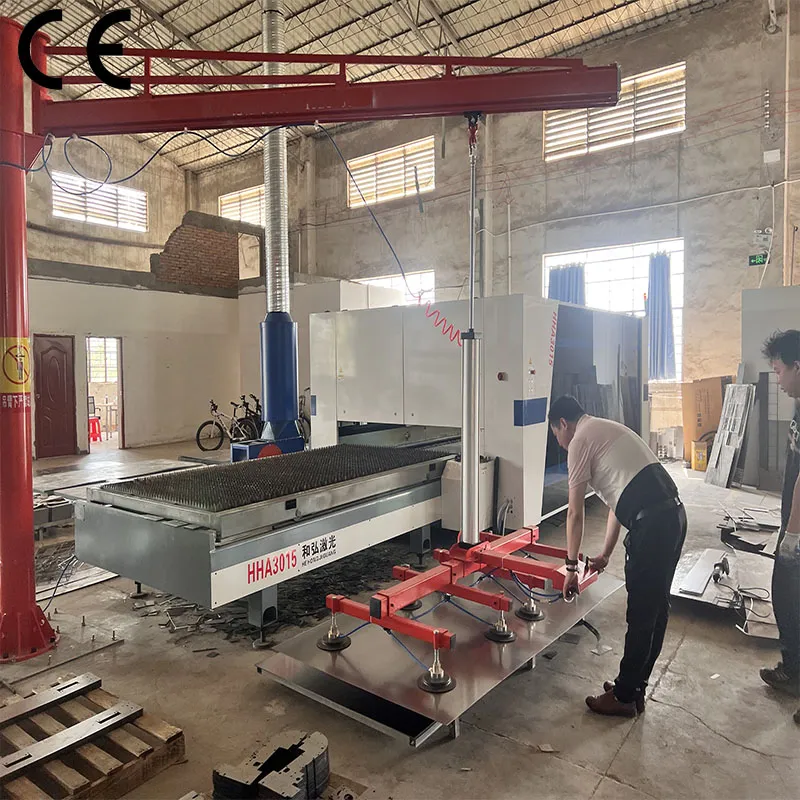

Product Advantages

Ease of Use: The design of slewing jib crane systems is simple, allowing for fast, safe, and precise material handling.

Low Maintenance: Simple construction means fewer parts to service and reduced maintenance requirements.

Versatile Handling: Perfect solution for steel, aluminum, plastic, glass, stone, or wood components.

Lifting Tip: When lifting the workpiece, the hanging must be firm and stable. Press the button first to tighten the chain before lifting. Check the hanging buckle and keep the object slightly off the ground for testing before full lifting.

How to Choose a Rocker Arm Lifter?

What is the size and weight of the workpiece you plan to lift?
Will it be used for loading/unloading punching machines, bending machines, or CNC laser cutting systems?
What is the minimum working radius and plant height of your workshop?
What is the subgrade situation of your workshop floor?
Do you prefer a pneumatic or electric operation type?

Frequently Asked Questions

Q1. Can the crane be customized?

Yes, every customer's working conditions are different. All of our products can be customized according to specific requirements including lifting capacity, span, and height.

Q2. How many modes of operation are available?

We offer various control options including push-button suspension controls, remote controls, or cab-controlled systems depending on your operational needs.

Q3. Can a crane be installed in a workshop with low headroom?

Yes, we have specialized products designed specifically for low headroom environments. Our engineers can provide a custom design based on your workshop dimensions.

Q4. Do you supply additional lifting tools?

Yes, we provide a wide range of lifting tools including various types of hooks, electromagnetic lifters, grabs, and specialized suction pads.

Q5. What information is needed for a design solution?

To provide the best solution, please provide: 1. Lifting capacity 2. Span length 3. Lifting height 4. Power supply voltage 5. Working environment and material types.

Q6. Which operation types are available?

Customers can choose between pneumatic types (using gas source pressure) or electric types based on their facility's infrastructure.
