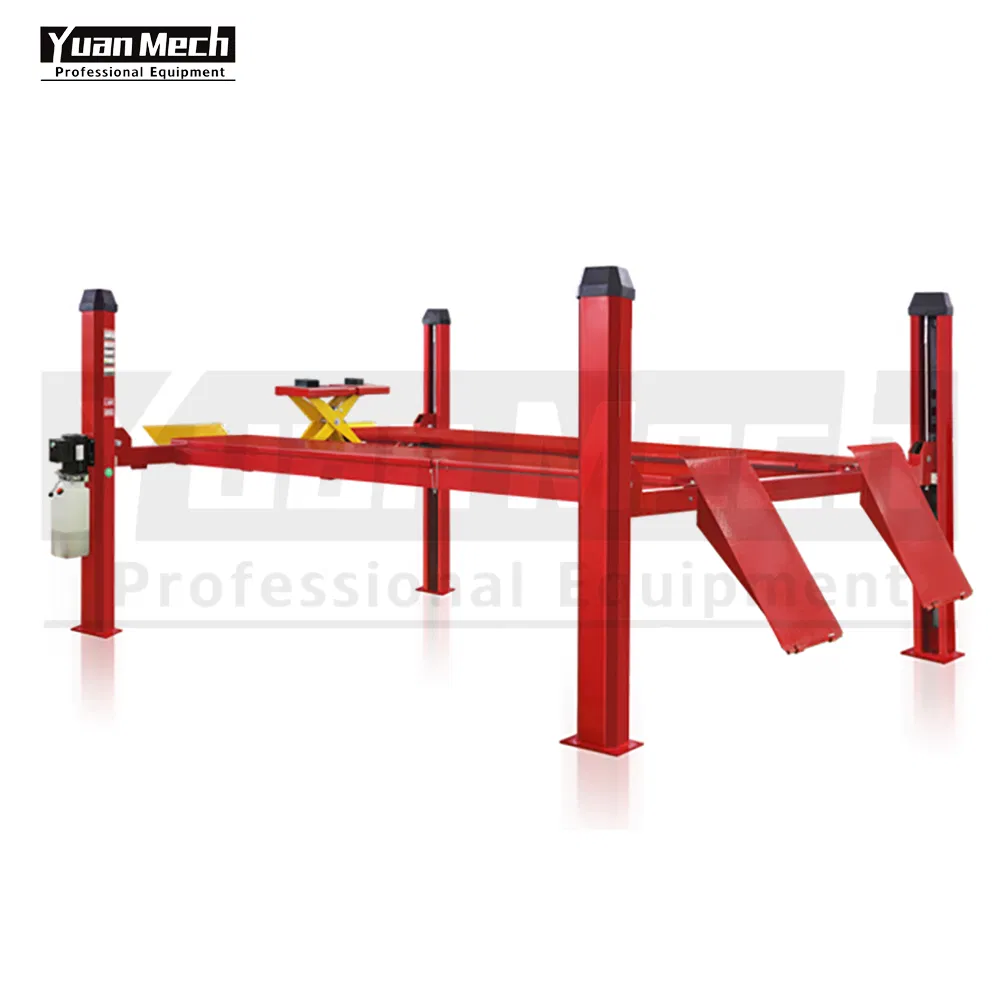

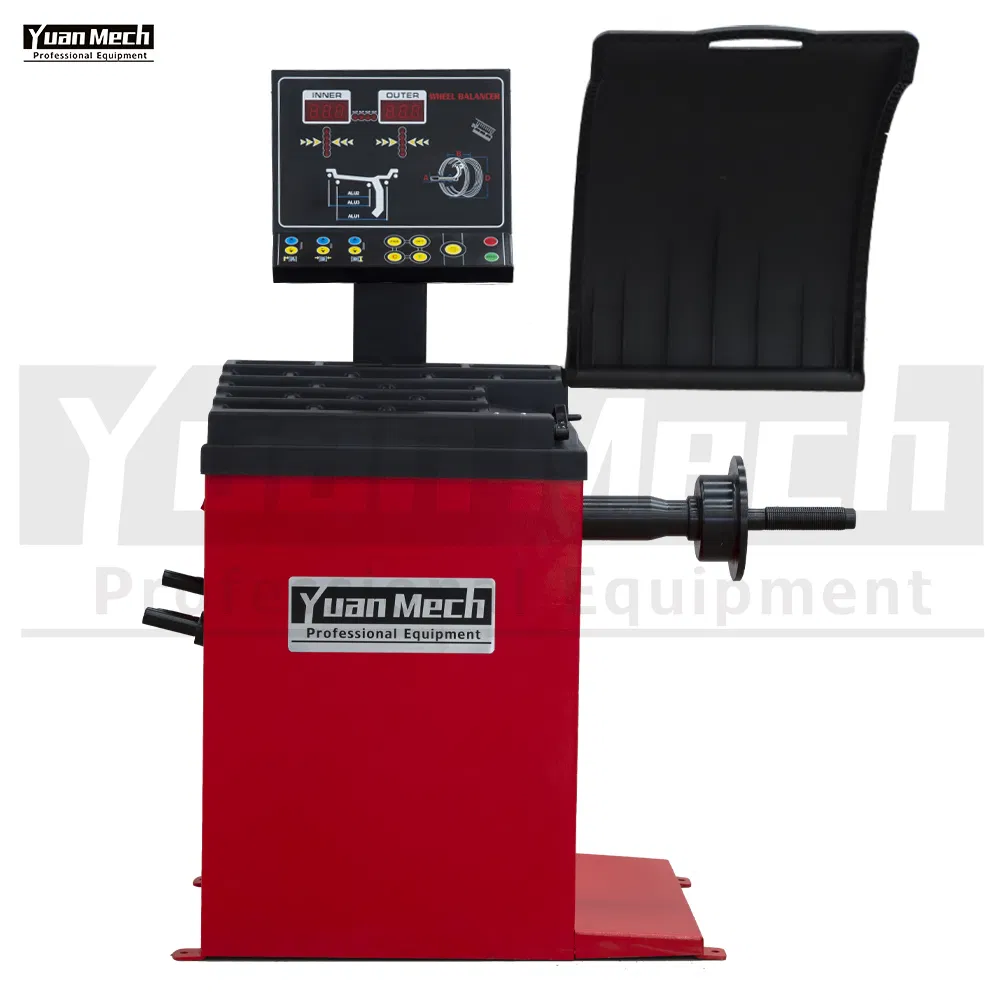

Tire Changer Wheel Alignment Balancer Machine 4 Post Car Lift for Garage
Tire Changer Wheel Alignment Balancer Machine 4 Post Car Lift for Garage
Tire Changer Wheel Alignment Balancer Machine 4 Post Car Lift for Garage
Tire Changer Wheel Alignment Balancer Machine 4 Post Car Lift for Garage
Tire Changer Wheel Alignment Balancer Machine 4 Post Car Lift for Garage
1 / 5
Tire Changer Wheel Alignment Balancer Machine 4 Post Car Lift for Garage
Tire Changer Wheel Alignment Balancer Machine 4 Post Car Lift for Garage
Tire Changer Wheel Alignment Balancer Machine 4 Post Car Lift for Garage
Tire Changer Wheel Alignment Balancer Machine 4 Post Car Lift for Garage
Tire Changer Wheel Alignment Balancer Machine 4 Post Car Lift for Garage

Tire Changer Wheel Alignment Balancer Machine 4 Post Car Lift for Garage

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Technical Specifications

Product Name:

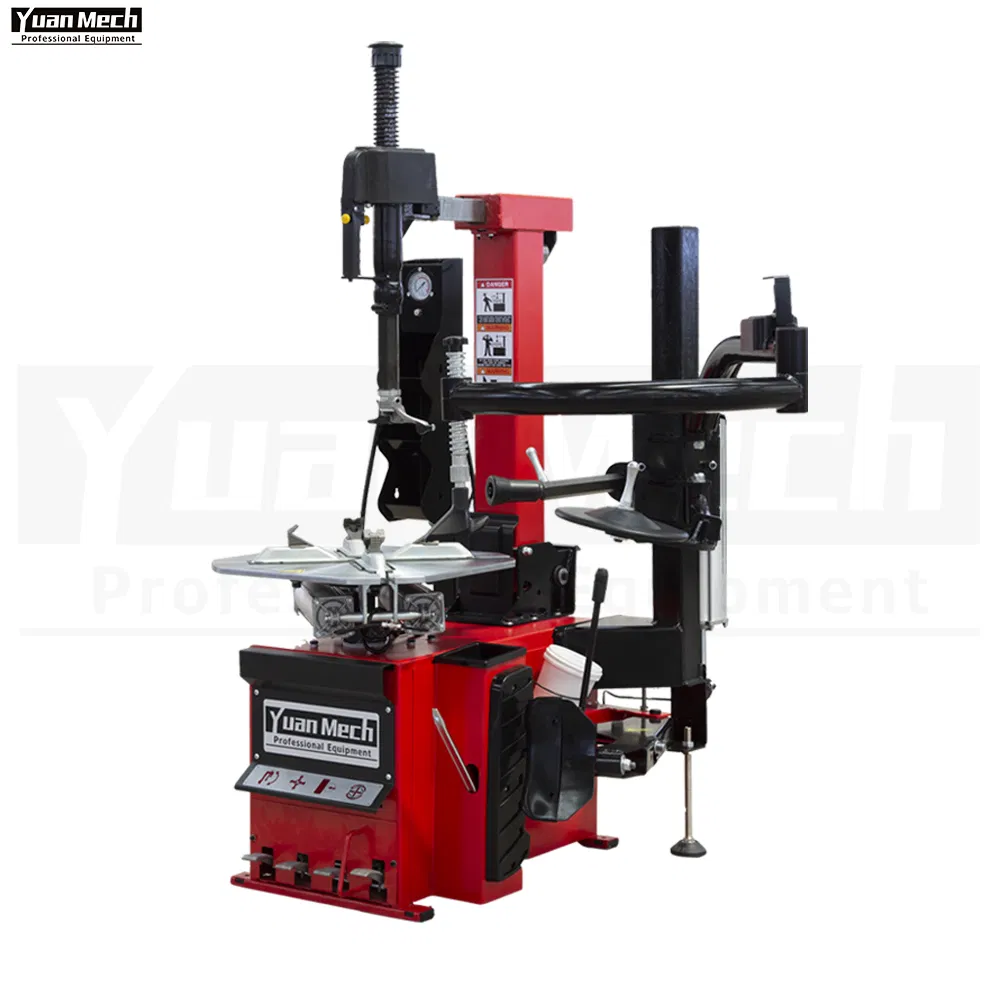

Tire Changer and Wheel Balancing Machine Combo
Structure:
Vertical
Power Source:
Pneumatic
Automatic:
Semi-Automatic
Working Pressure:
8-10bar/117-145psi
Outside Clamping:
10-22"
Inside Clamping:
13-24"
Max. Wheel Width:
3-15"
Max. Wheel Diameter:
1040mm (41")
Bead Breaker Force:
2500kg
Machine Weight:
N.W:205kg G.W:225kg
Certification:
CE
Equipment Banner Machine Overview

Product Gallery

Feature Header
Tire Changer Detail 1
Tire Changer Detail 2
Tire Changer Detail 3

Product Series Comparison

Type Series Model 19" 20" 22" 24" Leverless Helper Arm Option Bead Blaster
Swing Arm MC Series MC951 -------
C Series C952 -------
C Series C953 ✓------
C Series C955 --22"--Optional Left/Right-
Tilt Back C Series C957 --22"-OptionalTwo/Three Point-
C Series C958 ---24"OptionalTwo/Three Point-

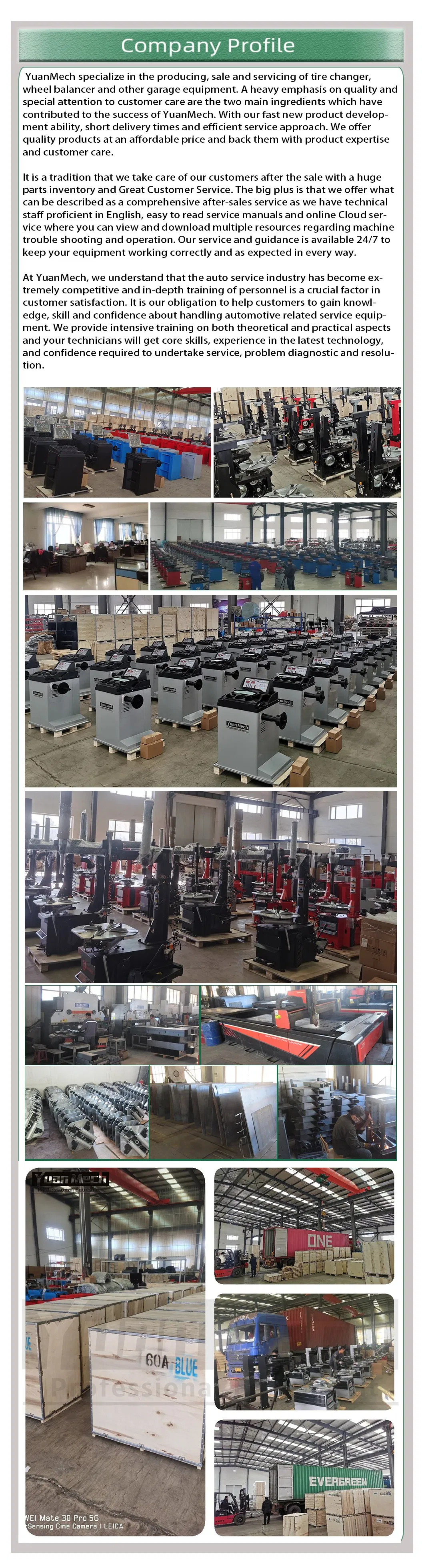

Machine Dimensions Operational Details Component Breakdown
📦
Packaging Details: Plywood transport package.
Standard Size: 200cm * 200cm * 200cm | Gross Weight: 1800kg

Frequently Asked Questions

Why is the Filter-Regulator (FRL) so important for this machine?
It dries the air to prevent moisture inside pneumatic components and lubricates rubber seals to extend service life. It is essential for maintaining the long-term performance of the machine.
How do I troubleshoot if the working table doesn't turn?
Disconnect the belt and check if the motor runs properly. If the motor operates in both clockwise and anti-clockwise directions, the issue likely resides with the switch rather than the motor or gearbox.
What should I check if the table lacks power to clamp the rim?
Check for air leaks in the table cylinder, turning air distributor, or pedal valve. Leaks typically occur on the covers or internal piston, reducing clamping force.
What is the clamping range capacity for this combo?
The machine supports outside clamping from 10" to 22" and inside clamping from 13" to 24", making it suitable for a wide variety of wheel sizes.
What are the air pressure requirements for operation?
This equipment requires a pneumatic power source with a working pressure of 8-10 bar (approximately 117-145 psi).
Can this machine handle large diameter wheels?
Yes, it is designed to handle a maximum wheel diameter of up to 1040mm (41 inches) and a maximum wheel width of 15 inches.
