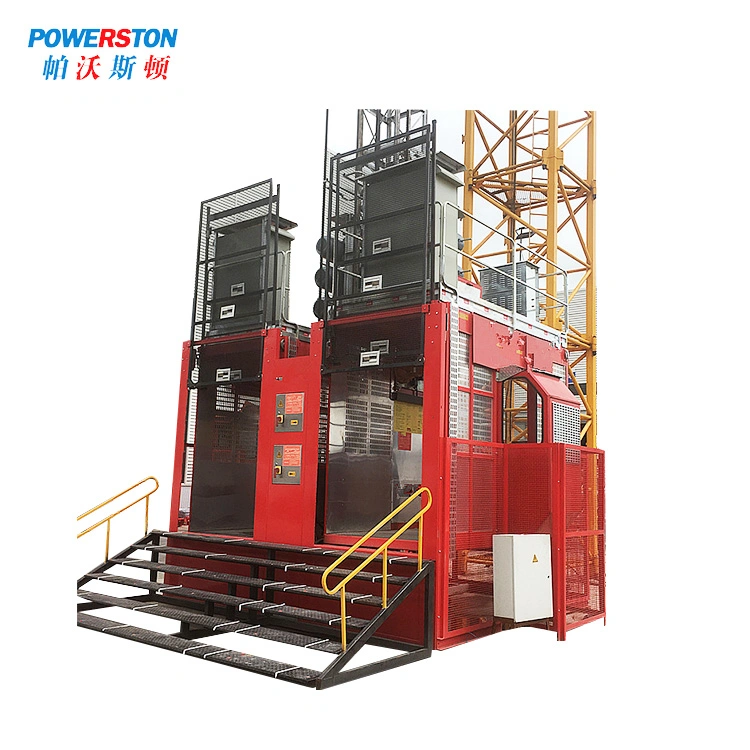

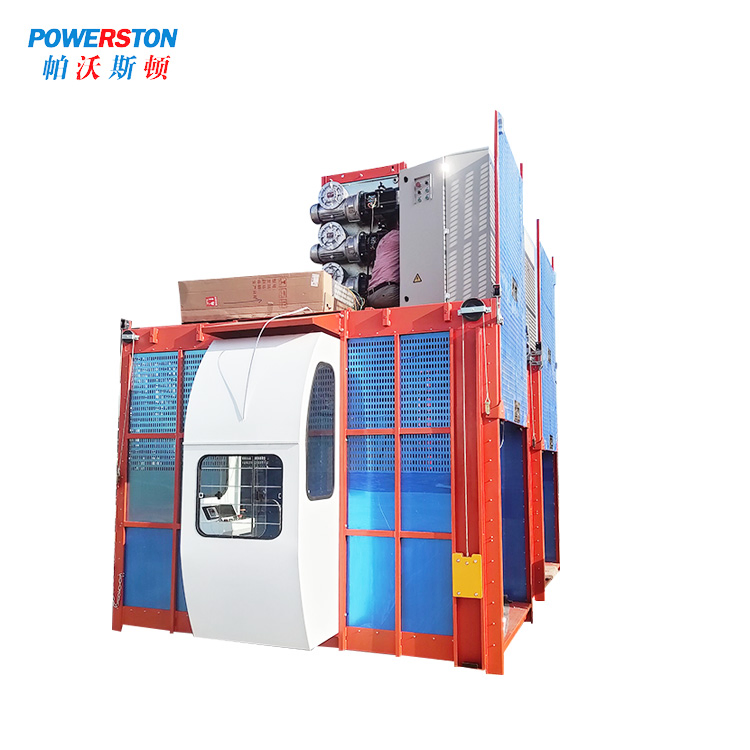

Construction Hoist Elevator Sc100/Sc200/Sc270/Sc320 Cargo Lift
Construction Hoist Elevator Sc100/Sc200/Sc270/Sc320 Cargo Lift
Construction Hoist Elevator Sc100/Sc200/Sc270/Sc320 Cargo Lift
Construction Hoist Elevator Sc100/Sc200/Sc270/Sc320 Cargo Lift
Construction Hoist Elevator Sc100/Sc200/Sc270/Sc320 Cargo Lift
1 / 5
Construction Hoist Elevator Sc100/Sc200/Sc270/Sc320 Cargo Lift
Construction Hoist Elevator Sc100/Sc200/Sc270/Sc320 Cargo Lift
Construction Hoist Elevator Sc100/Sc200/Sc270/Sc320 Cargo Lift
Construction Hoist Elevator Sc100/Sc200/Sc270/Sc320 Cargo Lift
Construction Hoist Elevator Sc100/Sc200/Sc270/Sc320 Cargo Lift

Construction Hoist Elevator Sc100/Sc200/Sc270/Sc320 Cargo Lift

Customization: Available
After-sales Service: Online Service
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
SC200
Type
Stationary
Load Capacity
1T - 2T
Usage
Construction Hoist
Sling Type
Chain
Lift Drive
Electric Motor
Lift Mechanism
Lift Chain
Deceleration
With Deceleration Device
Elevator Door
Straight Fractional Door
Mast Section
650 * 650 * 1508mm
Drive System
Mod, VFD
Lifting Speed
0-96m/Min
Cage Size (L*W*H)
3.0*1.3*2.5m
HS Code
84313100
🏗️ Product Overview
The construction hoist climbs up along the mast section driven by an electric hoist, featuring a 2000kg capacity for each cage. By integrating a frequency conversion device (VFD), mechanical wear is significantly reduced, ensuring smoother operation and longevity. This equipment is widely utilized in diverse construction projects, including industrial and residential buildings, bridge construction, large chimney installations, and the shipping industry.
📊 Technical Parameters

Low Speed Models (TD Series)

Model SC100TD SC200TD SC270TD SC320TD
Rated Load (per cage) 1000kg 2000kg 2700kg 3200kg
Lifting Speed 36m/min 36m/min 36m/min 36m/min
Motor Power 2*11kw / 2*2*11kw 3*11kw / 2*3*11kw 3*15kw / 2*3*15kw 3*18.5kw / 2*3*18.5kw
Cage Dimension 3.0m(L)*1.3m(W)*2.5m(H) or customized

Medium Speed Models (GZ Series)

Model SC100GZ SC200GZ SC270GZ SC320GZ
Rated Load (per cage) 1000kg 2000kg 2700kg 3200kg
Lifting Speed 0-63m/min 0-63m/min 0-63m/min 0-63m/min
Motor Power 2*15kw 3*18.5kw / 2*3*15kw 3*22kw / 2*3*18.5kw 2*3*22kw

High Speed Models (G Series)

Model SC100G SC200G
Rated Load (per cage) 1000kg 2000kg
Lifting Speed 0-96m/min 0-96m/min
Motor Power 2*2*22kw 2*2*22kw
Cage Type Double
📸 Product Gallery

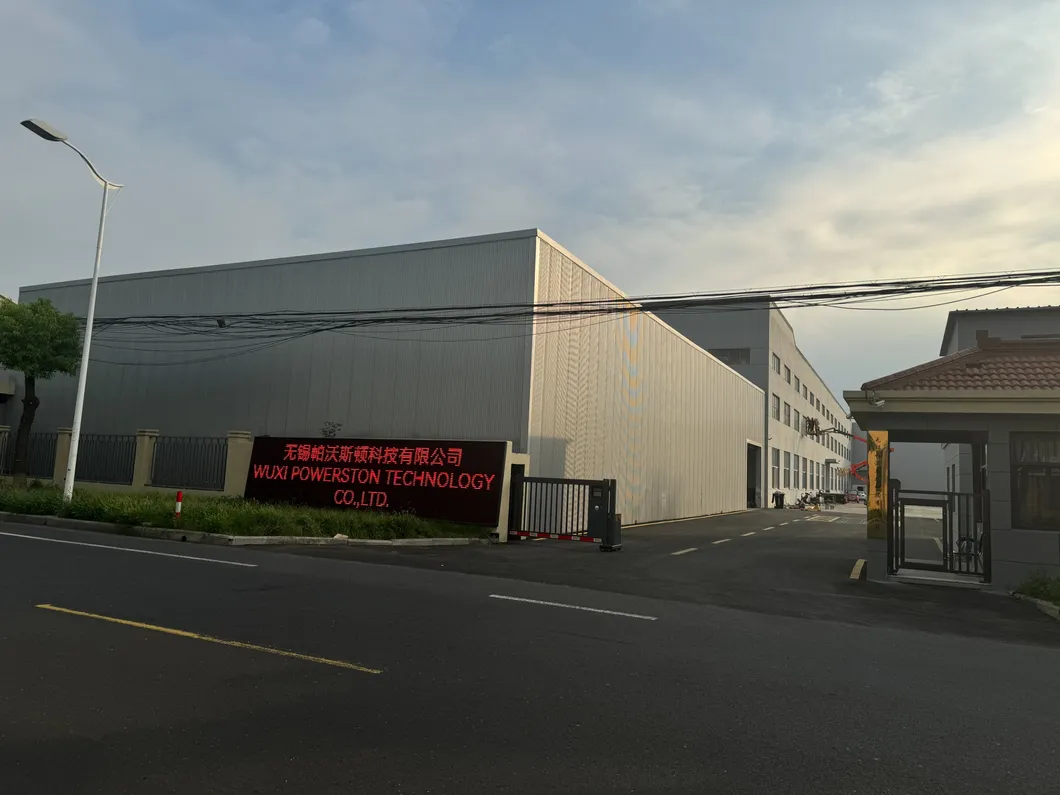

Construction Hoist View 1

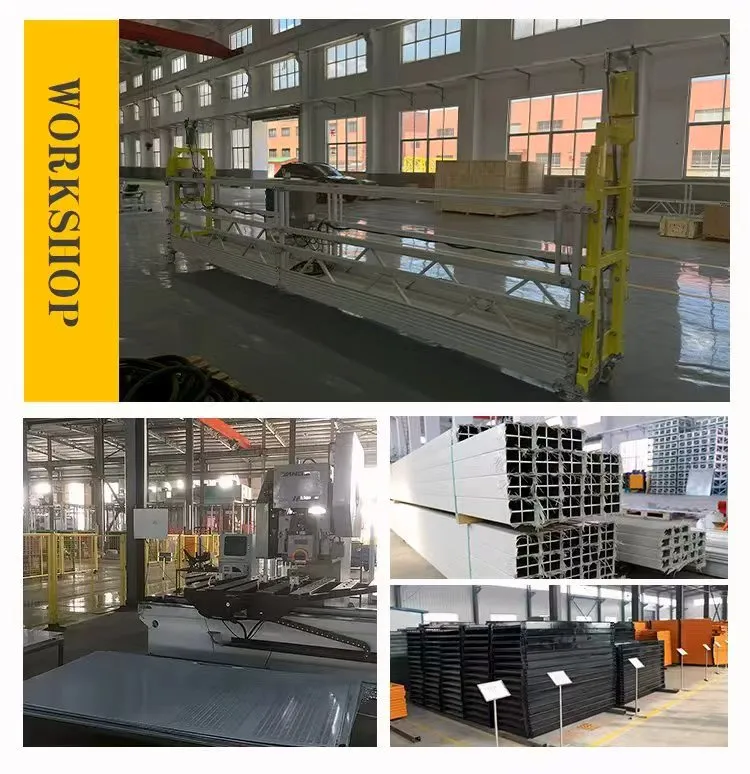

Construction Hoist View 2

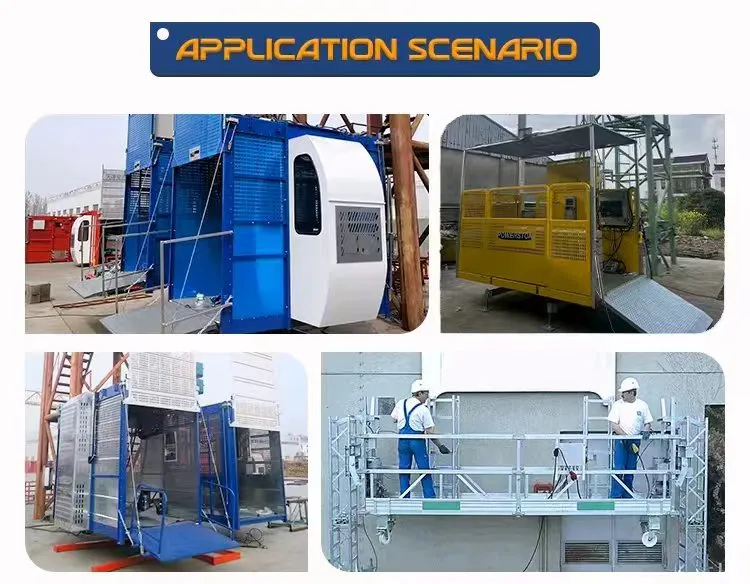

Construction Hoist View 3
Construction Hoist View 4

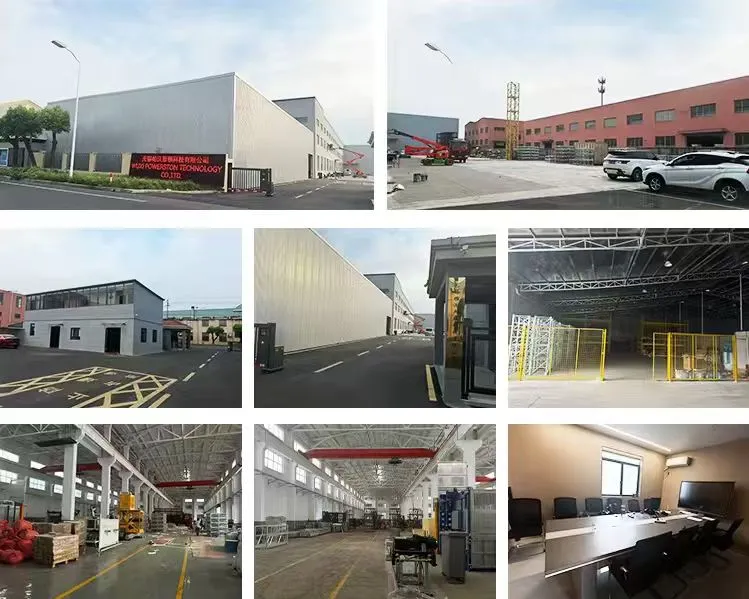

Construction Hoist View 5
Construction Hoist View 6
Construction Hoist View 7
Construction Hoist View 8
Construction Hoist View 9
❓ FAQ
What is the maximum load capacity of these hoists?
The hoists offer various rated loads depending on the model, ranging from 1000kg (SC100) up to 3200kg (SC320) per cage.
How fast can the hoist lift materials or passengers?
We provide three speed tiers: Low speed (36m/min), Medium speed (0-63m/min), and High speed (0-96m/min) using VFD technology.
Can the cage dimensions be customized?
Yes, while our standard cage size is 3.0m * 1.3m * 2.5m, we offer customization to meet specific project requirements.
What are the benefits of the frequency conversion device?
The VFD device ensures smooth starting and braking, which greatly reduces mechanical wear and increases the lifespan of the drive system.
What types of projects are suitable for this hoist?
It is ideal for high-rise residential and industrial buildings, bridge construction, large chimneys, and shipyards.
What is the standard mast section size?
The standard mast section dimensions are 650mm * 650mm * 1508mm.
