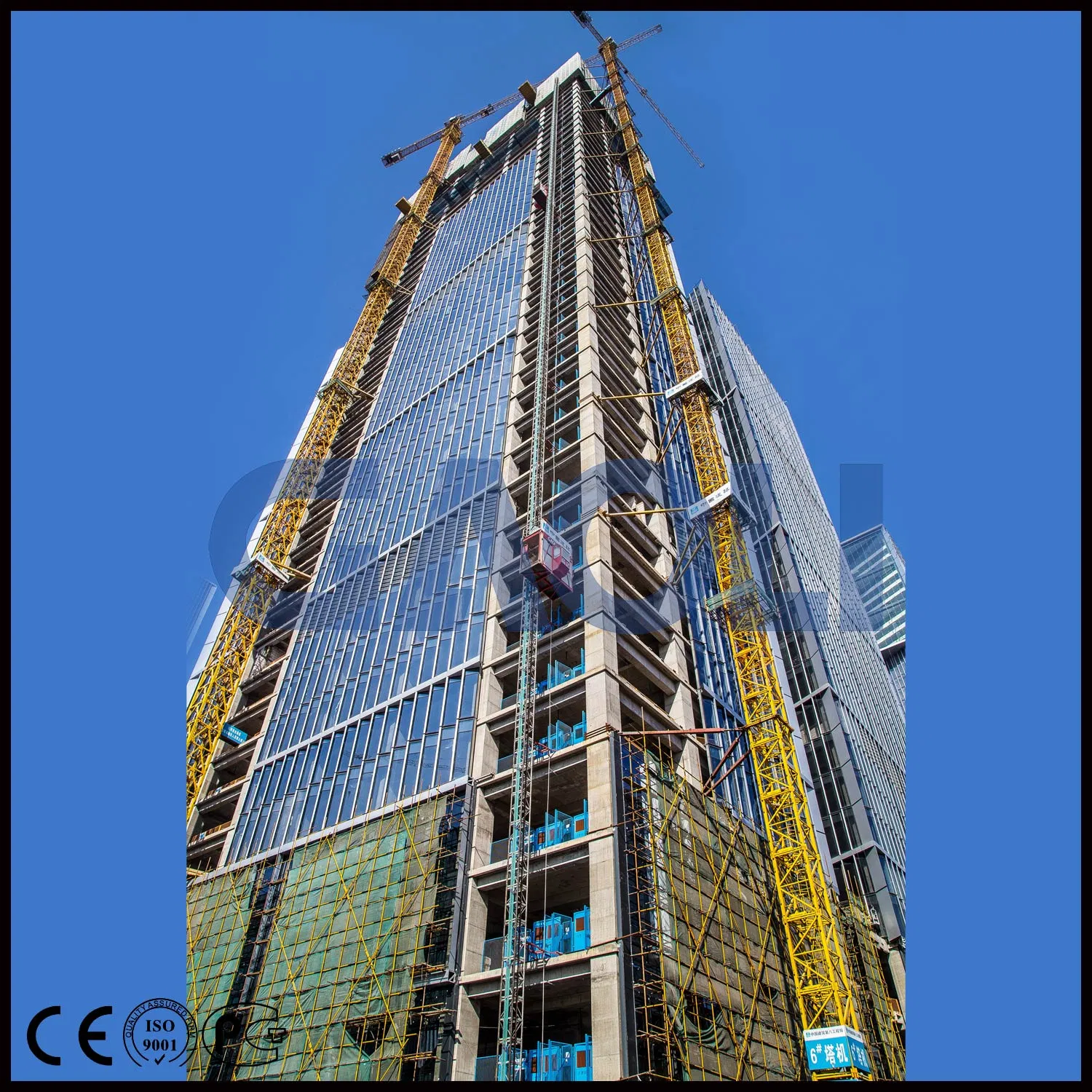

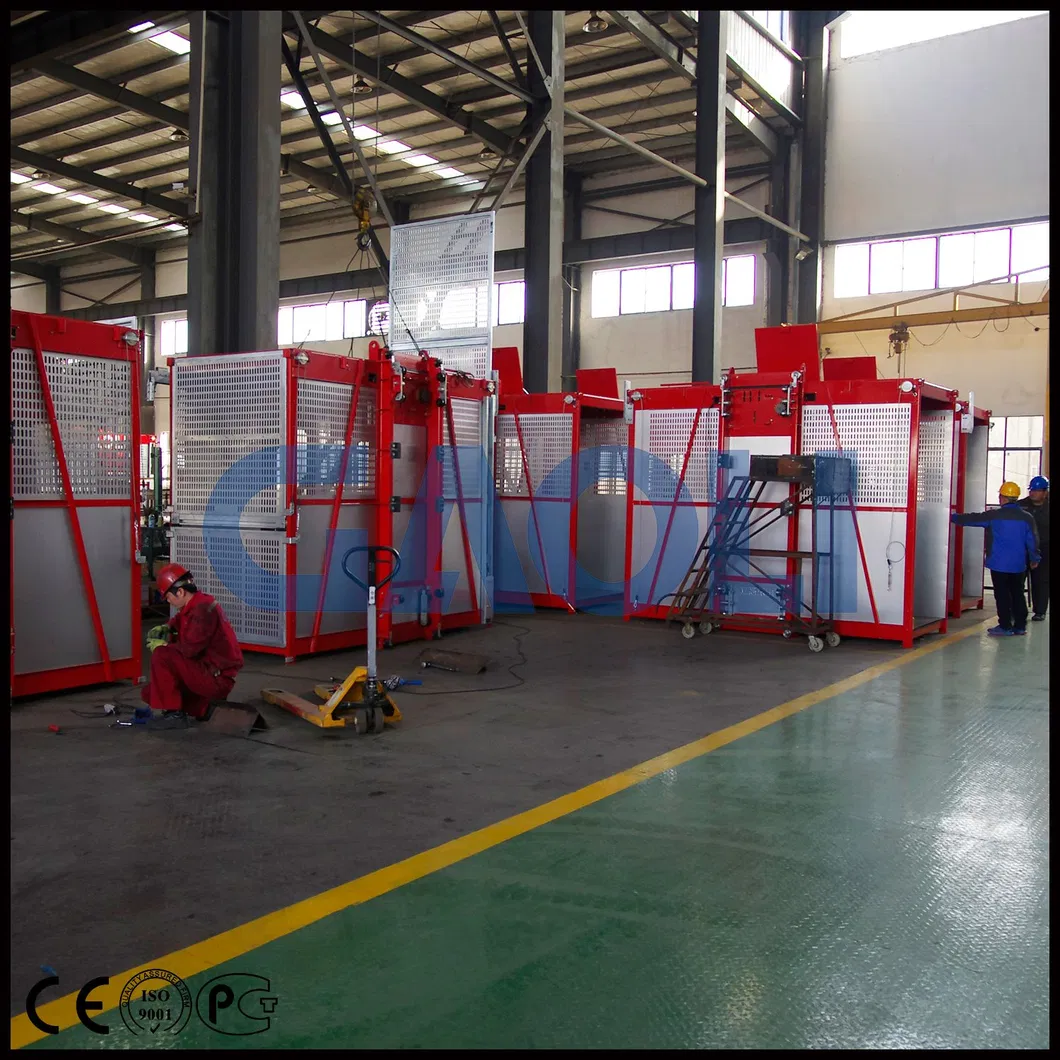

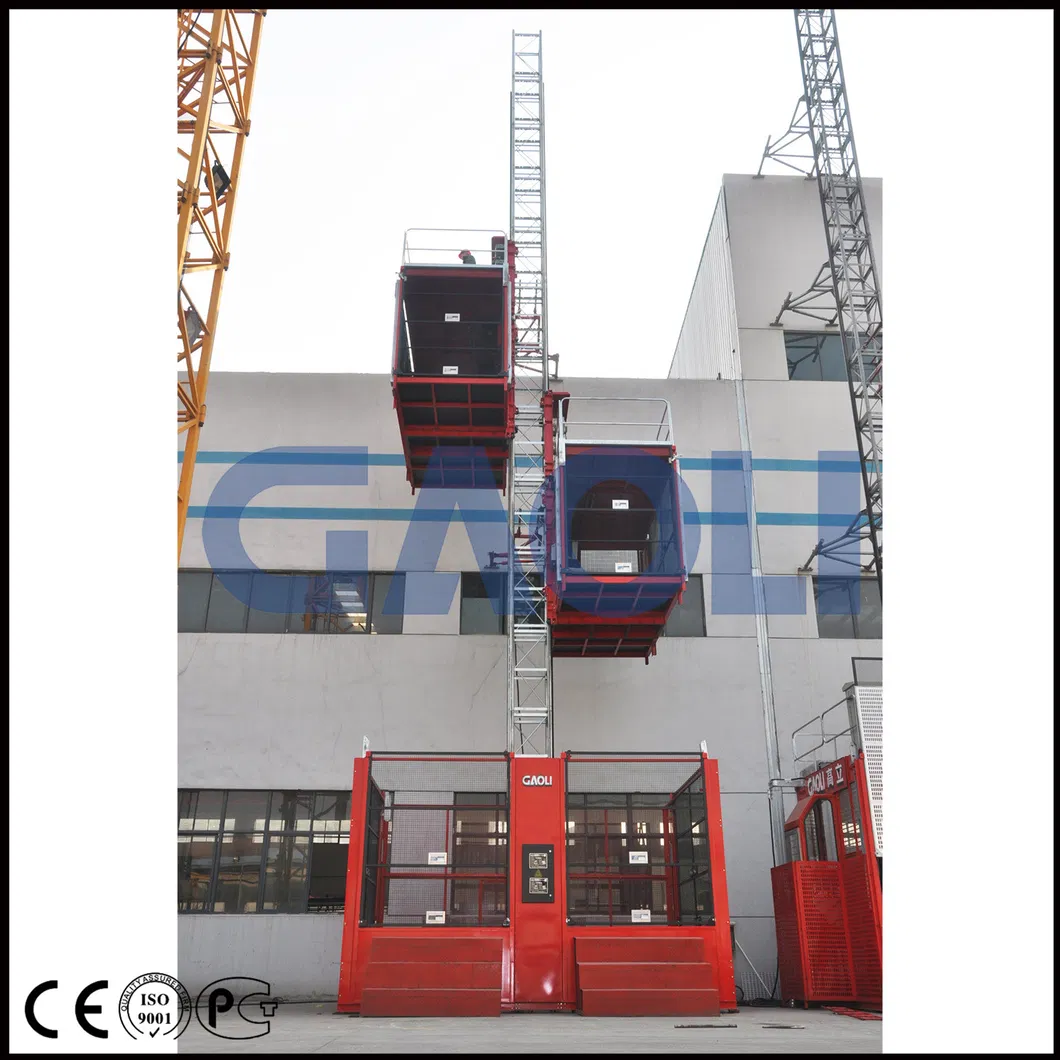

Double Cabin Electric Chain Construction Building Hoist / Elevator / Lift
Construction hoist is widely used as construction machinery to lift people and building materials in internal and external decoration, bridge building, chimneys, and more. SC series Construction Hoist adopts rack-and-pinion transmission, featuring a compact structure, convenient operation, and reliable performance.
| Parameter | Unit | SC100 | SC100/100 | SC200 | SC200/200 |
|---|---|---|---|---|---|
| Rated capacity | kg | 1000 | 2×1000 | 2000 | 2×2000 |
| Number of people | No. | 12 | 2×12 | 16 | 2×16 |
| Rated lifting speed | m/min | 36 | 36 | 36 | 36 |
| Max.lifting height | m | 200 | 200 | 200 | 200 |
| Motor power | kw | 2×11 | 2×2×11 | 3×11 | 2×3×11 |
| Cage inner size | m | 3×1.3×2.2 | 3×1.3×2.2 | 3×1.3×2.2 | 3×1.3×2.2 |
| Mast section weight | kg | 124 | 148 | 124 | 148 |
