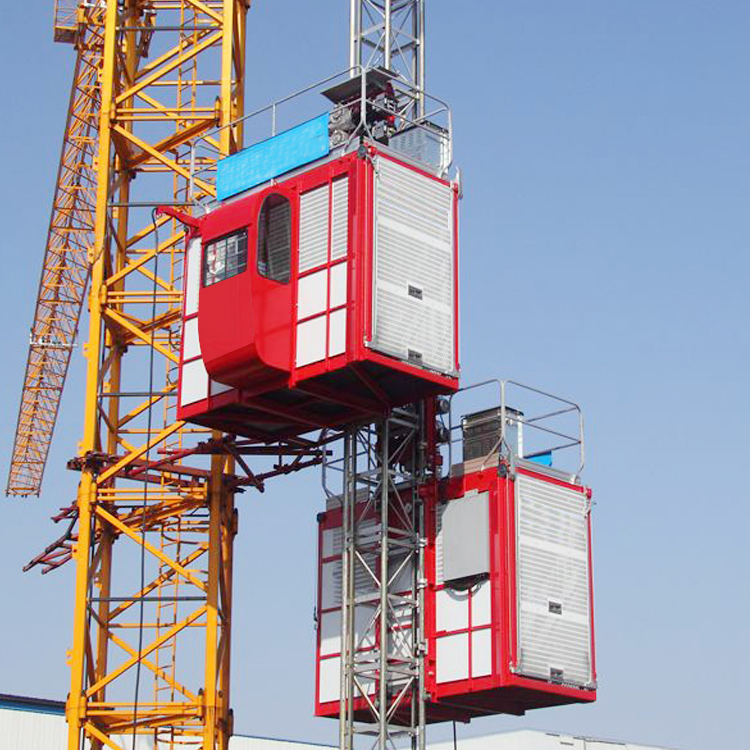

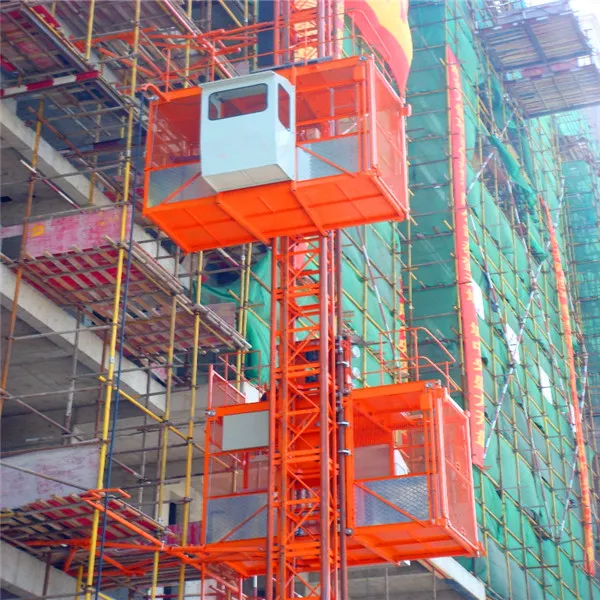

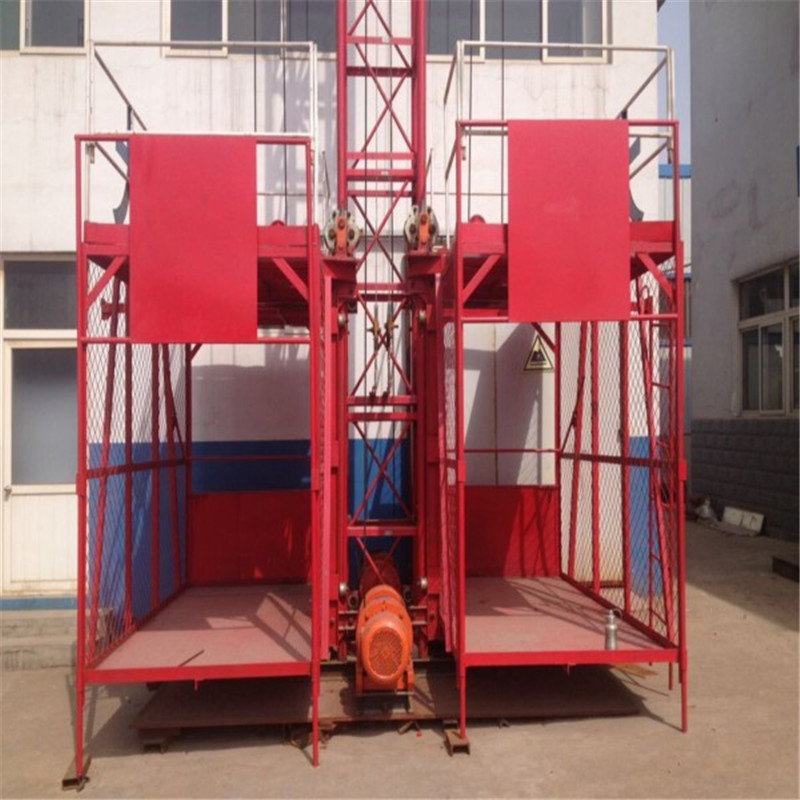

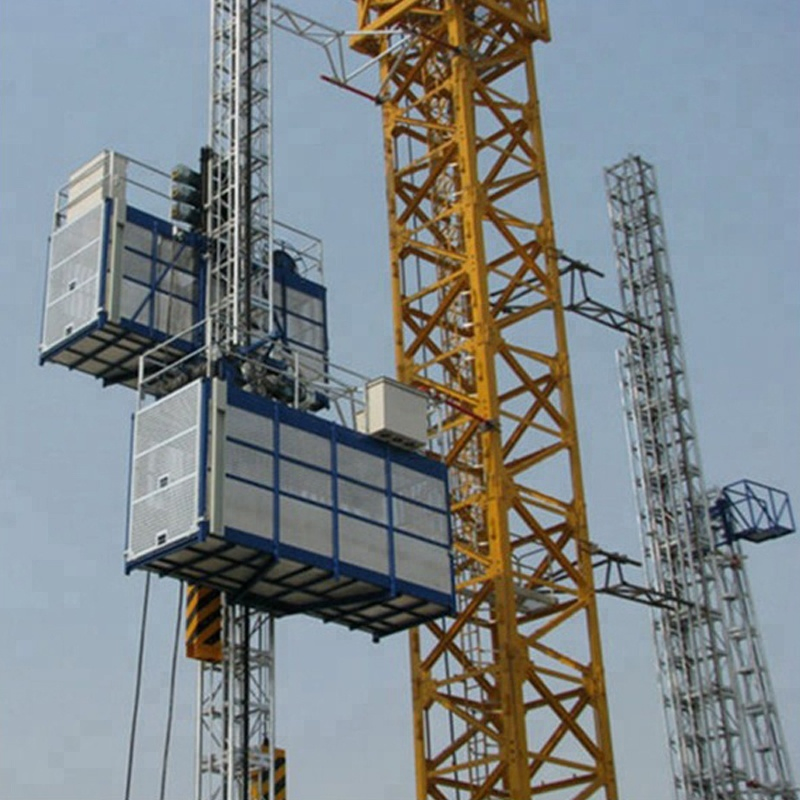

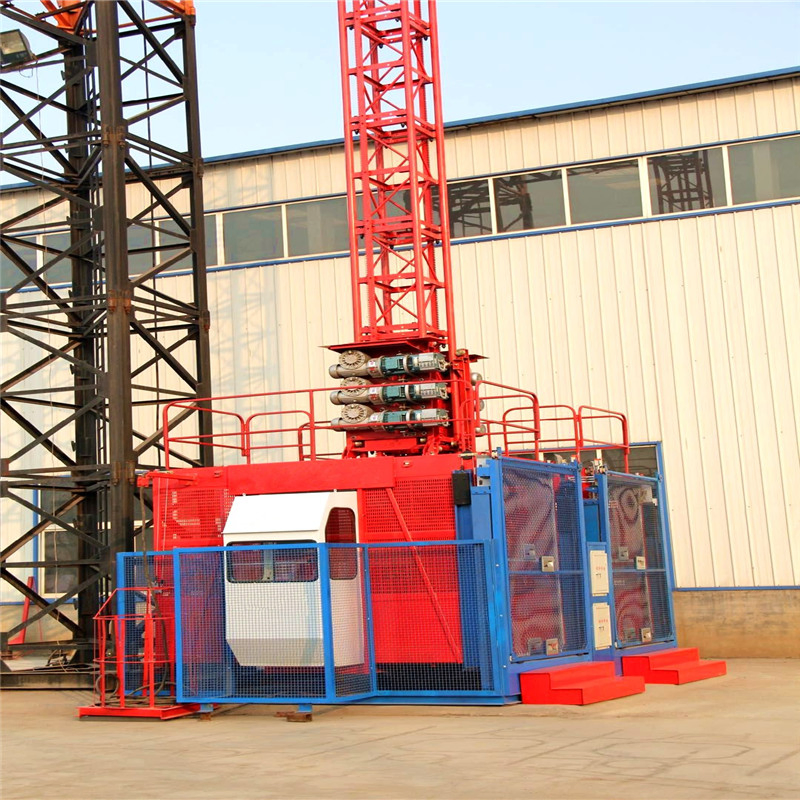

Double Cabin 2t Construction Hoist Lift in USA

■ Basic Info.

Model NO.SC200/200

TypeCylinder Hydraulic

Load Capacity1T - 2T

Speed20M/Min - 40M/Min

UsageConstruction Hoist

Sling TypeChain

Lift DriveElectric Motor

Max Lift Height200m

CageDouble Cage

Motor Power2*3*11kw

Mast Size650*650*1508mm

HS Code8428909090

■ Product Description

Variable Frequency SC200/200 Construction Hoist Lift Building Hoist

Adopting advanced technology, the SC200 series building construction elevator is novel in design, reasonable in structure, simple in operation, and convenient in assembly and disassembly. The construction lift incorporates famous brand electric components and main parts in the transmission mechanism. The steel structure of this 2-ton construction elevator is made of high-quality steel materials and welded with CO2 gas shield welding. Surface paint is made with imported raw materials in brilliant, long-lasting colors.

The unit is provided with reliable safety interlock devices, safety switches, breakage protection switches, upper and lower limits, and limit switches. Progressive dropping safety devices and safety protection hooks are provided, complying fully with safety standards.

■ Technical Specifications

Item	SC200/200	SS100/100
Free standing height(m)	50	22
Max. Lifting height (m)	150	60
Rated load(Kg)	2×2000	2×1000
Motor power(Kw)	(2×3) ×11	2×7.5
Lifting speed(m/min)	33	24
Mast size(m)	650×650×1508	650×650×1508
Main limb material	φ76×4.5/Q345B	φ76×4/2 Q345B
Cage inner dimensions(m)	3×1.3×2.4	3×1.5×2

■ Advantages

✔ High quality of motor, low noise

✔ Strong load ability, low voltage start

✔ Compact structure, convenient installation

✔ Running test performed before delivery

✔ Pre-refueled driving mechanism

✔ High quality gear reducer and anti-dropping device

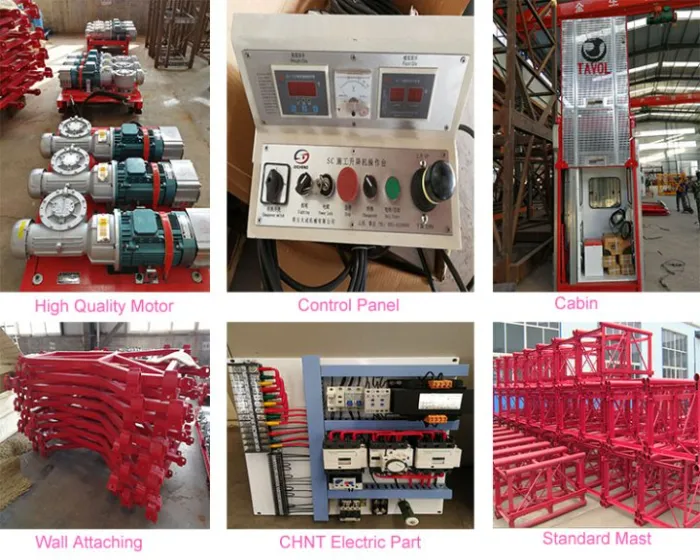

■ Visual Gallery

■ FAQ

Q1: What is the maximum load capacity of the SC200/200 hoist? The SC200/200 model features a rated load capacity of 2x2000kg, making it suitable for heavy-duty construction tasks.

Q2: What safety devices are equipped on this construction elevator? The lift is equipped with progressive dropping safety devices, safety interlocks, breakage protection switches, and upper/lower limit switches.

Q3: Can the lifting height be customized? Yes, while the standard free-standing height is 50m, the maximum lifting height can reach up to 200m depending on the project requirements.

Q4: What are the dimensions of the mast section? The standard mast size for the SC200/200 is 650mm x 650mm x 1508mm, utilizing high-quality Q345B steel tubes.

Q5: Is the lifting speed adjustable? This model uses variable frequency technology, allowing for smooth operation with a lifting speed range generally between 33m/min to 40m/min.

Q6: What type of motor is used in the drive mechanism? The hoist utilizes a high-quality electric motor system, typically configured as 2x3x11kw for the double cage setup.
