Heavy-Duty Electric Shipboard Crane Car Lift for 800kg Capacity

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Overview

Model NO.

HTA3

Application

Crane, Shipboard, Warehouse, Building

Lift Mechanism

Telescoping Lift

Driven Type

Maximum Load

6000N

Maximum Speed

5-100mm/S

Certification

CE, RoHS

Temperature

-45 to +75°C

Product Features

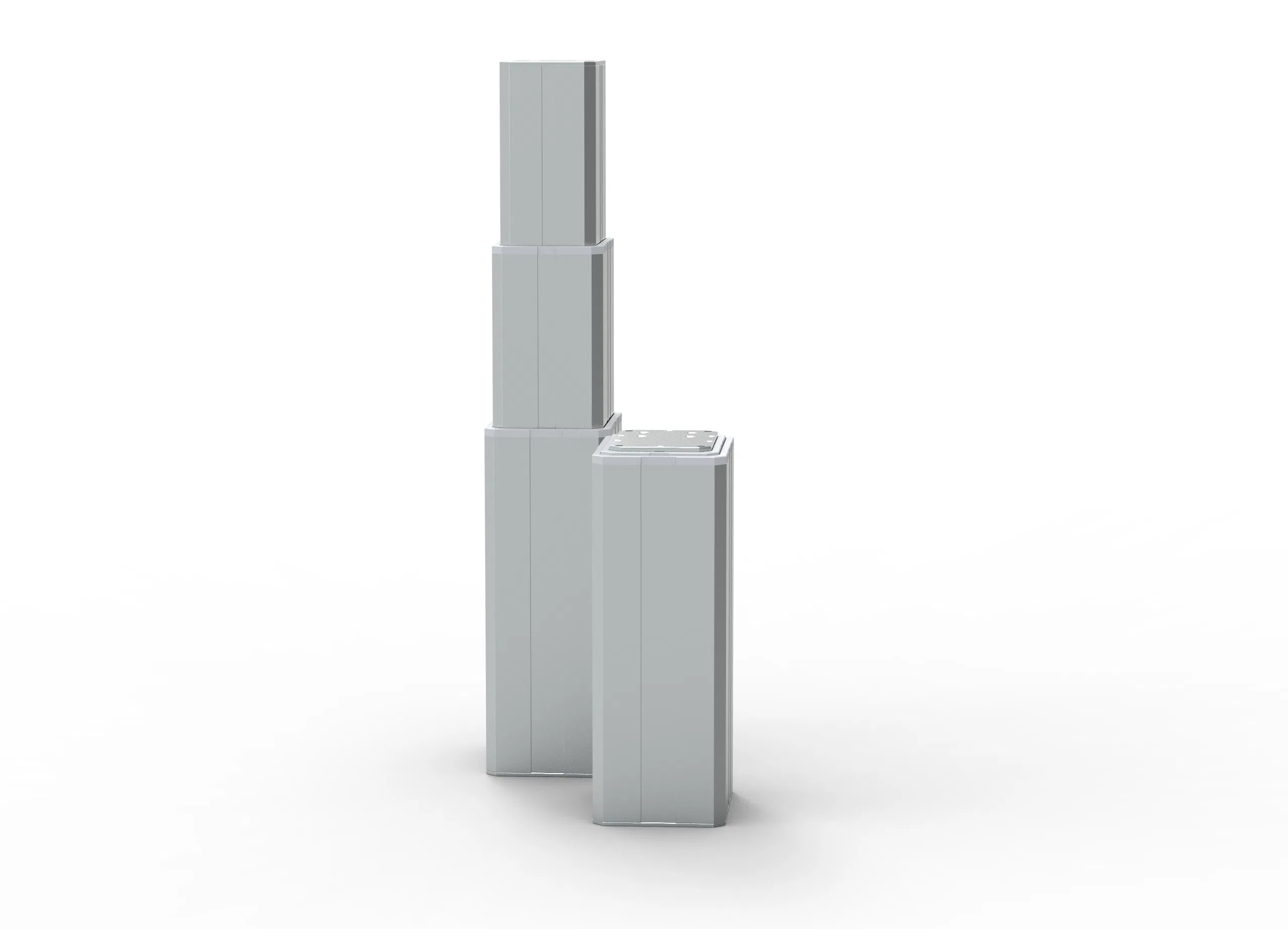

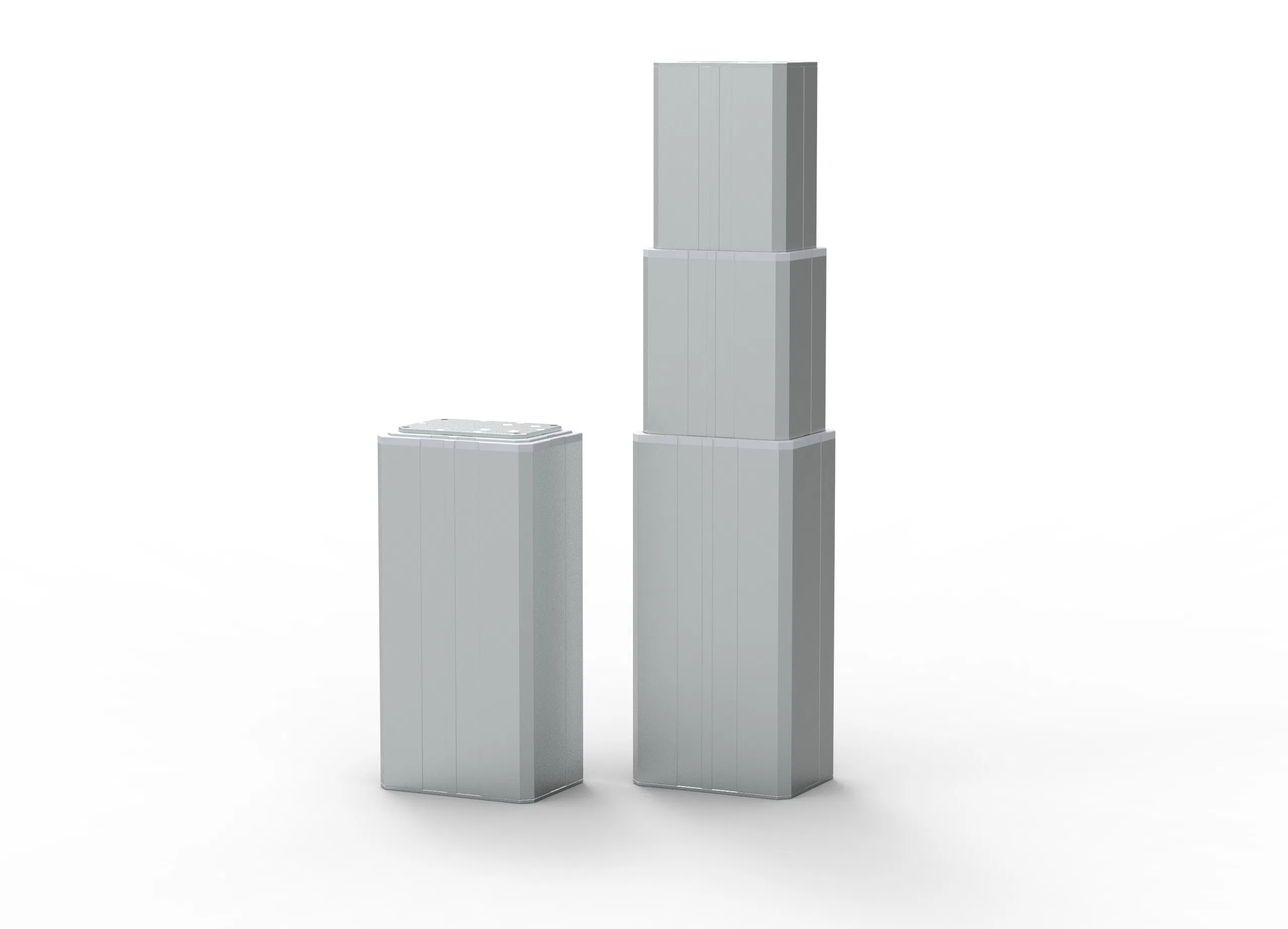

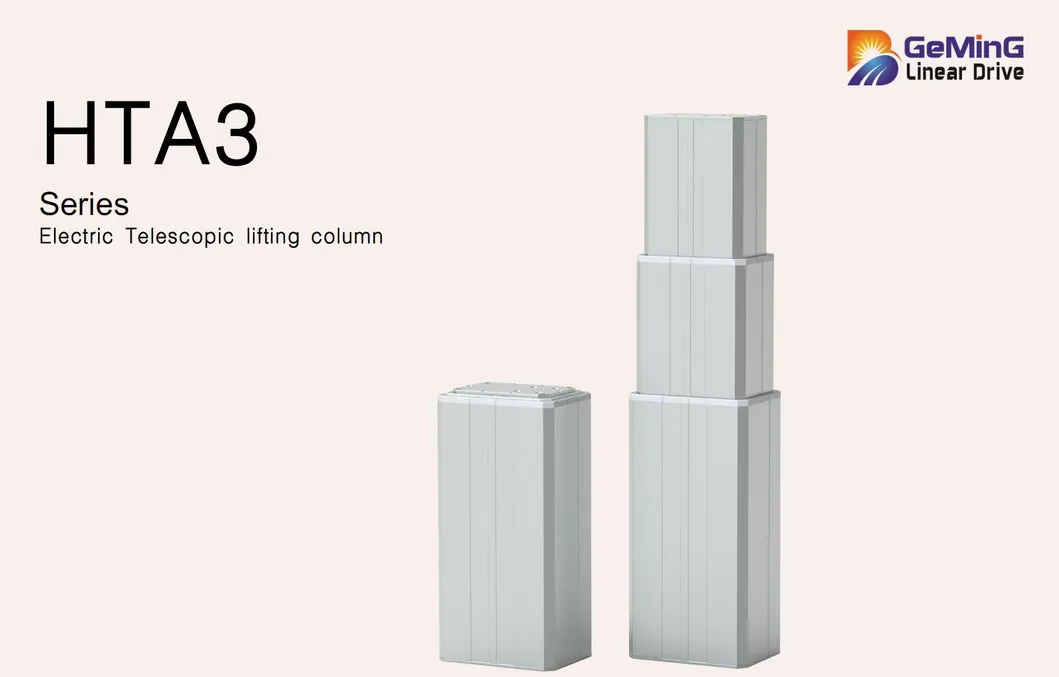

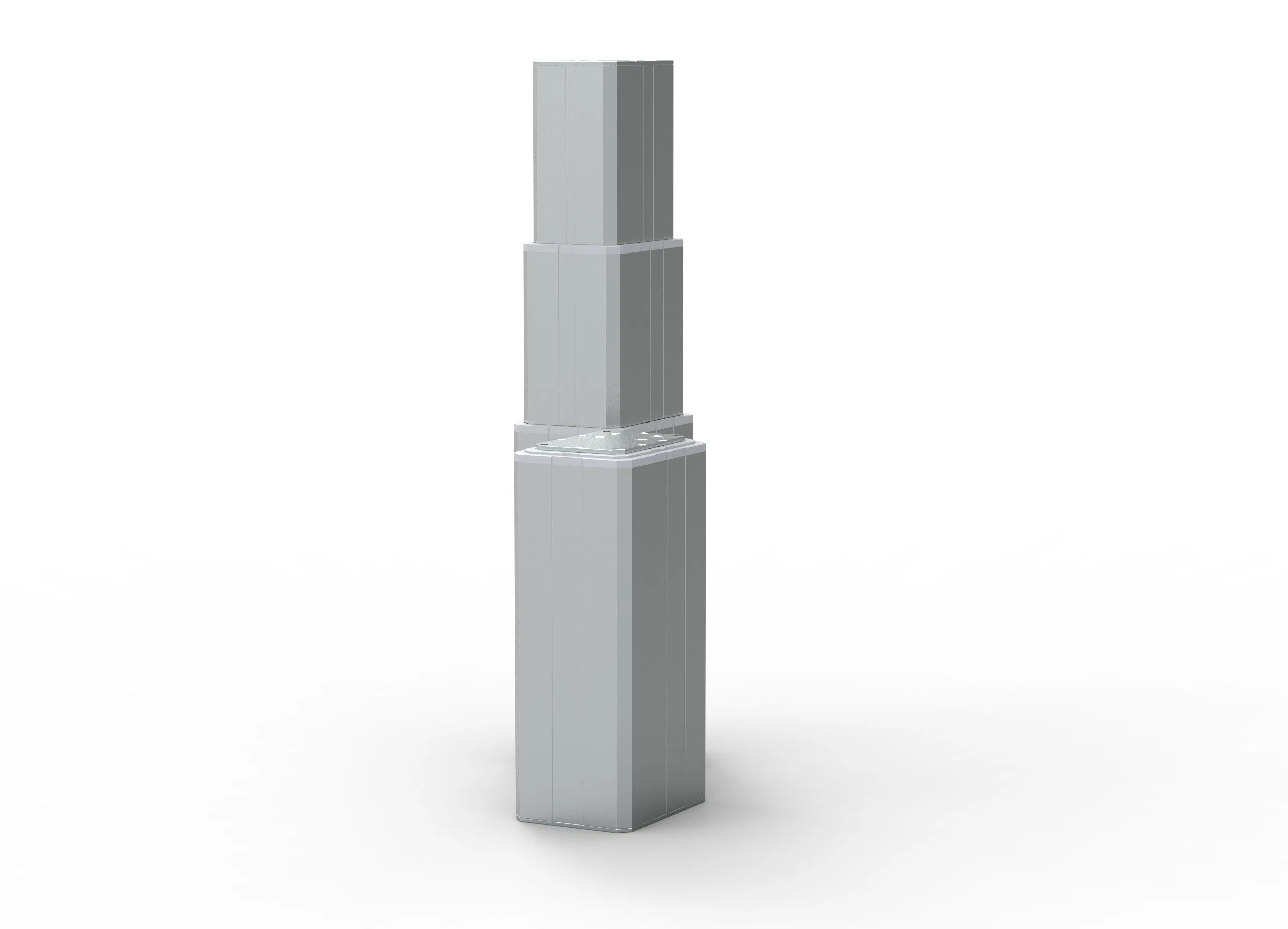

HTA3 is a premium lifting column product designed for high-stability motion. It is especially suitable for medical and specialized working environments, including hospital beds, home care beds, diagnosis and treatment tables, and height-adjustable workstations. The HTA3 utilizes a three-section outer tube to ensure stable movement while offering a compact installation size and extended stroke options.

Model Selection & Solutions

Tailored Transmission Solutions

Professional Selection: Our technical team provides model selection based on your specific parameters to ensure the best performance for your application.

Drawing Support: Product parameters, catalogs, CAD, or 3D drawings are available for your engineering needs.

Customization: We can modify standard products or develop customized solutions to meet unique operational requirements.

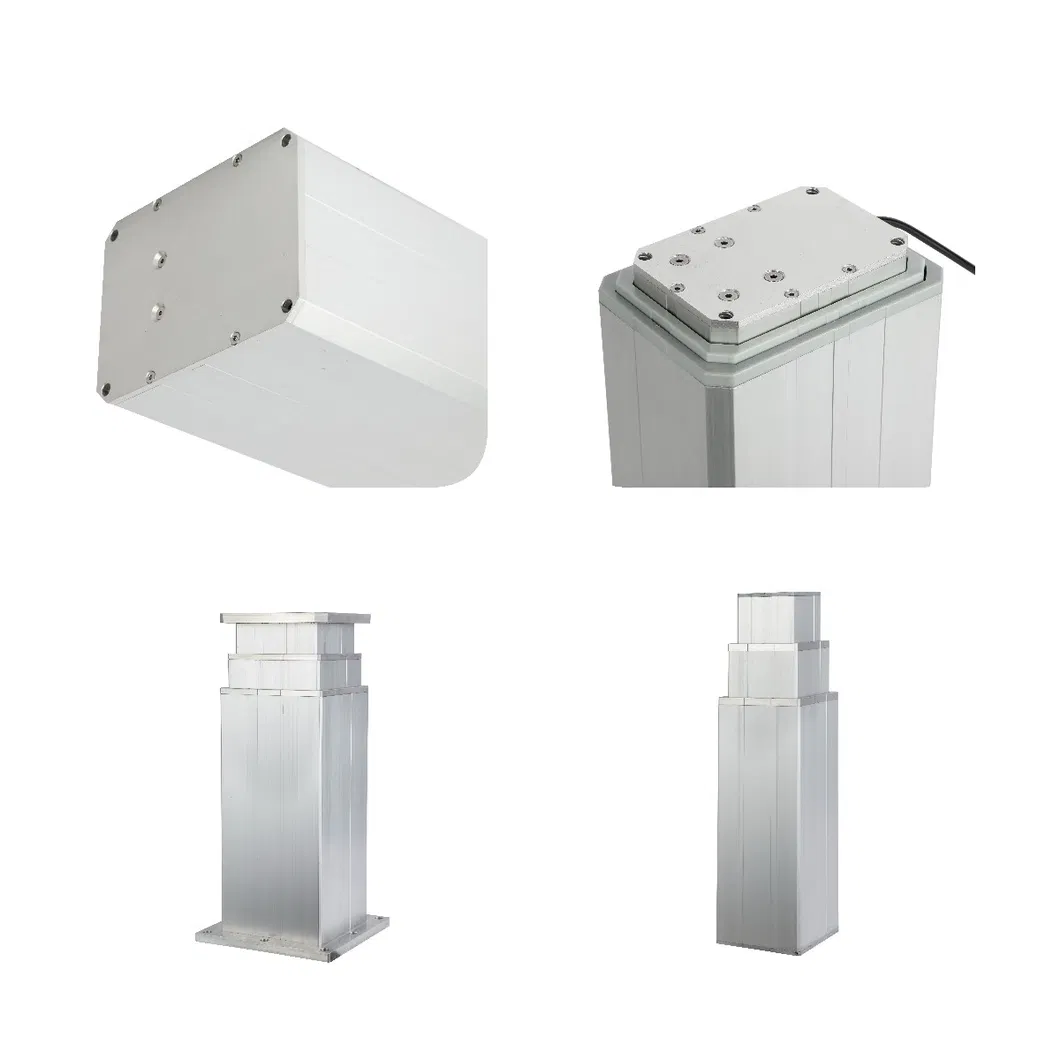

Detailed Product Display

Functional Specifications

Feature	Specification Details
Voltage	12, 24, 48V DC, 220V AC
Motor Options	DC Servo Motor, AC Servo Motor
Maximum Thrust / Pull	6,000N / 4,000N
Max Speed (under load)	5-100 mm/s
Min Installation Size	Stroke / 2 + 200mm
Dynamic Lateral Moment	1,000Nm
Static Lateral Moment	1,800Nm
Noise Level	48~52 DB
Screw Selection	Ball screw, Trapezoidal screw
Control Options	Built-in limit signal, CAN bus control

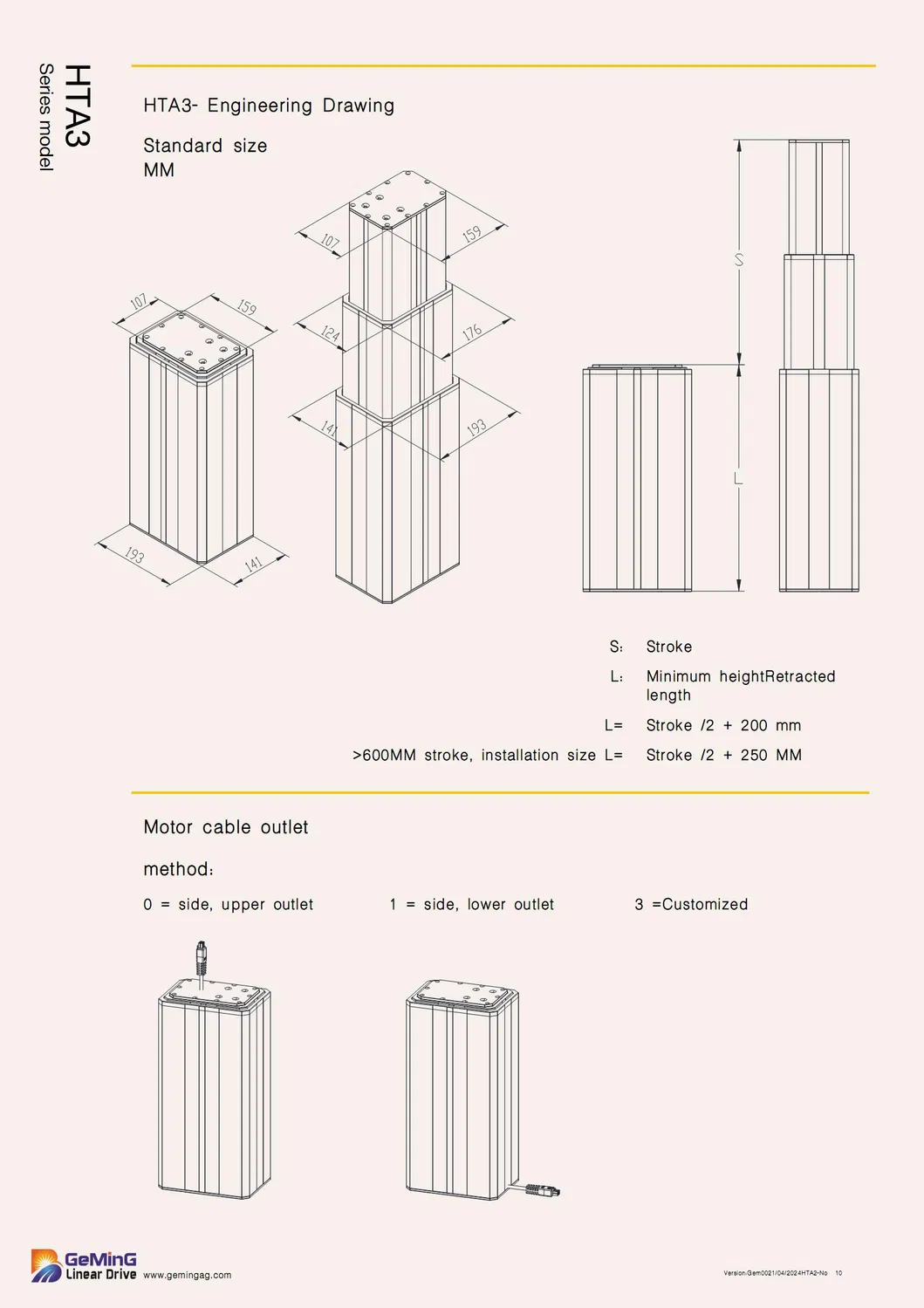

Engineering Drawings & Load Data

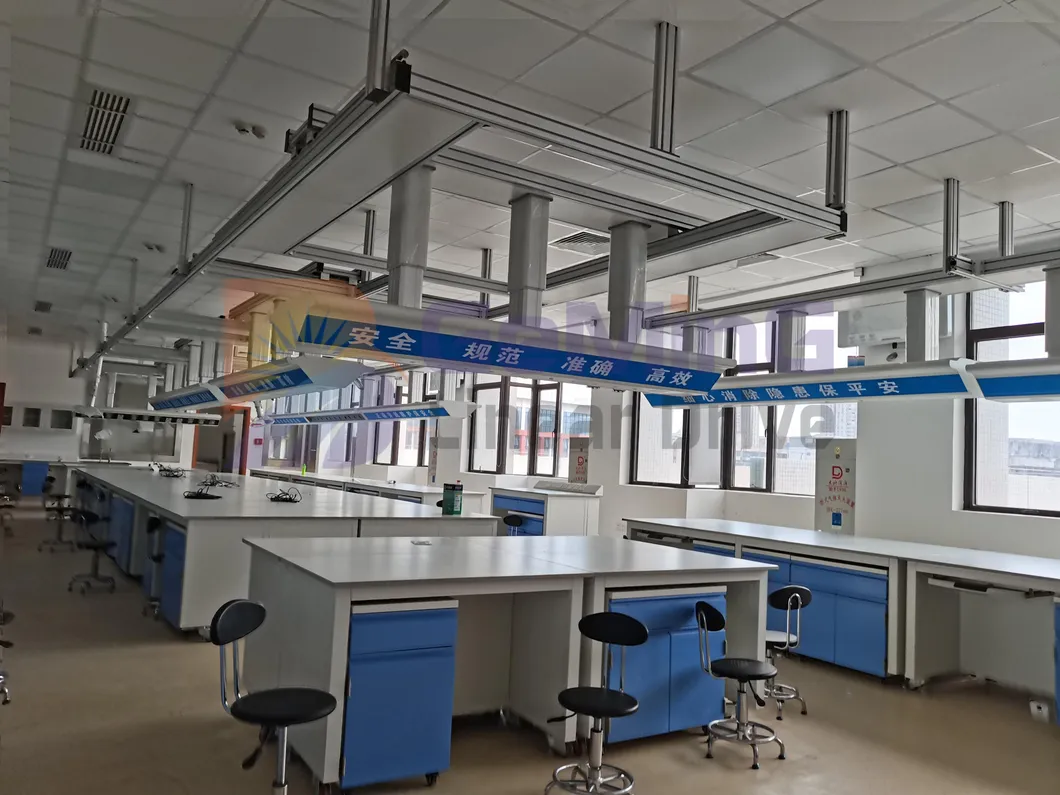

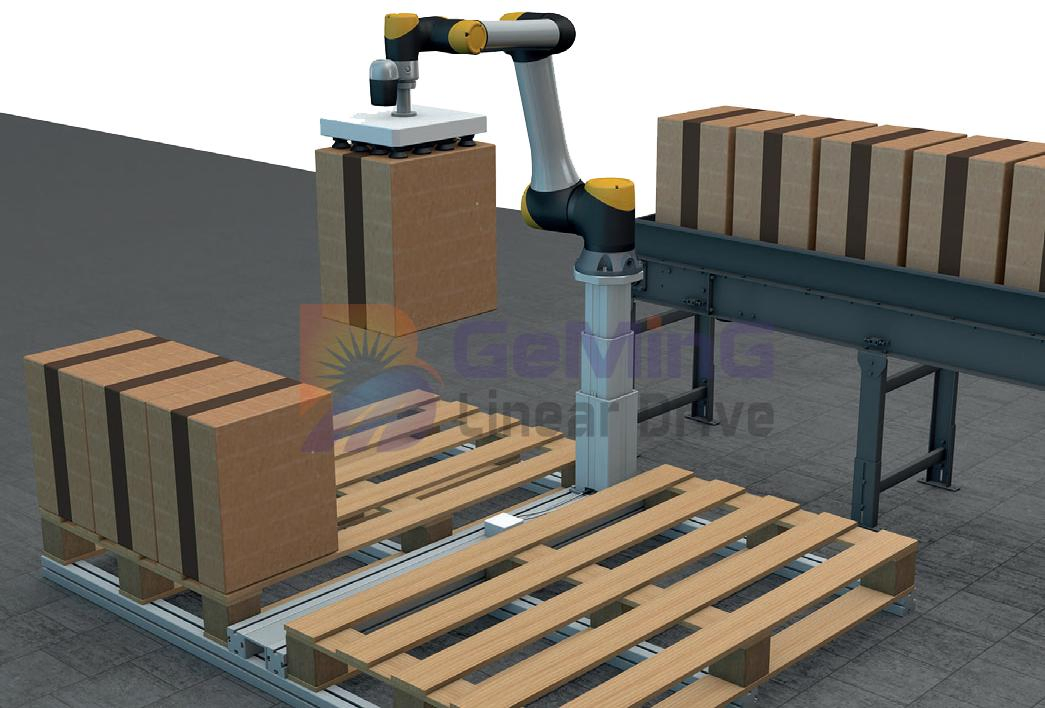

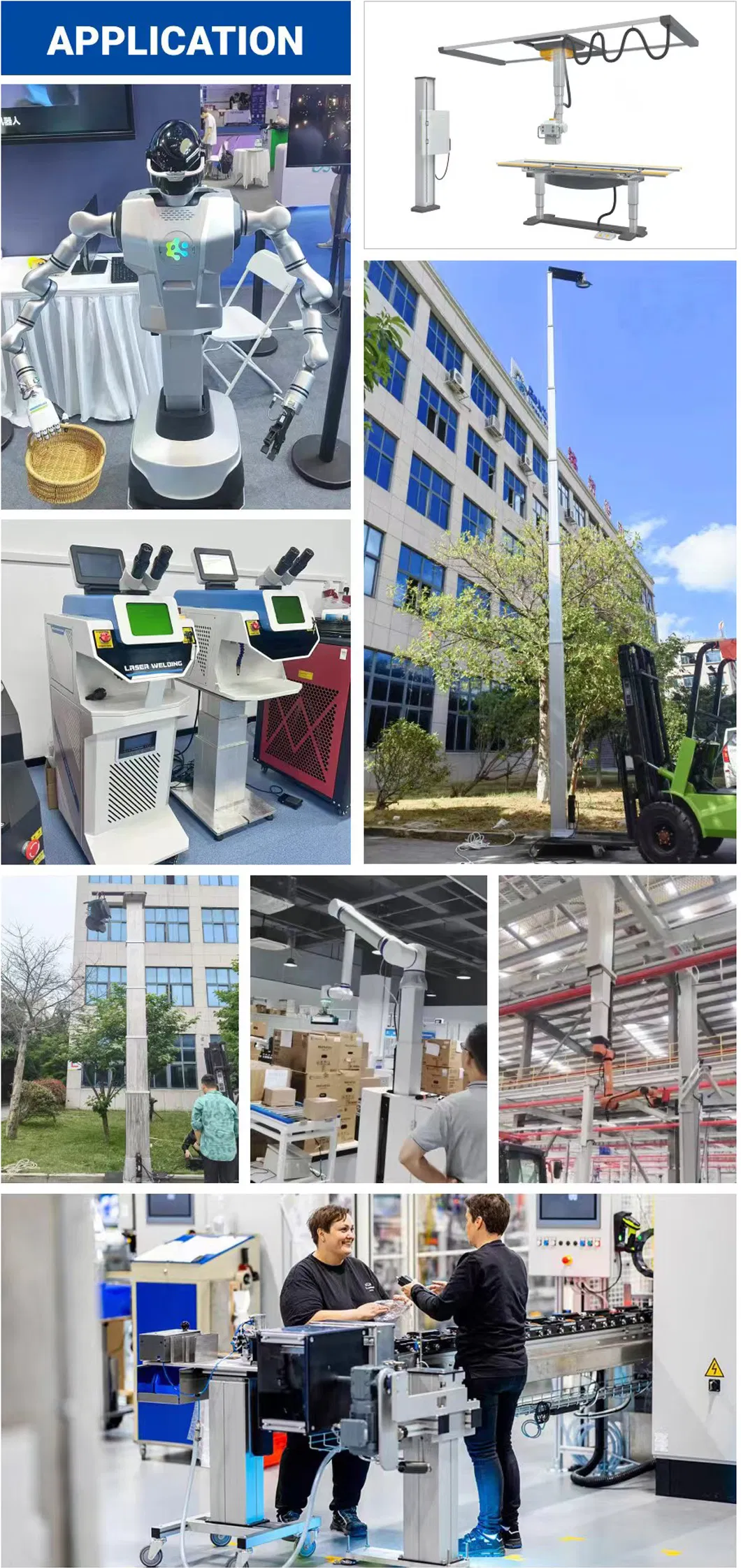

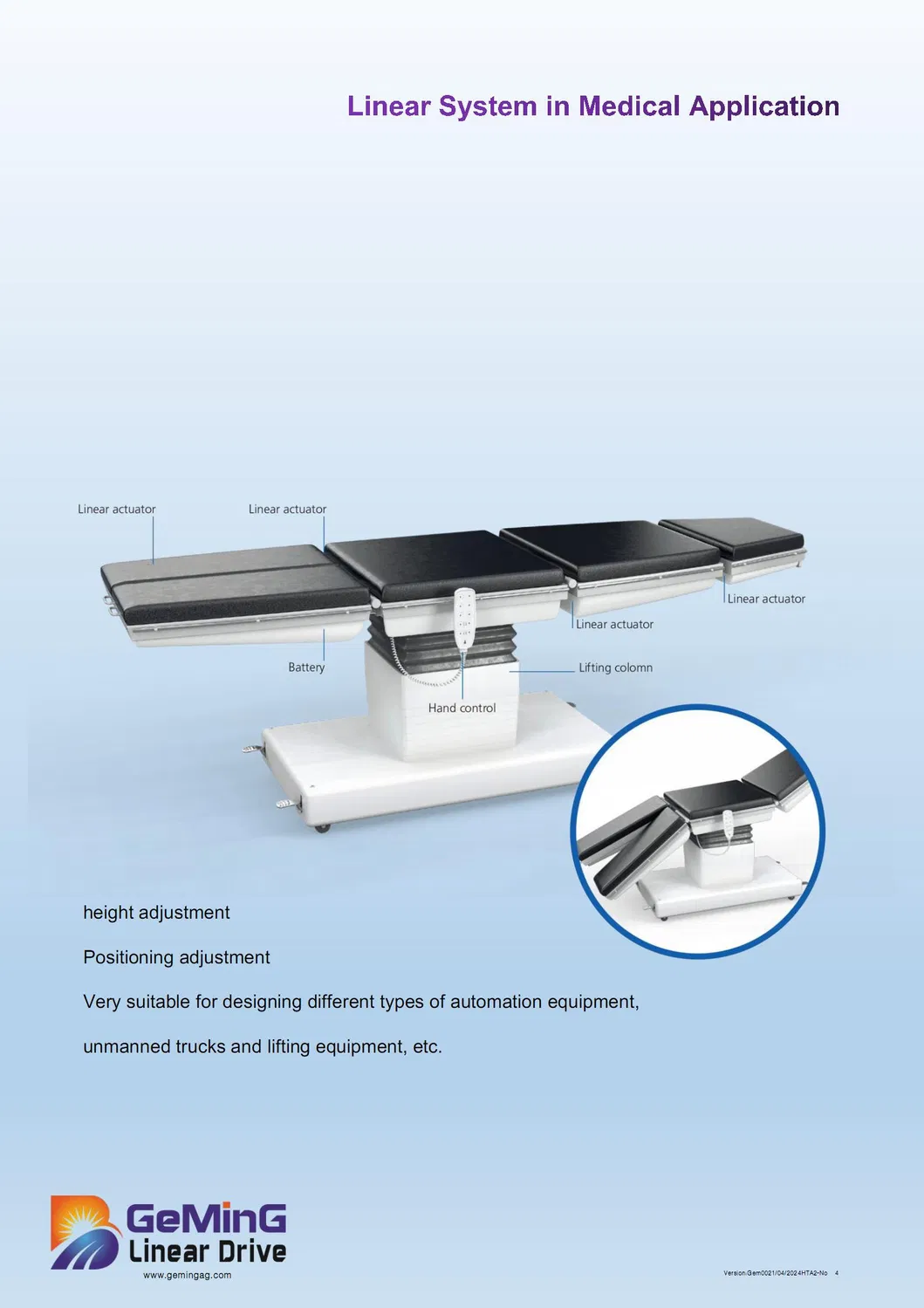

Applications

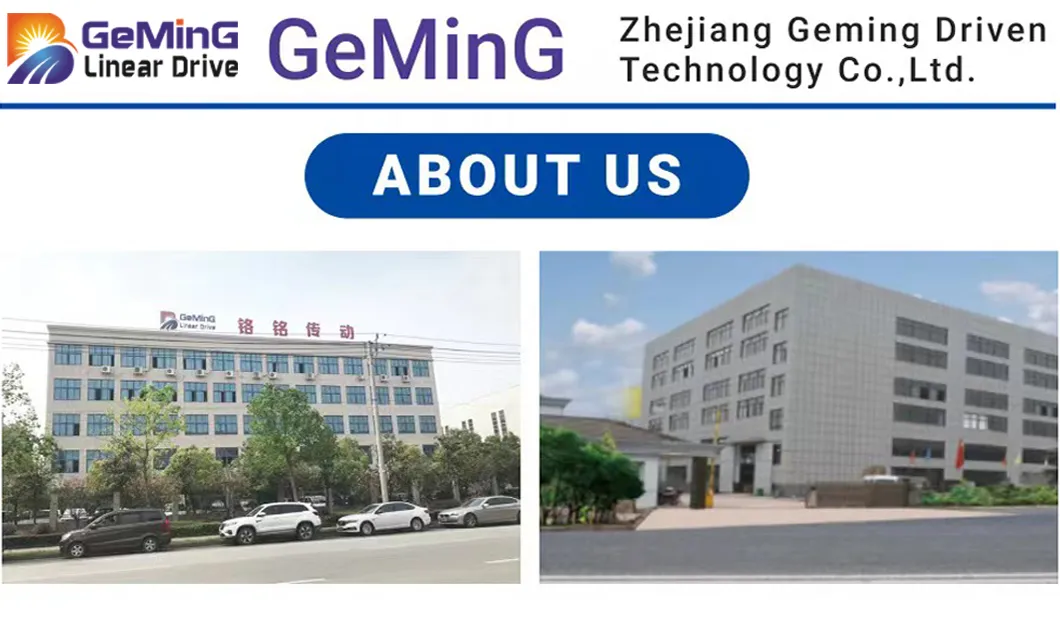

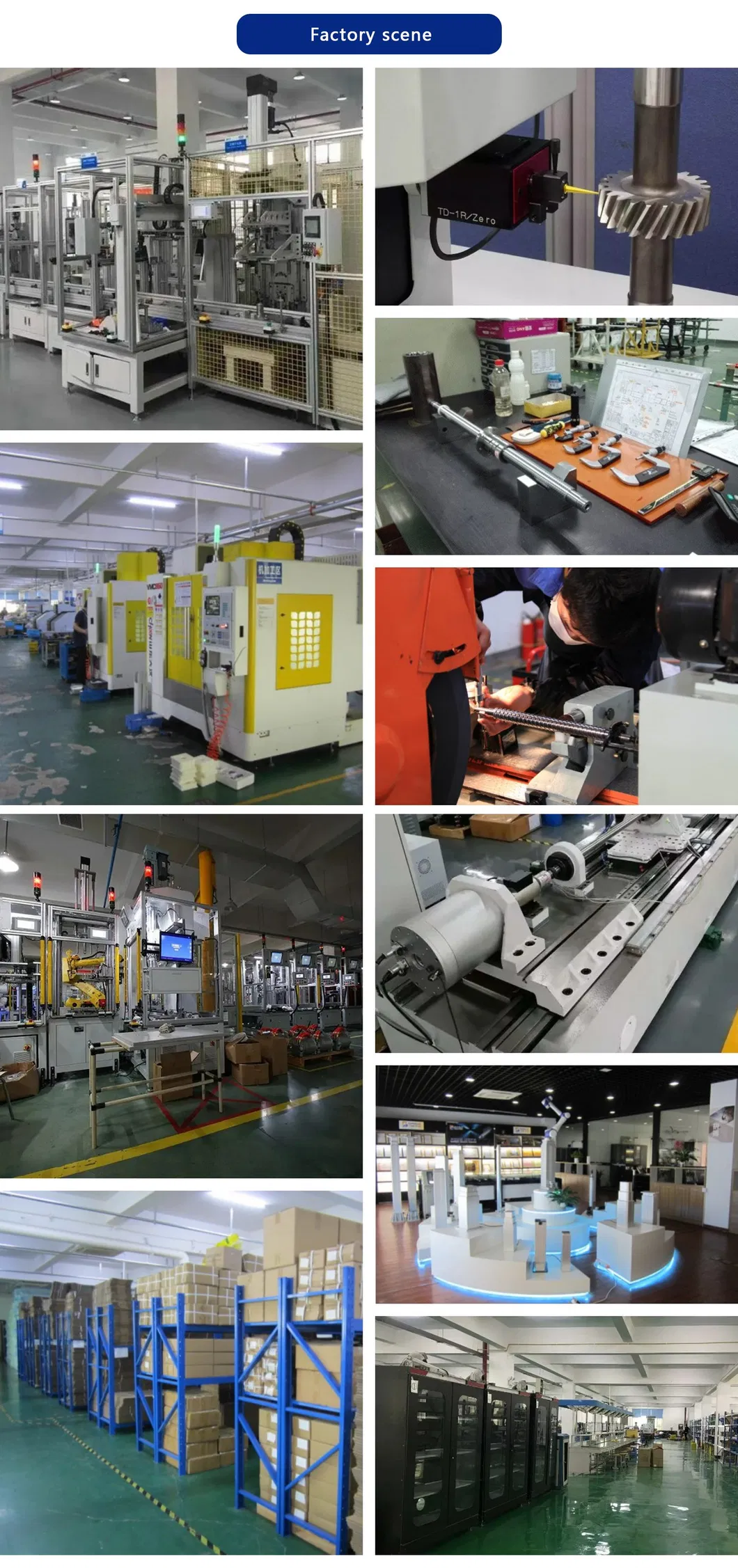

Manufacturing & Quality

Our facility specializes in R&D and manufacturing of linear motion systems. As a leading manufacturer of electric linear actuators and lifting column control systems, we provide global engineering support through multiple manufacturing plants and sales agents. Our team is dedicated to providing high-quality, long-life linear motion solutions and superior customer service.

Frequently Asked Questions

What are your main linear motion products?

We produce a wide range of products including medical lifting columns, furniture lifting columns, ergonomic table systems, industrial linear actuators, micro actuators, and robotic arms.

How do I choose the correct lifting mechanism for my project?

Please provide detailed specifications such as required voltage, speed, stroke, installation height, load capacity, and noise level. Providing pictures or drawings of your current application will help us recommend the best model.

Do you offer customization for standard products?

Yes, we can customize installation sizes, motor selection, stroke, and voltage to meet specific operational requirements.

Can you provide personalized design services?

Yes, we can design custom actuators, lifting mechanisms, and control systems. While simple customizations are often free, complex designs may involve mold development costs.

What is the typical delivery time for orders?

Standard products generally take 6-20 days. Customized products may take longer depending on the specific order requirements.

Are your products certified for international use?

Yes, our products comply with ISO9001-2008, CE, and RoHS specifications to ensure safety and quality standards.
