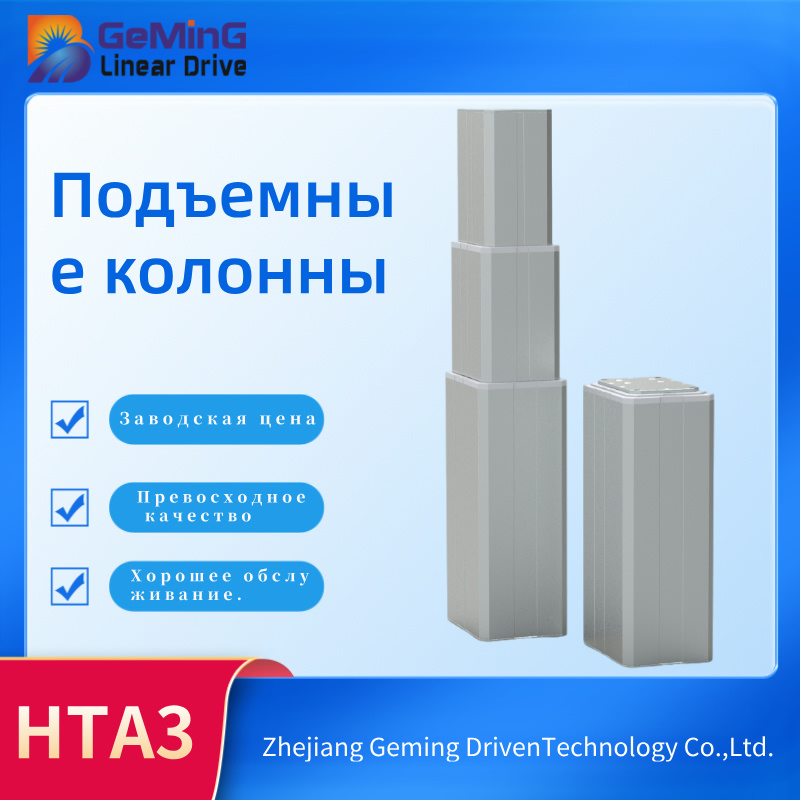

Premium Aluminum Alloy DC Linear Actuator Lift System for Versatile Applications

📊

Basic Specifications

Model NO.

HTA3

Application

Workshop, Shipboard, Warehouse, Building Cranes

Lift Mechanism

Telescoping Lift

Driven Type

DC

Feature

Explosion-Proof

Certification

CE, RoHS

Maximum Load

6000N

Maximum Speed

5-100mm/S

Temperature

-45 to +75°C

📝

Product Features

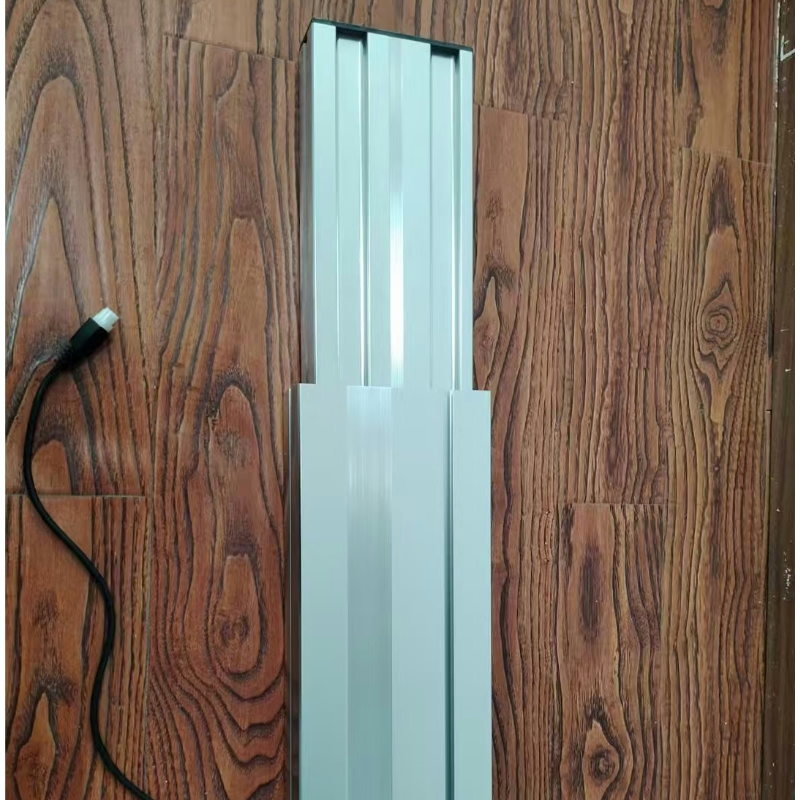

HTA3 is a specialized lifting column product designed for medical and professional working environments. It is ideally suited for hospital beds, home care beds, diagnosis and treatment tables, and height-adjustable workstations. The HTA3 utilizes a three-section outer tube to ensure stable movement while providing a compact installation size and extended stroke options.

⚙️

Model Selection & Customization

Expert Solutions

Our professional technical team assists in selecting the right model and transmission solutions based on your specific operational parameters.

Design Support

Detailed product parameters, catalogs, CAD, or 3D drawings are available upon request to facilitate your engineering process.

Tailored to Your Needs

We provide modifications to standard products or full customization to meet unique application requirements.

📷

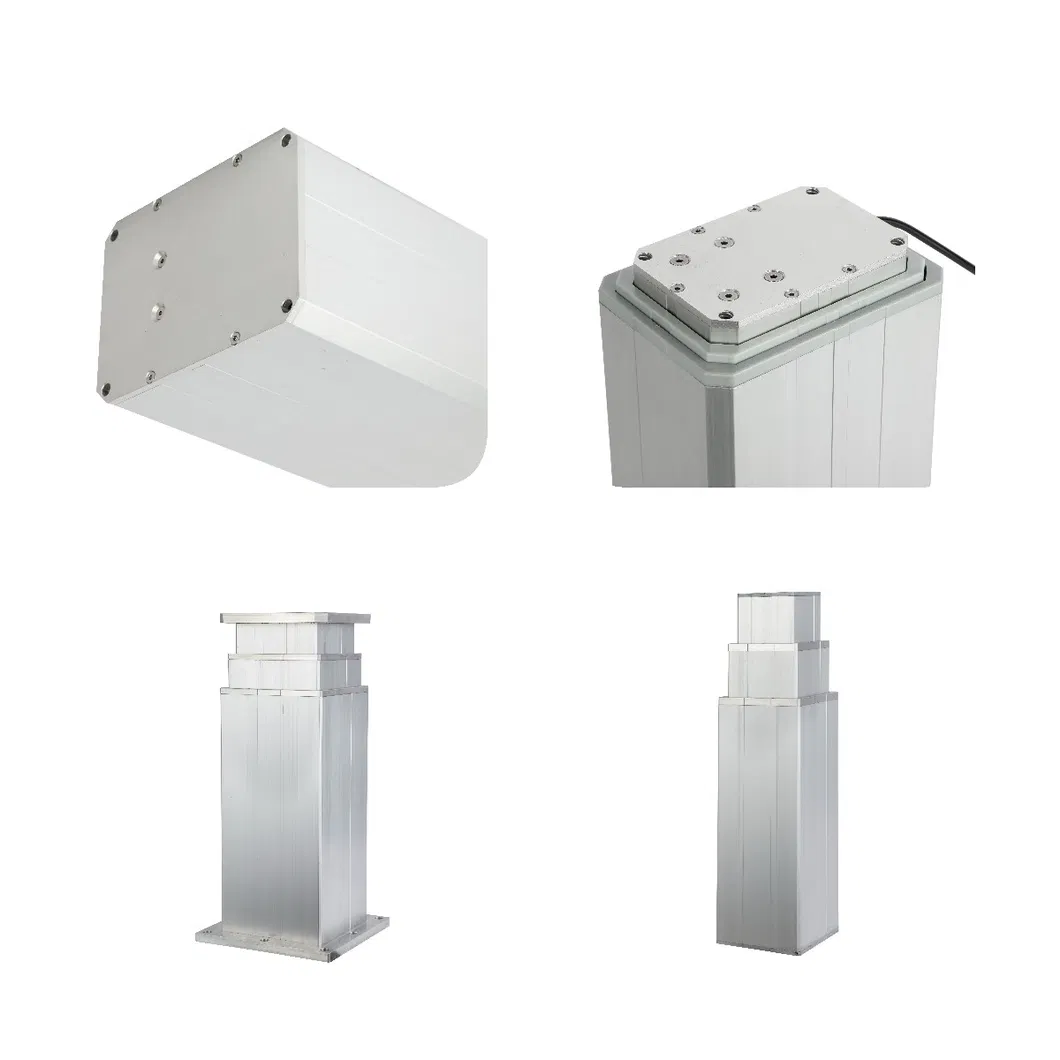

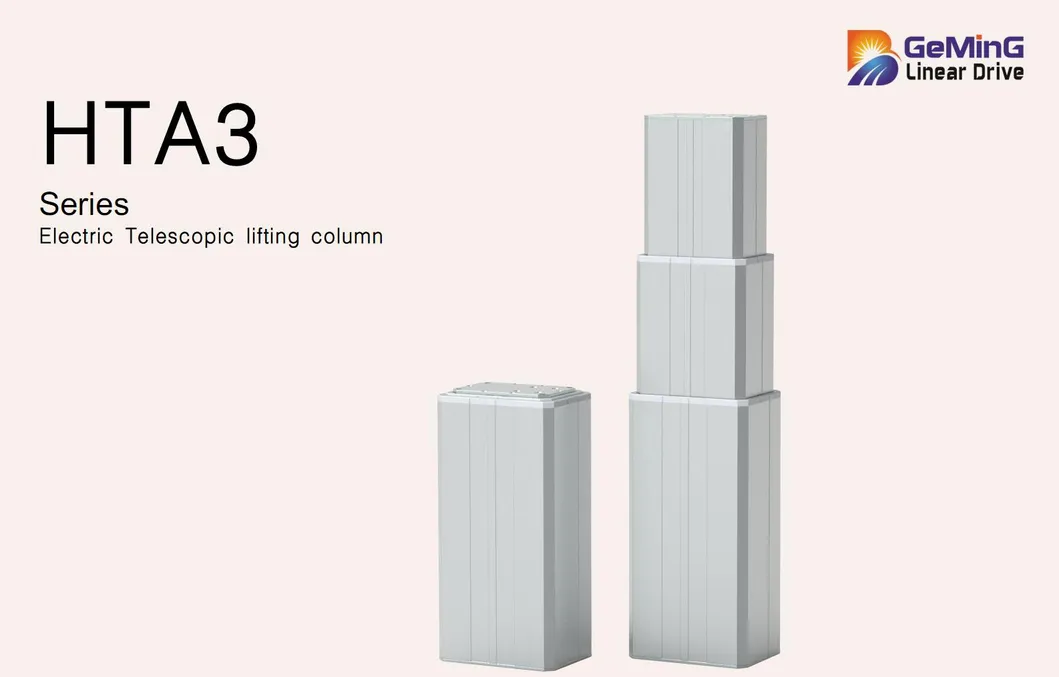

Detailed Photos

🛠️

Functional Overview

Parameter	Specifications
Voltage	12, 24, 48V DC, 220V AC
Motor options	DC servo motor, AC servo motor
Maximum thrust (pull force)	6,000N / 4,000N
Maximum speed under load	5-100 mm / s
Minimum installation size	Stroke /2 + 200mm
Dynamic lateral moment	1,000Nm
Static lateral moment	1,800Nm
Finish	Aluminum color, Silver gray
Noise Level	48~52 DB
Temperature Range	-35°C to +75°C
Screw Selection	Ball screw, Trapezoidal screw
Signal Type	Built-in limit signal
Control Options	CAN bus control

📐

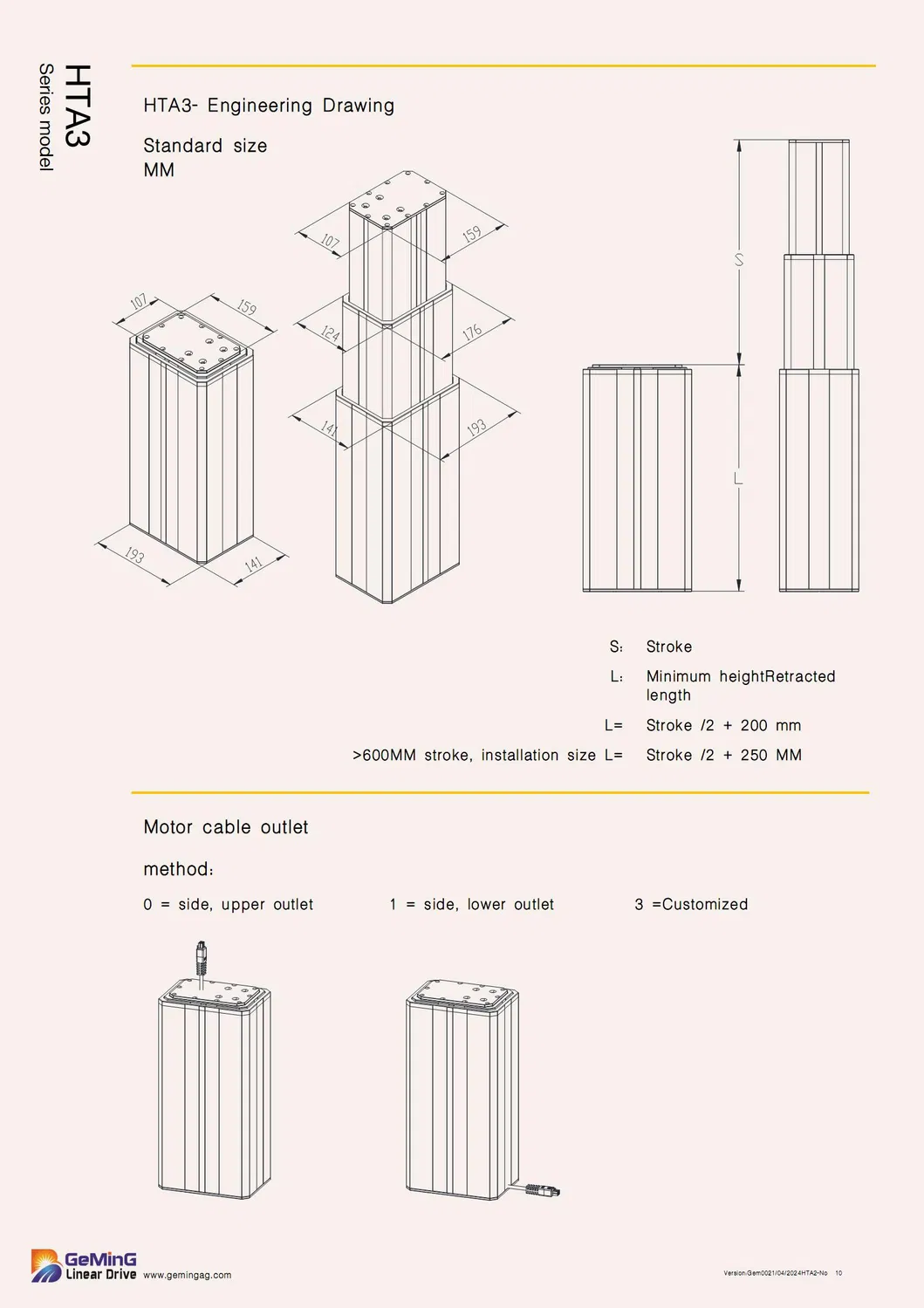

Engineering Drawings & Load Data

🚀

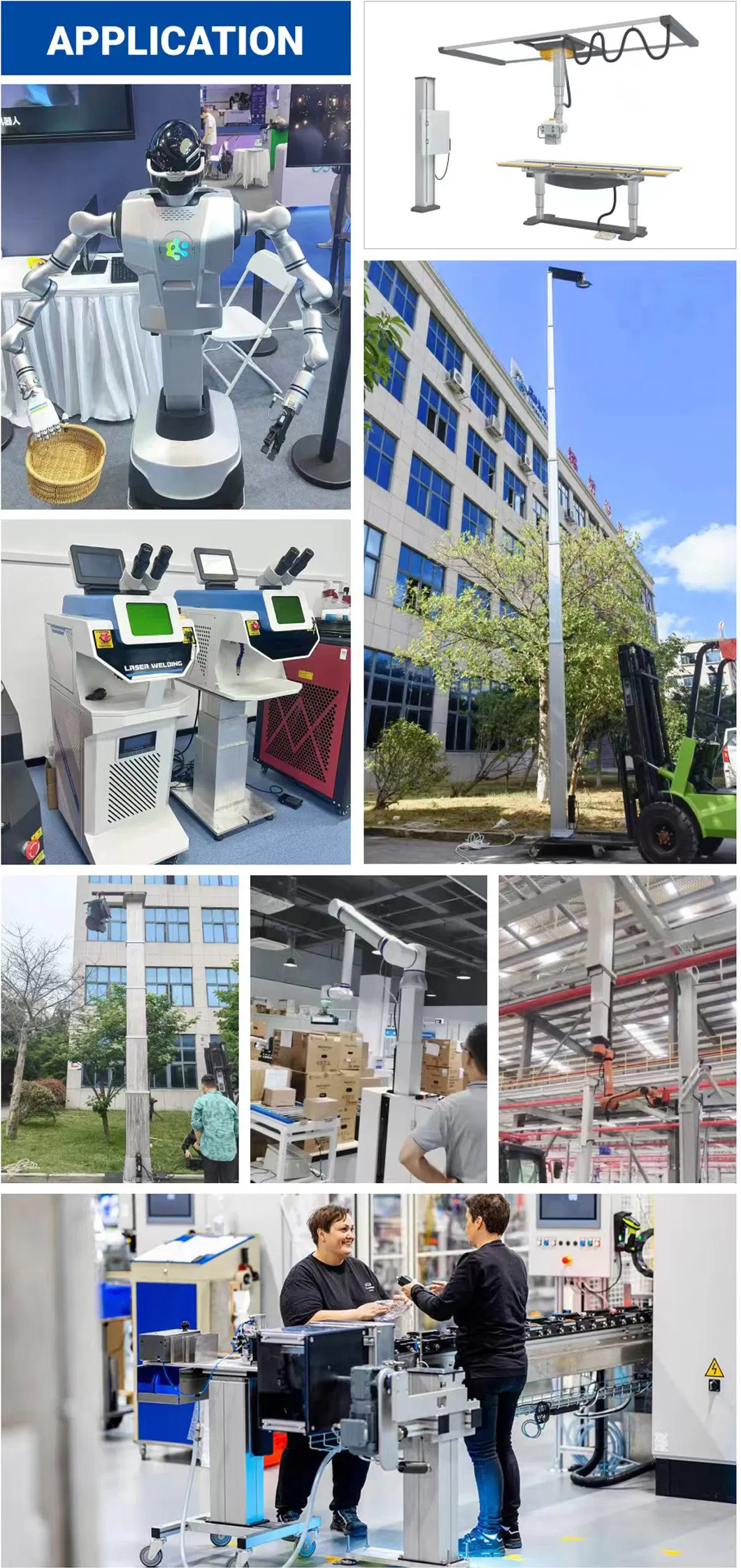

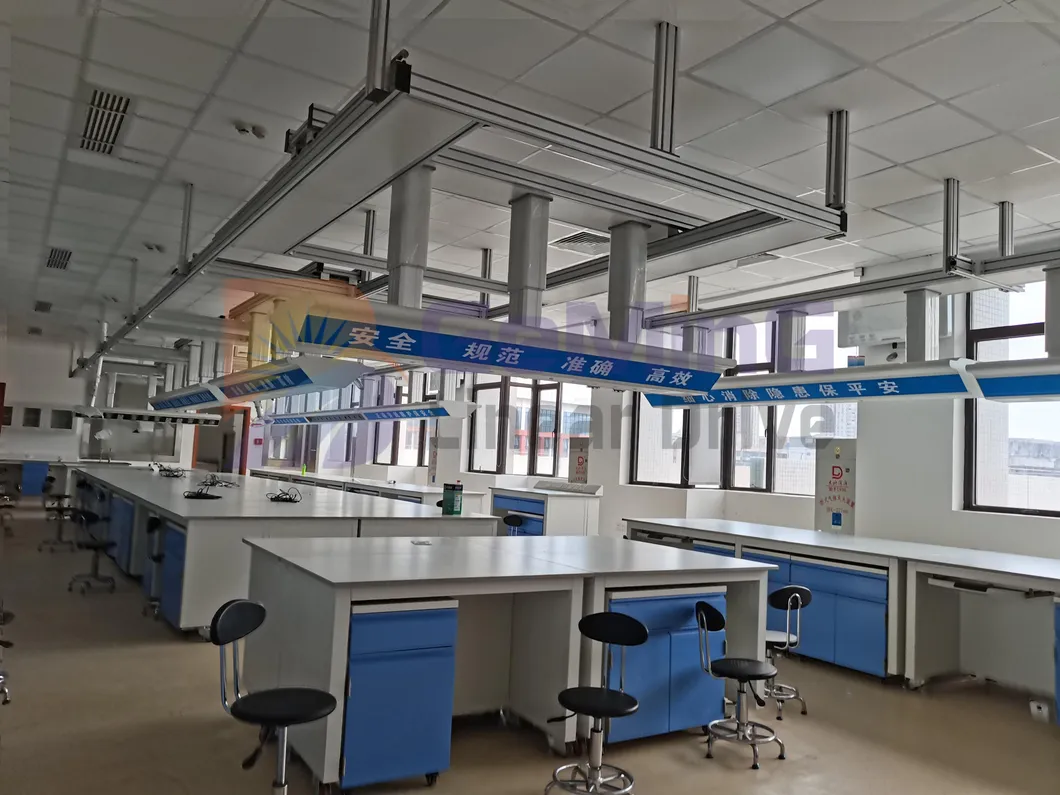

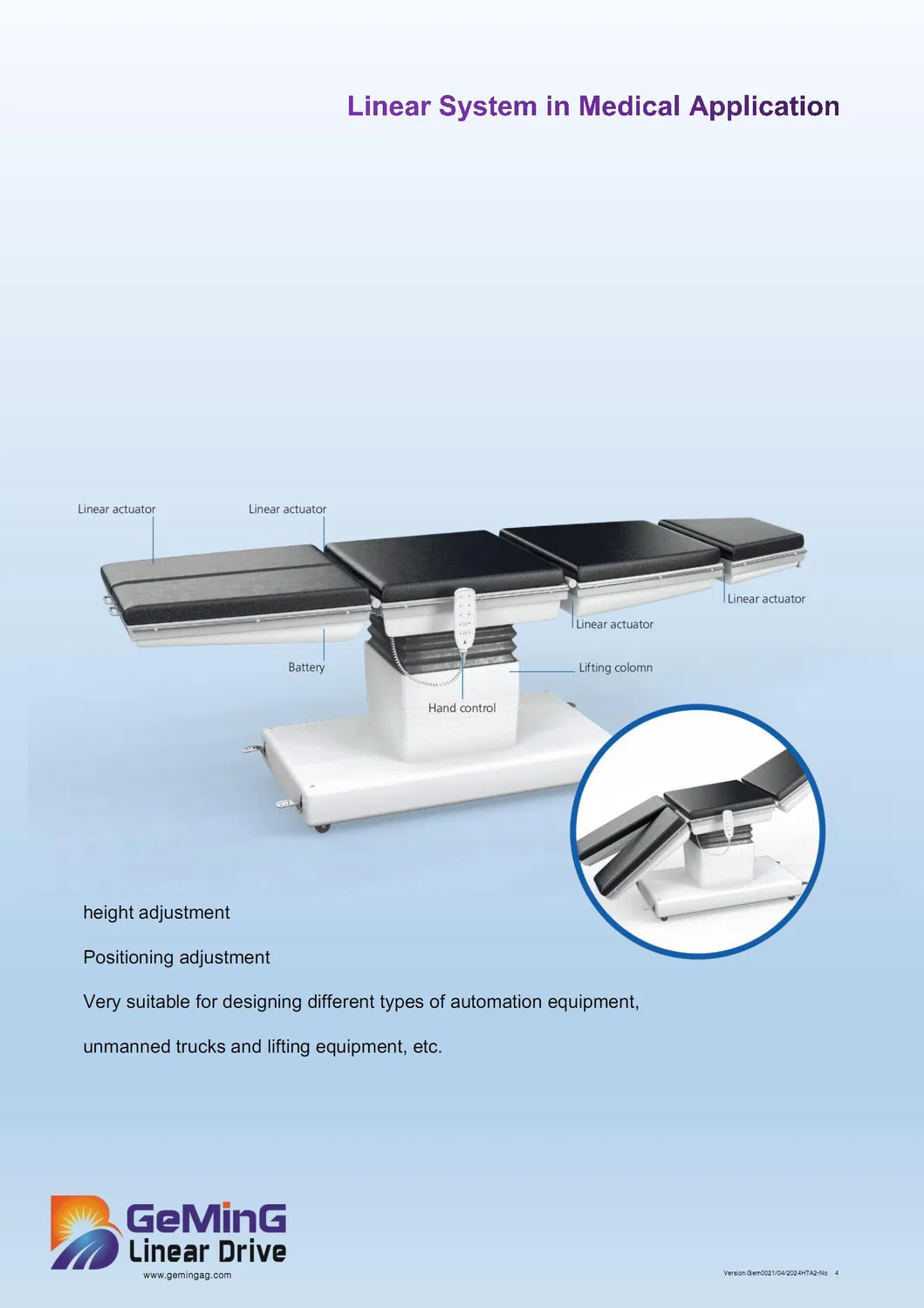

Applications

🏢

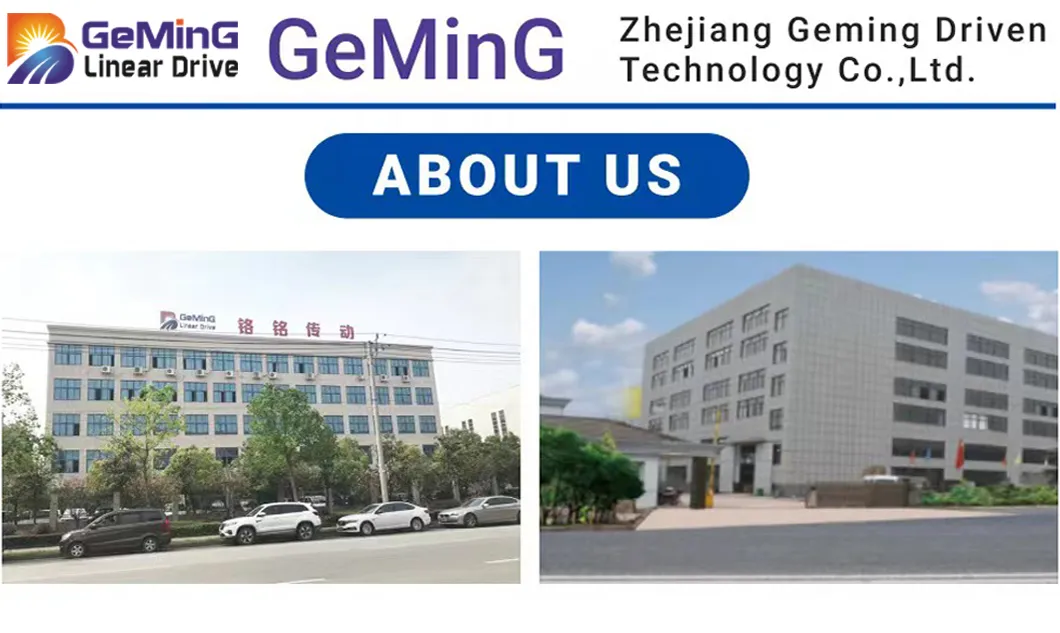

Corporate Profile

Our company specializes in the R&D and manufacturing of advanced linear motion systems. We have become a leading manufacturer of electric linear actuators, electric lifting column control systems, and related motion technologies. With dedicated manufacturing plants and a network of global sales agents, we provide engineering and sales support worldwide. Our multinational team is committed to providing high-quality, long-life linear motion solutions and exceptional service to our partners.

❓

Frequently Asked Questions

What are your main products?

We produce a wide range of lifting columns (medical, furniture, ergonomic), linear actuators (industrial, micro), and specialized robotic arms.

How do I choose a suitable lifting mechanism?

Please provide specifications such as voltage, speed, stroke, height requirements, load capacity, and noise level. Providing drawings or pictures helps our team recommend the best fit.

Are customized services available?

Yes, we can customize installation sizes, shapes, motor types, stroke lengths, and voltages to meet your specific application needs.

Do you offer personalized design services?

We are equipped to design custom actuators and control systems. While simple customization is often free, complex designs requiring mold development may incur a fee.

What is the standard delivery time?

Regular standard products typically take 6-20 days. Customized orders may take longer depending on the complexity and specific requirements.

How can I get more technical data?

If you require detailed CAD drawings, 3D models, or extended catalogs, please contact our technical support team for assistance.
