Product Description

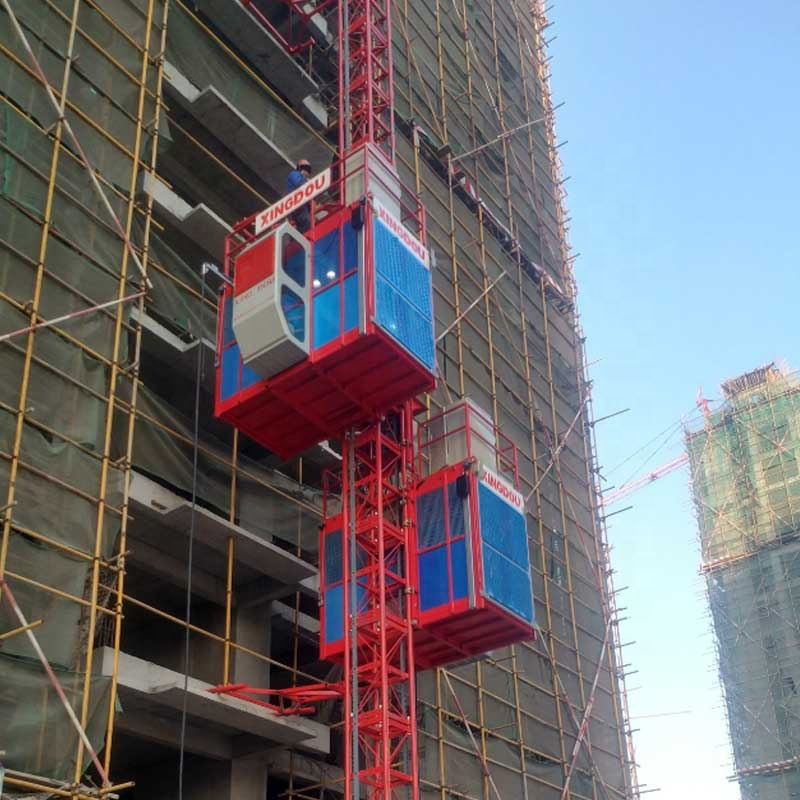

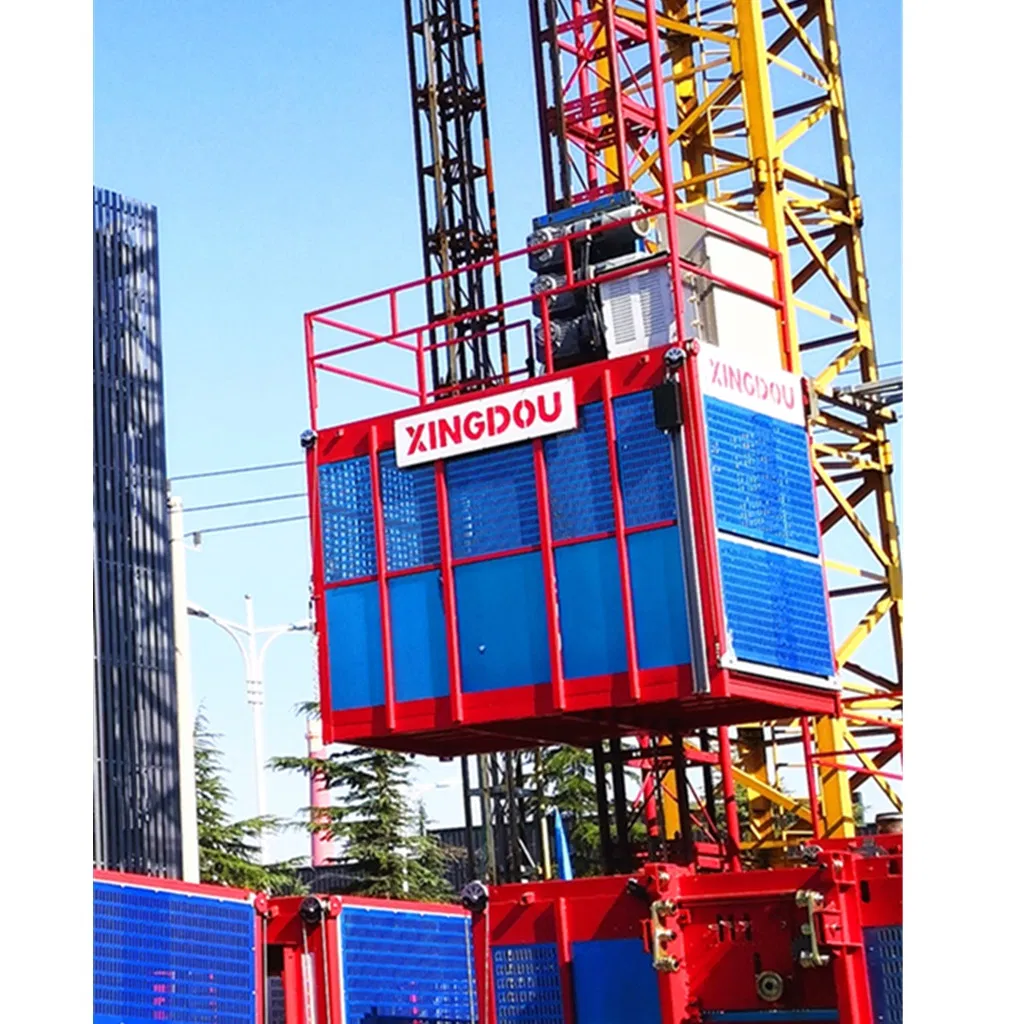

GJJ hoists passenger and material elevator building lift in china marketplace
✓Could be design according to different building situation.
✓With CE, EAC, ISO9001, ISO40001, SGS, BV, GOST certifications.
✓Double or Single cage with loading capacity from 500kg to 3000kg.
✓Select high quality raw material from China Bao Steel Group.
✓Motors and reducers with low noise, electrics by Schneider or Korea repute brands.
1. Personnel and materials - PLC type
| Characteristic |
Model |
Rated Loading |
Lifting Speed |
Motor Power |
| Double cages |
SC200/200 |
2x2000kg |
33m/min |
2x(3x11kw) / 2x(3x8.5kw) |
| Single cage |
SC200 |
2000kg |
33m/min |
3x11kw / 3x8.5kw |
2. Personnel and materials - VFD type
| Characteristics |
Model |
Rated Loading |
Lifting Speed |
Motor Power |
| Low speed |
SC200/200D |
2X2000kg |
0-40m/min |
2x(3x11kw) |
| Mid speed |
SC200/200Z |
2x2000kg |
0-60m/min |
2x(2x23kw) |
🔍
Product Details

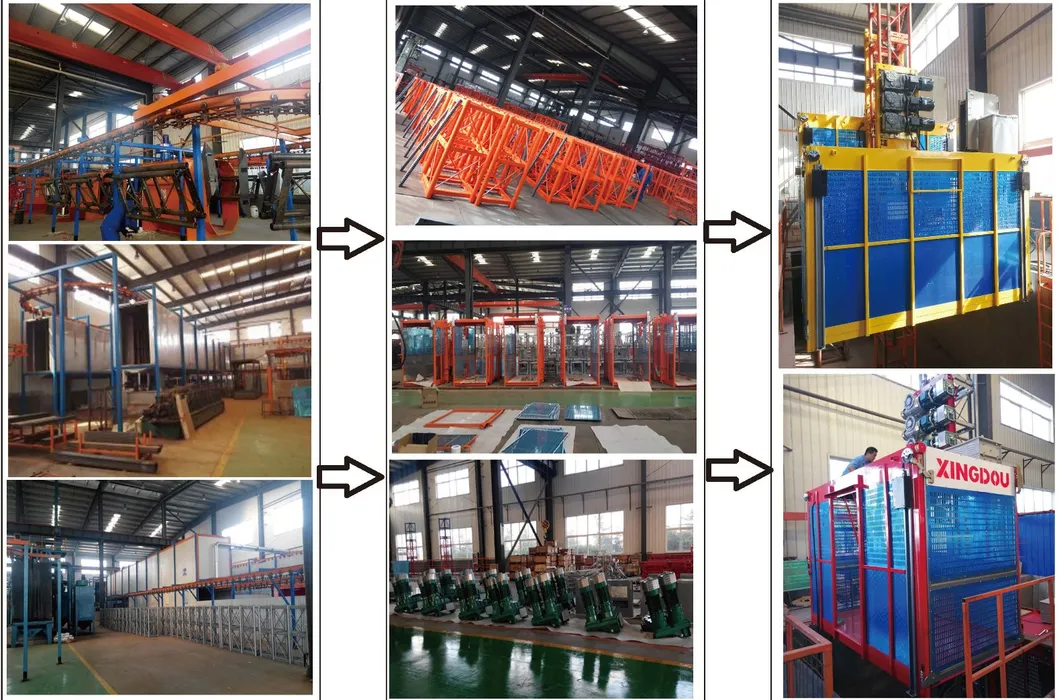

Production process:
Strict material selection — blanking — inspection — welding — inspection — Blasting — inspection — Baking finished or galvanized — inspection — Finished product

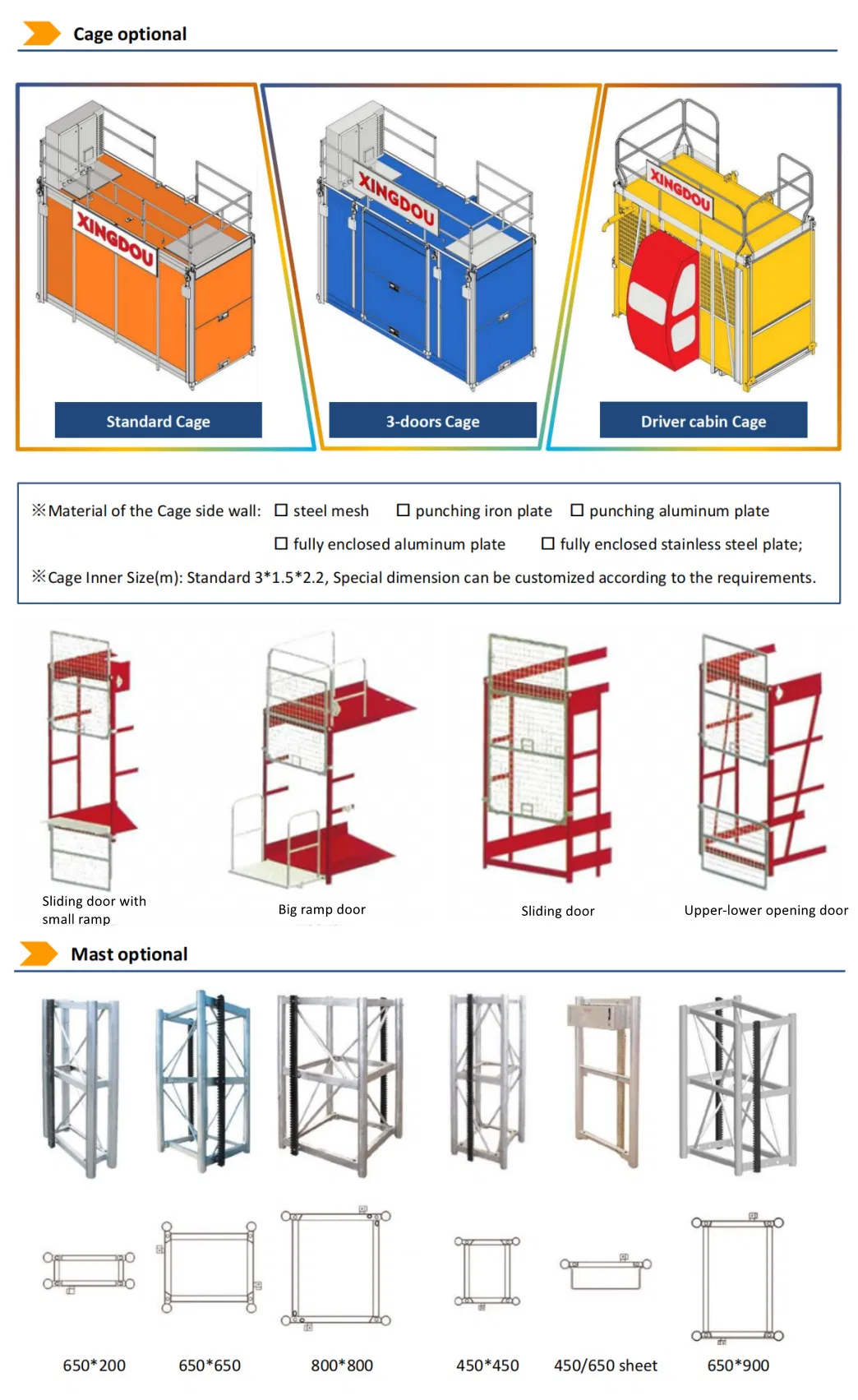

Special design for Cage:
📍Bottom and roof of Cage adopt trapezoidal frame.
📍Wall around cage can be fixed by Punched Aluminium plate, zinc plate, or steel wire mesh.
📍Surface Treatment: Blasting, Baking finished, or Galvanized.
About the mast section:
⚙️Steel plates are bented of U-shape to strengthen the mast section.
⚙️High quality steel plate Q345B: Thickness 4.5mm (6mm or 8mm available).
⚙️Common size: 650*650*1508mm.
🌟
Professional Manufacturing
⭐15 Years Manufacture Experience
⭐Export to more than 20 Countries
⭐1 Year Warranty and Quick Delivery
⭐Quality approved by CE, ISO, EAC, BV, GOST, SGS Certificates
❓
Frequently Asked Questions
What is the maximum erection height for the SC200 hoist?
The SC200 model supports a maximum erection height of up to 450 meters.
Can the cage dimensions be customized?
Yes, while the standard size is 3*1.5*2.2m, the cage dimensions are changeable based on your specific construction requirements.
What materials are used for the mast sections?
We use high-quality Q345B steel plate which is bented by special machinery to ensure maximum strength and safety.
What are the speed options for the VFD type elevators?
We offer low speed (0-40m/min) and mid speed (0-60m/min) options depending on the model chosen.
What surface treatments are available for the hoist?
You can choose between professional painting or a galvanized finish for superior corrosion resistance.
Does the equipment undergo safety testing?
Yes, each piece of equipment undergoes motor brake tests, safety device operation tests, dropping tests, and loading tests before leaving the factory.
