Product Description

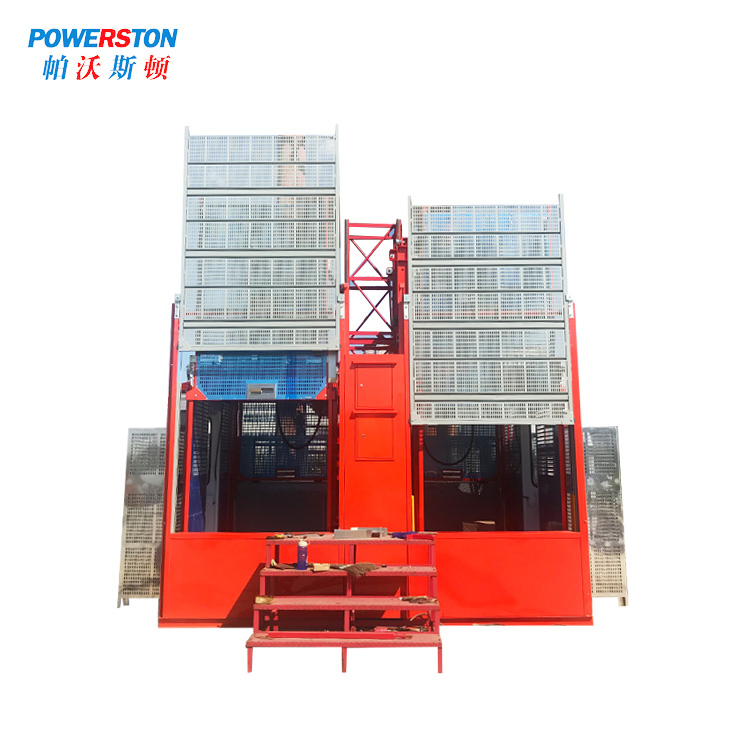

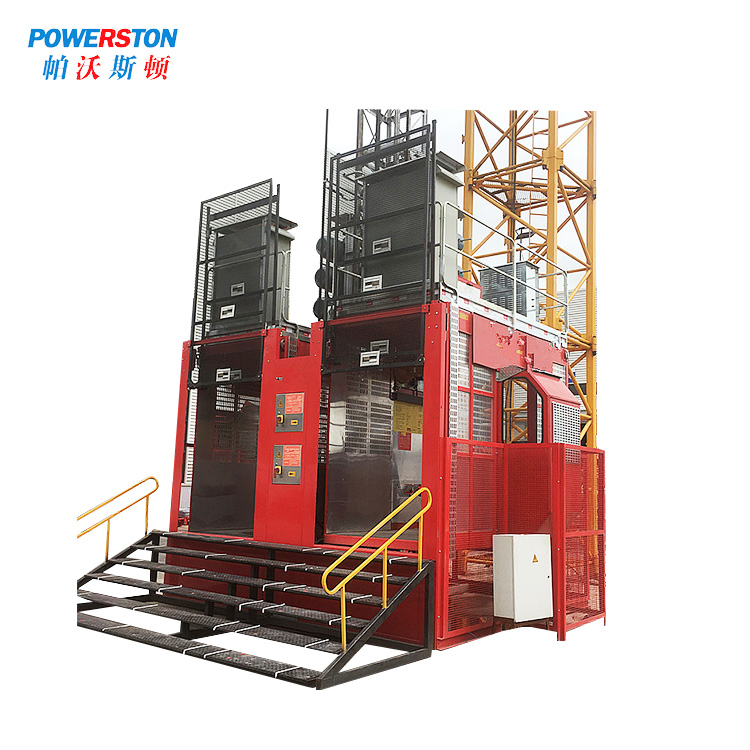

Construction hoist climbs up along the mast section driven by electric hoist, with 2000kg capacity each cage. By using the frequency conversion device, the mechanical wear is greatly reduced. It is widely used in construction projects, such as industrial and residential building projects, bridge construction, large chimney construction buildings and shipping building industry.
| Model (Low Speed) |
SC100TD |
SC200TD |
SC270TD |
SC320TD |
| Rated Load |
1000kg |
2000kg |
2700kg |
3200kg |
| Lifting Speed |
36m/min |
36m/min |
36m/min |
36m/min |
| Cage Dimension |
3.0m(L)*1.3m(W)*2.5m(H) or customized |
| Model (Medium Speed) |
SC100GZ |
SC200GZ |
SC270GZ |
SC320GZ |
| Rated Load |
1000kg |
2000kg |
2700kg |
3200kg |
| Lifting Speed |
0-63m/min |
0-63m/min |
0-63m/min |
0-63m/min |
| Model (High Speed) |
SC100G |
SC200G |
| Rated Load |
1000kg |
2000kg |
| Lifting Speed |
0-96m/min |
0-96m/min |
| Motor Power |
2*2*22kw |
2*2*22kw |
❓
Frequently Asked Questions
What is the maximum lifting capacity of the SC series hoist?
The SC series construction hoists offer various capacities ranging from 1000kg up to 3200kg per cage to suit different project needs.
What lifting speeds are available for these hoists?
We provide low speed (36m/min), medium speed (0-63m/min), and high speed (0-96m/min) options, all utilizing frequency conversion for smooth operation.
Can the cage dimensions be customized?
Yes, while our standard cage size is 3.0m x 1.3m x 2.5m, we can provide customized dimensions based on specific site requirements.

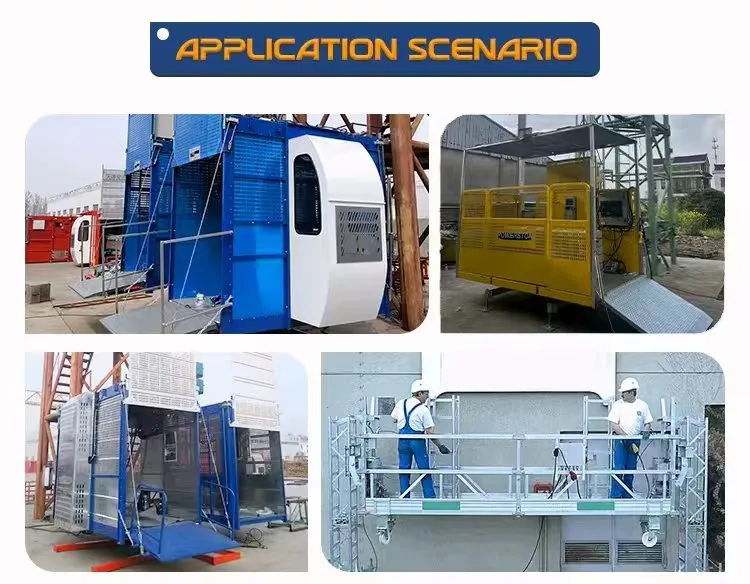

In which industries are these construction lifts typically used?
They are widely used in industrial and residential building projects, bridge construction, large chimneys, and the shipbuilding industry.
How does frequency conversion benefit the hoist?
The frequency conversion device ensures smooth starting and braking, which greatly reduces mechanical wear and increases the lifespan of the equipment.

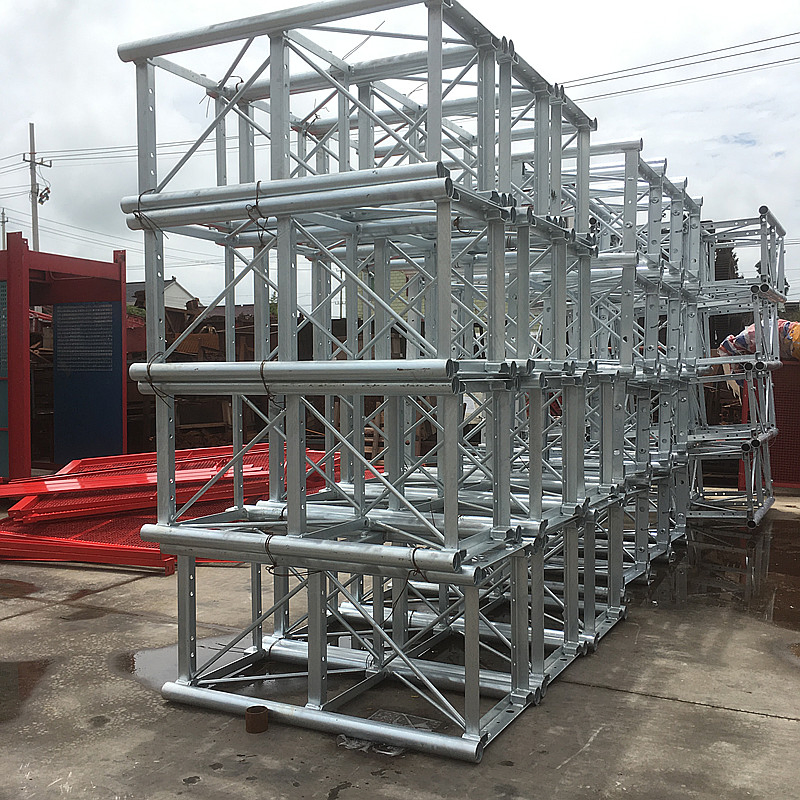

What is the standard mast section size?
The standard mast section dimension for the SC100 model is 650mm x 650mm x 1508mm.
