CE & GOST Approved Large & Double Cage Building Construction Lift
CE & GOST Approved Large & Double Cage Building Construction Lift
CE & GOST Approved Large & Double Cage Building Construction Lift
CE & GOST Approved Large & Double Cage Building Construction Lift
CE & GOST Approved Large & Double Cage Building Construction Lift
1 / 5
CE & GOST Approved Large & Double Cage Building Construction Lift
CE & GOST Approved Large & Double Cage Building Construction Lift
CE & GOST Approved Large & Double Cage Building Construction Lift
CE & GOST Approved Large & Double Cage Building Construction Lift
CE & GOST Approved Large & Double Cage Building Construction Lift

CE & GOST Approved Large & Double Cage Building Construction Lift

Customization: Available
After-sales Service: Gaoli
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications
Model NO.
SCD320/320
Type
Guide Tracked
Load Capacity
2X3.2t
Speed
0-36m/Min
Usage
Construction Hoist
Max Lifting Height
450m
Motor Power
2*3*11kw
Power Source
Electric
Certification
ISO9001: 2000, CE
Mast Section Size
650*650*1508mm

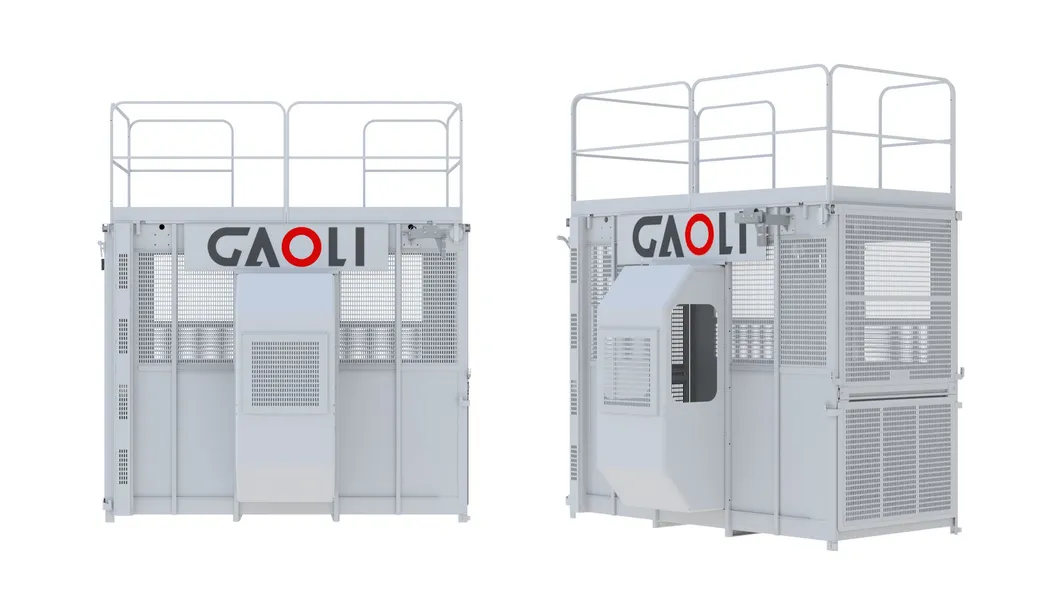

Double Cage Building Construction Lift
Construction Hoist Detail
Product Description
Product Range Model Rated Load (kg) Lifting Speed (m/min) Motor Power (kw) Counterweight (kg)
Single Car (with CW) SCD320 3200 36 3×11 1200
Dual Car (with CW) SCD320/320 2×3200 36 2×3×11 2×1200
Dual Car (no CW) SC200/200 2×2000 36 2×3×11 0

Key Product Features:

  • Excellent safety record for high-rise construction.
  • High quality products approved by ISO9001, CE and GOST certificates.
  • Durable and reliable for fine material and workmanship.
  • Convenient for installation, disassembly and maintenance.

Technical Remarks:

• Recommended car dimensions (m): 3.2×1.5×2.5; 3.8×1.5×2.5; 4.2×1.5×2.5.

• Suspension car dimensions can be fully customized based on project needs.

• For installation heights above 200m, a hoist with counterweight is highly recommended.

• Installation heights for general construction should typically not exceed 150m without special configuration.

Packaging & Delivery
Package Size
1219.00cm * 243.00cm * 259.00cm
Gross Weight
10000.00kg
Capacity
2000 Sets Per Year
Origin
China
Frequently Asked Questions
1. What is the maximum lifting height of the SCD320/320 model?
The maximum lifting height for this model is 450 meters, making it suitable for high-rise building projects.
2. What certifications do these construction lifts hold?
Our products are fully compliant with international standards and hold ISO9001: 2000, CE, and GOST certifications.
3. Can the cage size be customized?
Yes, while we have recommended sizes like 3.2×1.5×2.5m, the dimensions of the suspension car can be customized to meet specific project requirements.
4. When is a counterweight recommended for the hoist?
A construction hoist with a counterweight is recommended if the installation height exceeds 200 meters to ensure stability and efficiency.
5. What is the rated loading capacity for the SCD320/320?
The SCD320/320 dual-car model has a rated loading capacity of 2x3200kg, totaling 6400kg.
6. Is the lift easy to maintain?
Yes, the design emphasizes convenience for installation, disassembly, and routine maintenance to minimize downtime on the construction site.
