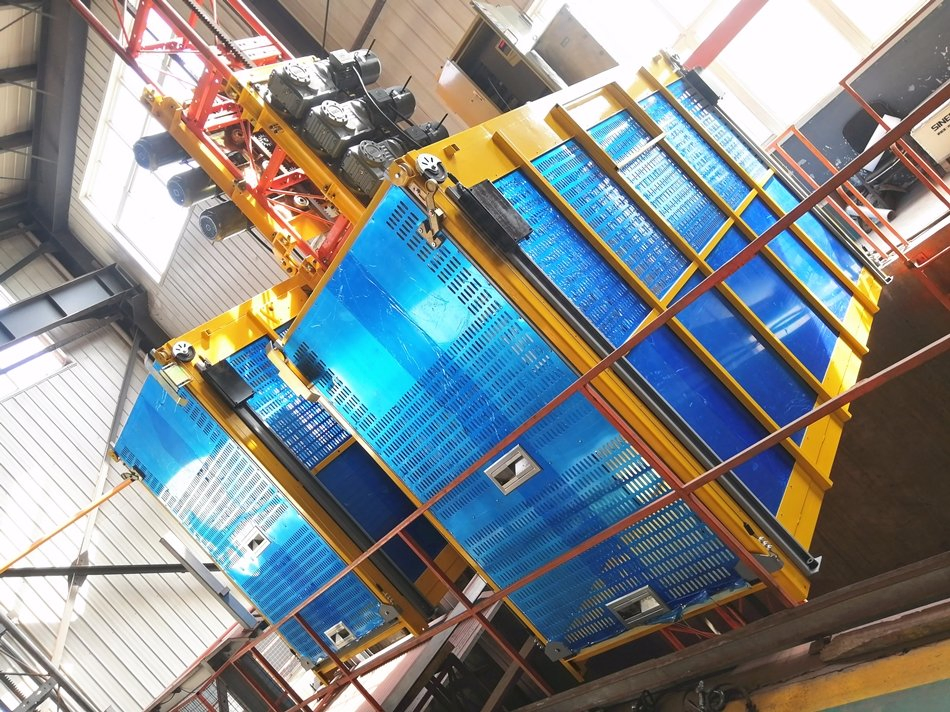

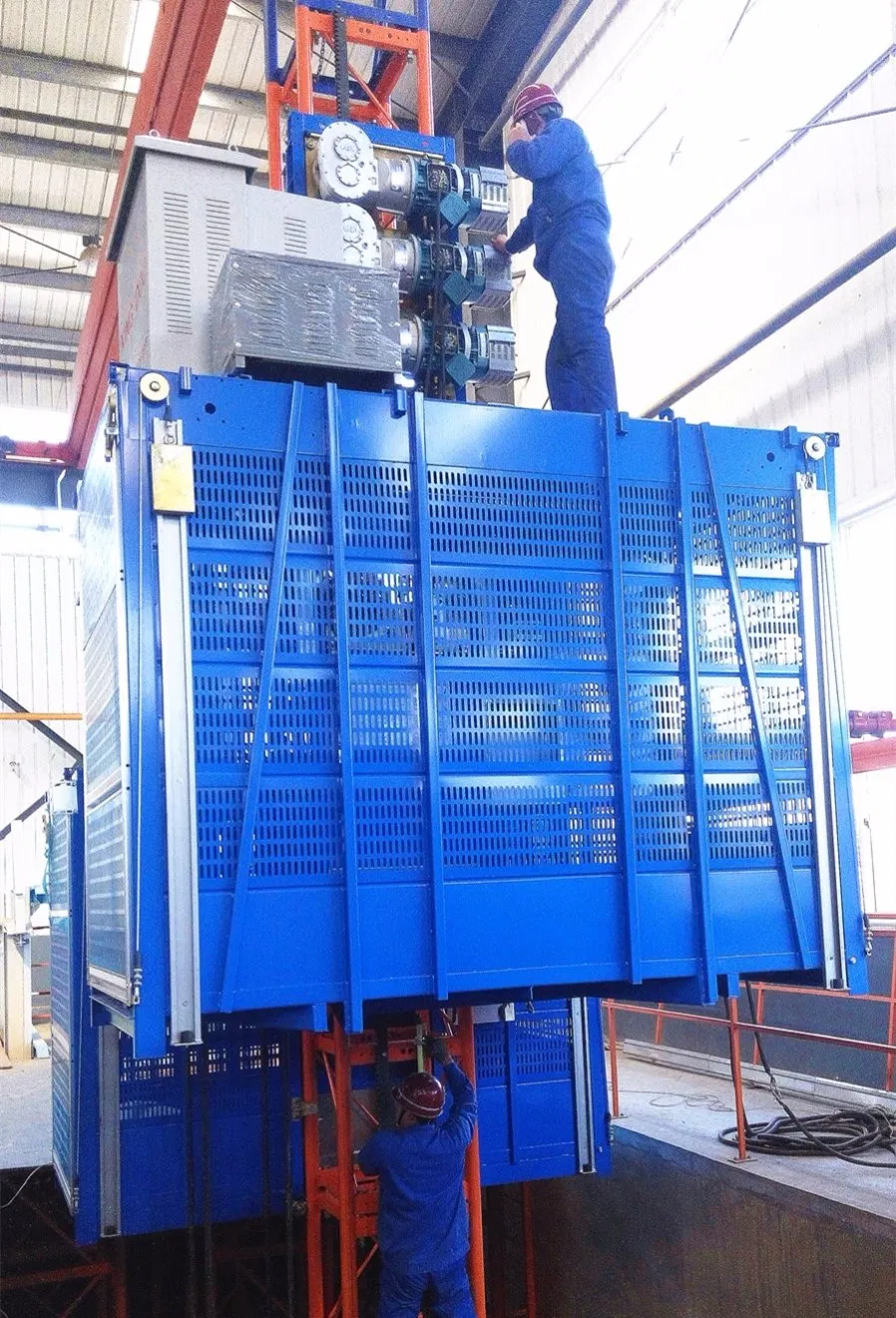

Building material hoisting construction machinery mast section rack and gear lift spare parts
Our equipment focus on all kinds of rack and pinion driving vertical access machinery and supply design, solution and OEM to all customers all over the world. Our range includes construction building hoists, tower crane mini hoists, industrial lifts, mast climbing platforms, and mast climbers.

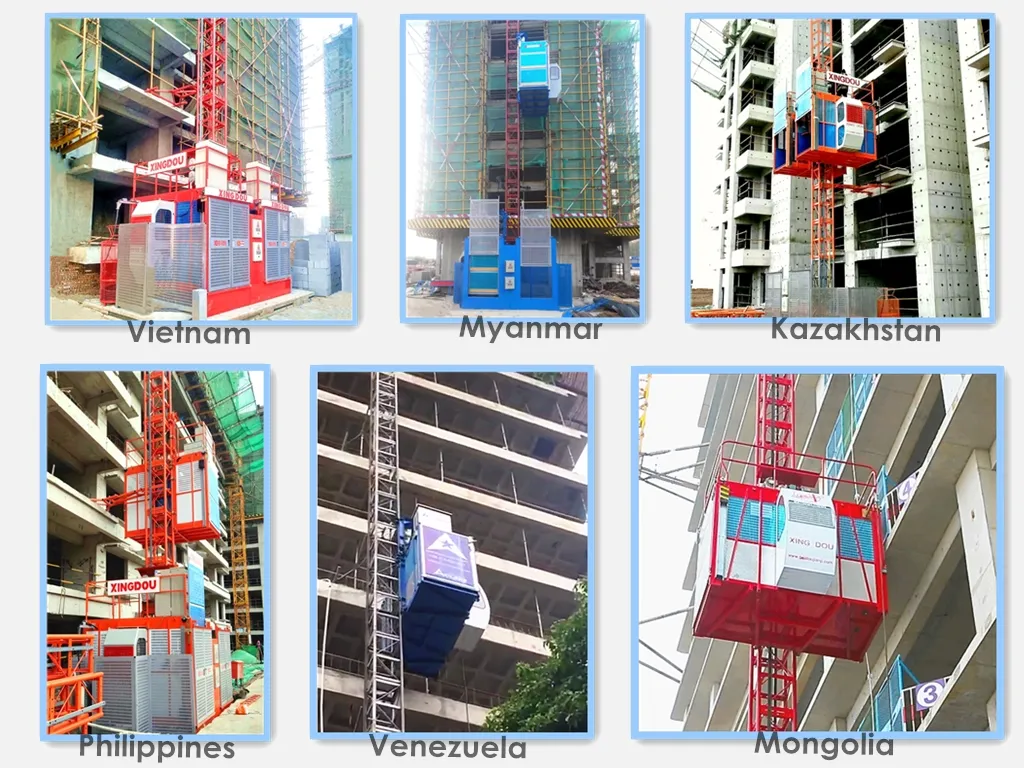

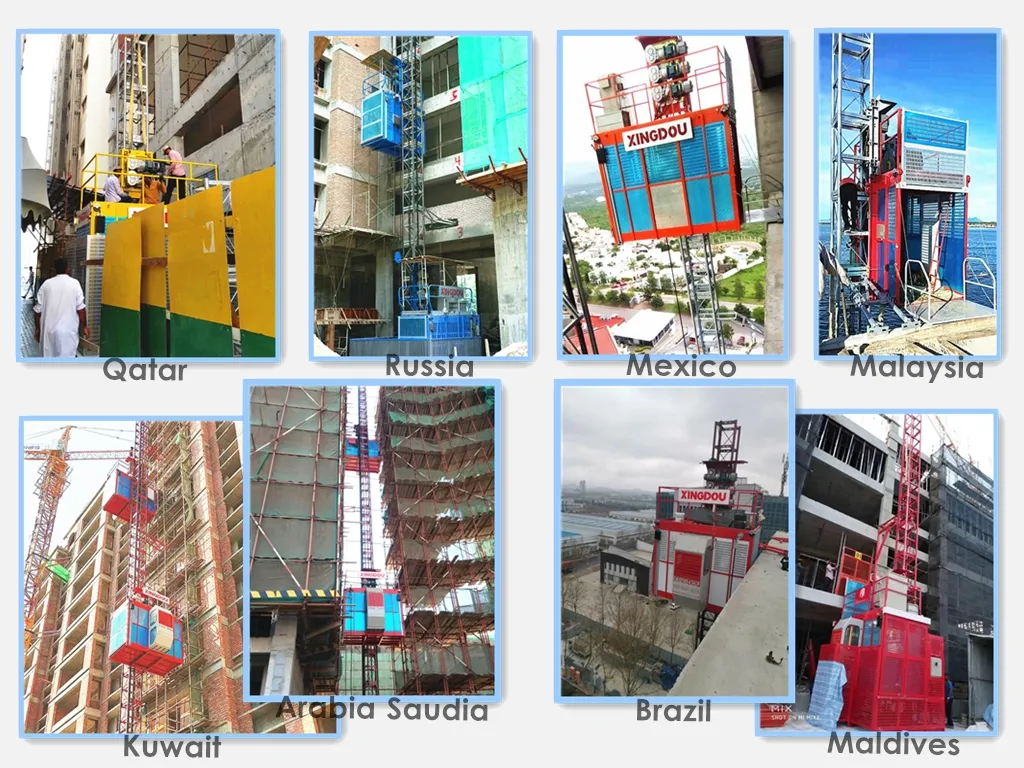

Our rack and pinion construction building hoists have been sent to more than 30 countries and received excellent feedback.
| Specification | Type | Lifting Capacity | Lifting Speed | Motor Power | Safety Device |
|---|---|---|---|---|---|
| Single cage | SC100 / SC150 / SC200 | 1000Kg - 2000Kg | 33m/min | 2*11Kw / 3*11Kw | SAJ 30/40-1.2 |
| Twin cages | SC100/100 / SC200/200 | 1000Kg×2 - 2000Kg×2 | 33m/min | 2*11Kw×2 - 3*11Kw×2 | SAJ 30/40-1.2 |
| Type | Lifting Capacity | Lifting Speed | Motor Power | VFD | Safety Device |
|---|---|---|---|---|---|
| SC200L (Low) | 2000Kg | 0~40m/min | 2×15Kw | 37Kw | SAJ 40-1.2 |
| SC200M (Medium) | 2000Kg | 0~70m/min | 3×19Kw | 75Kw | SAJ 50-1.6 |
| SC200H (High) | 2000Kg | 0~96m/min | 3×18.5Kw | 110Kw | SAJ 50-2.0 |

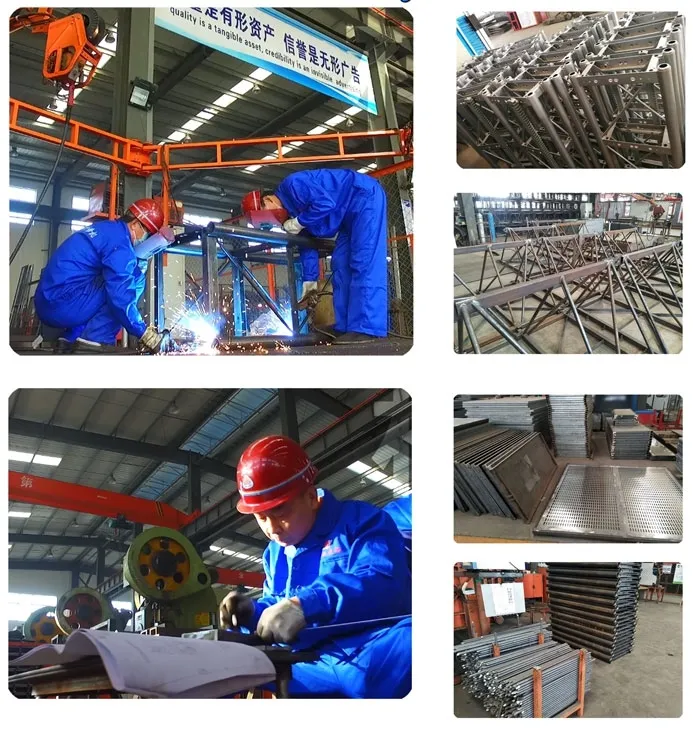

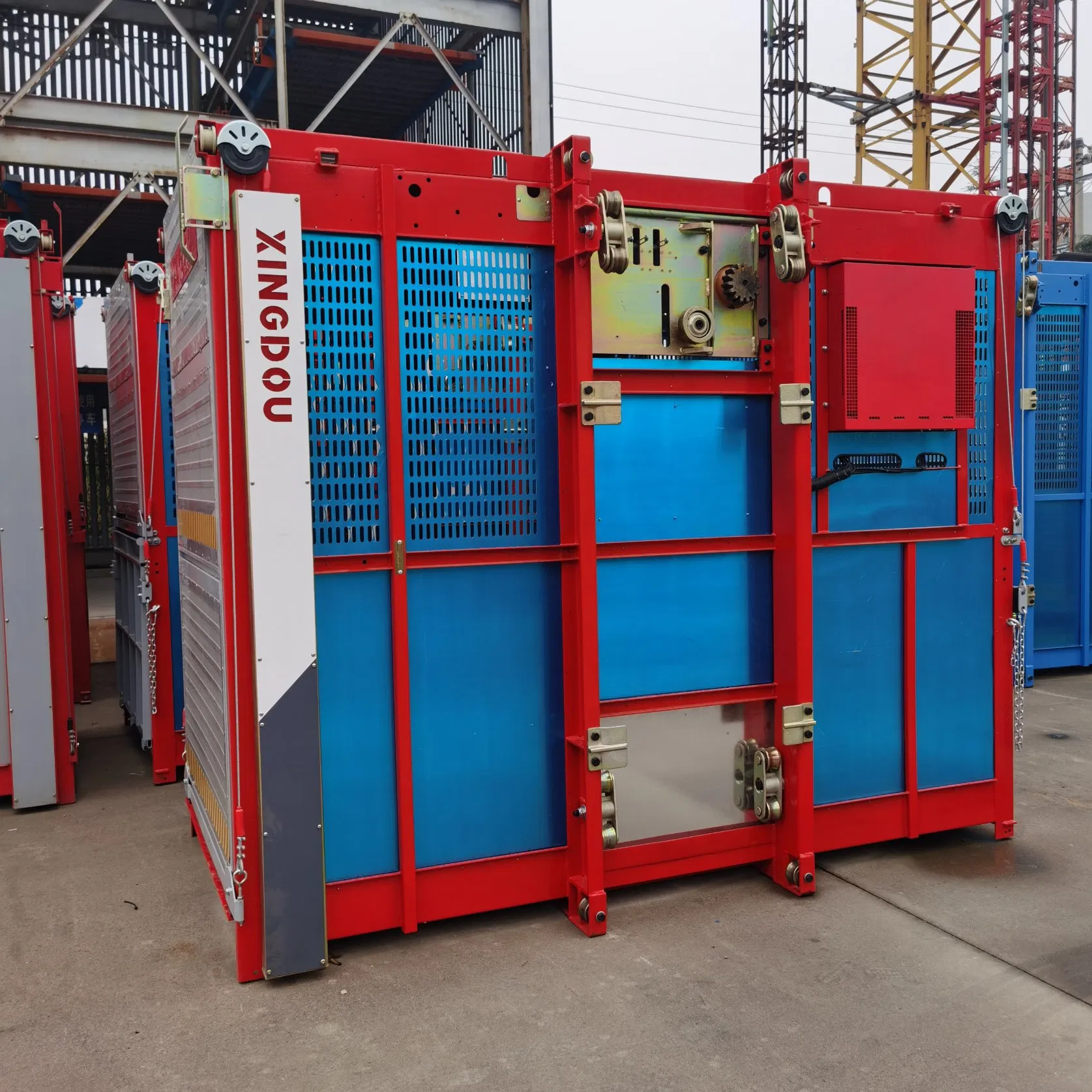

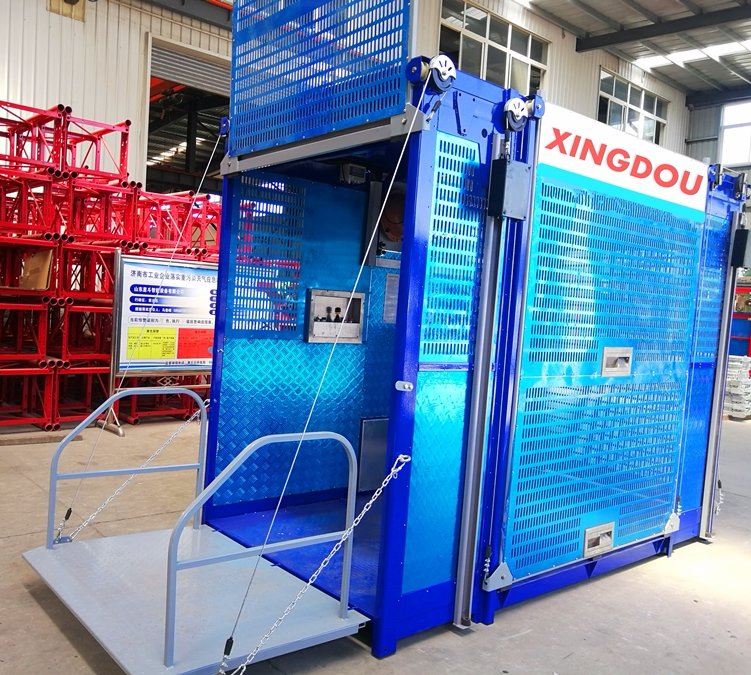

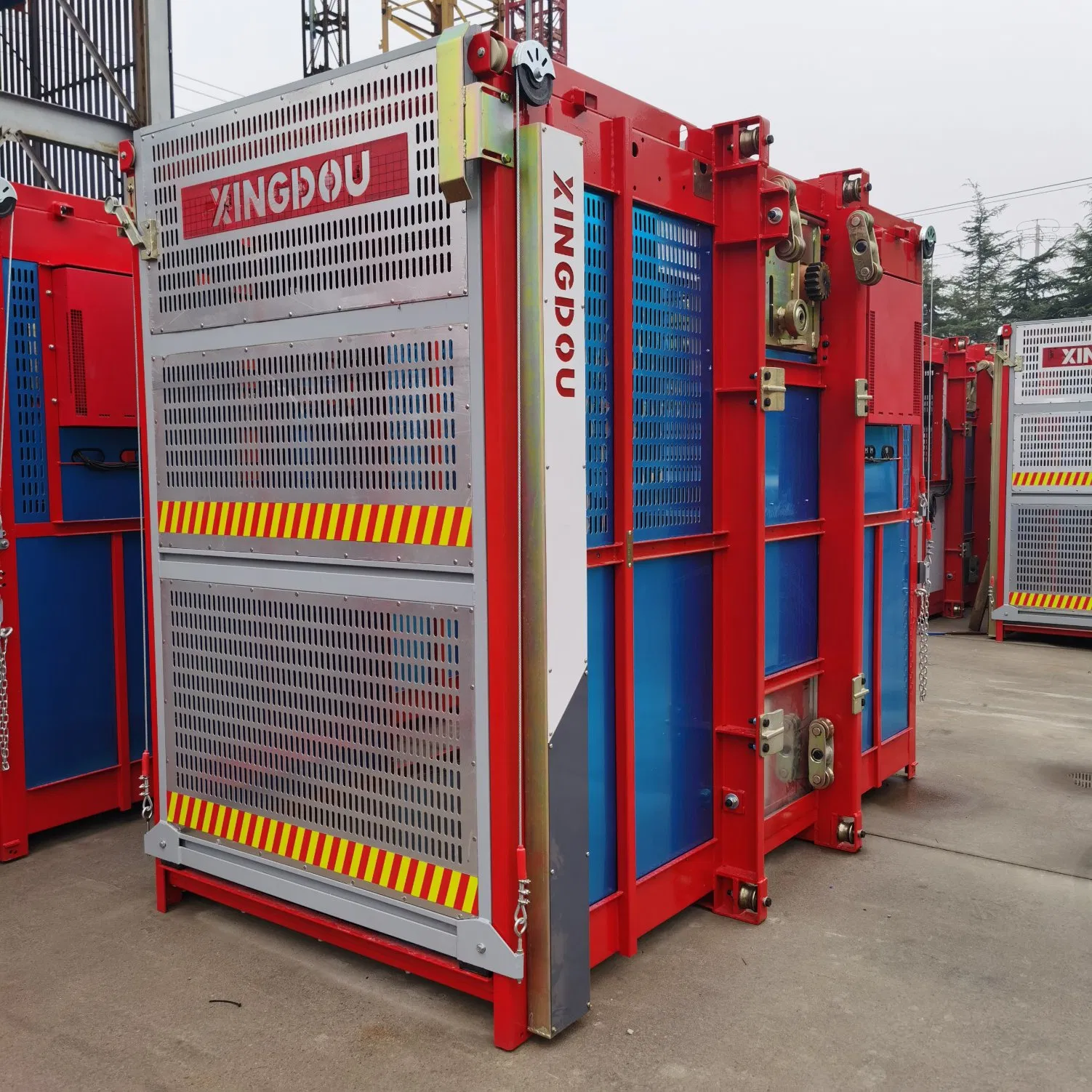

The cage can be customized according to requirements. We provide various mast sections: 650*650*1508mm, 800*800*1508mm, and more. All steel frames are welding fixed inside Jigs to ensure precision.
We provide various certificates to facilitate smooth importation and cost savings for our clients. We have rich experience in exportation and importation procedures.
