(OEM & ODM Service Available)

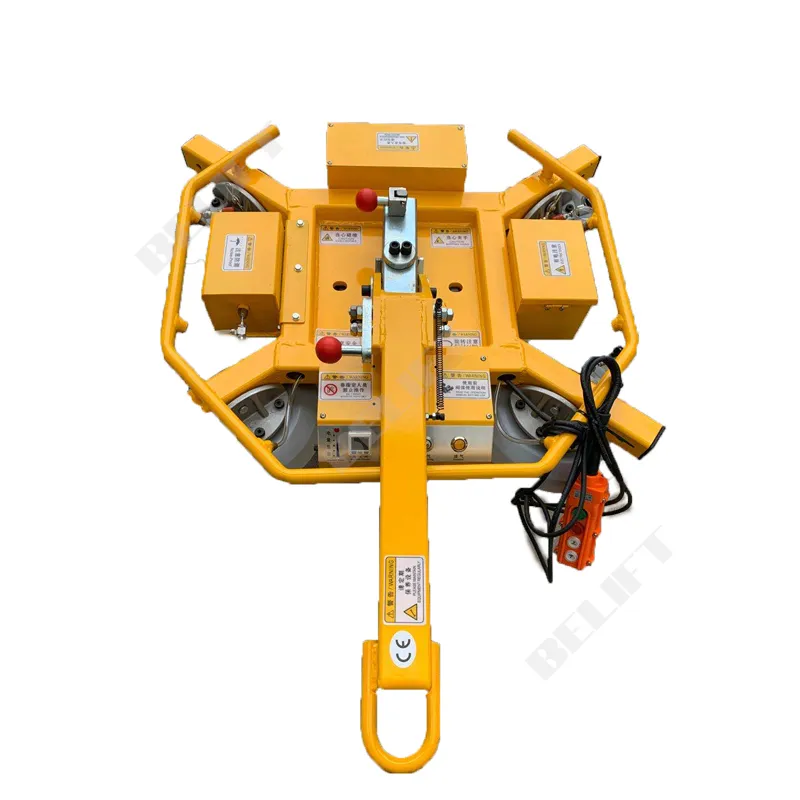

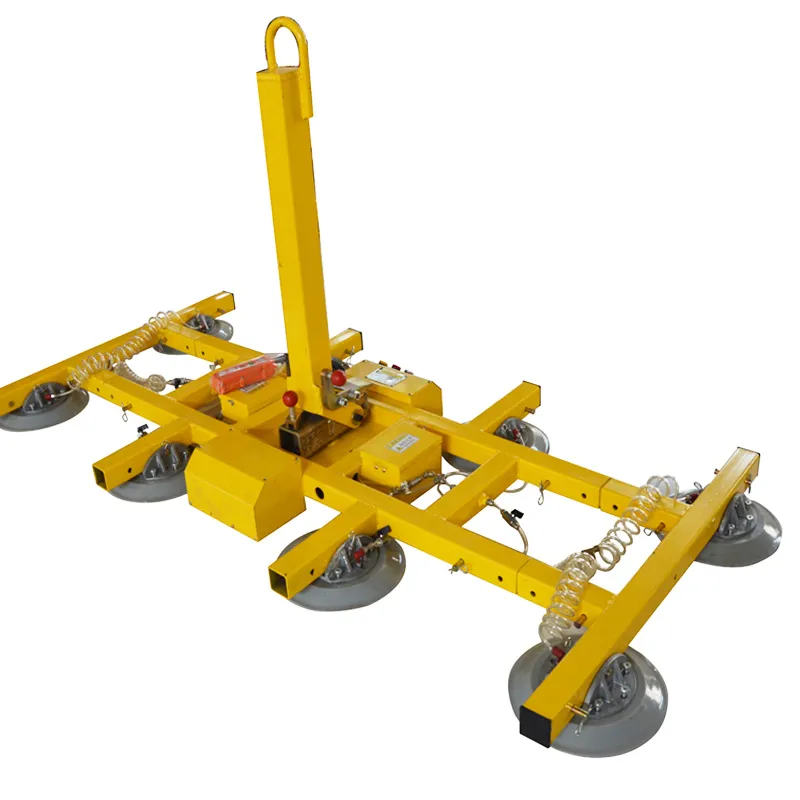

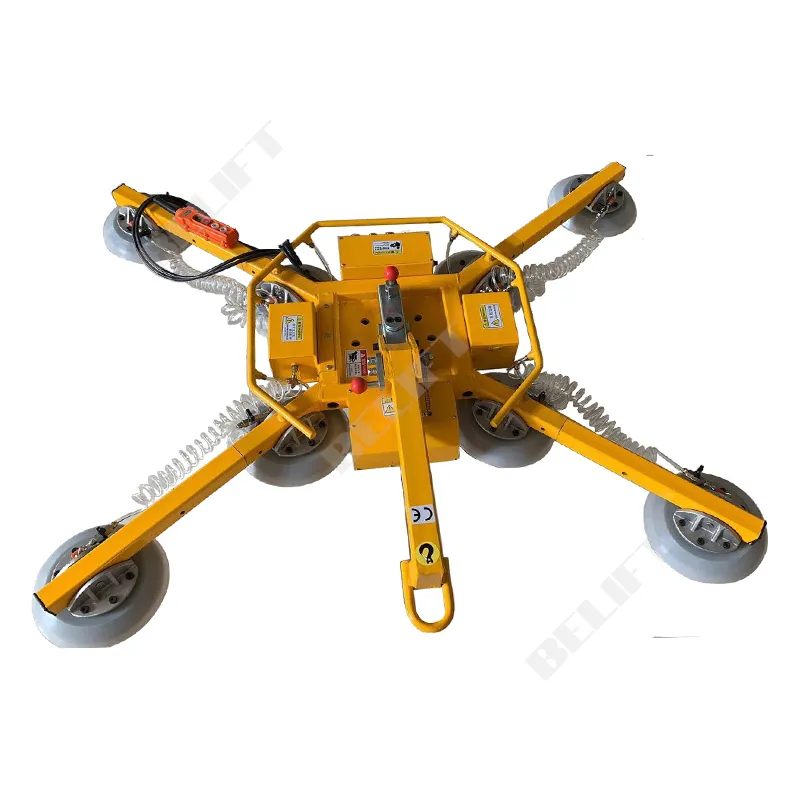

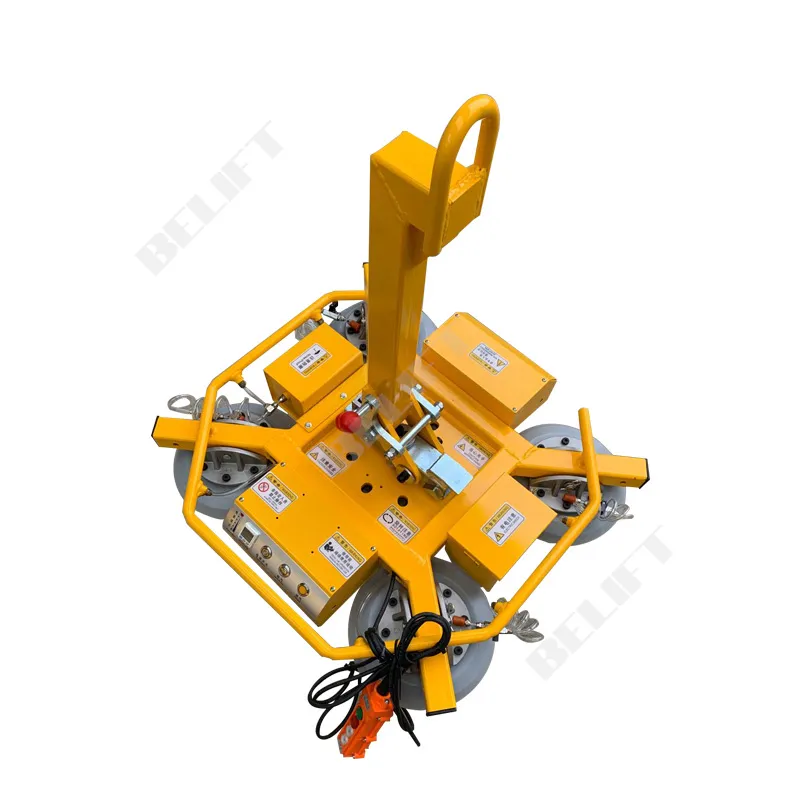

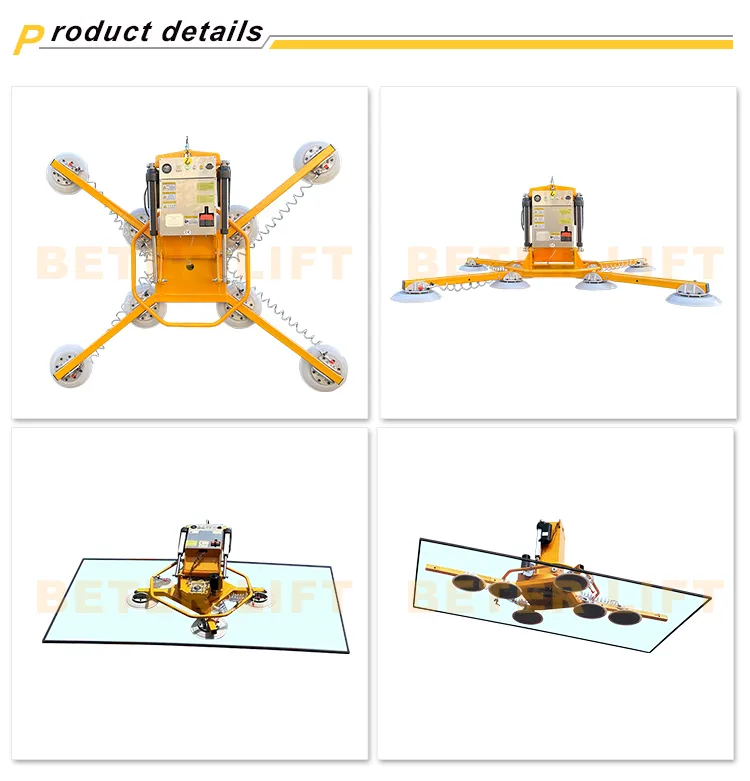

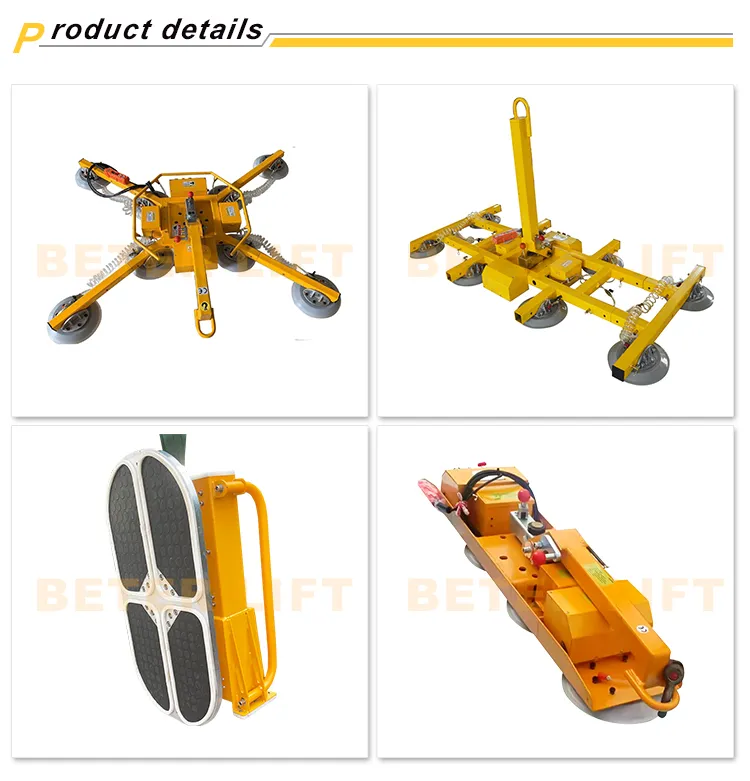

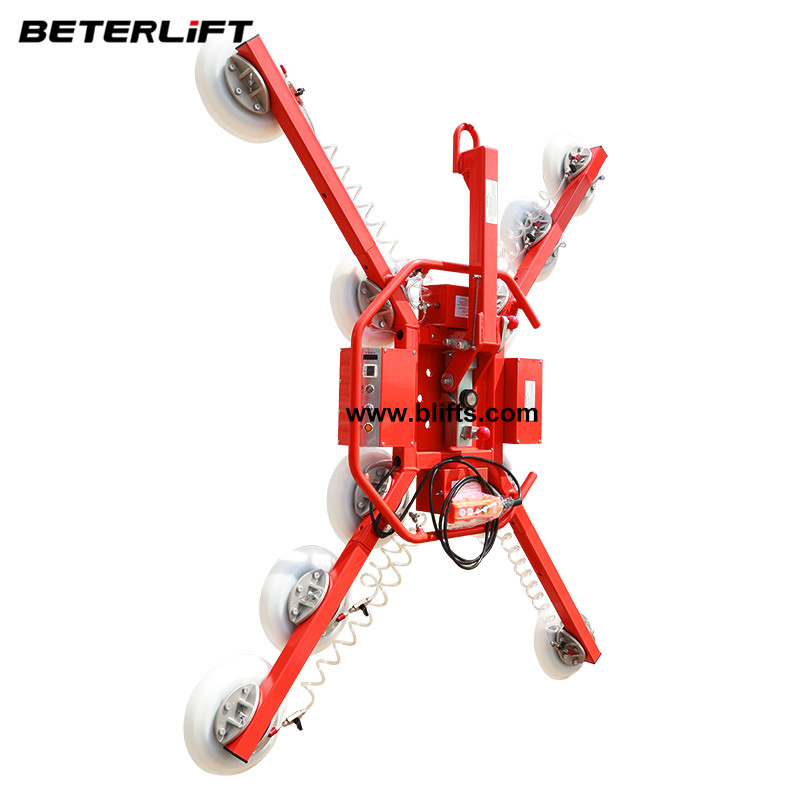

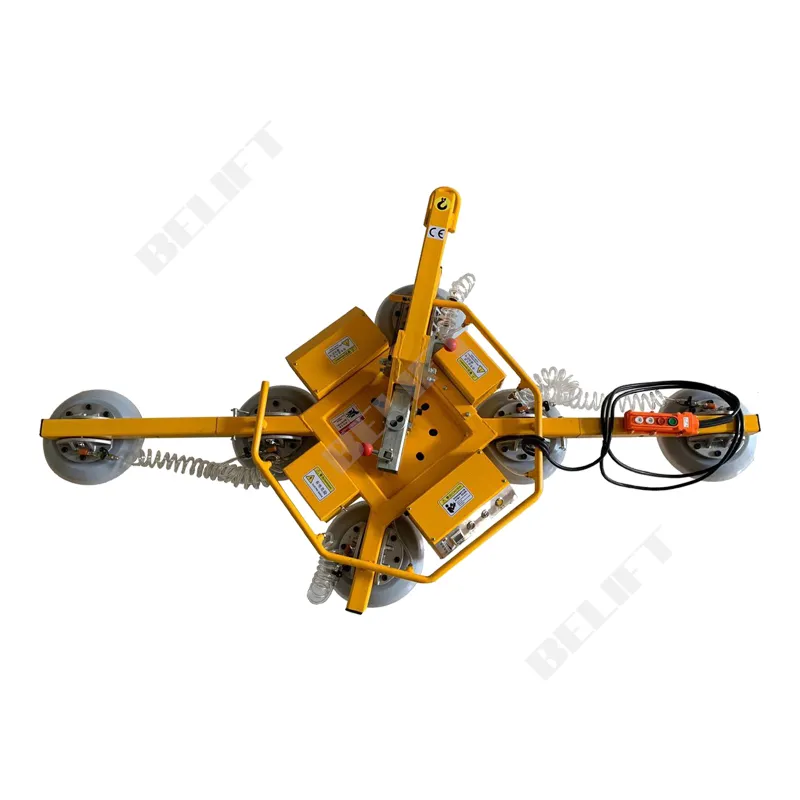

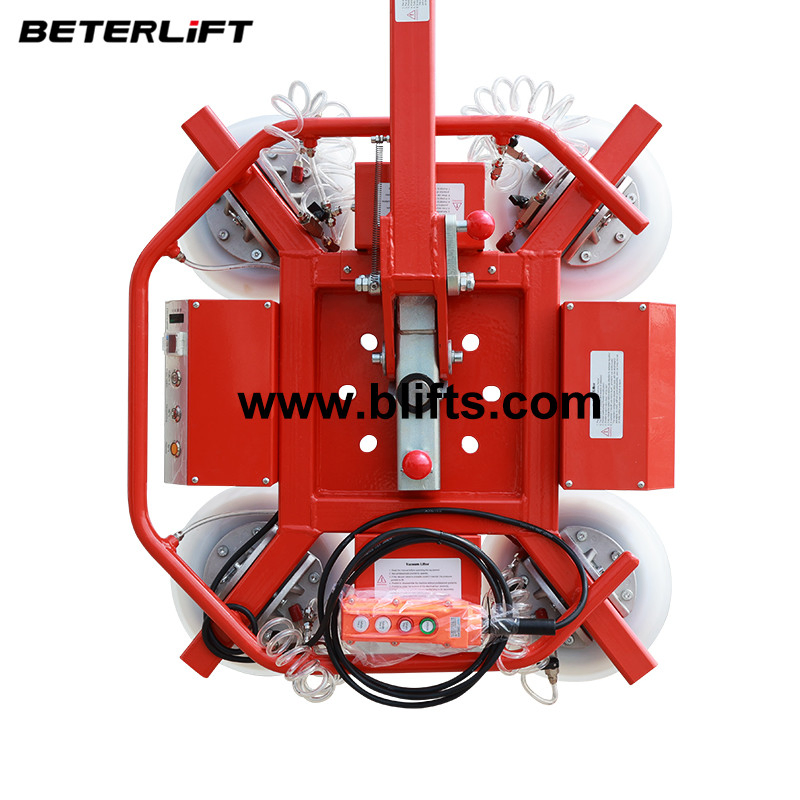

This Small Vacuum lifting machine is a fast, safe, and convenient automatic equipment. It utilizes the principle of vacuum adsorption, using a vacuum pump as the source to generate suction at the cup end, firmly holding workpieces like glass and iron plates. The rotatable mechanical arm then transports the items to designated positions.
| Items | Unit | BGL-SC-400X | BGL-SC-600X | BGL-SC-800X | BGL-SC-1000X | BGL-SC-1200X |
|---|---|---|---|---|---|---|
| Lifting Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
| Cup Qty | / | 4 | 6 | 8 | 10 | 12 |
| Single Cup Diameter | mm | 300 | 300 | 300 | 300 | 300 |
| Rotation | / | 360° manual rotate | ||||
| Tilting | / | 90° manual | ||||
| Voltage | V | DC12 | ||||
| Charger | V | AC220/110 custom | ||||
| Weight | kg | 70 | 90 | 100 | 120 | 120 |
| Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 | 1900*1600*300 |

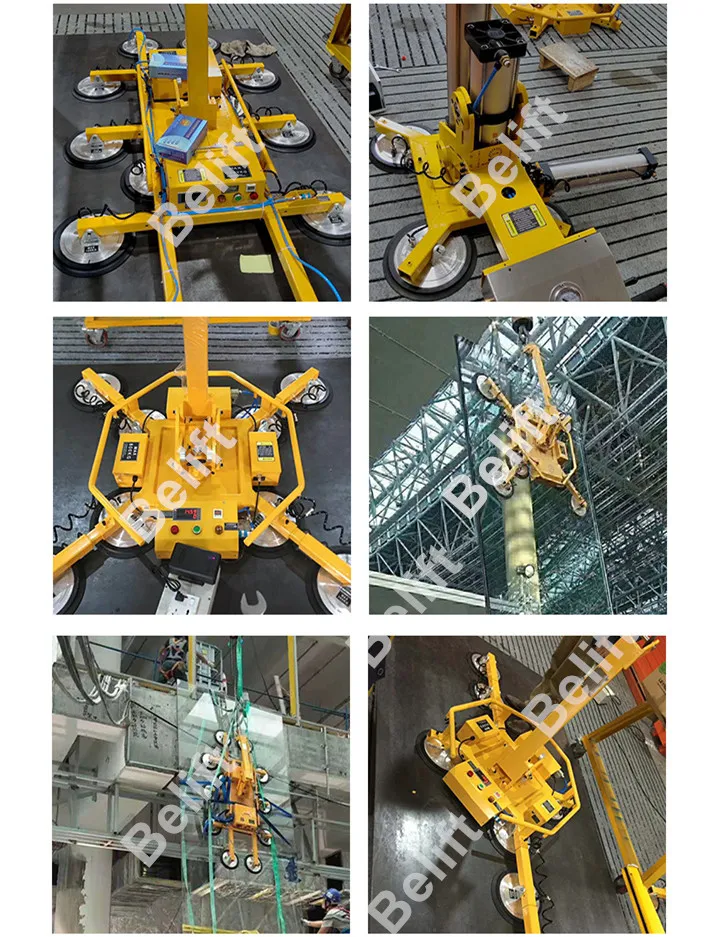

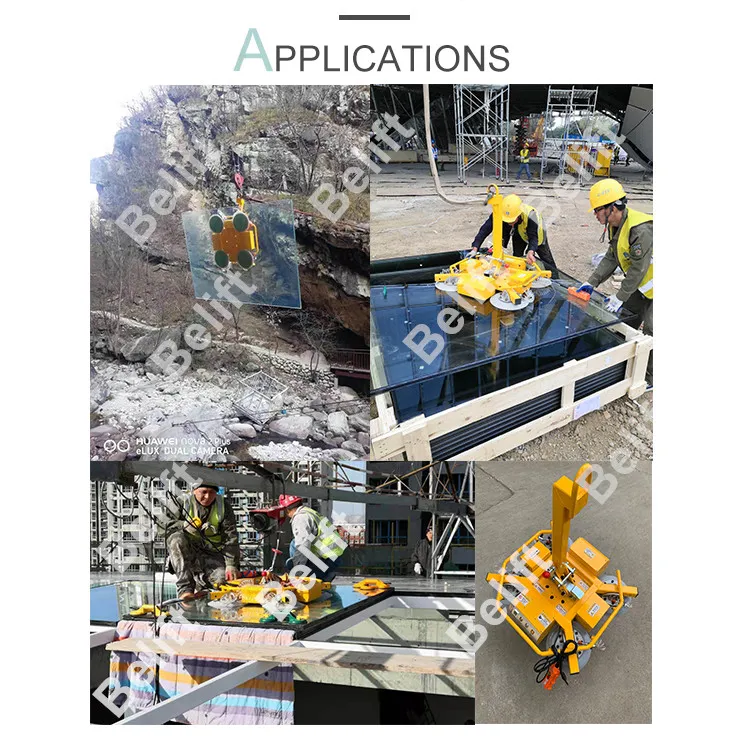

Widely used in glass processing, loading and unloading, curtain walls, plastic sheets, sandwich panels, composite panels, steel plates, aluminum, copper, and stone. It is suitable for workpieces with flat, dense surfaces and regular shapes.
