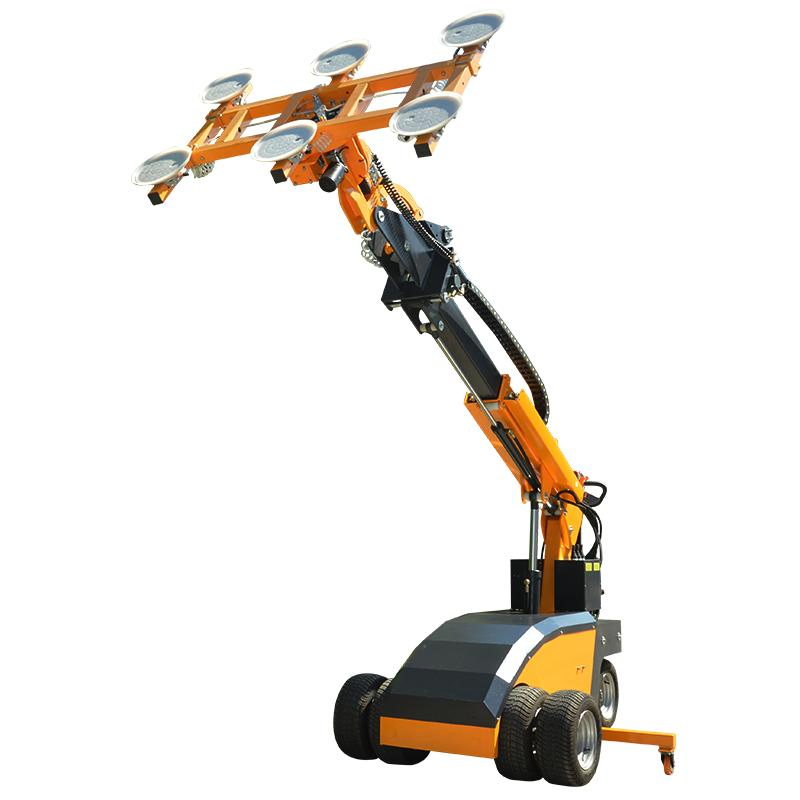

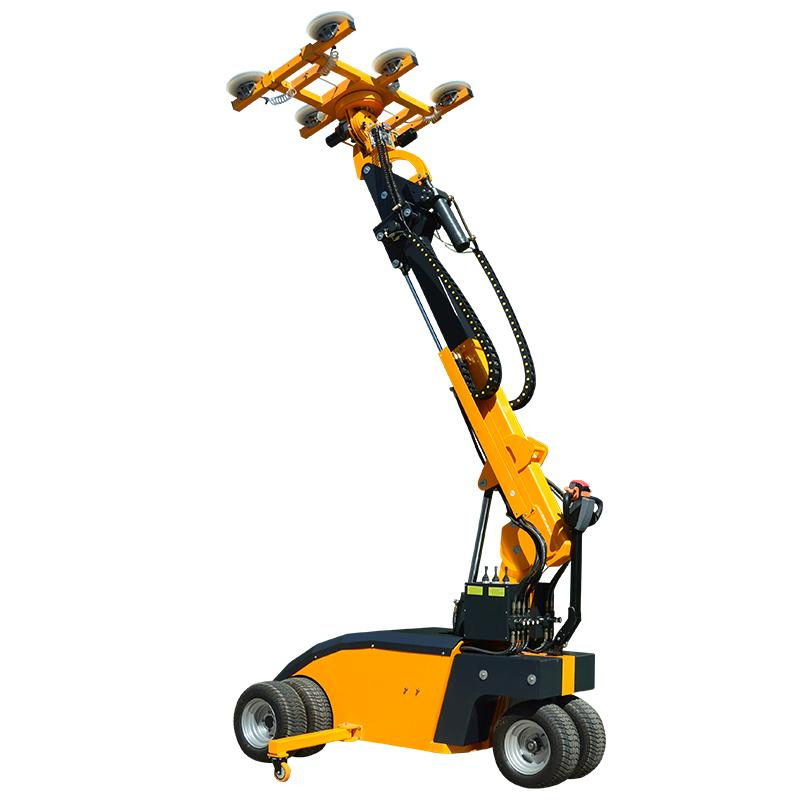

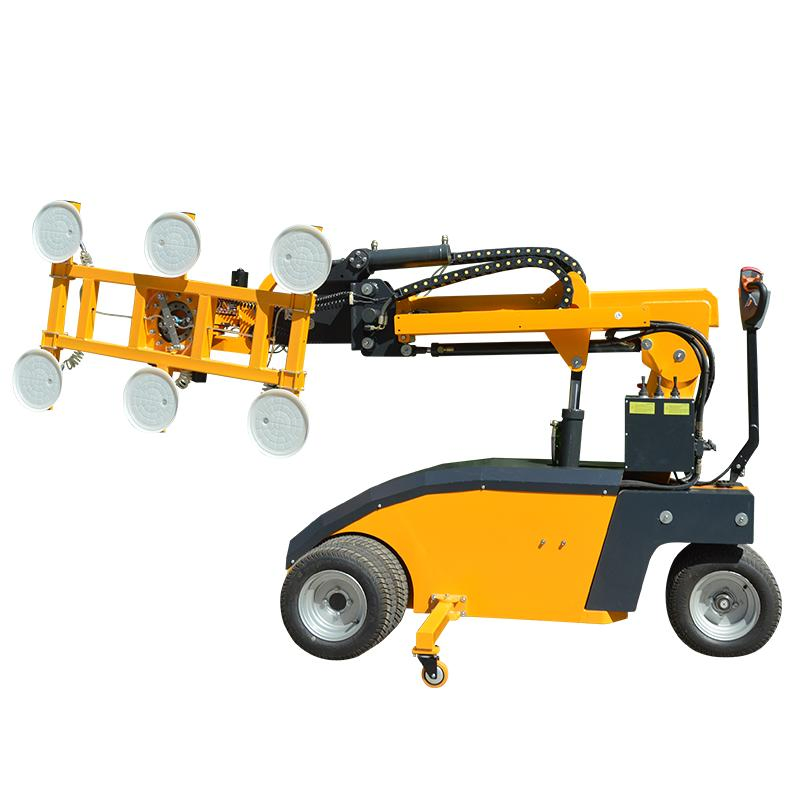

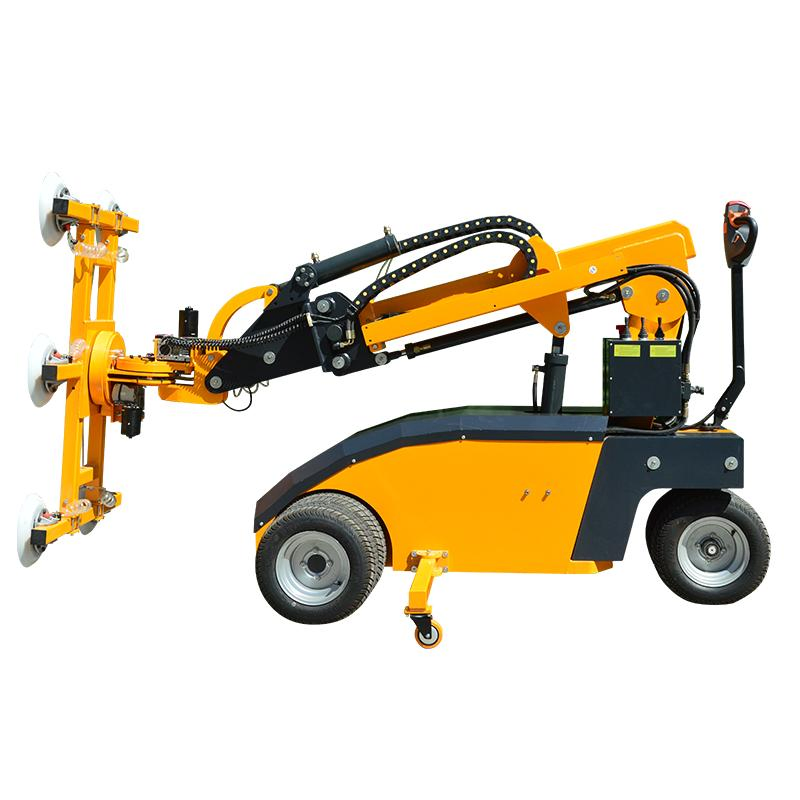

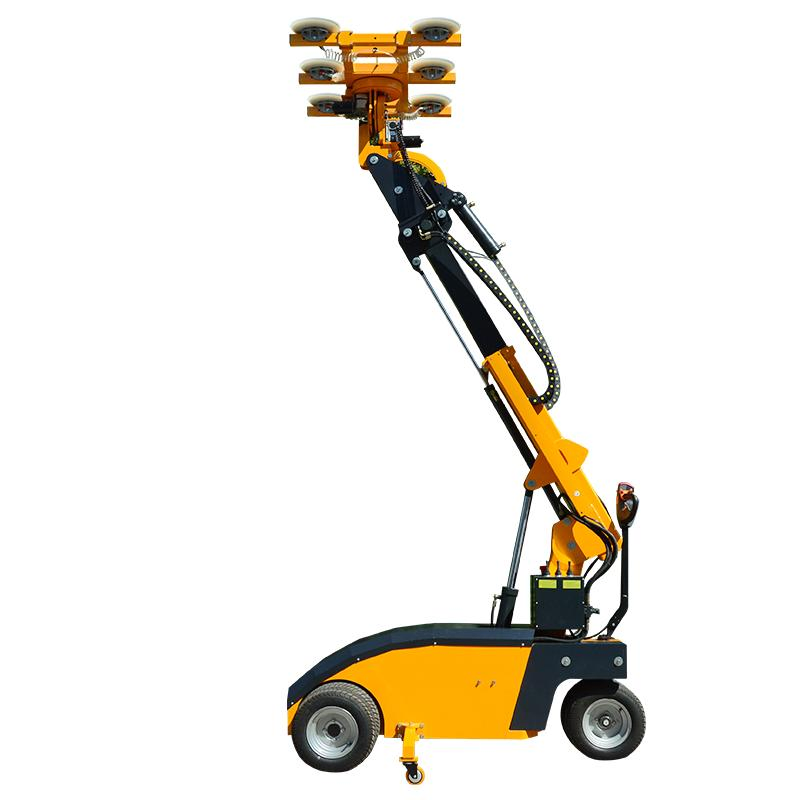

800kgs off-Road Electric Power Hydraulic Vacuum Lift Equipment

1 / 5

800kgs off-Road Electric Power Hydraulic Vacuum Lift Equipment

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GL-LD

Cup Quantity

Load Capacity

200-800kg

Lifting Height

3500-5000mm

Lifting Material

Glass/Sheet Metal/Stone Panel/Marble etc.

Suction Cups Size

Diameter 300mm

Deep Cycle Battery

2X12V/120ah

Battery Charger

Smart Charger

Drive Motor

21V/1200W

Lifting Motor

24V/2000W/5L

Chassis L*W

2800*810mm

Rotation

360 Degree

Tilting

90 Degree

Power

Electric

Color

Yellow or Customized

Vacuum Source

Vacuum Pump

Material

Steel+Rubber

Transport Package

Wooden Carton

Origin

China

Production Capacity

300/Month

Product Description

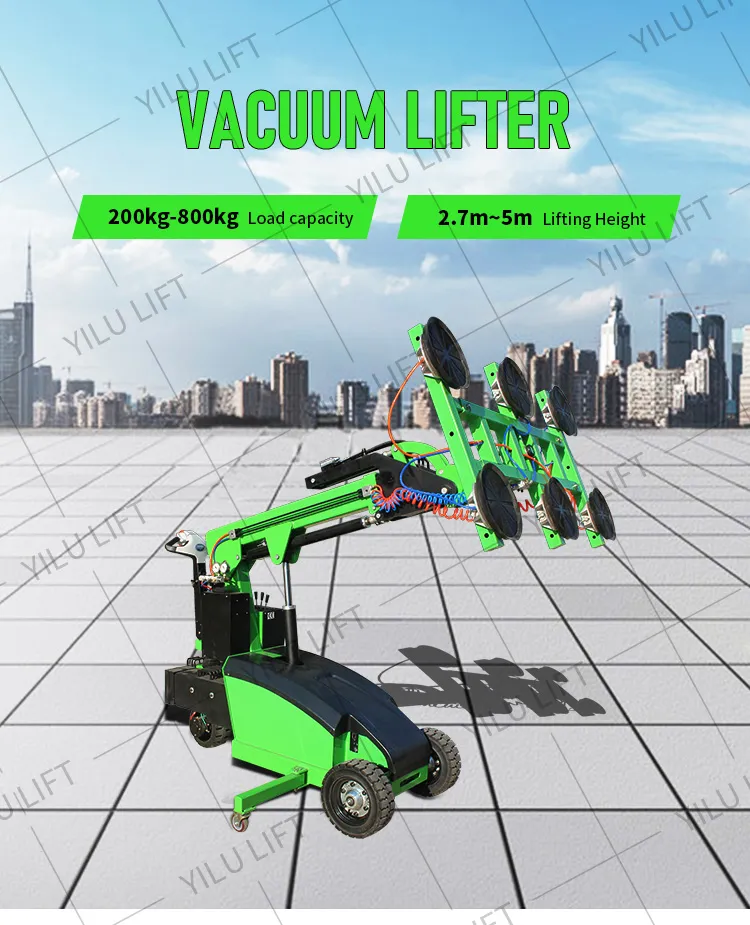

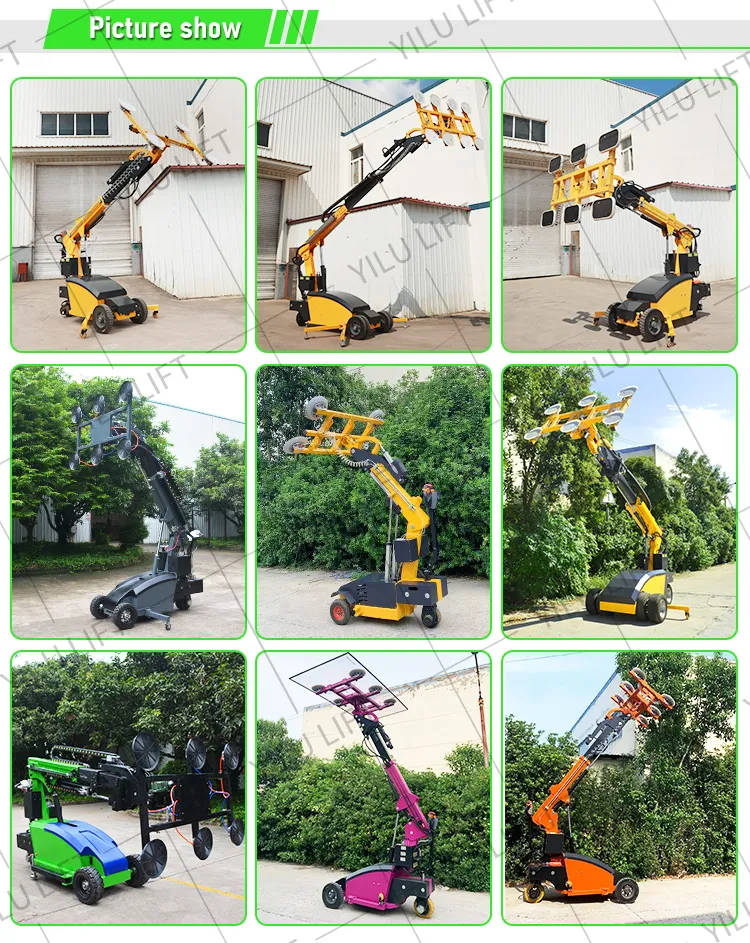

LD Series Off-Road Vacuum Lifter

Off-Road Electric Power Hydraulic Vacuum Lift Equipment

GL-LD series Vacuum Lifter: small size, easy to transport.

Special design for handling different kinds of heavy plates, such as steel, glass, granite, marble and so forth, with vacuum suction caps. Customization is accepted.

Model Type	GL-LD-300	GL-LD-400	GL-LD-500	GL-LD-600	GL-LD-800
Load Capacity	300kg (arm retract)	400kg (retract)	500kg (retract)	600kg (retract)	800kg (retract)
Load Capacity	150kg (extend)	200kg (extend)	250kg (extend)	300kg (extend)	400kg (extend)
Lifting Height	3500mm	3500mm	3700mm	3700mm	5000mm
Suction Cups	4pcs, Ø300mm	4pcs, Ø300mm	6pcs, Ø300mm	6pcs, Ø300mm	8pcs, Ø300mm
Deep Cycle Battery	2x12V/80AH	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH
Chassis L*W	2660*810mm	2660*810mm	2800*810mm	2800*810mm	2800*810mm

Key Advantages

Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.

DC24V reliable actuators for lifting, extension and tipping. Efficient and precise. Self-propelling, various circuit vacuum suction.

Attractive price, staff saving, strong improvement of working environment.

Vacuum lifters are dealt with shot blasting and stoving varnish, providing high anti-corrosion function.

High quality pump station make the vacuum lifter lifts and falls very stably.

Frequently Asked Questions

1. How to place an order?

Please provide your detailed requirements (including product materials, dimensions, and weight), and we will send you detailed parameters and quotations as soon as possible.

2. What are the price terms available?

Pricing depends on your equipment requirements and shipment terms, such as FOB, CIF, or DDP.

3. What payment methods are accepted?

We accept wire transfers, letters of credit, PayPal, and Western Union.

4. What is the standard delivery time?

For standard products, the delivery time is 7 days. For customized orders or items not in stock, delivery time is determined based on the specific situation.

5. What is the warranty and support policy?

We provide a 1-year warranty along with lifelong technical support via email or video.

6. Which modes of transportation are available?

You can choose between sea, air, or rail transportation depending on your location and urgency.
