Product Description

📋

Basic Specifications

Model NO.
HX500, HX1000, HX1500
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Capacity
500kg-1500kg
Driven Type
Electric Motor
Certification
CE, ISO 9001
Lifting Height
25mm/35mm - 800mm
Power
1.1kw (380V/50Hz)
Lifting Time
25-30s
HS Code
84279000
🏗️

Product Description

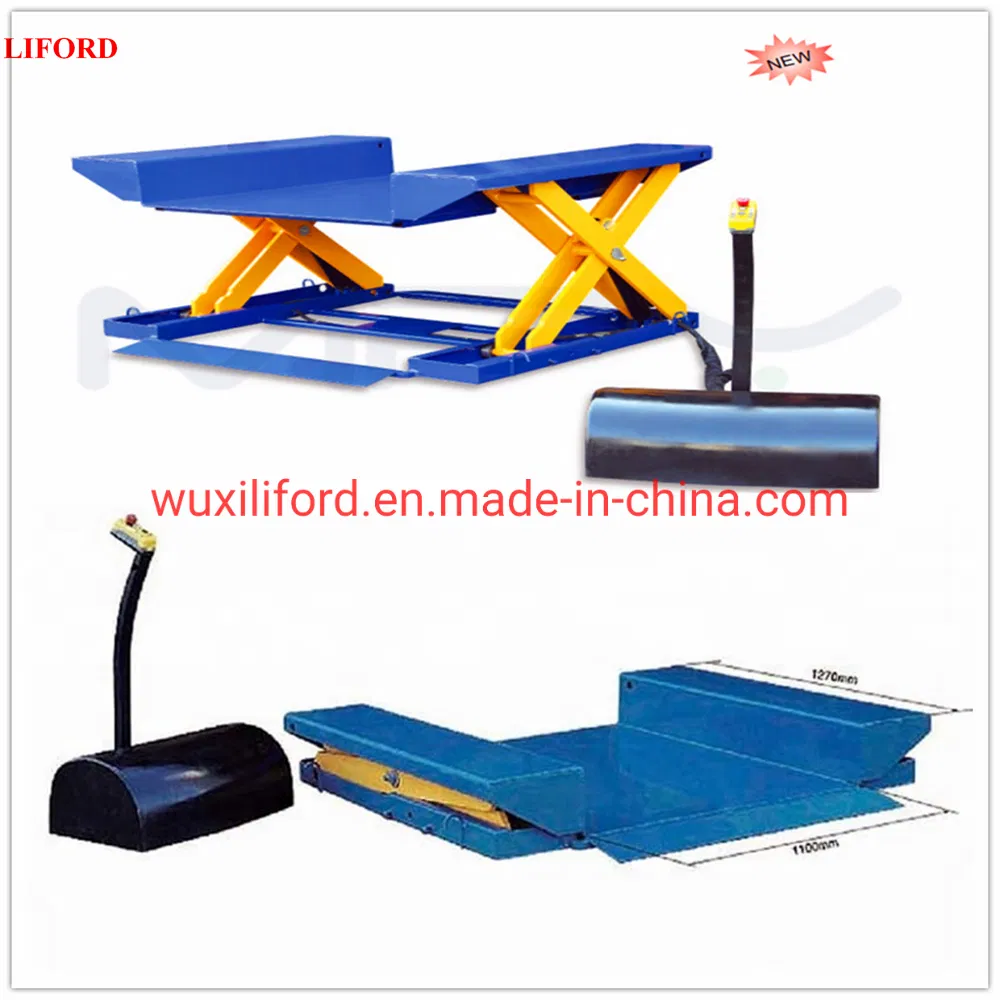

Stationary Electric Scissor Lift Table

Stationary Electric Scissor Lift Table Hydraulic Lifting Platform Zero Level Fixed Lifting Table

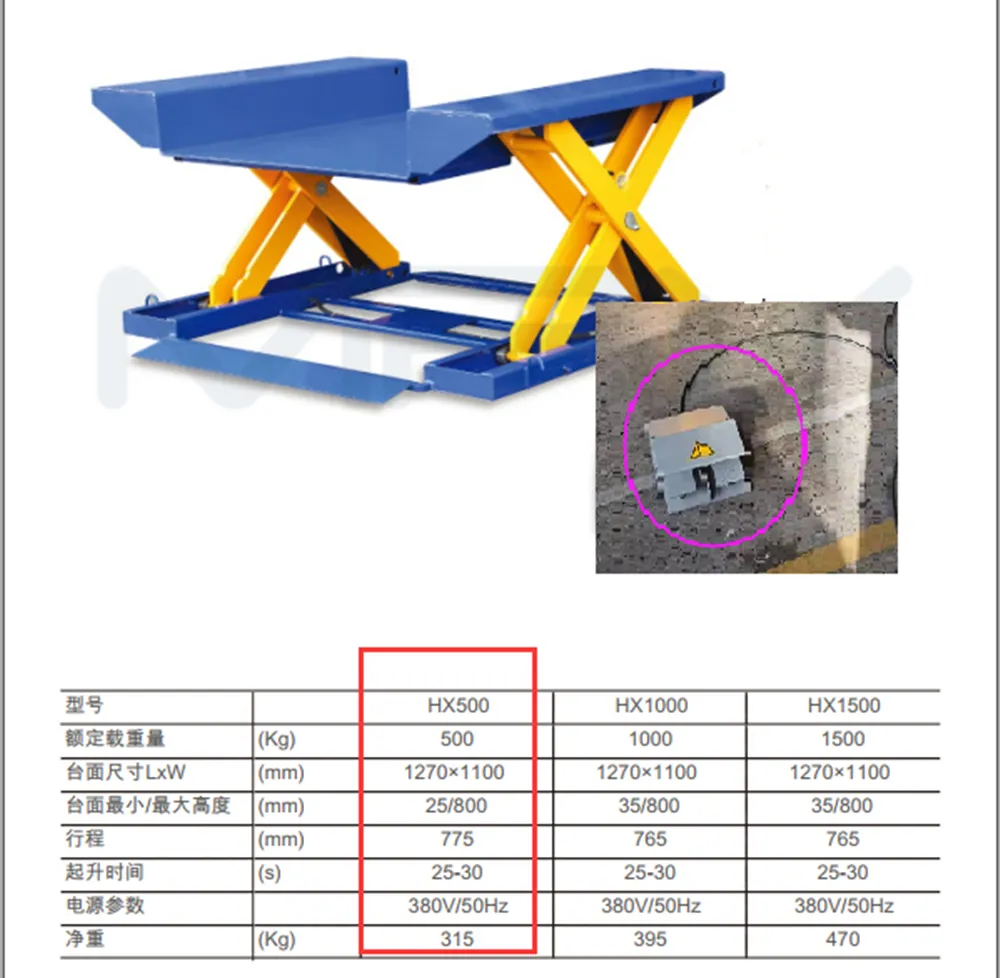

Lift Table Detail 1
Lift Table Detail 2
⭐

Key Features

01
Heavy Duty Design: Robust construction with 500-1500kg load capacity.
02
Super Low Profile: Concave table design allows installation without ground pits.
03
High Quality Components: European original AC power supply components, IP54 grade.
04
Precision Control: Anti-overload valve and flow compensated valve for precise lowering speed.
05
Safety First: Safety device beneath the table stops lowering if obstacles are detected.
06
Low Friction: Auto lubrication guide rings on pivot points for reduced component wear.

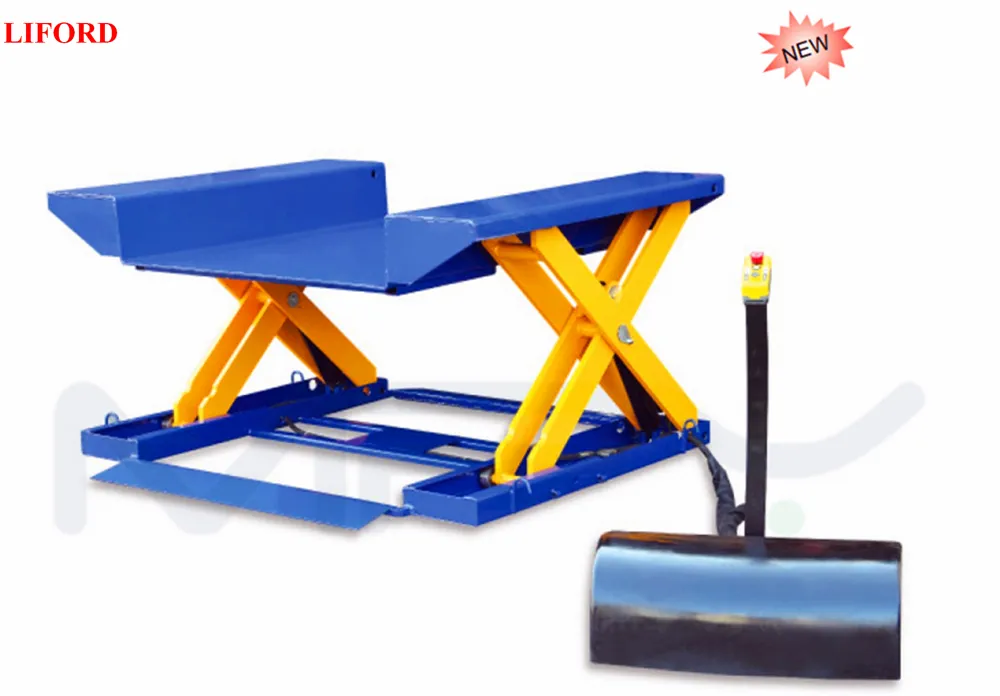

Lifting Platform
Hydraulic System

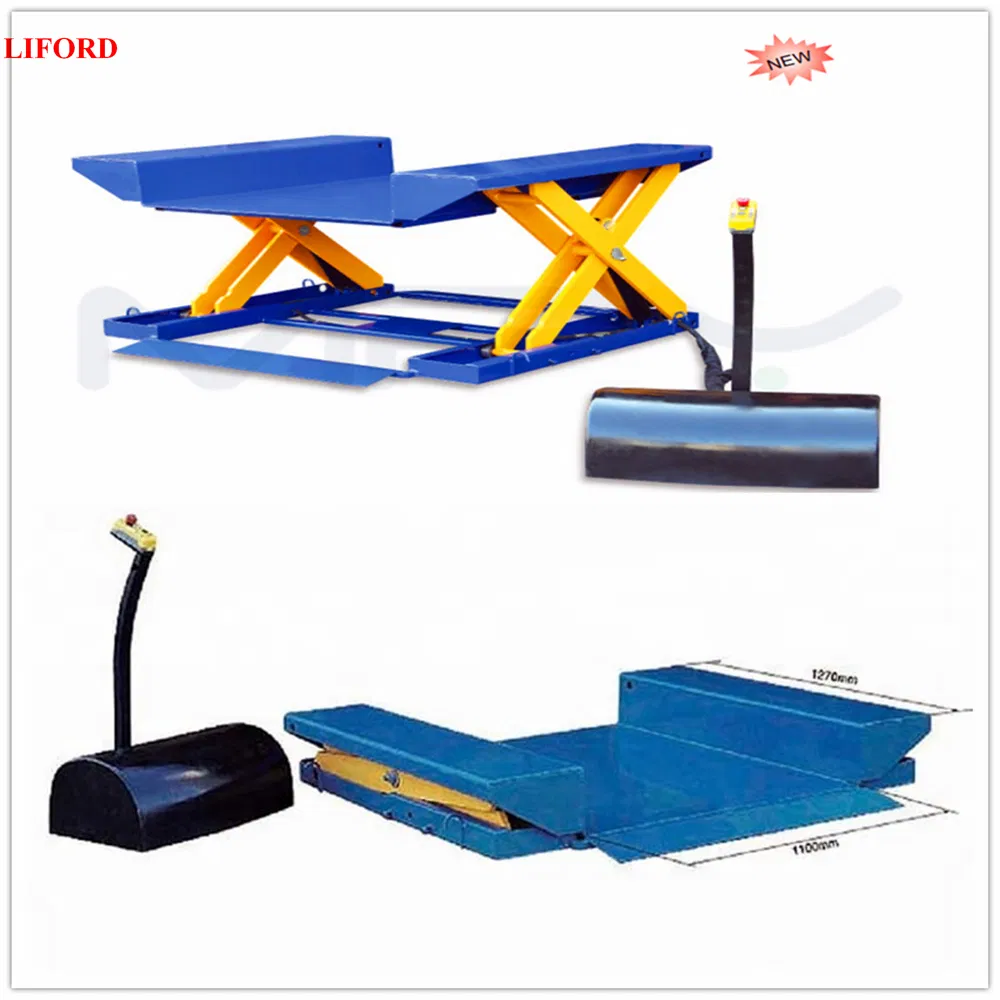

Control Unit
📊

Technical Data

Model Unit HX500 HX1000 HX1500
Capacity kg 500 1000 1500
Table Size mm 1270*1100 1270*1100 1270*1100
Table Height mm 25-800 35-800 35-800
Lifting Time s 25-30 25-30 25-30
Power Supply V/Hz 380/50 380/50 380/50
Net Weight kg 315 395 470

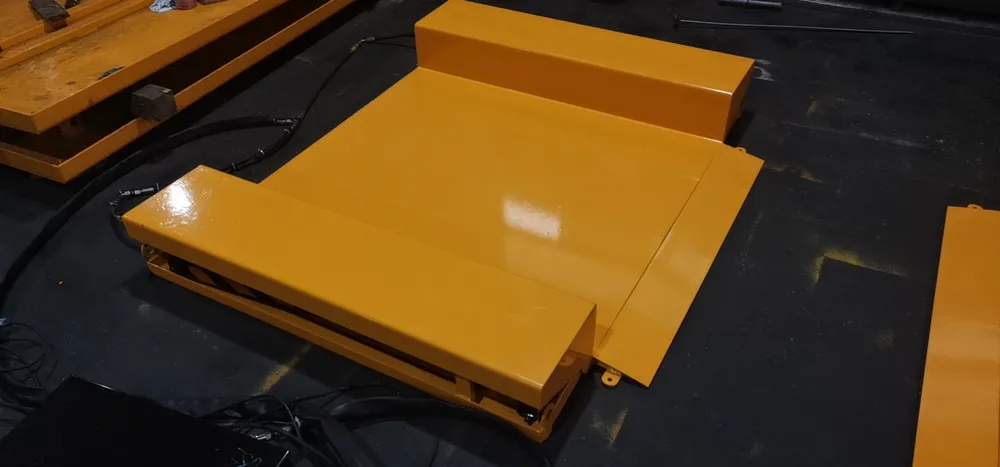

Dimension Drawing
Application Scene
✅

Why Choose Our Equipment?

✔️ Over 10 years' professional experience in material handling industry.
✔️ Fast production & in-time delivery to keep your projects on schedule.
✔️ One-stop custom service and OEM/ODM capabilities.
✔️ 100% inspection of all finished products before shipment.
✔️ Robust packaging (strong cartons for air, pallets for sea) ensuring perfect condition.
Production Line
Quality Control
❓

Frequently Asked Questions

Q: What is the maximum load capacity of these lift tables? A: The series includes models with capacities ranging from 500kg to 1500kg.
Q: Do I need to dig a pit for installation? A: No, the super low concave design allows these tables to be installed directly on the ground without a pit.
Q: What are the safety features included? A: They feature a safety device beneath the table to stop lowering upon hitting obstacles, plus anti-overload and flow compensated valves.
Q: What is the standard power supply requirement? A: The standard power supply is AC 380V/50Hz/3 Phase, with a 1.1kw motor.
Q: How long does it take to lift to the maximum height? A: The lifting time is approximately 25 to 30 seconds to reach the maximum height of 800mm.
Q: Are these products certified for international markets? A: Yes, the products are CE and ISO 9001 certified, meeting international quality and safety standards.
