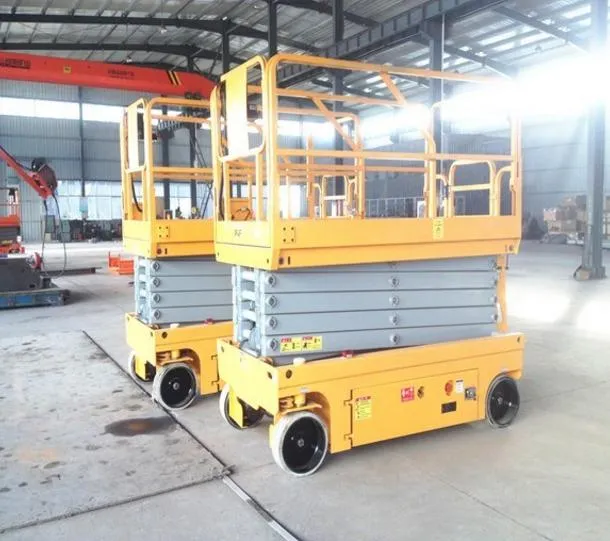

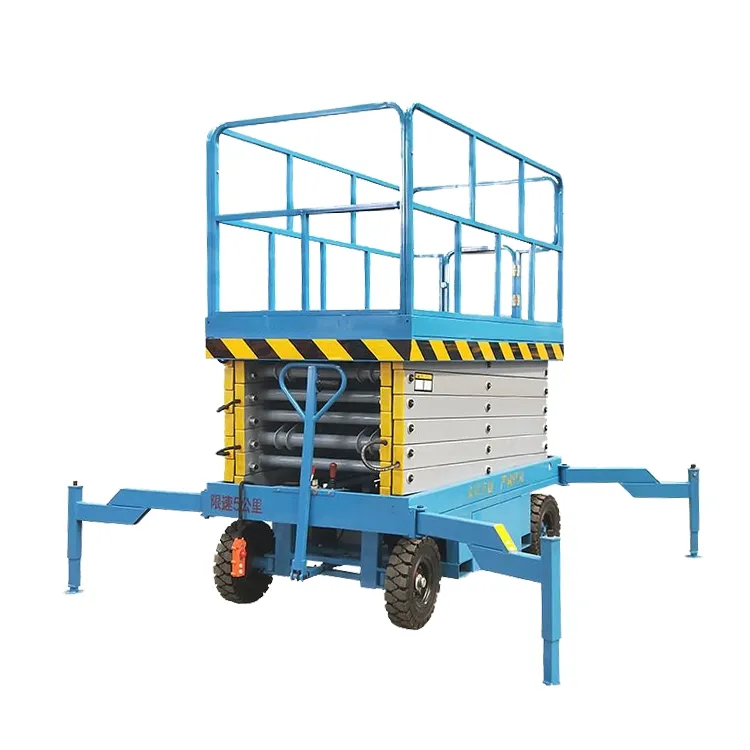

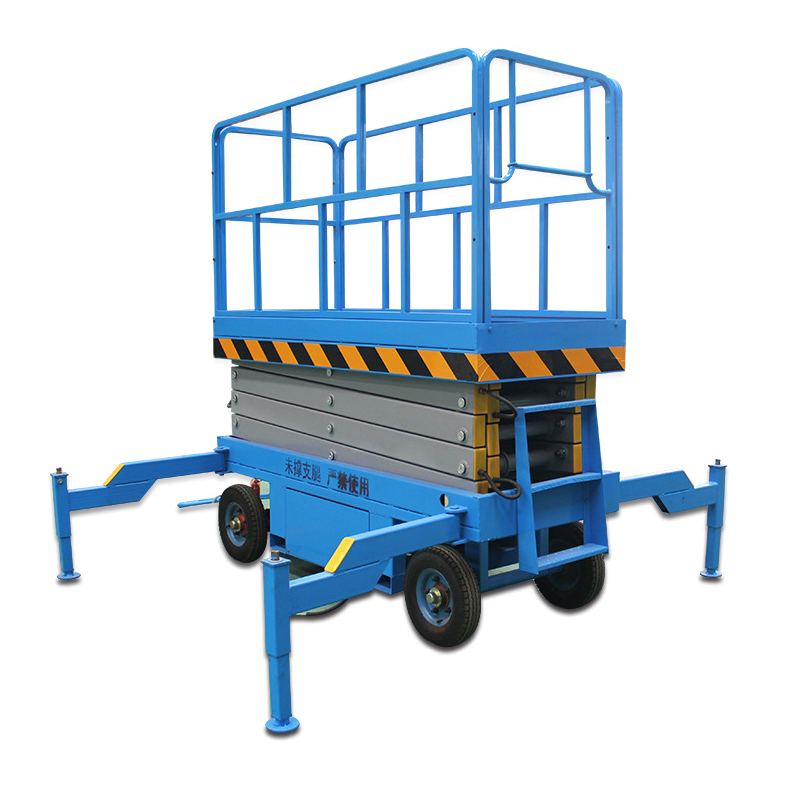

The self-propelled hydraulic scissor lift features an automatic walking function, allowing it to be raised and lowered freely under various working conditions without the need for an external power supply or traction. The equipment's movement and steering can be efficiently managed by a single operator.
This flexible and convenient solution streamlines high-altitude operations, making them faster and safer. It is the ideal equipment for modern enterprises seeking efficient and secure production environments.
| Model | GTJZ0608 | GTJZ0810 | GTJZ1012 | GTJZ1214 | GTJZ1416 |
|---|---|---|---|---|---|
| Rated Load Capacity | 450kg | 450kg | 320kg | 320kg | 230kg |
| Working Height | 8m | 10m | 12m | 14m | 16m |
| Platform Height | 6m | 8m | 10m | 12m | 14m |
| Overall Length | 2480mm | 2480mm | 2480mm | 2480mm | 2850mm |
| Overall Width | 1190mm | 1190mm | 1190mm | 1190mm | 1250mm |
| Driving Speed | 3.5/0.8km/h | 3.5/0.8km/h | 3.5/0.8km/h | 3.5/0.8km/h | 3.5/0.8km/h |
| Overall Weight | 2170kg | 2360kg | 2640kg | 2980kg | 3600kg |
Standard configurations: Semi-electric (manual movement and electric lifting). Full electric options are also available.
1. Ensure the work surface is kept level during operation.
2. Users should utilize safety ropes when working outdoors or in harsh environments.
3. Climbing on the machine during lifting or lowering is strictly prohibited.
4. Hydraulic oil must be kept clean and replaced every six months.
5. Only perform repairs or cleaning after supporting the safety brace.
6. Electrical and hydraulic systems must be maintained by qualified professionals.
