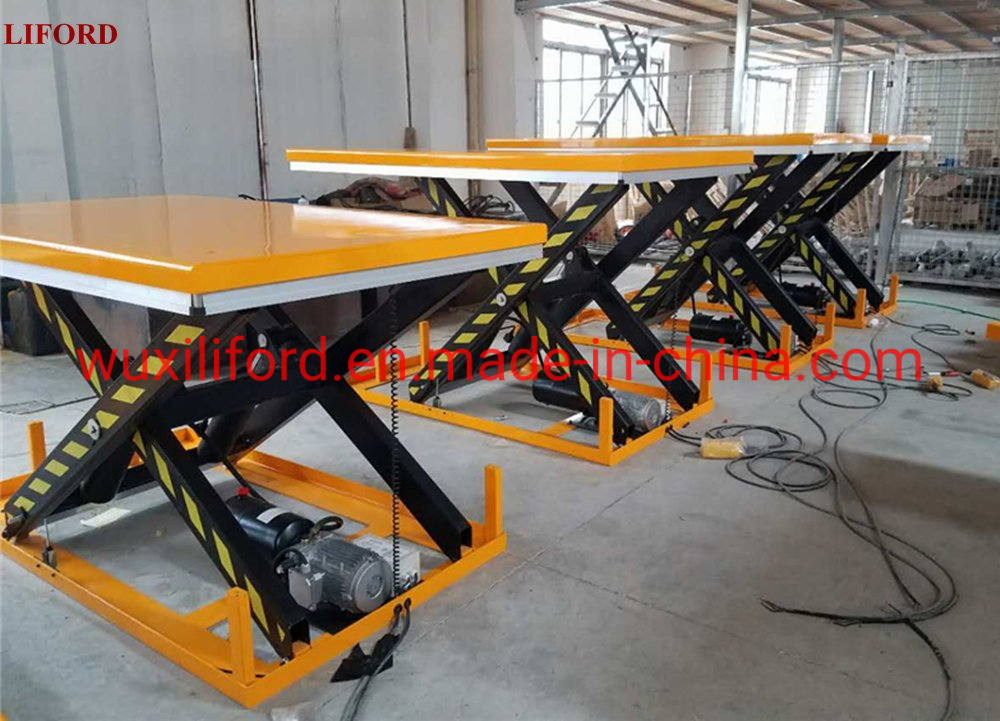

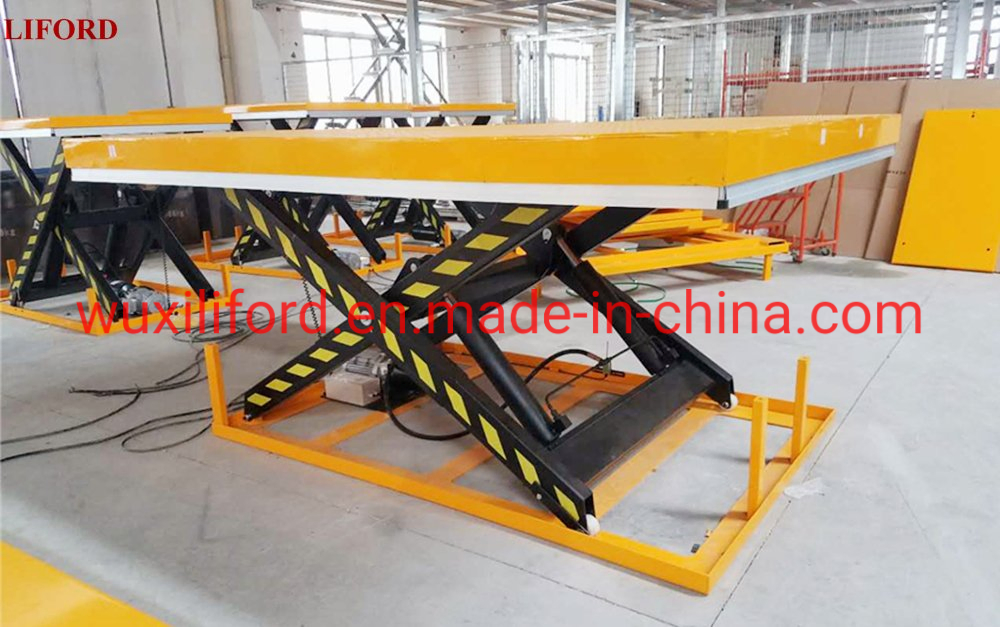

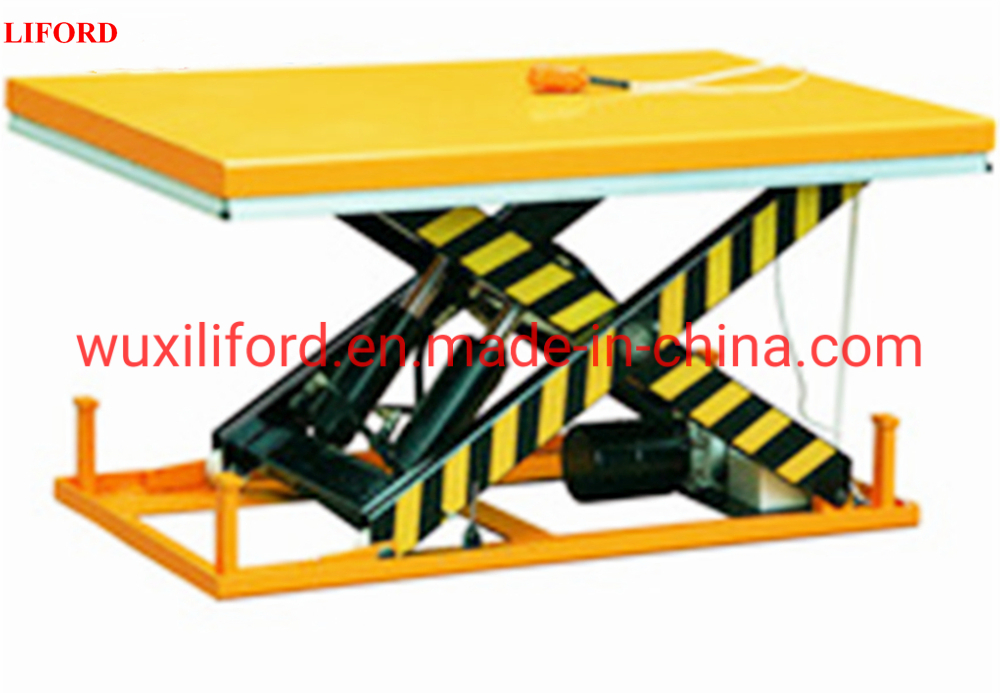

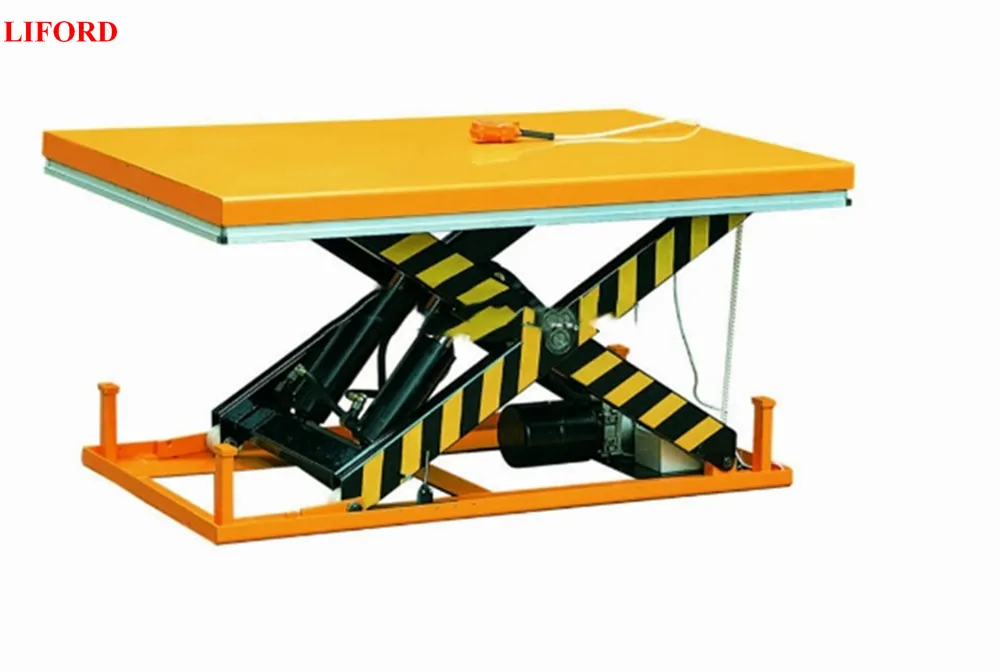

1t 2t 4t Electric Scissor Lift Hydraulic Lift Table Hydraulic Lifting Table

1 / 5

1t 2t 4t Electric Scissor Lift Hydraulic Lift Table Hydraulic Lifting Table

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HW1001, HW2005, HW4008 series

Application

Workshop, Shipboard, Warehouse, Building Crane

Lift Mechanism

Scissor Lift

Capacity

1000kg - 4000kg

Moves

Stationary

Driven Type

Certification

ISO 9001

Lifting Height

205mm - 1300mm

Battery/Power

380V 50Hz

HS Code

84279000

Product Description

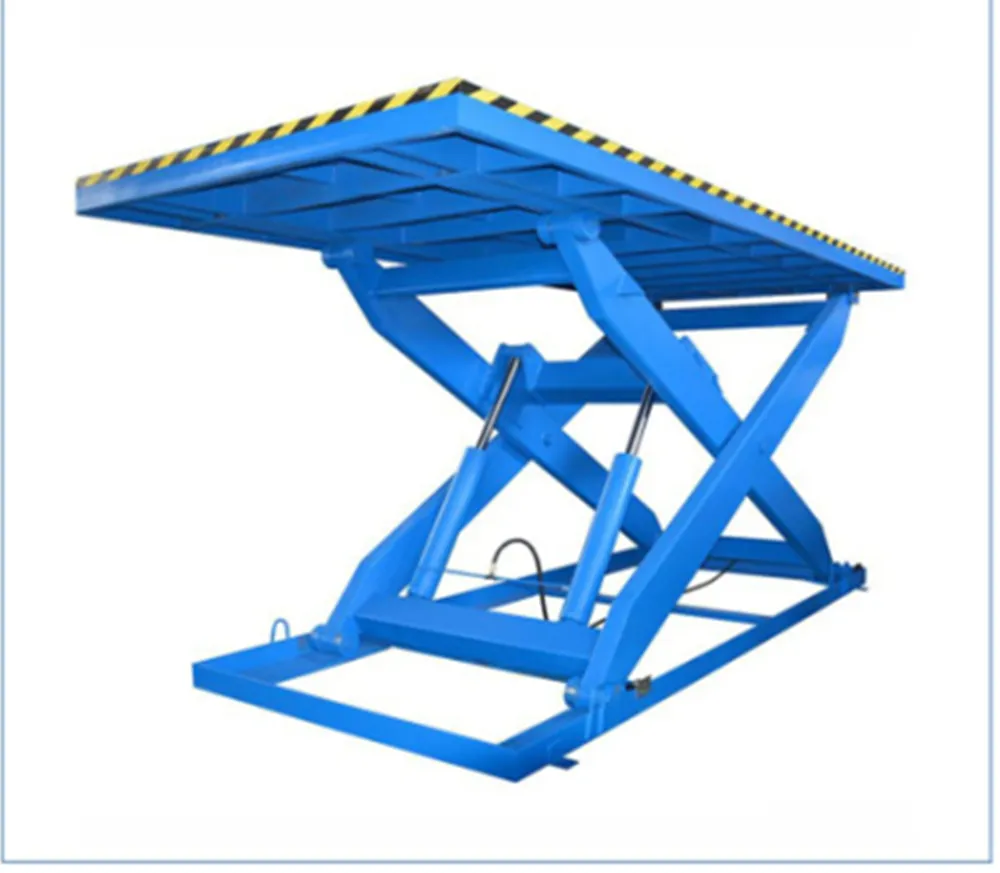

Electric Scissor Lift Hydraulic Lift Table Low Profile Platform

Main Features

◈

Heavy Duty Design: 1000-4000kg capacity with a strong structure and steady performance.

◈

High Quality Pump: Equipped with a premium pump station for smooth lifting operations.

◈

Safety Protection: Includes anti-pinch and overload protection functions.

◈

External Power Pack: Fitted with a relief valve against overloading and a flow valve for speed control.

◈

Safety Perimeter: Upper platform fitted with a safety perimeter to prevent descent on contact with obstructions.

Technical Data

Model	Capacity (kg)	Height Min/Max (mm)	Platform Size (mm)	Base Size (mm)	Lift Time (s)	Power (V/HZ)	Weight (kg)
HW1001	1000	205/990	1300*820	1240*640	20~25	380/50	160
HW1003	1000	240/1300	1700*850	1580*640	30~35	380/50	200
HW2001	2000	230/1000	1300*850	1220*785	20~25	380/50	235
HW2005	2000	250/1300	2000*850	1600*785	25~35	380/50	300
HW4001	4000	240/1400	1700*1200	1600*900	30~40	380/50	375
HW4008	4000	350/1300	2200*1800	1620*1400	35~45	380/50	655

Why Choose Us?

✓ More than 10 years' professional experience in material handling industry.
✓ Fast production and in-time delivery to keep projects on schedule.
✓ One-stop custom service and OEM/ODM availability to meet specific needs.
✓ 100% inspection of all finished products before shipment.
✓ Robust packaging: strong pallets for sea delivery and reinforced cartons for air.

Frequently Asked Questions (FAQ)

Q: What is the maximum carrying capacity of these lift tables? A: Our heavy-duty scissor lift tables are designed to handle loads ranging from 1000kg to 4000kg, depending on the specific model.

Q: What safety features are integrated into the lifting platform? A: The platforms are equipped with an anti-pinch function, overload protection, and a safety perimeter that stops descent if it contacts an obstruction.

Q: What power supply is required for operation? A: The standard power requirement for these stationary electric lift tables is 380V/50Hz AC.

Q: Can the lifting and lowering speed be adjusted? A: Yes, the external power pack is equipped with a compensated flow valve specifically for controlling the lowering speed.

Q: Are custom sizes or OEM services available? A: Yes, we offer one-stop custom services and OEM/ODM capabilities to produce non-standard parts based on your specific industrial requirements.

Q: How are the products packaged for international shipping? A: For sea delivery, we use strong pallets and stretch film to ensure perfect condition. For air delivery, we use reinforced medium-strength cartons.
