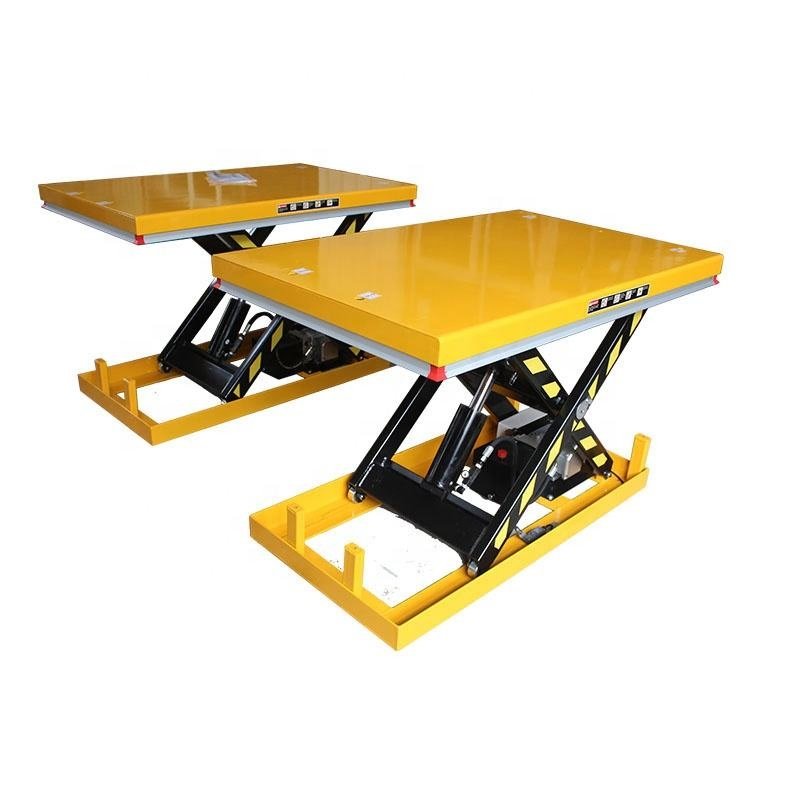

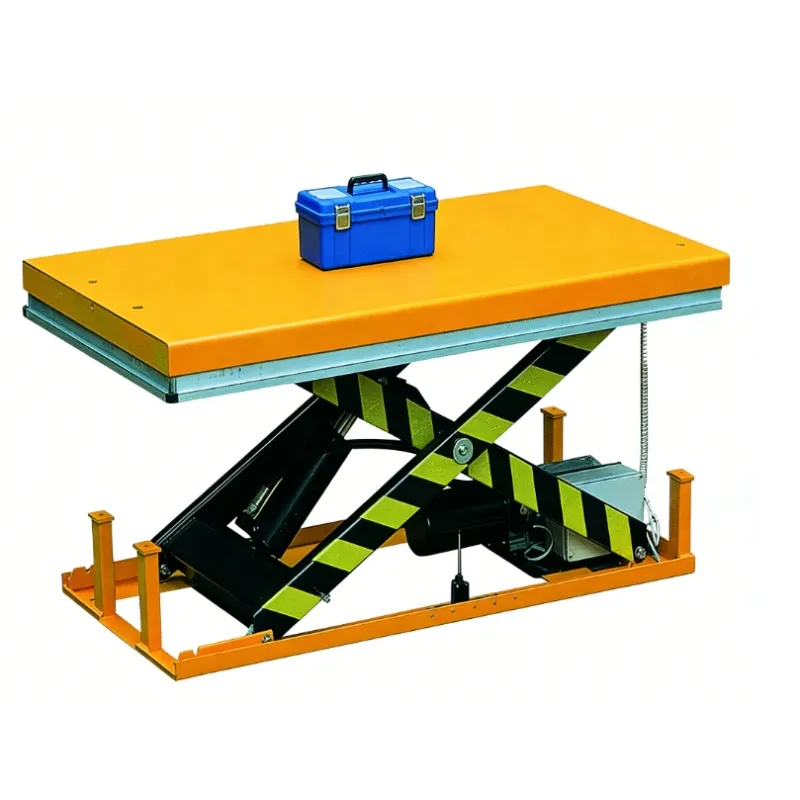

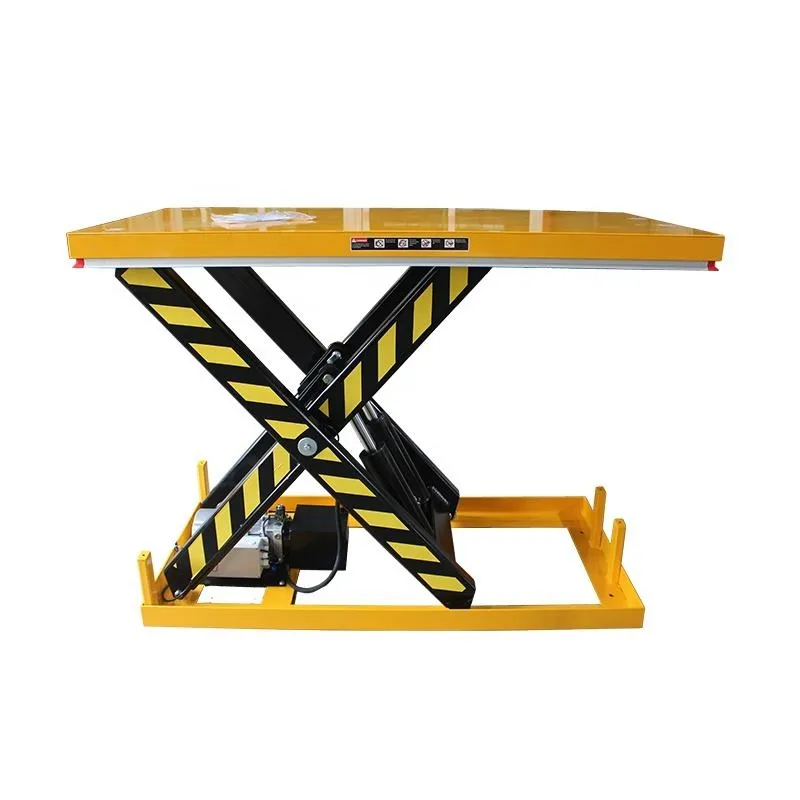

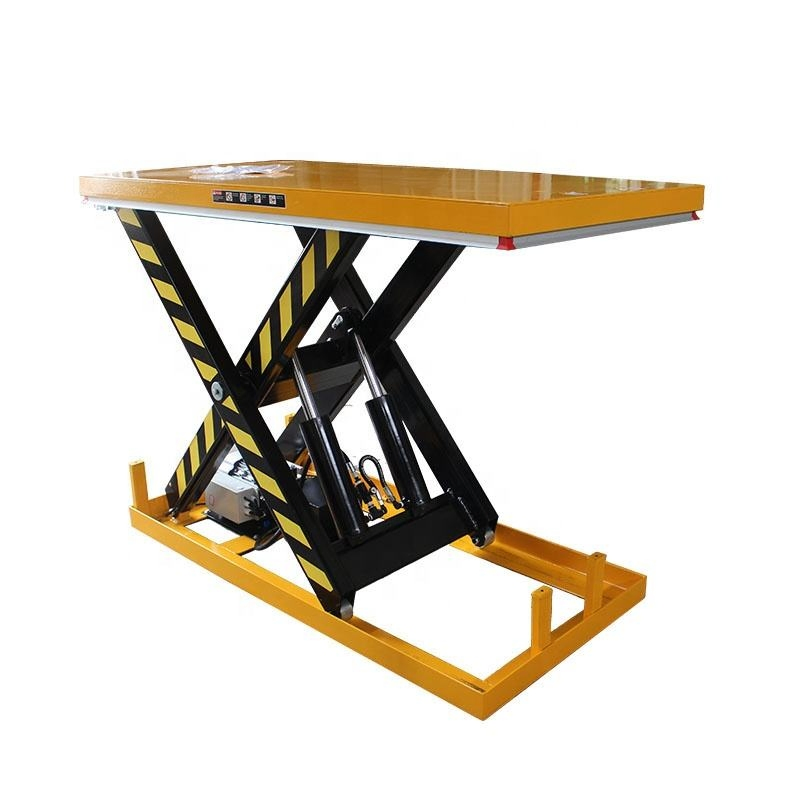

Electric Hydraulic Scissor Lift Table – a robust, versatile, and highly efficient material handling solution engineered to elevate productivity across industrial, manufacturing, and logistics environments. Designed with precision and durability in mind, this lift table seamlessly combines electric power with smooth hydraulic operation to provide reliable vertical lifting for loads ranging from 1000kg to 4000kg.

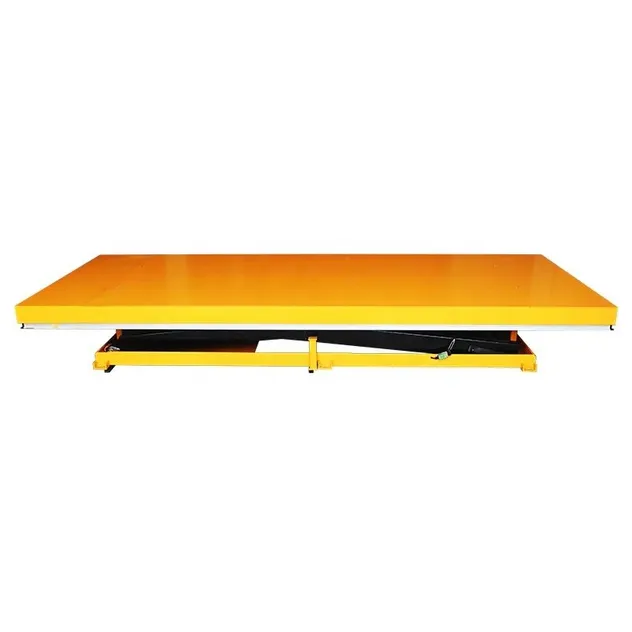

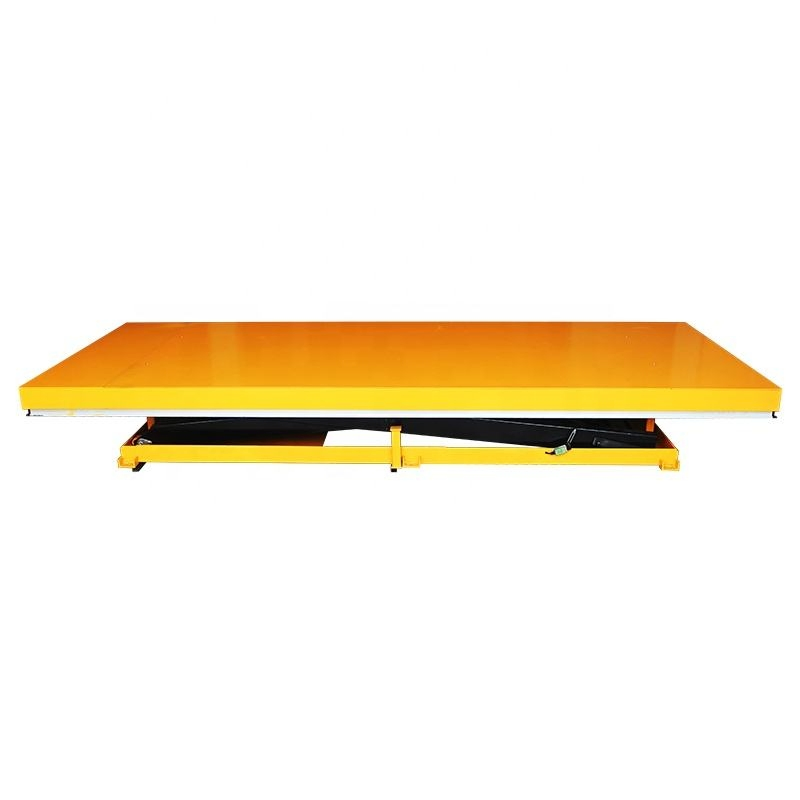

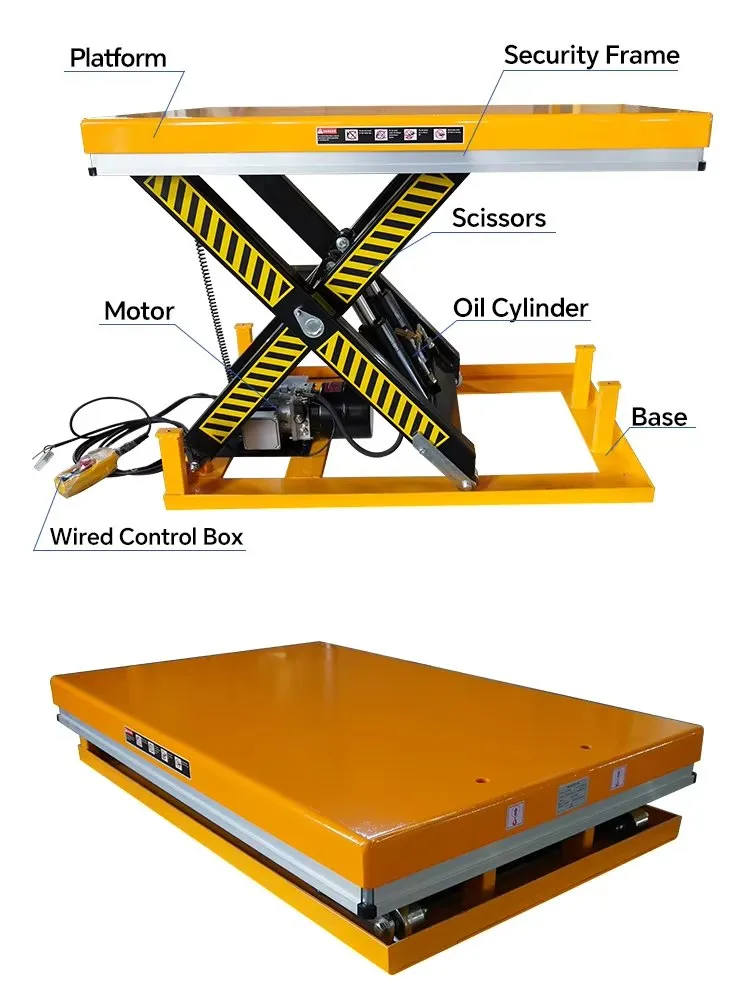

Built for demanding applications, the scissor lift table features a sturdy welded steel frame and a spacious platform available in multiple sizes – from compact 820×1300mm to large 1800×2200mm – to accommodate various load types and workspace layouts. Powered by a reliable AC motor, it ensures steady lifting within 20–50 seconds, minimizing downtime while enhancing operational safety.
| Model | Capacity (kg) | Lowered H (mm) | Raised H (mm) | Platform Size (mm) | Base Size (mm) | Lift Time (s) | Power Pack | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HW1001 | 1000 | 205 | 1000 | 820×1300 | 640×1240 | 20-25 | 1.1kw | 160 |
| HW1003 | 1000 | 240 | 1300 | 850×1700 | 640×1580 | 30-35 | 1.1kw | 200 |
| HW2001 | 2000 | 230 | 1050 | 850×1300 | 785×1220 | 20-25 | 1.5kw | 235 |
| HW2004 | 2000 | 250 | 1300 | 1000×1700 | 785×1600 | 25-35 | 1.5kw | 300 |
| HW4001 | 4000 | 240 | 1100 | 1200×1700 | 900×1600 | 30-40 | 2.2kw | 375 |
| HW4008 | 4000 | 300 | 1400 | 1800×2200 | 1500×2000 | 45-50 | 2.2kw | 540 |
