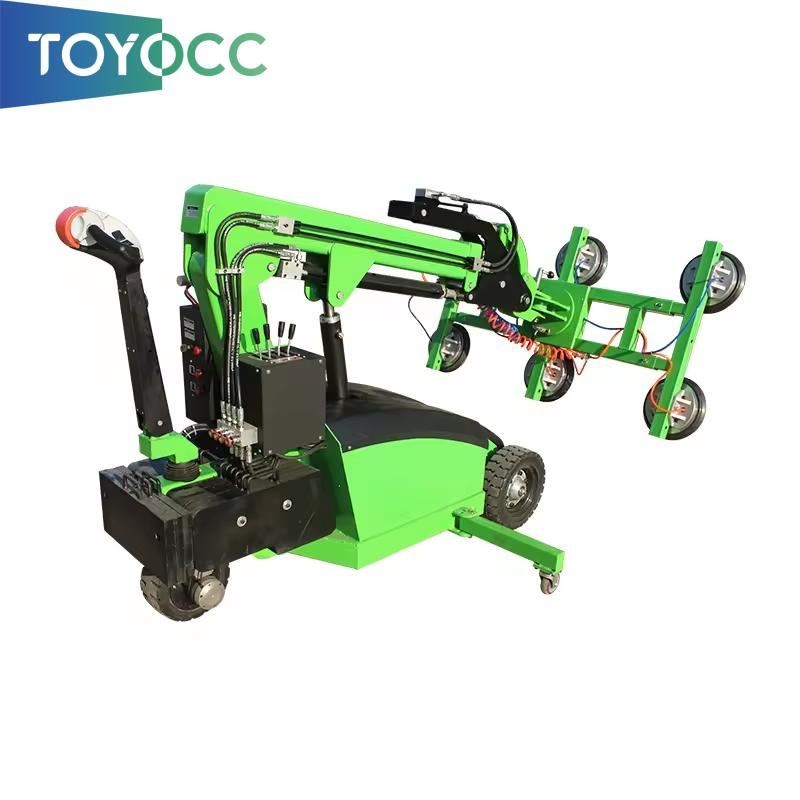

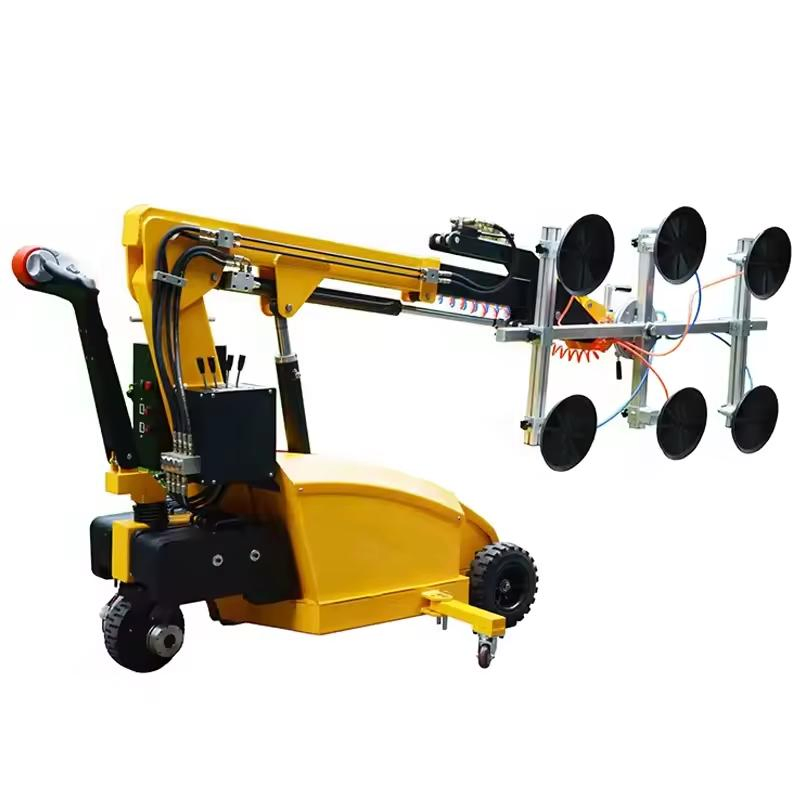

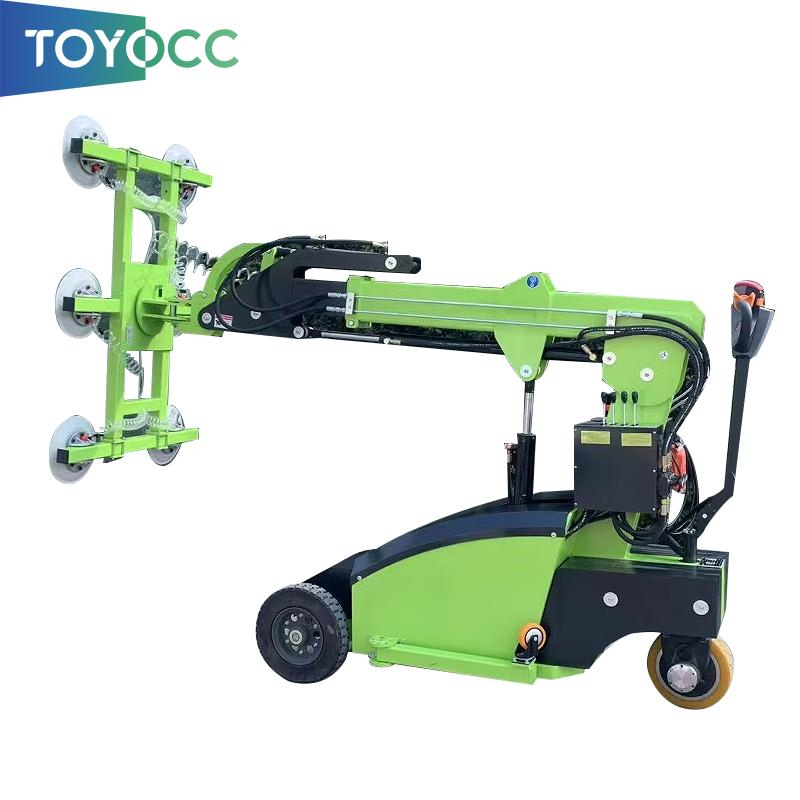

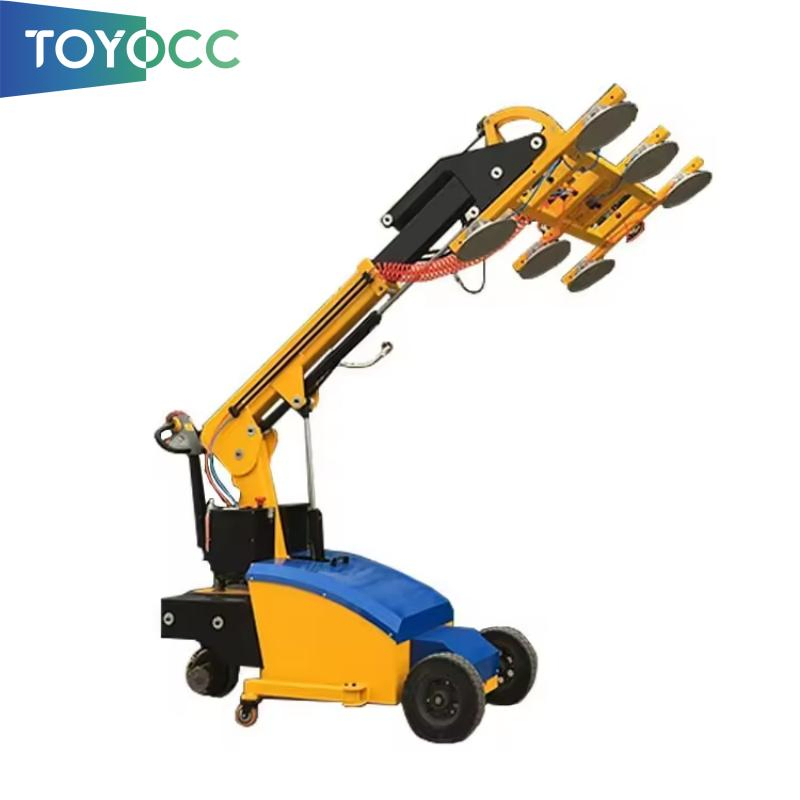

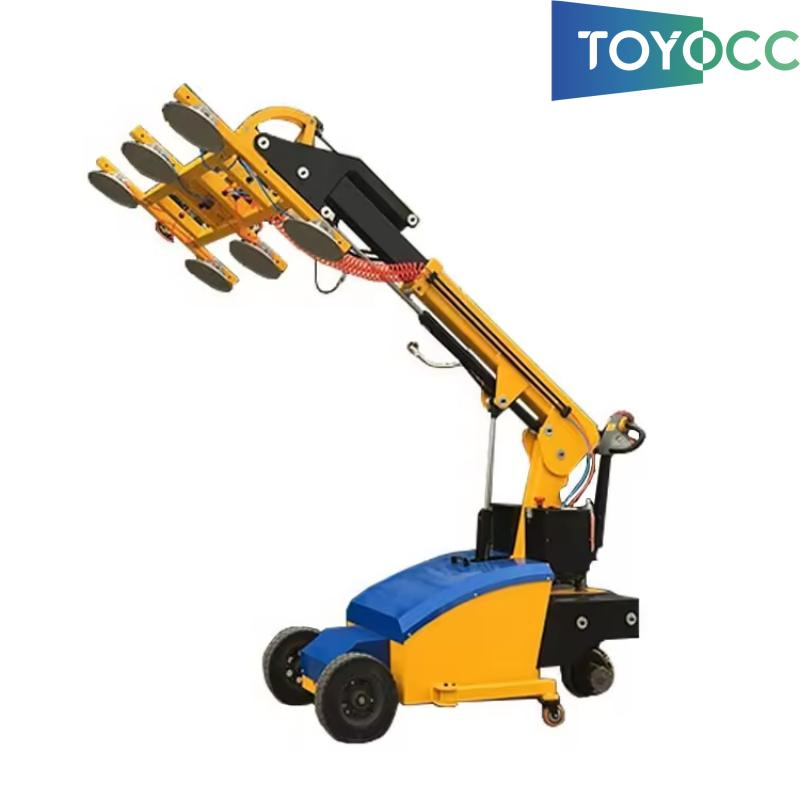

Glass Robot / Glass Manipulator for Curtain Wall Installing

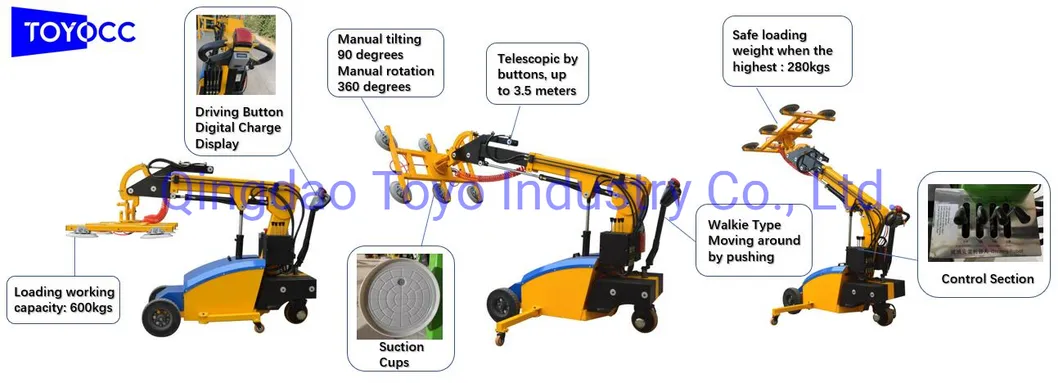

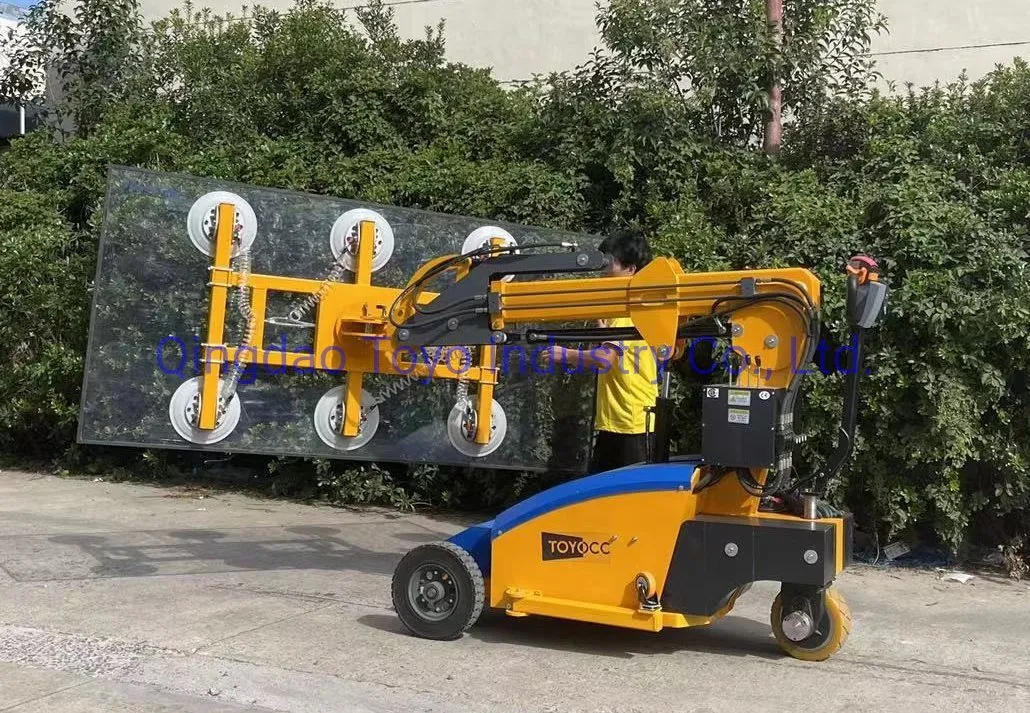

The manipulator adopts the principle of vacuum suction, which includes the functions of electric suction and deflation, electric flip rotation, manual rotation, and manual tilting, which can easily realize the moving and handling of glass. The machine is light and flexible in operation, and it is a new type of glass handling machinery with energy saving, high efficiency and environmental protection. It is widely used in glass door and window factories, curtain wall glass installation and glass sheet transportation. In factories, warehouses, logistics centers and many other places, the handling of glass panels is safe and efficient, and fully reflects its excellent flexibility, stability and environmental protection performance.

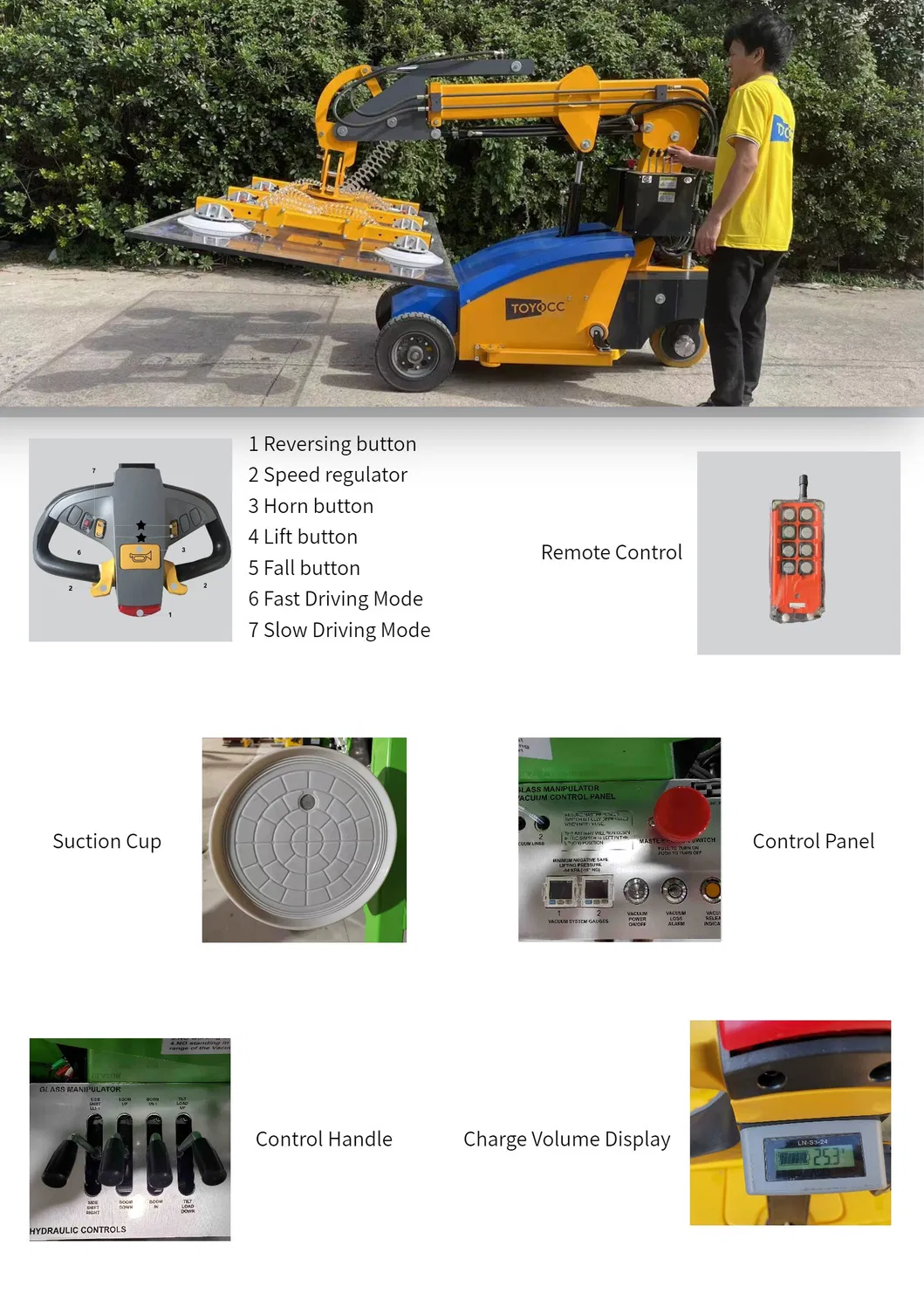

The operation of this equipment using stepless speed regulator can be completed on the joystick. The circuit is designed with accidental power failure and over-current protection. The selected electricity meter has a low-voltage light flashing alarm function.
| Data Sheet | |
|---|---|
| Loading Capacity | 600kg |
| Suction Pad | 6*Φ300mm |
| Total Weight | 1450kg |
| Packing Size | 2600*1050*1700mm |
| Maximum lifting height | 3500mm from ground to the center of the suction frame |
| Tilting control | with hydraulic ram, the maximum tilting degree near to 130 degrees |
| Rotation control | the maximum rotation is 360 degrees |
| Vacuum system | Dual system |
| Wheels | 400mm*100mm *two solid tire in front, single wheel of 300mm*100mm in rear |
| Battery | 12V,120A*2 |
| Charging time | about 8 hours |
| Maximum working period | about 20 Hours |
Imported machine parts. Export quality guarantee!
