Product Description

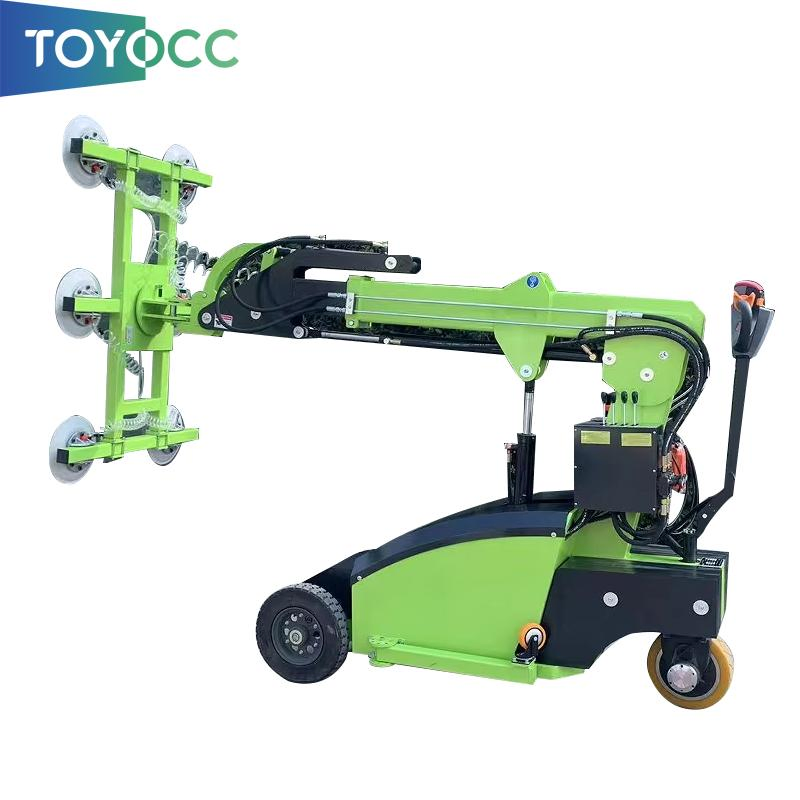

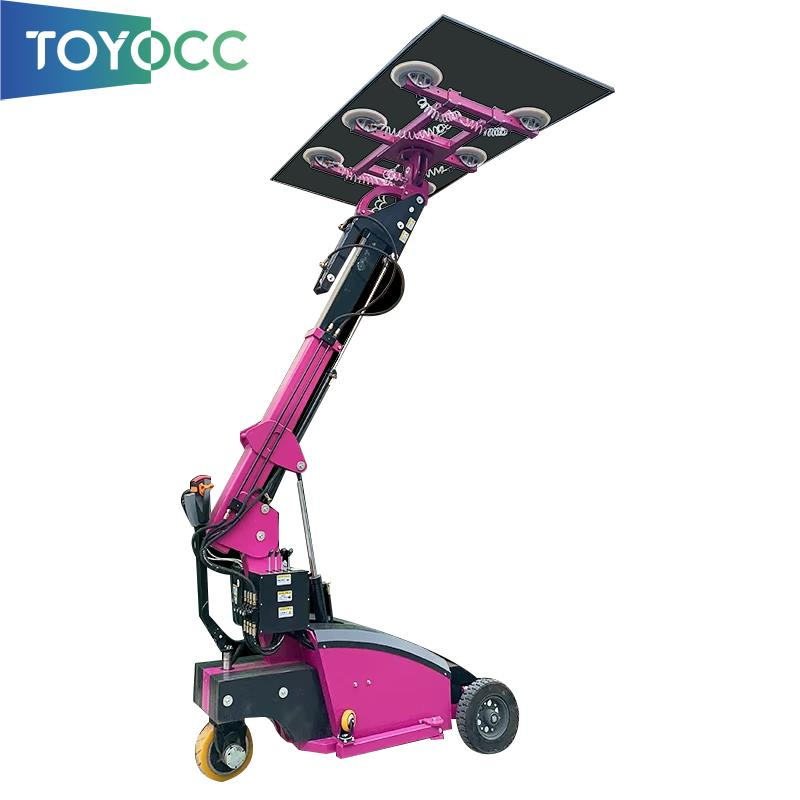

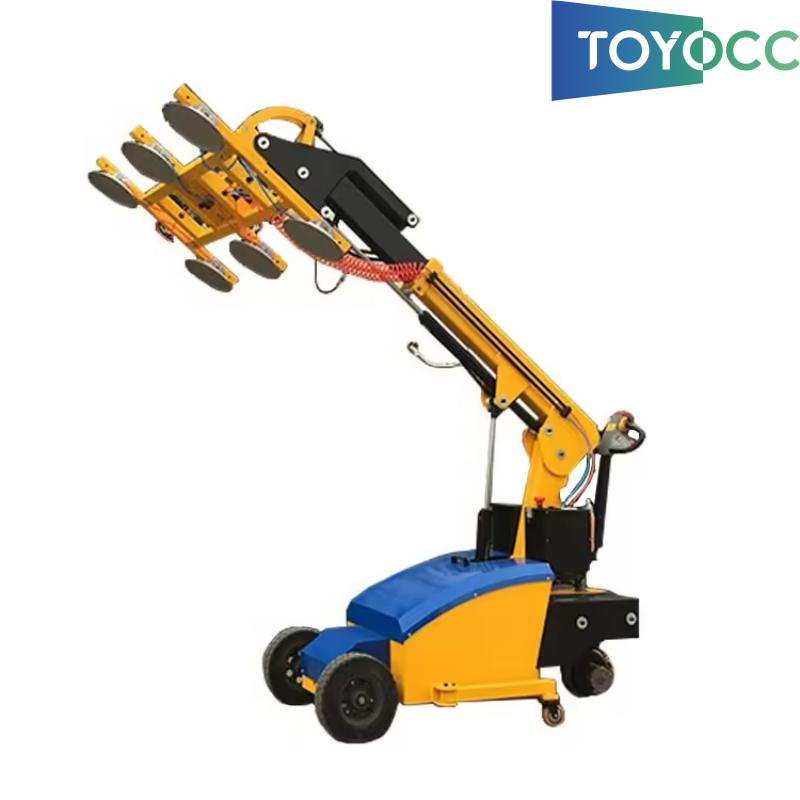

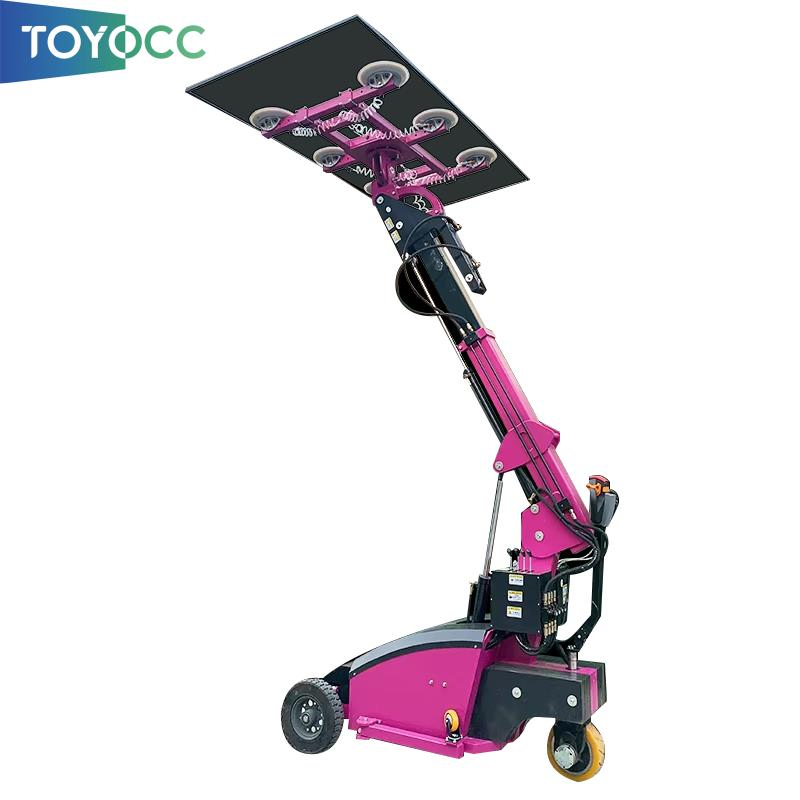

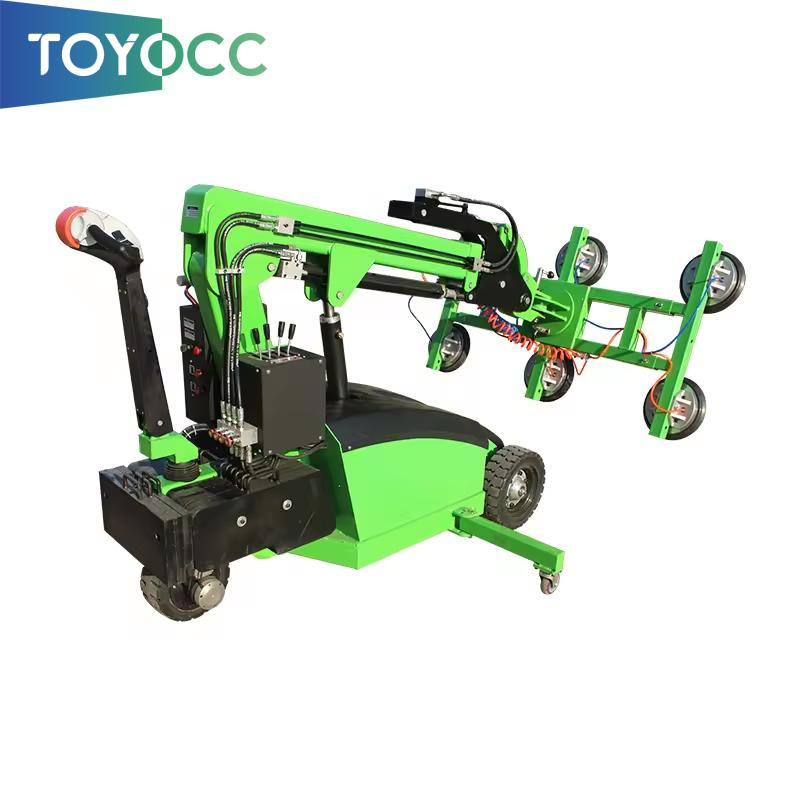

Glass Robot/ Glass Manipulator for Curtain Wall Installing

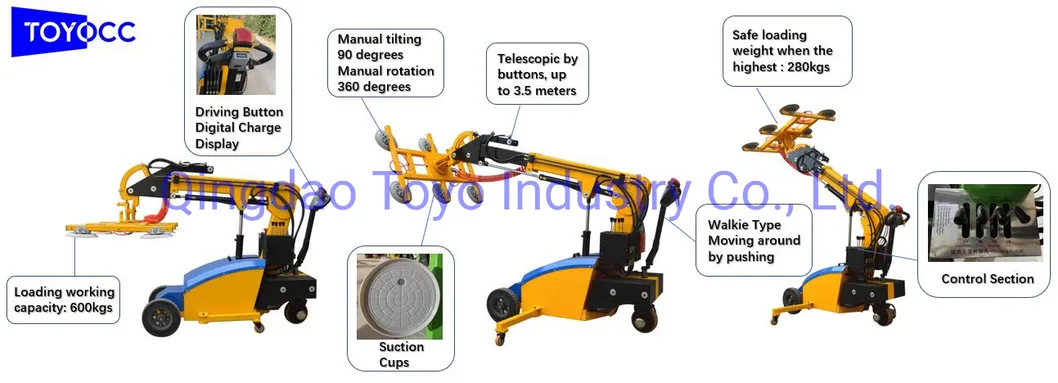

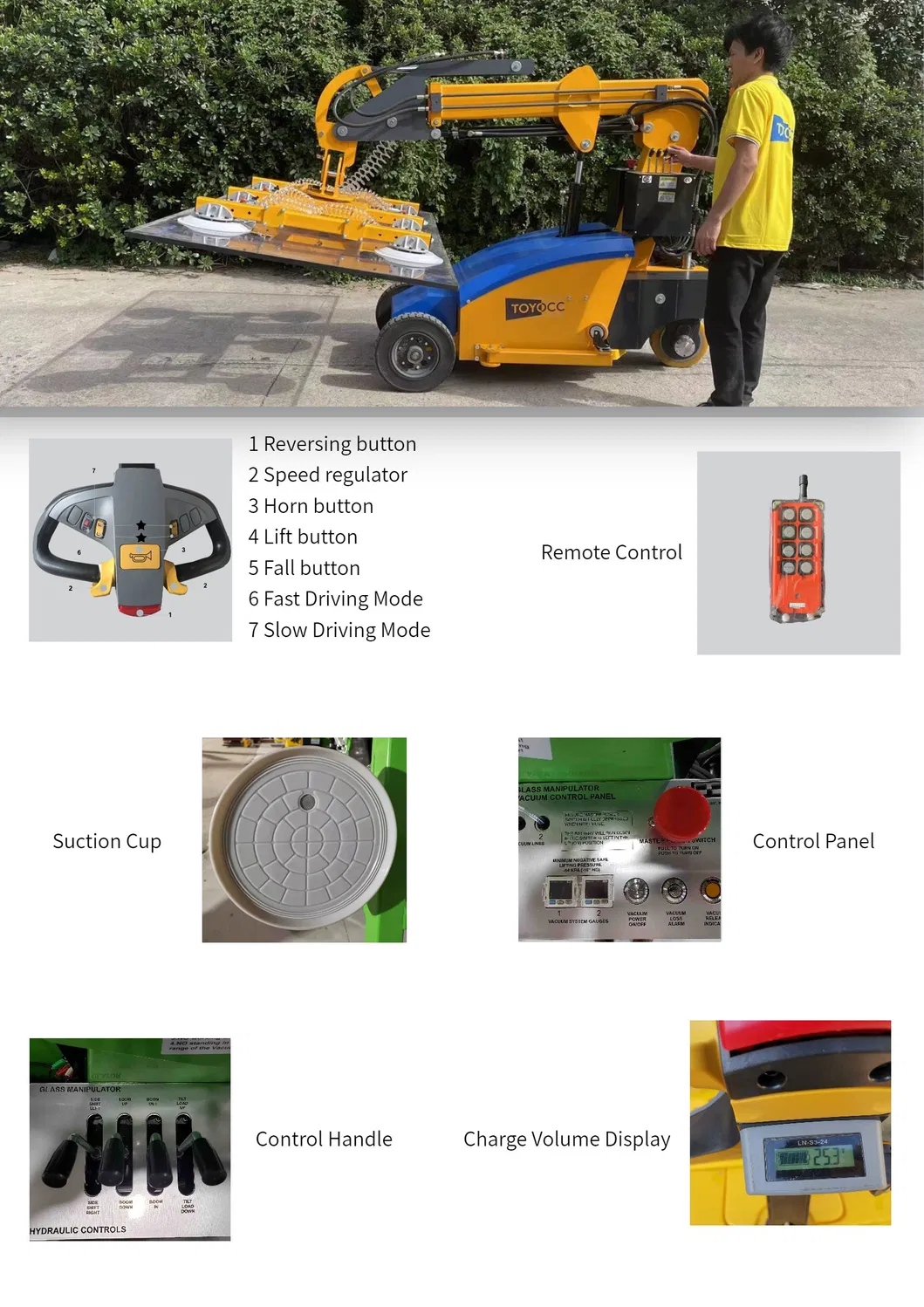

The manipulator adopts the principle of vacuum suction, which includes the functions of electric suction and deflation, electric flip rotation, manual rotation, and manual tilting, which can easily realize the moving and handling of glass. The machine is light and flexible in operation, and it is a new type of glass handling machinery with energy saving, high efficiency and environmental protection.

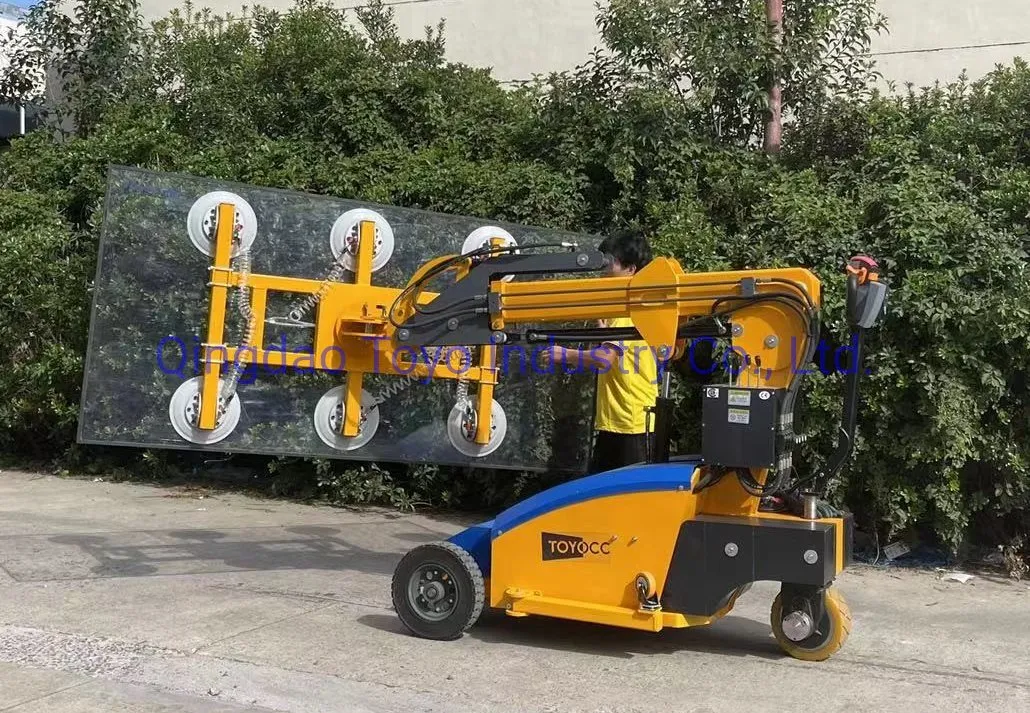

It is widely used in glass door and window factories, curtain wall glass installation and glass sheet transportation. In factories, warehouses, logistics centers and many other places, the handling of glass panels is safe and efficient, and fully reflects its excellent flexibility, stability and environmental protection performance. The operation of this equipment using stepless speed regulator can be completed on the joystick. The circuit is designed with accidental power failure and over-current protection.
Key Features & Specifications
◈

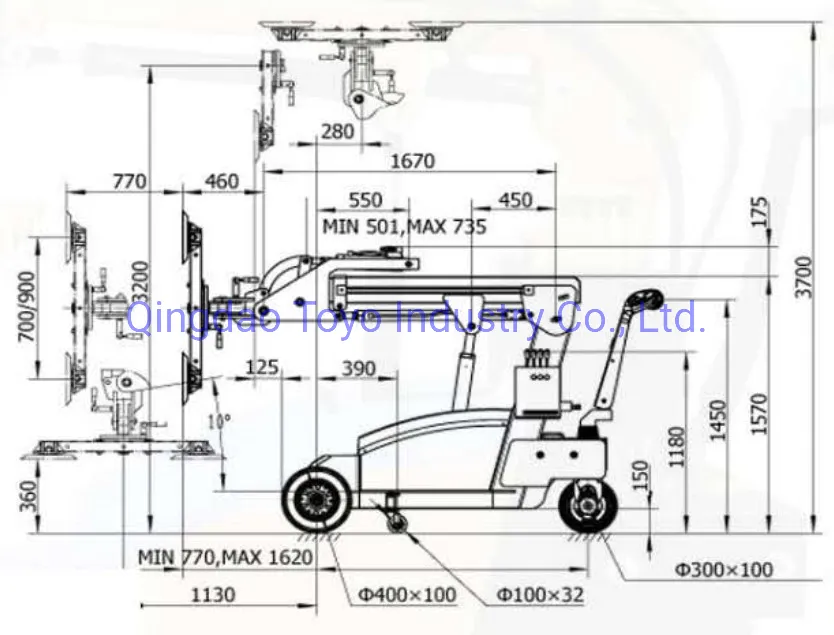

Maximum load: 600kg while the second ram back to end, 300kg while the second ram full extended
◈
Maximum lifting height: 3500mm from ground to the centre of the suction frame
◈
Extension control: Hydraulic ram, maximum extension distance 650mm, max distance from front wheel to pads 1350mm
◈
Tilting control: Hydraulic ram, maximum tilting degree near to 130 degree
◈
Rotation control: Manual with spring lock, maximum rotation 270 degree
◈
Vacuum system: Dual system for enhanced safety
◈
Working period: About 20 Hours on a full charge
Frequently Asked Questions
Q1: What is the maximum lifting capacity of this glass robot?
A: The maximum load capacity is 600kg when the second ram is retracted, and 300kg when it is fully extended.
Q2: How high can the manipulator lift the glass panels?
A: It can reach a maximum lifting height of 3500mm from the ground to the center of the suction frame.
Q3: How long does the battery last on a single charge?
A: The equipment is powered by a DC 24V system and can work for approximately 20 hours on a full charge.
Q4: What safety features are included in the vacuum system?
A: The machine features a dual vacuum system for redundancy, along with accidental power failure and over-current protection.
Q5: Can the suction frame rotate and tilt?
A: Yes, it features electric flip rotation and manual rotation (up to 270-360 degrees) and hydraulic tilting up to 130 degrees.
Q6: What applications is this machine best suited for?
A: It is ideal for curtain wall installation, glass door and window factories, and transporting large glass sheets in warehouses or logistics centers.
