Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001
Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001
Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001
Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001
Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001
1 / 5
Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001
Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001
Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001
Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001
Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001

Capacity 1t 2t Low Profile Electric Scissor Lift Table Hydraulic Electric Scissor Lift Table Fixed Lifting Platform Super Low Cargo Scissor Lift Table Hy1001

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
HY1001, HY1501, HY2001
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Moves
Stationary
Driven Type
AC
Certification
CE, ISO 9001
Min. Lift Height
85mm
Product Name
U-Shape Lift Table
Capacity
1000-2000kg
HS Code
84279000
Production
600PCS/Month

Product Overview

Ultra Low Profile Scissor Lift
1T 2T Ultra Low Profile Electric Scissor Lifts: These tables achieve a super low closed height, eliminating the need for a pit installation.
Electric Scissor Lift Table

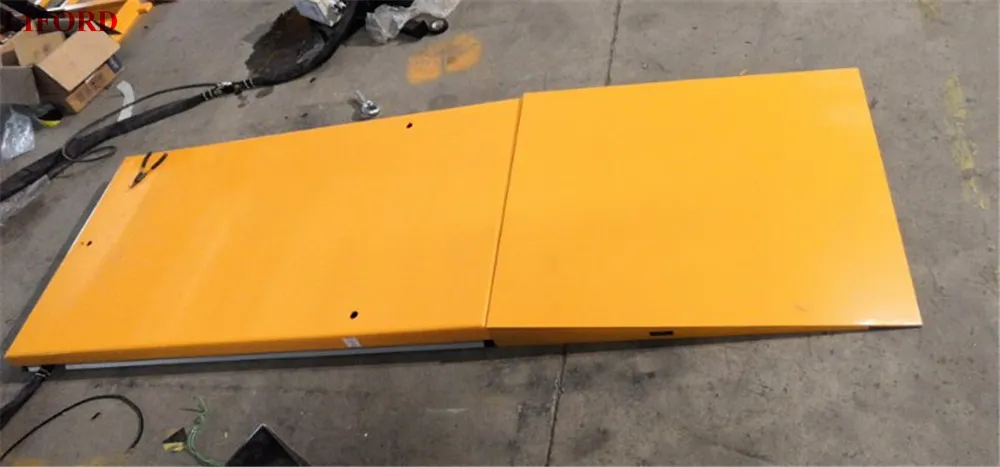

Hydraulic Lifting Platform

Key Features

  • Closed height only 10mm/85mm, no ramp needed for pallet loading.
  • Mechanical safety chocks for secure maintenance.
  • Compliant with EN1570 norm and ANSI/ASME safety standards.
  • Remote power pack with pedestal and IP54 protected controls.
  • Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
  • 24V control box with UP/DOWN buttons and emergency stop.
  • Hose burst safety valve to stop lowering in case of hose breakage.
  • Removable lifting hooks to facilitate handling and installation.
Lift Table Detail 1

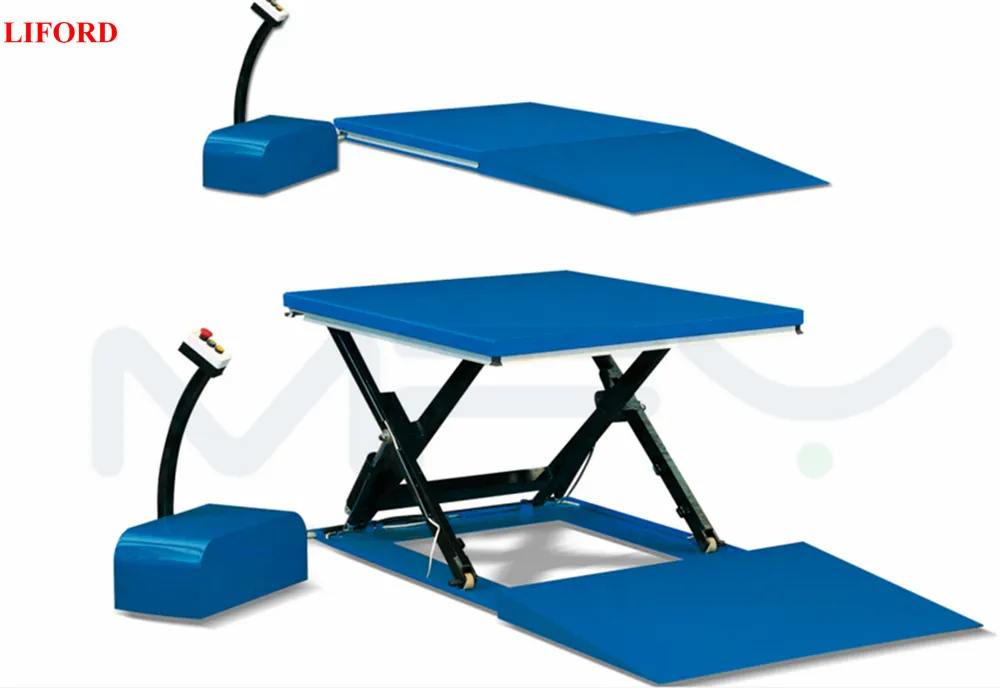

Lift Table Detail 2

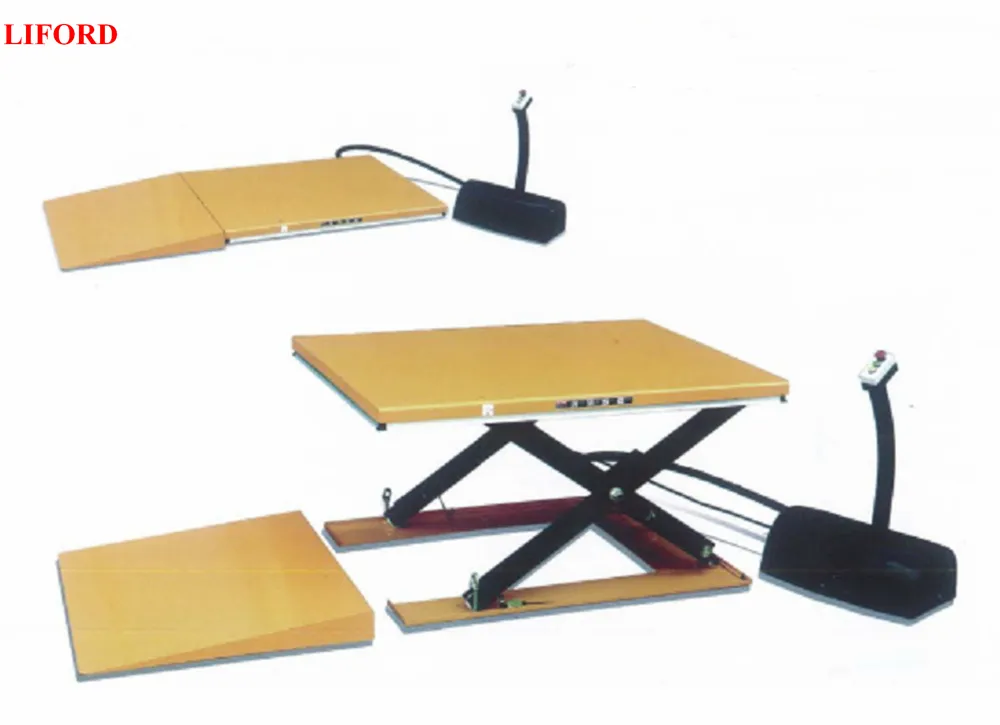

Lift Table Detail 3

Technical Data

Model Capacity (kg) Min/Max Height (mm) Table Size (mm) Lifting Time (s) Power N.W. (kg)
HY1001100085/8601450*114025380V/50Hz357
HY1002100085/8601600*114025380V/50Hz364
HY1003100085/8601450*80025380V/50Hz326
HY15011500105/8701600*80030380V/50Hz302
HY20012000105/8701600*118035380V/50Hz419
Scissor Mechanism

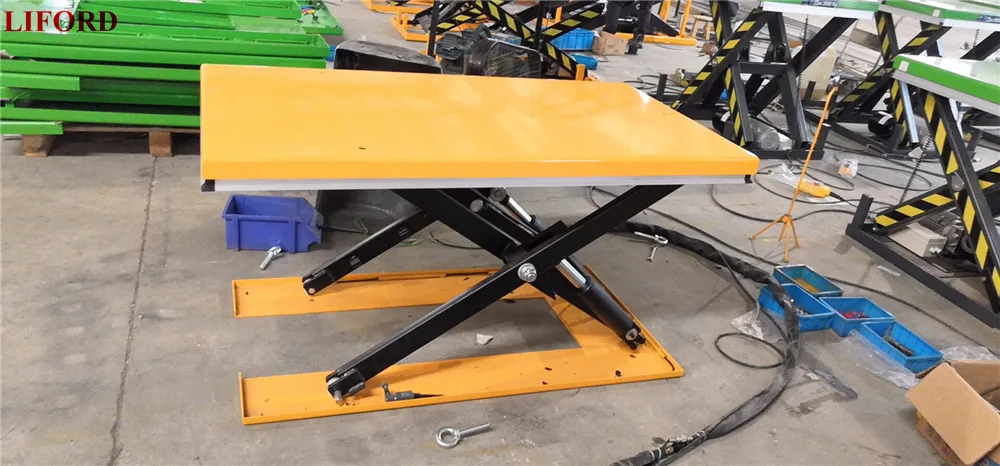

Control System

Packaging & Quality Assurance

Package Size
175cm * 135cm * 60cm
Gross Weight
500.00kg
Production Line
Loading Inspection
Why Choose Our Equipment?
• More than 10 years' professional industry experience.
• Fast production & in-time delivery.
• 100% inspection before shipment.
• Robust packaging for air and sea delivery.

Frequently Asked Questions

What are the advantages of an ultra-low profile lift table?
The primary advantage is the extremely low closed height (starting from 85mm), which allows for easy pallet truck loading without needing to excavate a pit in the floor.
Does this lift table comply with international safety standards?
Yes, our lift tables meet the EN1570 norm and ANSI/ASME safety standards, ensuring high operational safety in industrial environments.
What safety features are integrated into the platform?
It includes a safety perimeter to stop descent upon obstruction, a hose burst safety valve, and mechanical safety chocks for maintenance protection.
Is the power pack built-in or remote?
The unit features a remote power pack equipped with a pedestal and controls, protected to IP54 standards for durability and ease of access.
What is the standard power supply required?
The standard models operate on 380V/50Hz AC power, which is suitable for most industrial workshop applications.
Can the lowering speed be adjusted?
Yes, the external power pack is equipped with a compensated flow valve that allows for precise control of the lowering speed.
