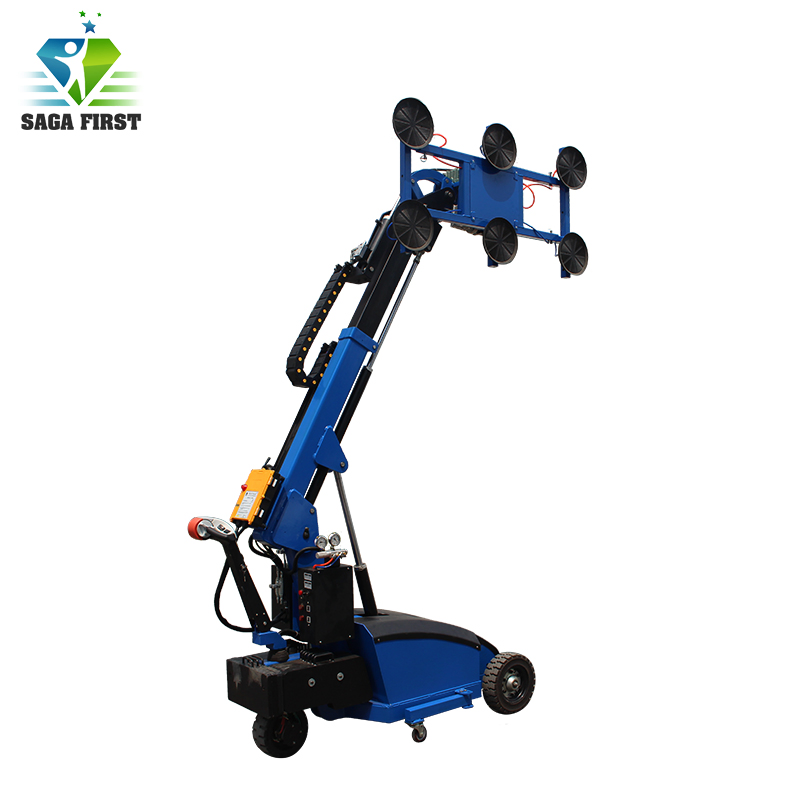

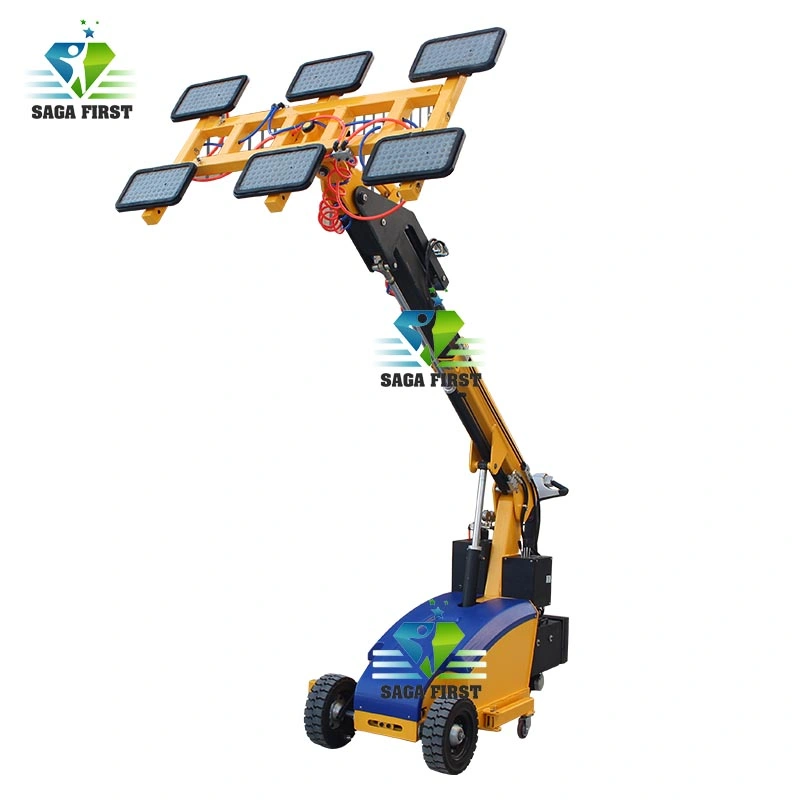

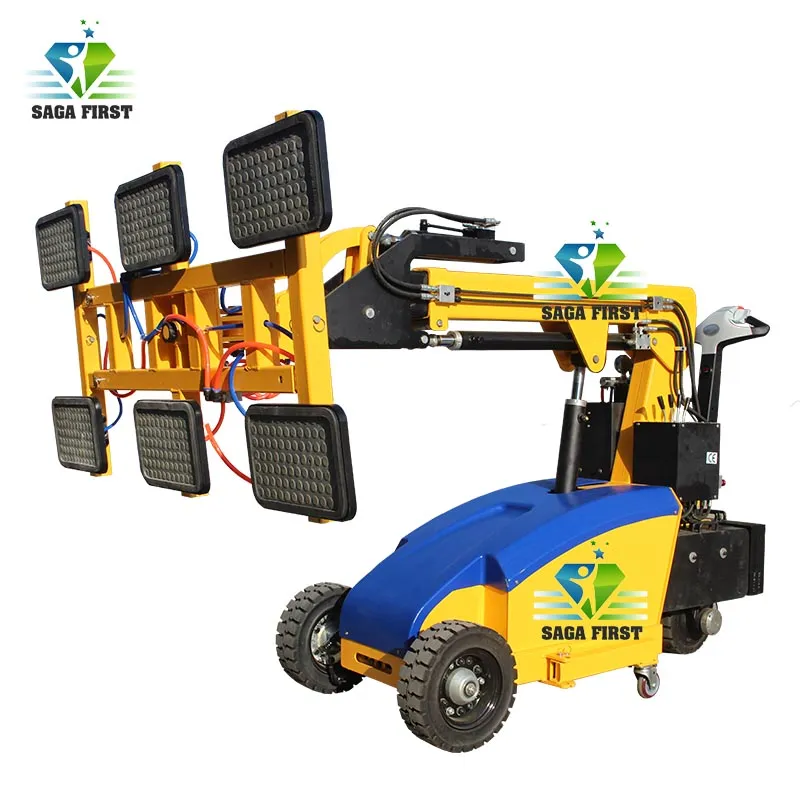

Self Propelled Vacuum Lift for Handling Different Kinds of Heavy Plate

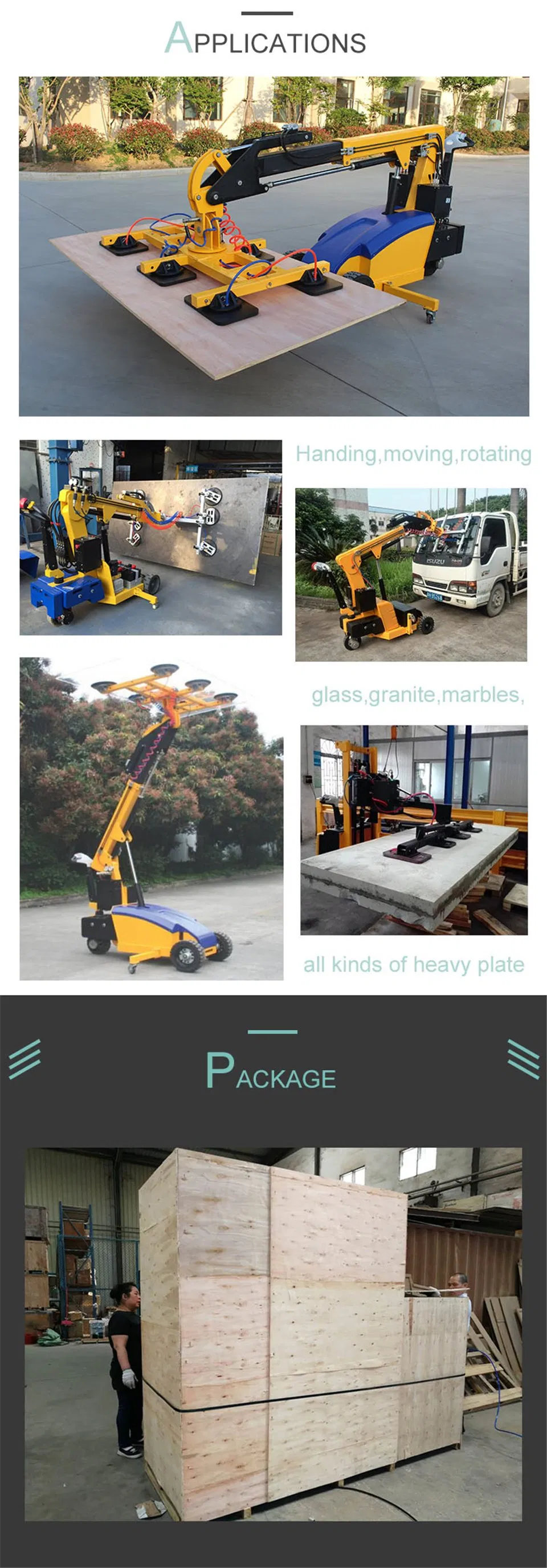

This vacuum lifter series is specially designed for handling various types of heavy plates, boards, and glass. It is highly efficient for installing steel boards, glass walls, and moving materials like granite and marble. The system easily handles lifting, moving, and rotating tasks using powerful vacuum suction caps and a robust drive system.
Compact design for easy transport, ideal for handling steel, glass, granite, and marble.
| Model Type | GL-LD-350 | GL-LD-600 |
|---|---|---|
| Loading Capacity | 350kg (retract) / 175kg (extend) | 600kg (retract) / 300kg (extend) |
| Lifting Height | 3500mm | 3500mm |
| Battery | 2x12V/100AH | 2x12V/120A |
| Drive Motor | 24V/600W | 24V/900W |
| Cap Diameter | Ø250mm/300mm | Ø250mm/300mm |

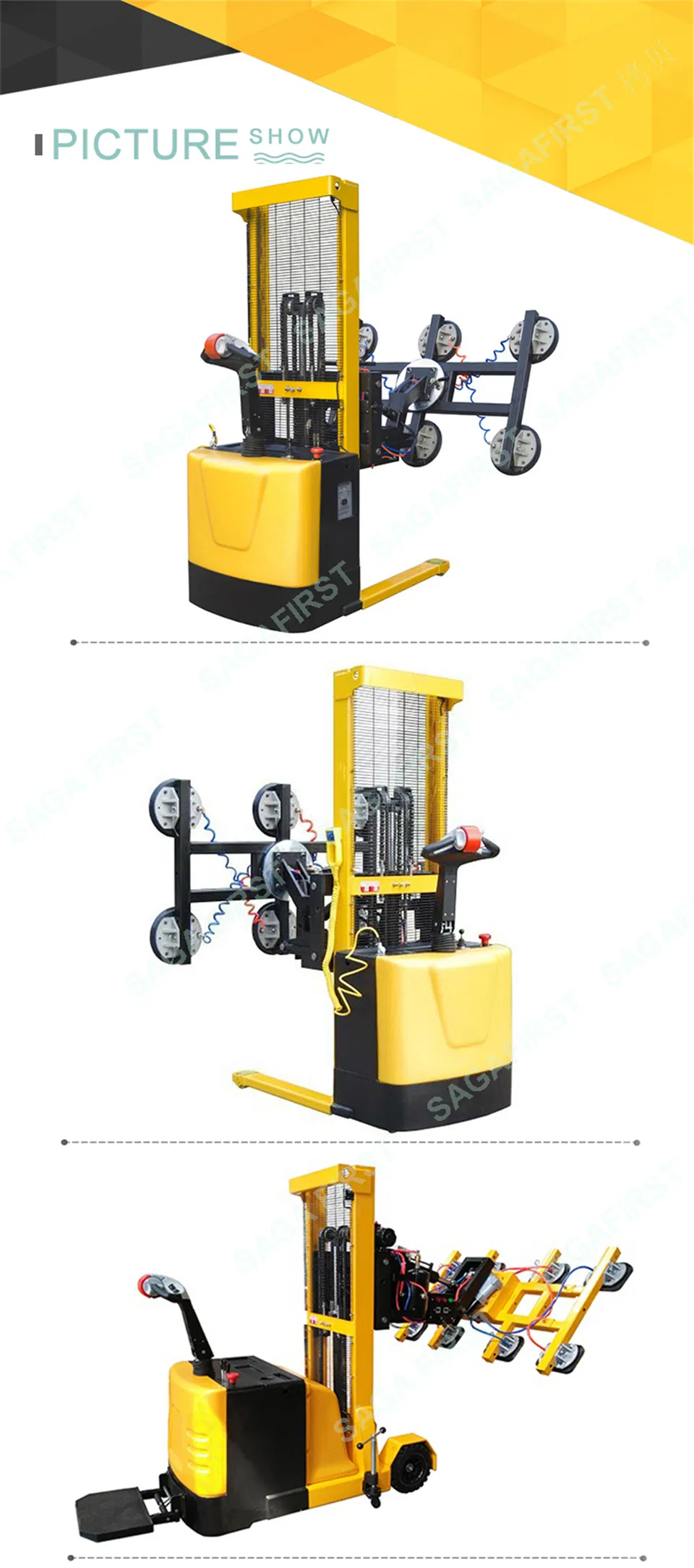

Features self-propelled drive and electric side shift (100mm left/right). Supports electric tilting from vertical to horizontal.
| Model | GL-HD-4020 | GL-HD-6030 | GL-HD-8040 |
|---|---|---|---|
| Max. Load Cap. | 400kgs | 600kgs | 800kgs |
| Safe Load Cap. | 200kgs | 300kgs | 400kgs |
| Qty of Caps | 4 | 6 | 8 |
| Max. Plate Size | 2440x1830mm | 2440x1830mm | 3660x2440mm |
| Battery | 2x12V/70Ah | 2x12V/100Ah | 2x12V/160Ah |

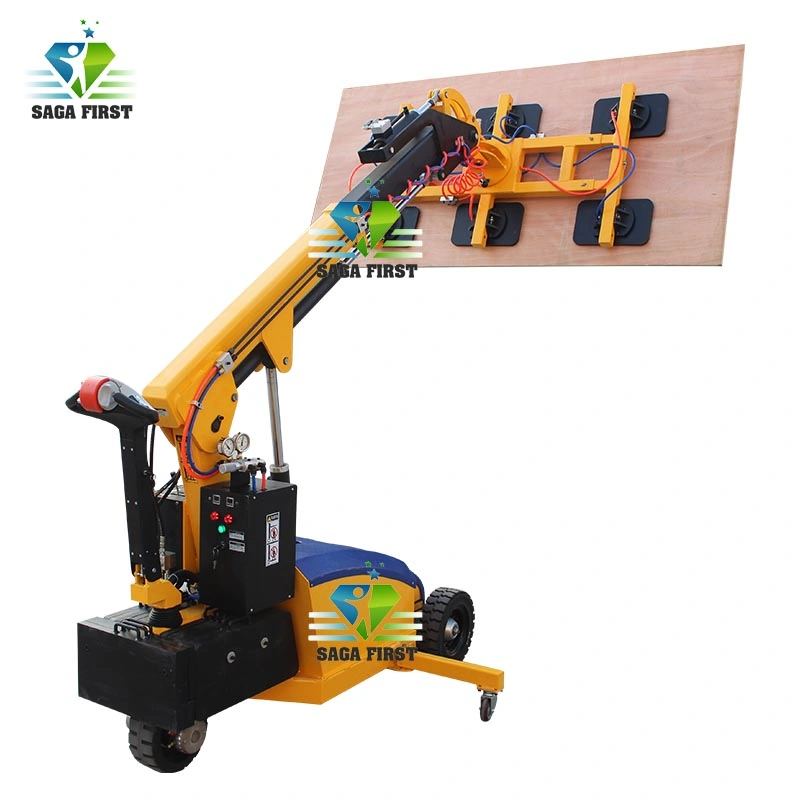

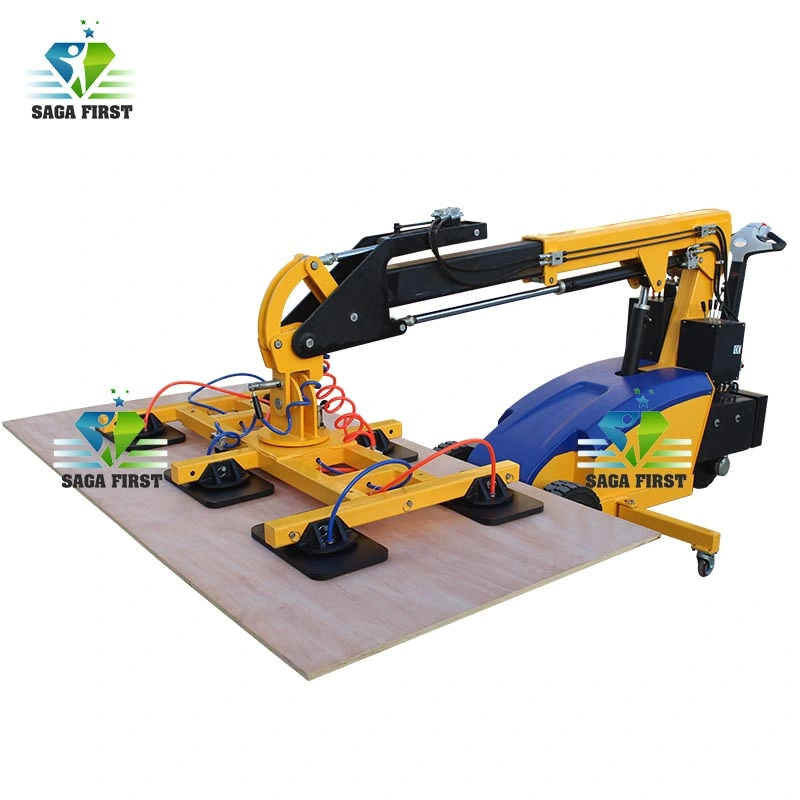

A modified full-power floor crane combined with a vacuum lifter for versatile material handling.
| Model | GL-FC-6035 | ||
|---|---|---|---|
| Max. Capacity | 600kgs | Battery | 2x12V/100A |
| Safe Capacity | 350kgs | Charger | 24V/15A |
| Lift Height | 3500mm | Drive Motor | 24V/700W |
| Max. Plate Size | 3300 x 1500mm | Travel Speed | 3.5 - 4.5km/h |
Certificates: CE, ROHS, SGS, ISO, ETC.
It is specifically designed for handling heavy plates such as glass, steel, granite, marble, and various types of boards.
Depending on the model, the maximum capacity reaches up to 800kg with a lifting height of up to 3500mm.
The GL-HD series features electric tilting forwards and backwards from vertical to horizontal, while the suction plate supports manual or electric rotation for precise positioning.
Yes, these models are self-propelled and designed for maneuverability, with specific light-duty models (GL-LD) that are particularly easy to transport.

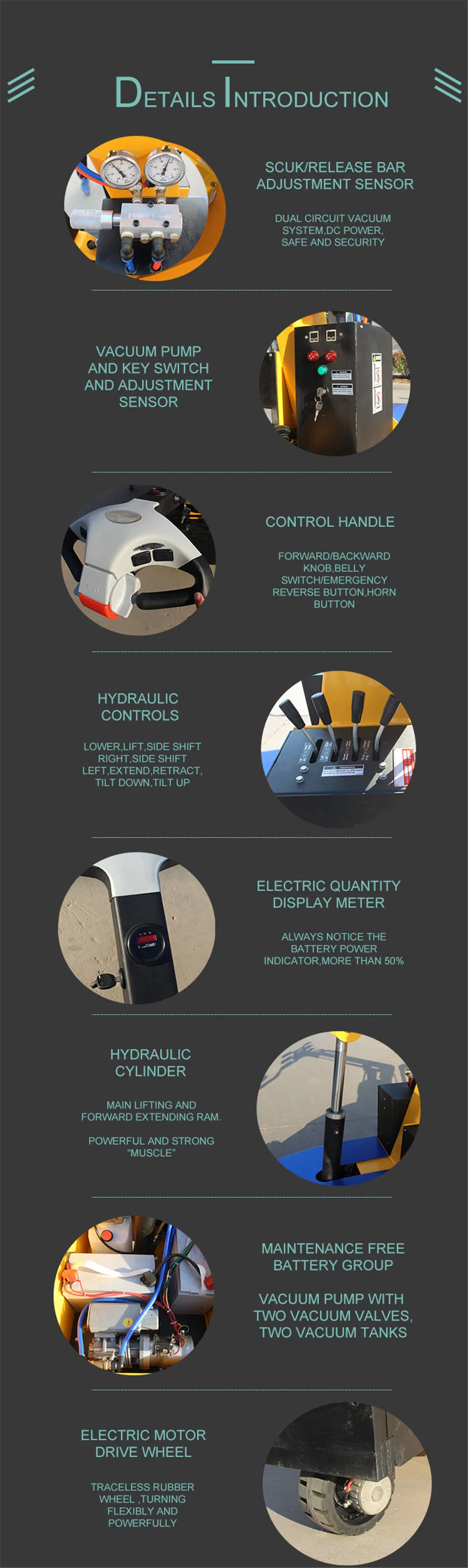

The vacuum system includes automatic pressure control and dual routes to prevent system failure, ensuring safe handling of heavy loads.
The equipment is powered by a reliable 24V battery system (various Ah capacities depending on the model) and comes with an integrated charger.
