Basic Specifications
Maximum Lifting Height
>20m
Certification
CE, ISO9001:2000
Transport Package
Plywood Case
Production Capacity
5000PCS/Month
Key Product Features
⛨
Electromagnetic Brake
Unique brake design that operates immediately when power is cut off, even under full load.
⚙
Mechanical Load Brake
Effectively prevents the hoist from descending too fast, operating independently from the electromagnetic system.
⚓
Heavy-Duty Hook
Constructed of anti-pull, heat-treated steel with a 360-degree swiveling lower hook and safety tongue.
⚡
Phase Protection
Integrated back-phase protection prevents motor overheating due to incorrect phase wiring.

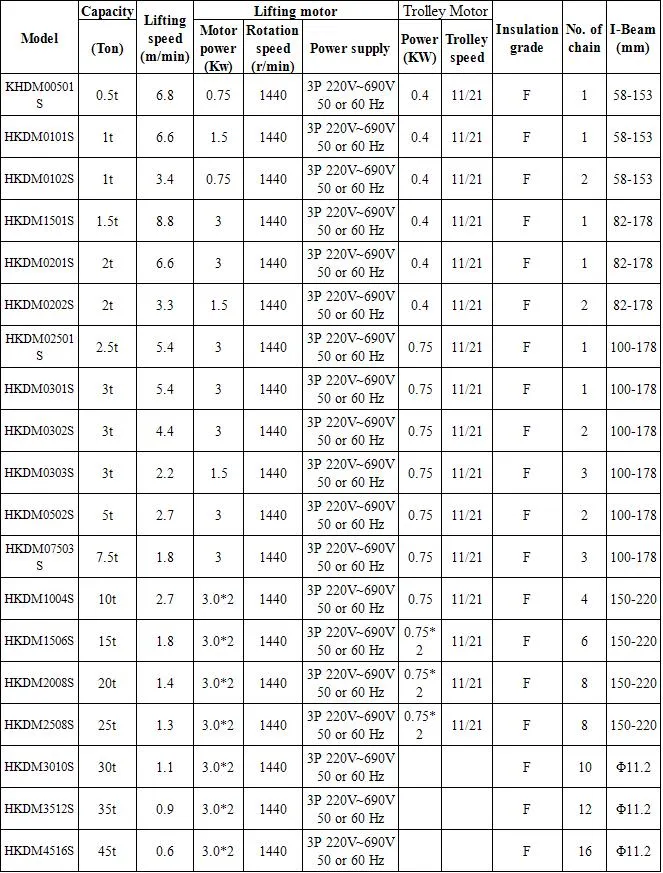

Technical Parameters
Technical Detailed Components
- Electric Motor: High-strength aluminum system with compression casting. Features fast heat release and enclosed structure for chemical/electroplating plant use.
- Dual Braking System: Side magnetic braking combined with motor braking for ultimate security and durability.
- Alloy Steel Gears: Precision gears made of alloy steel with professional heat treatment.
- Limit Switch: Automatic stop device at both upper and lower limits to prevent chain over-travel.
- FEC80 Load Chain: Ultra-strong heat-treated alloy steel, suitable for rain, sea water, and chemical environments.
- Protection Grade: IP55 rated for dust and water resistance; Insulation Grade F.
- Emergency Stop: Fitted with a red mushroom-shaped emergency-stop switch to cut power instantly.
Product Gallery
Order Requirements
Please provide the following information for a professional solution:
- Required Quantity (QTY)
- Trade terms (EXW, FOB, or CIF)
- Chain configuration (Double or single)
- Lifting capacity and height
- Lifting speed requirements
- Working voltage (V, HZ, Phase)
Frequently Asked Questions
1. What is the standard warranty for this electric hoist?
This model comes with a comprehensive 2-year warranty covering manufacturing defects.
2. Can the hoist be used in outdoor or humid environments?
Yes, with IP55 protection and FEC80 alloy steel chains, it is designed to work safely in rain, sea water, and chemical plant conditions.
3. What safety mechanisms are included to prevent falling loads?
It features a dual brake system: an electromagnetic brake for immediate stops and a mechanical load brake for independent safety redundancy.
4. What voltage options are available for international use?
We support 3-phase power supplies ranging from 200V to 600V at both 50Hz and 60Hz frequencies.
5. Is the lifting height limited to 20 meters?
While 20 meters is a standard specification, we offer customized lifting heights based on your specific project requirements.
6. How is the product protected during shipping?
All hoists are securely packed in heavy-duty plywood cases to prevent damage during domestic or international transit.
