Electric Hoist Winch 1320lbs Lifting Engine Crane Cable Overhead Lift W/ Remote

1 / 5

Electric Hoist Winch 1320lbs Lifting Engine Crane Cable Overhead Lift W/ Remote

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Overview & Basic Information

Model NO.Micro Electric Hoist

TypeElectric Hoist

Sling TypeWire Rope

Power1200W

Voltage110V/60Hz

Rated Capacity1320 Lbs (Double) / 660 Lbs (Single)

Lift Speed2~8m/min

Max Height>20m

CertificationCE / ETL Listed

Warranty5 Years

⚙️ Product Key Features

HEAVY-DUTY CONSTRUCTION Made of high-quality alloy steel with heavy-duty mounting clamps. Forged steel hook and anti-twist braided steel cable ensure safety. Includes a height limitation device to prevent equipment damage.

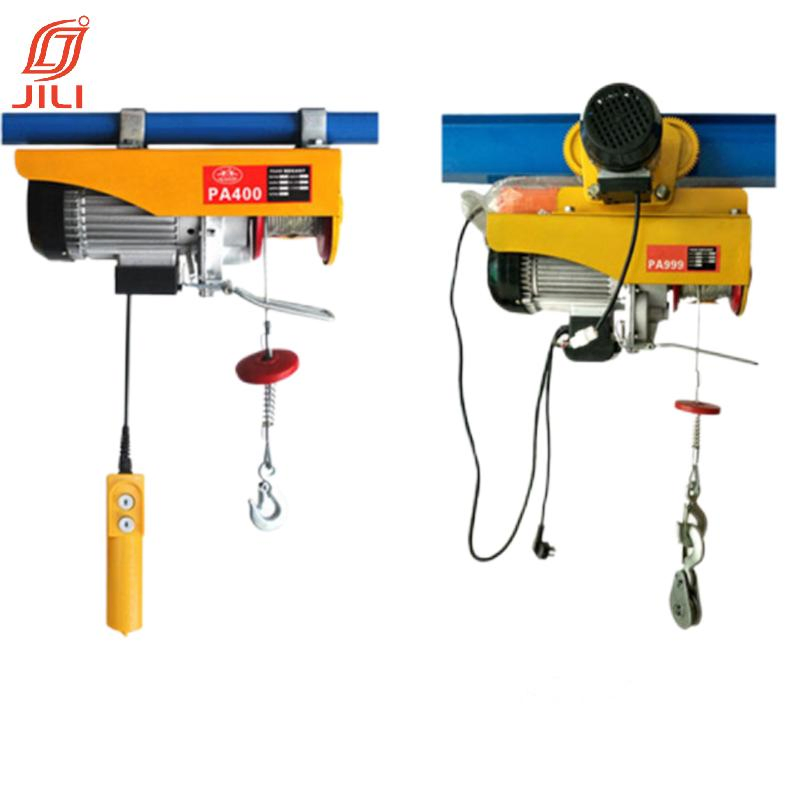

DUAL-LINE OPERATION Versatile design with a pulley lifting hook. Single line: 660 lbs capacity at 33 ft/min. Double line: 1320 lbs capacity at 16.5 ft/min.

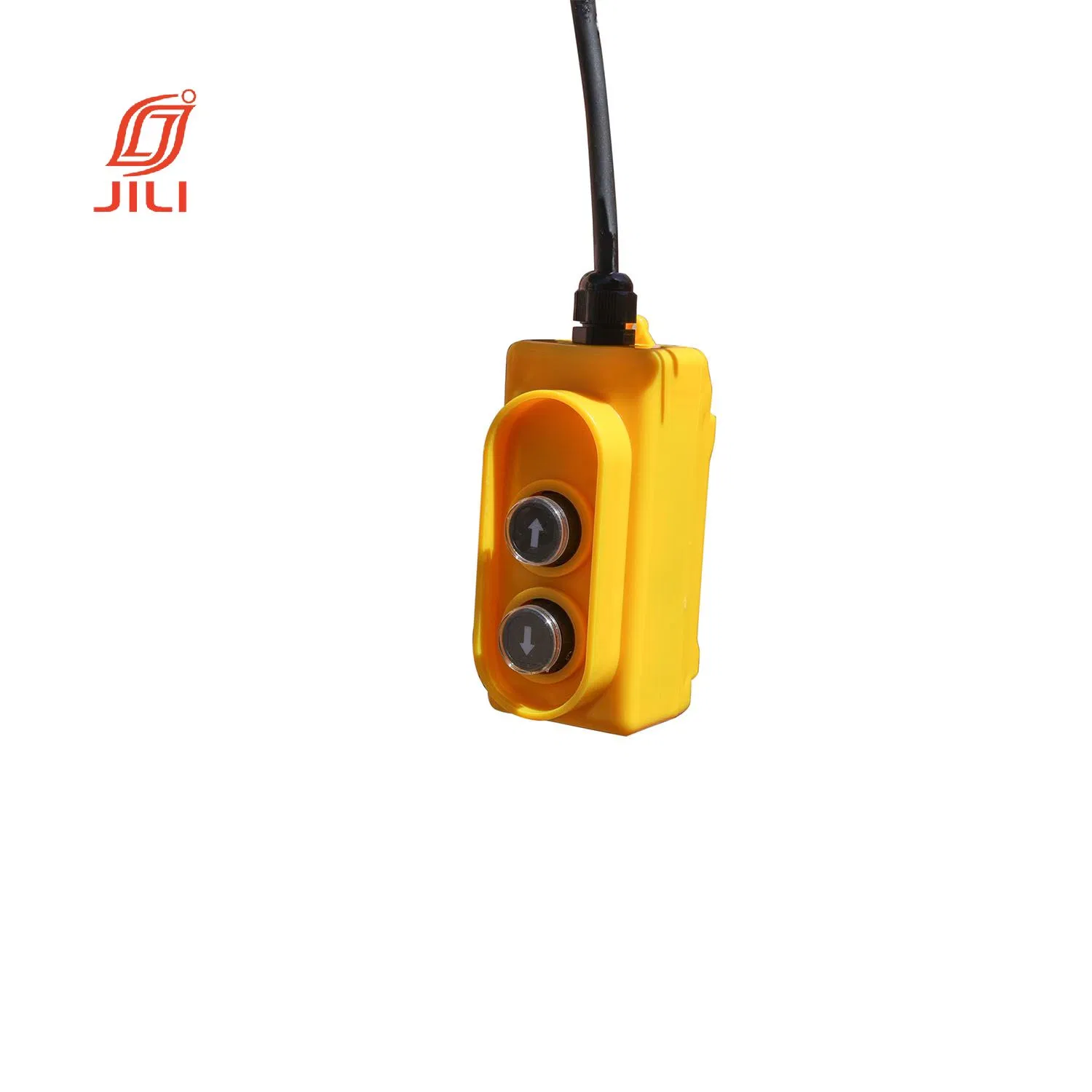

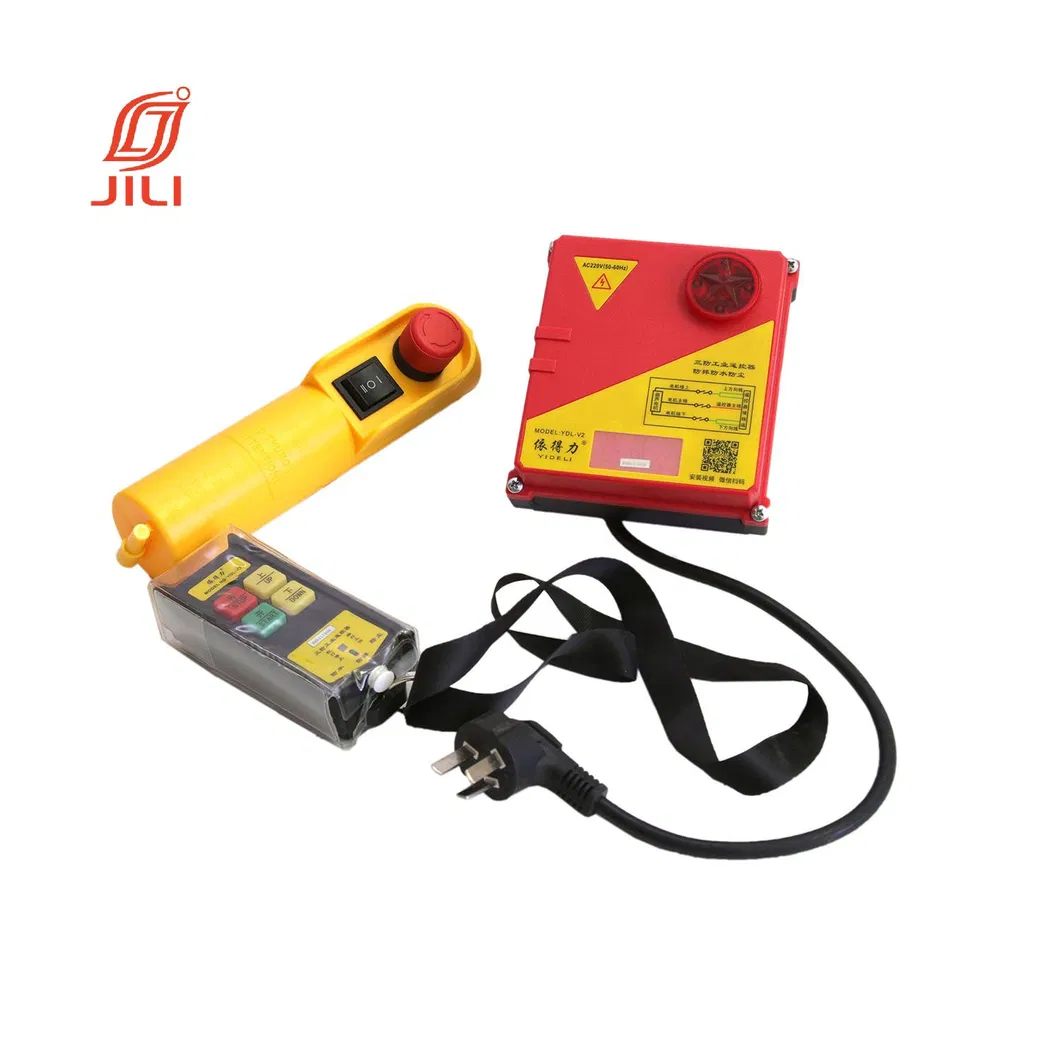

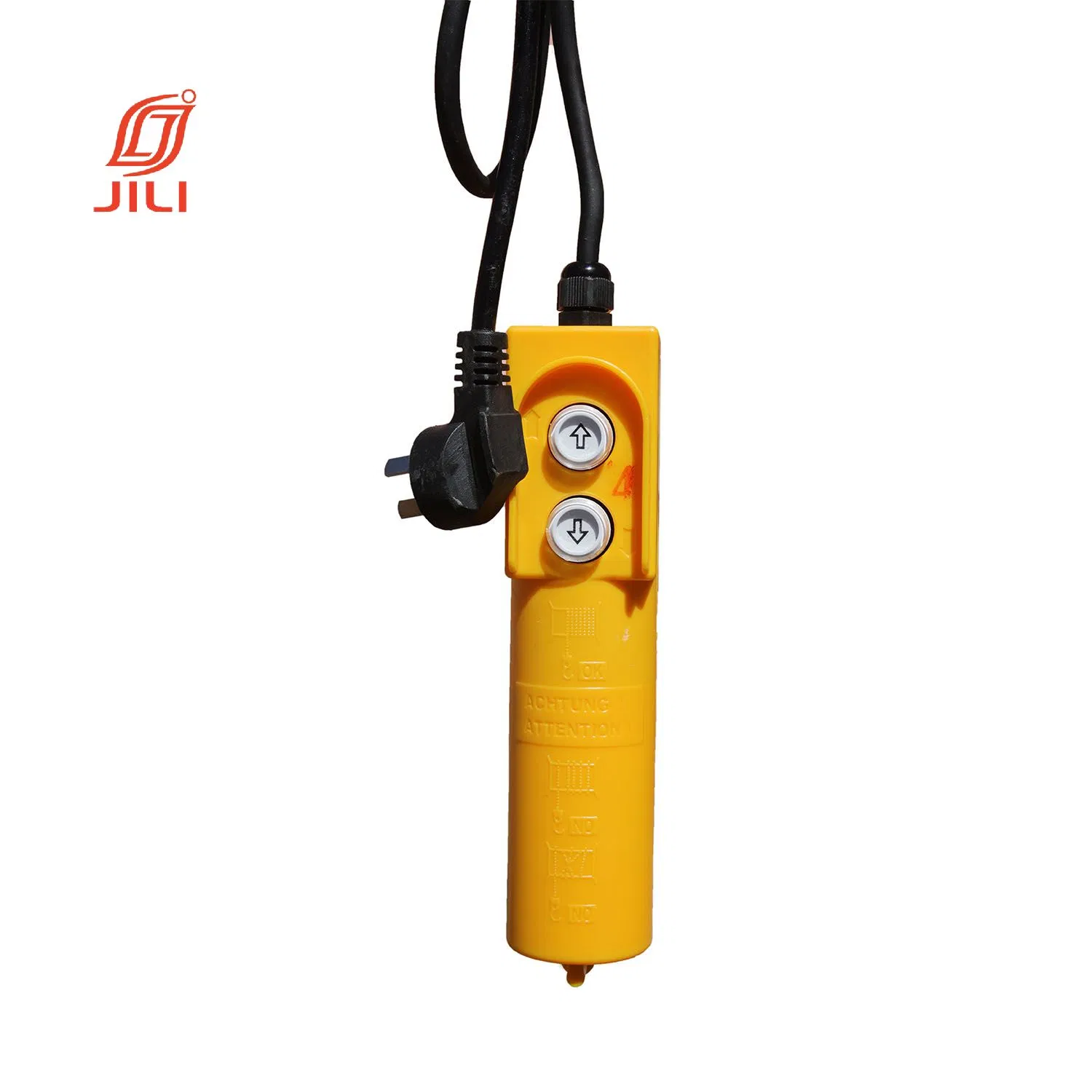

WIRELESS REMOTE CONTROL Operate from up to 98 ft away. Ideal for high beams and large sites, keeping operators at a safe distance from the lifting area. Includes an emergency stop switch.

SAFE AND DURABLE MOTOR Full copper motor with aircraft-grade aluminum alloy housing. Features an overheating protection system with a high-speed 8-page fan for quick heat dissipation and built-in safety braking.

VERSATILE APPLICATIONS Perfect for lifting engines, building materials, and heavy machinery. Used in garages, warehouses, construction sites, and factories.

📊 Technical Parameters

Model	Hook Type	Rated Volt	Power (W)	Capacity (KG)	Lift Speed	Lift Height
PA-600E	Single	AC 220V/110V	1200	300	8 m/min	12 m
PA-600E	Double	AC 220V/110V	1200	600	4 m/min	6 m
PA-1000E	Single	AC 220V/110V	1600	500	8 m/min	12 m
PA-1000E	Double	AC 220V/110V	1600	990	4 m/min	6 m

🖼️ Detailed Photos

🏭 Applicable Industries

Building Material Shops Machinery Repair Shops Manufacturing Plant Food & Beverage Factory Construction Works Energy & Mining Home Use

❓ Frequently Asked Questions

Q1: What is the maximum lifting capacity of this electric hoist?

It offers dual-line operation: the maximum capacity is 1320 lbs when using the double-line configuration and 660 lbs for single-line use.

Q2: Does the hoist include a remote control for distance operation?

Yes, it comes with a wireless remote control that allows you to operate the hoist from a distance of up to 98 feet for increased safety.

Q3: What safety features are built into the machine?

The hoist includes a height limitation device, an emergency stop switch, overheating protection with a high-speed fan, and a built-in safety braking structure.

Q4: Is the motor made of pure copper?

Yes, the hoist features a powerful 100% copper motor covered by a durable aluminum alloy housing for better heat dissipation and energy efficiency.

Q5: Can this hoist be used for automotive engine repair?

Absolutely. It is ideal for lifting heavy engines, bulky loads, and machinery in garages, shops, and warehouses.

Q6: What is the power source requirement?

This model is designed for a standard 110V / 60Hz power supply, making it suitable for most domestic and industrial settings in North America.
