✓Manufacturer professional in Electric hoist and Crane system more than 15 years.
✓CE and SGS certificate. Range from 0.5TON to 45TON.
Product Features
Electromagnetic Brake
Unique brake design that immediately operates when power cuts off, even if the hoist is fully-loaded.
Mechanical Load Brake
Effectively prevents the hoist descending too fast even under full load. Operates independently from the electromagnetic brake for double safety.
High-Standard Hook
Constructed of anti-pull, heat-treated steel. The lower-hook can turn 360 degrees with a safety tongue guarantee.
Motor Protection
Back-phase protection prevents motor overheating in case of wrong phase position. Automatic power cut-off when the hoist reaches its limit.

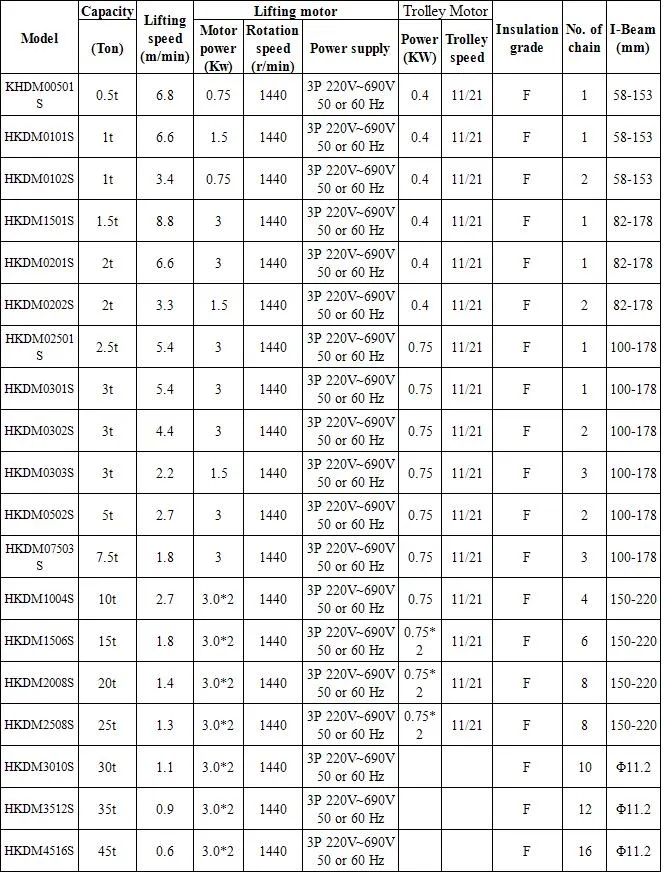

Technical Parameters
Detailed Component Analysis
01Aluminum Outer Cover: Solid and light with fast heat release, suitable for chemical and electroplating plants.
02Side Magnetic Braking: Ensures absolute safety during power-off or excess load.
03Alloy Steel Gear: Made through professional heat treatment for durability.
04FEC80 Chain: Ultra strong heat-treated alloy steel, safe for rain, sea water, and chemical conditions.
05IP55 Protection: Dust and water proof protection class on electric hoist.
06Emergency Stop: Red mushroom-shaped switch to cut power immediately in emergencies.
Product & Packaging Display
Selection Guide
To provide you with the best solution and price, please provide:
Lifting capacity and height?
Lifting speed requirements?
Working voltage (V, HZ, Phase)?
Single or double chain preference?
Quantity and preferred trade terms (EXW, FOB, CIF)?
Frequently Asked Questions
What is the warranty period for this electric chain hoist?
The product comes with a 2-year warranty, ensuring long-term reliability and support.
Does the hoist support outdoor or harsh environment use?
Yes, with an IP55 protection rating and FEC80 ultra-strong alloy steel chain, it is designed to operate safely in rain, sea water, and chemical environments.
What safety braking systems are installed?
It features a dual braking system: an electromagnetic brake for immediate stops during power cuts and an independent mechanical load brake for secondary safety.
What voltage options are available?
The power supply is 3-phase, supporting a wide range from 200V to 600V at 50/60HZ.
Are customized services available for specific lifting needs?
Yes, we provide customized services to design special hoist products based on specific customer requests and technical requirements.
