3ton Electric Chain Hoist Hook Type Lifts

Customization: Available
Application: Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type: Electric Hoist

Product Description

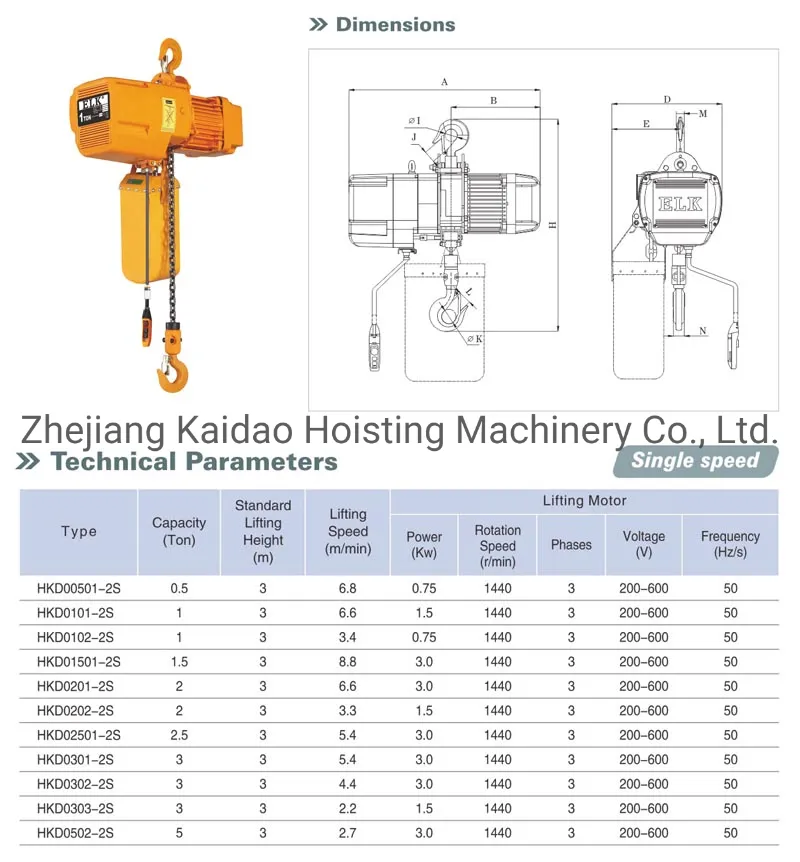

Technical Specifications

Model NO.
HKD0301S
Sling Type
Chain
Lift Speed
2~8m/min
Max Lifting Height
>20m
Chain Falls
1/2/3
Certification
CE, ISO9001:2000, SGS
Condition
New
Hoist Motor
3.0kw
Rotation Speed
1440r/Min
Hoist Voltage
200-600V
Control Voltage
24/36/48/110V
Protection Class
IP54, IP55
Button Protection
IP65
Hoist Hook
Hot Forging, 360° Rotation
Hoist Chain
Japanese FEC80 or Chinese G80
Limit Switch
Equipped
Transport Package
Plywood Cases
HS Code
8425110000

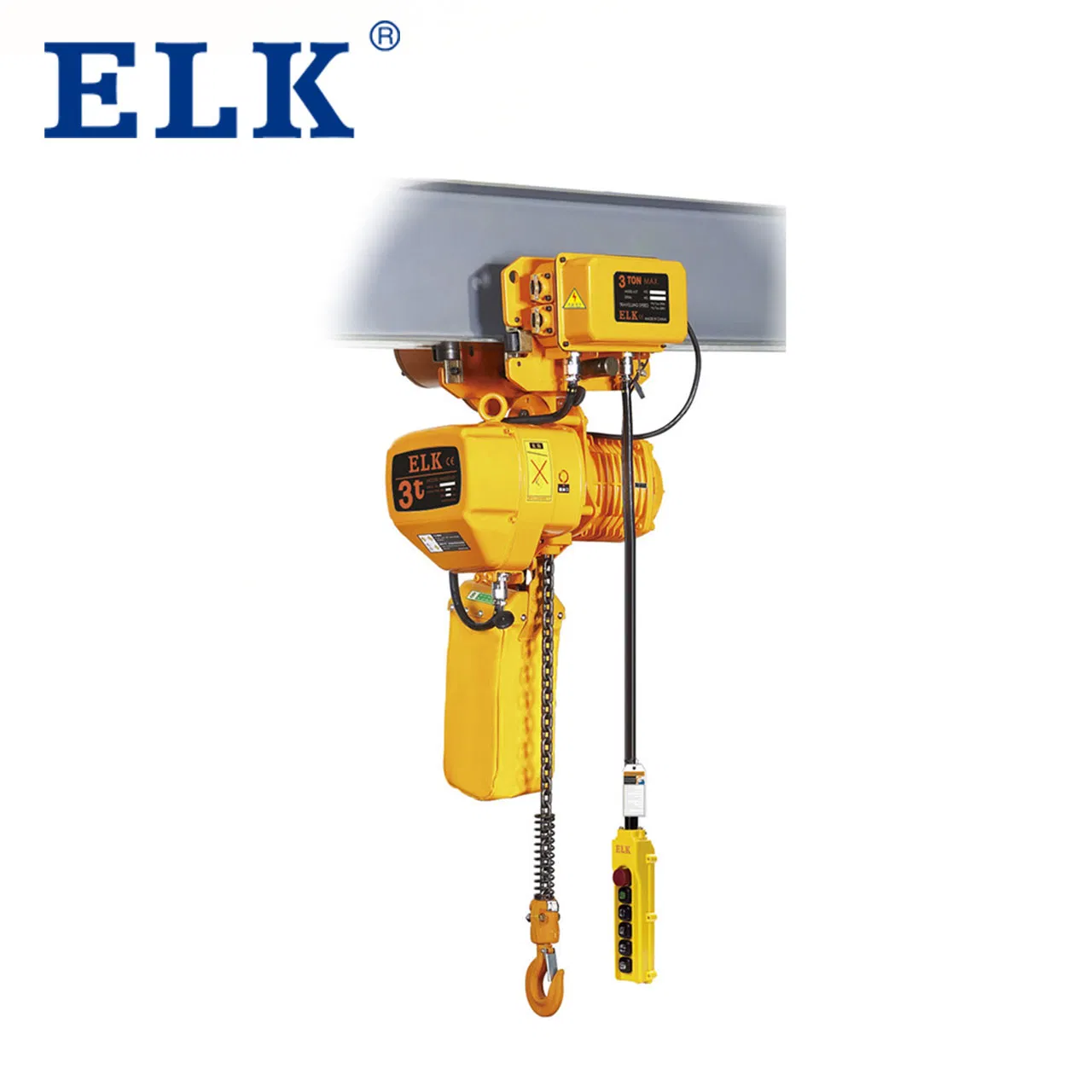

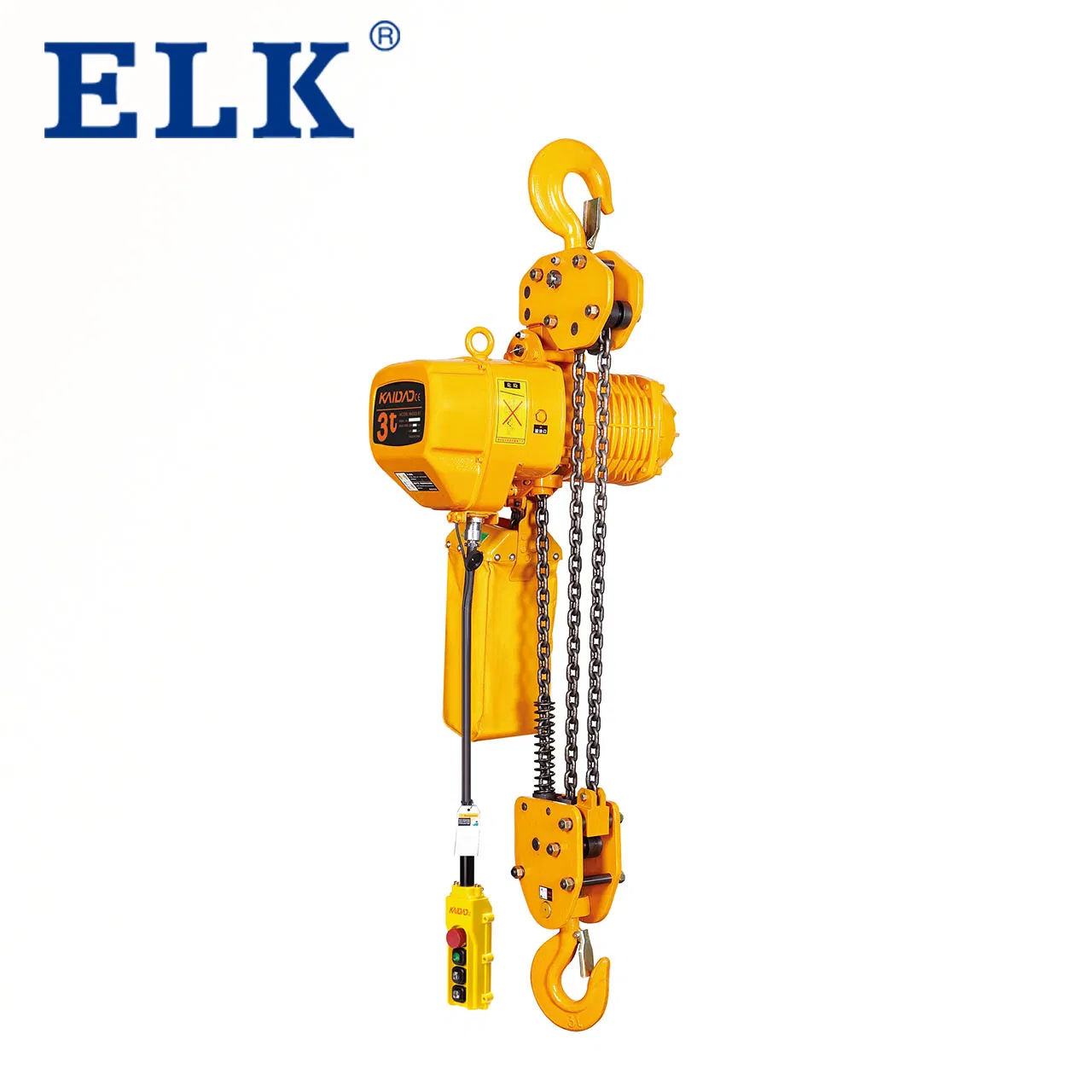

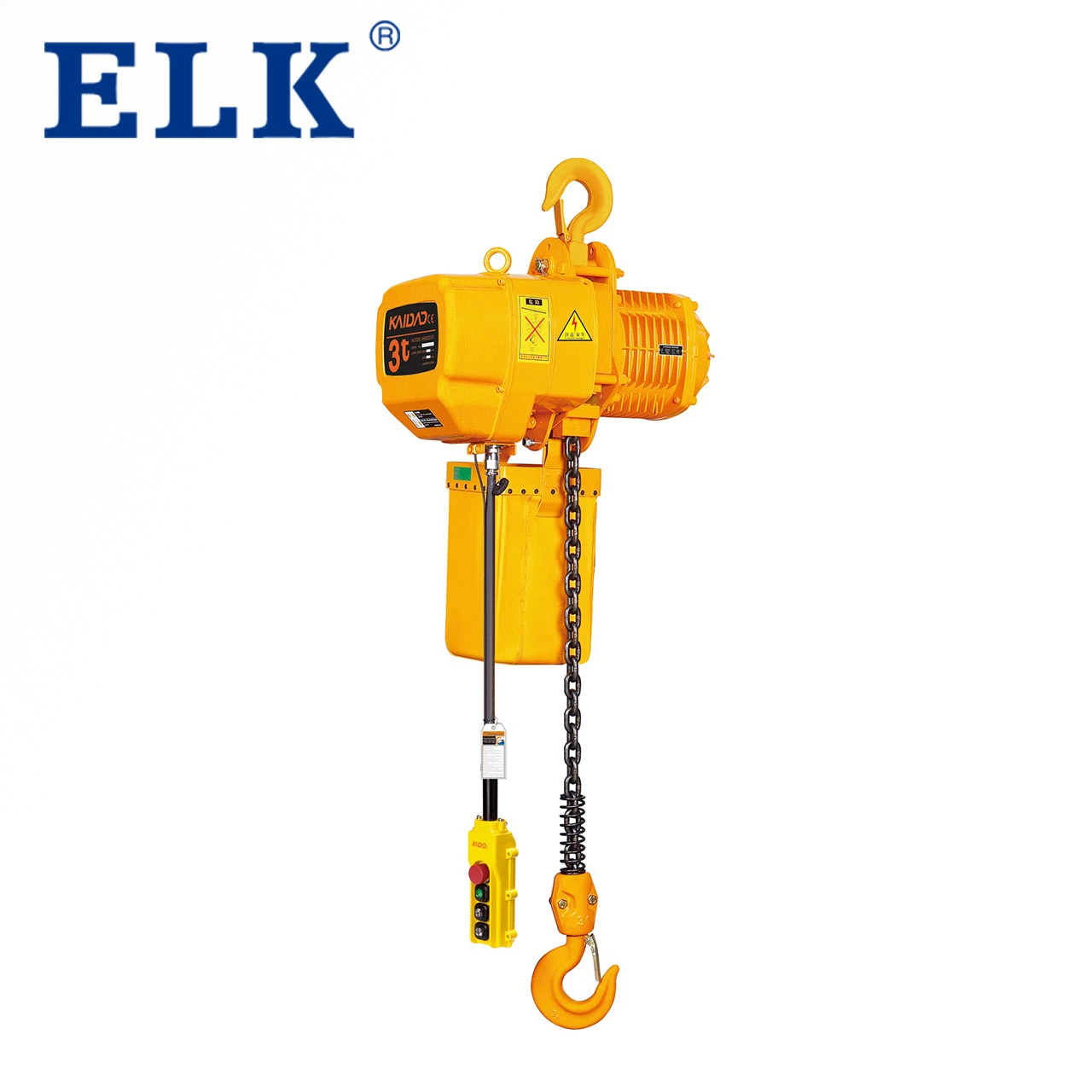

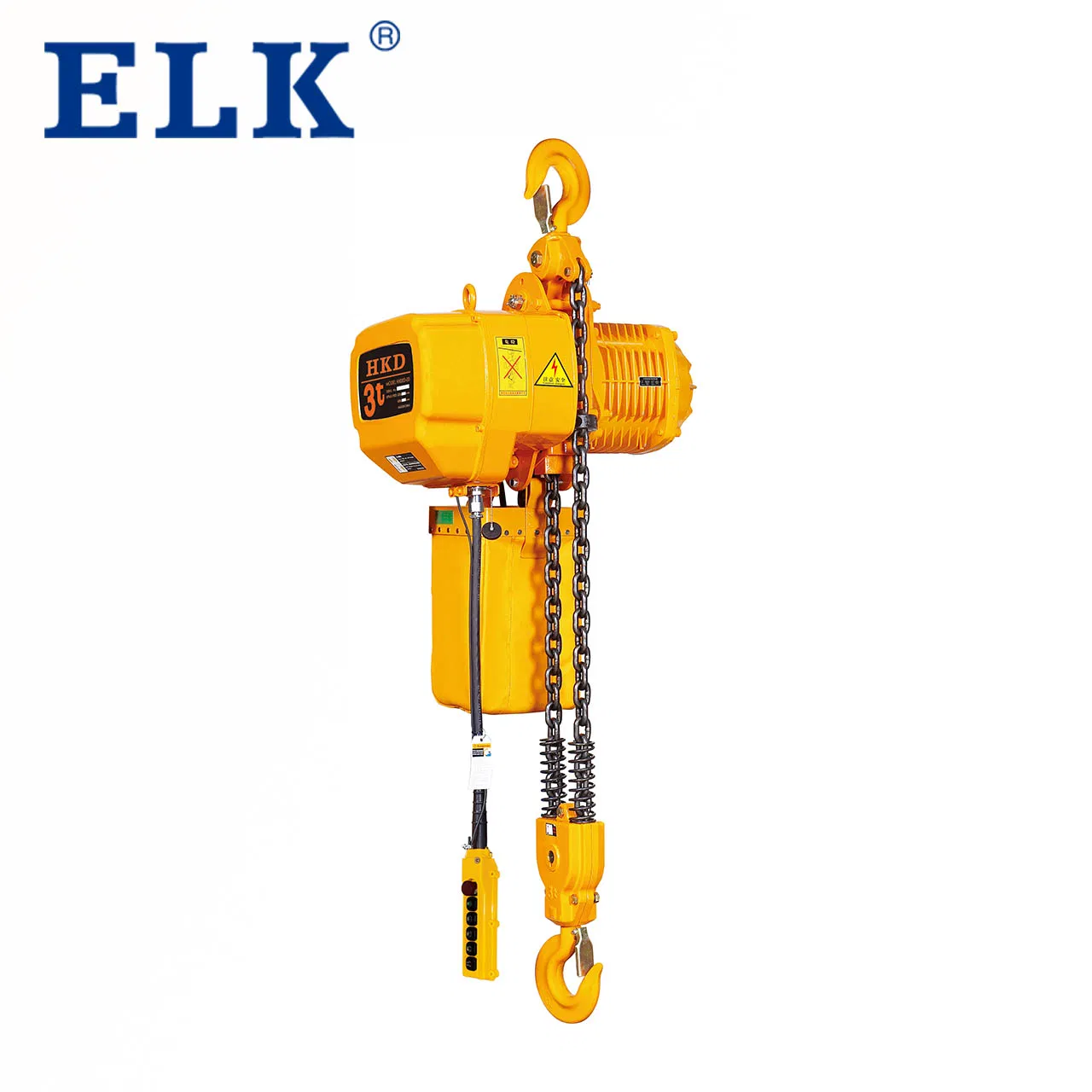

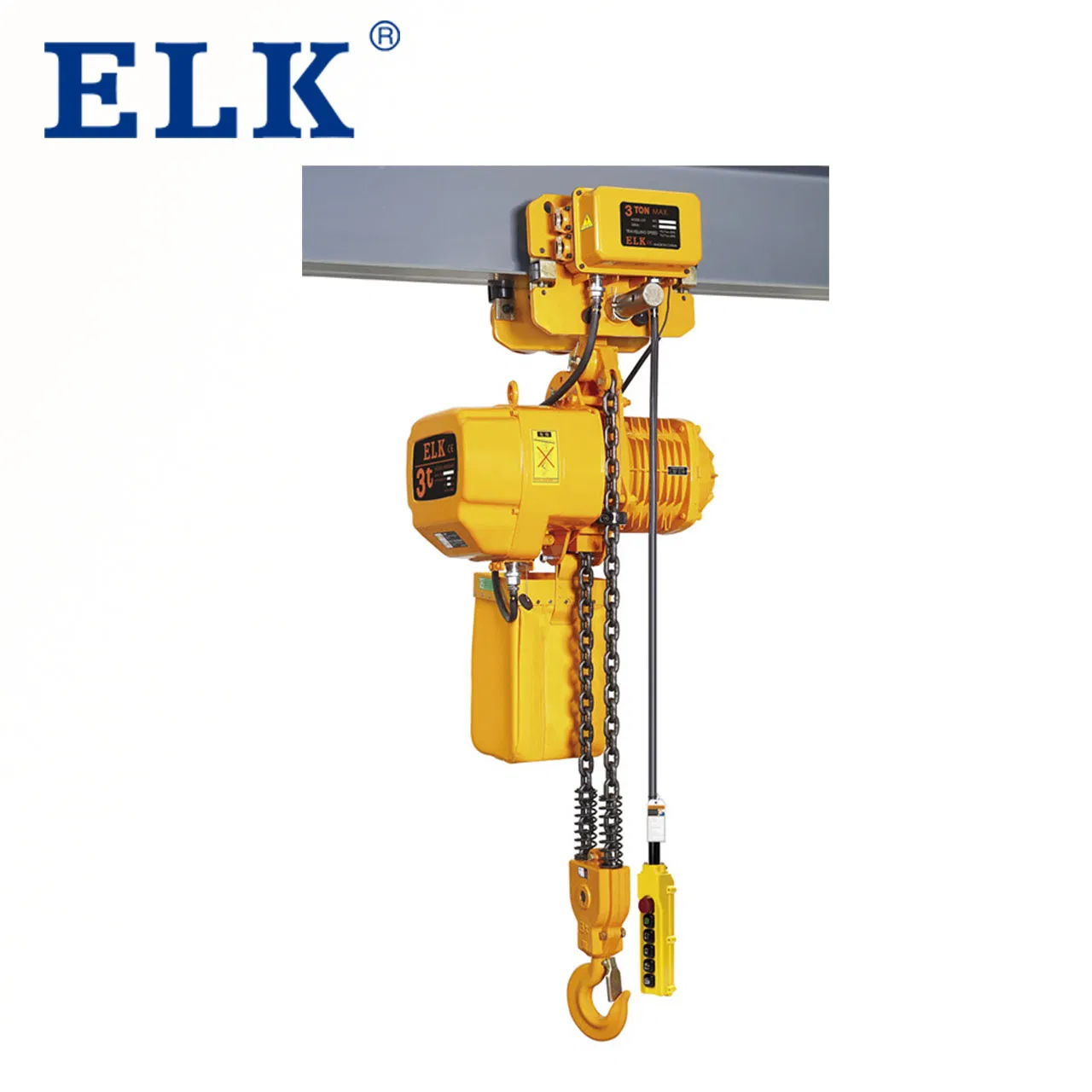

Electric Chain Hoist Display

Electric Chain Hoist

Frequently Asked Questions

Are you a manufacturer or a trading company?

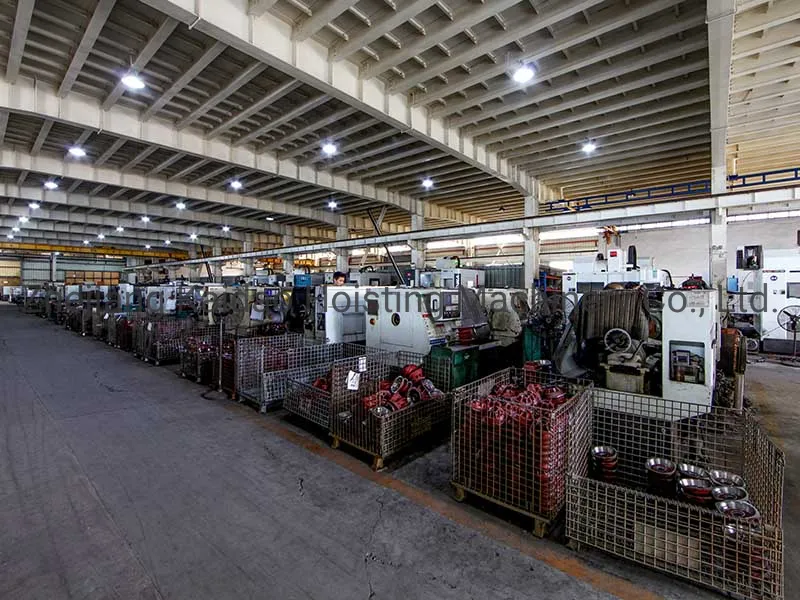

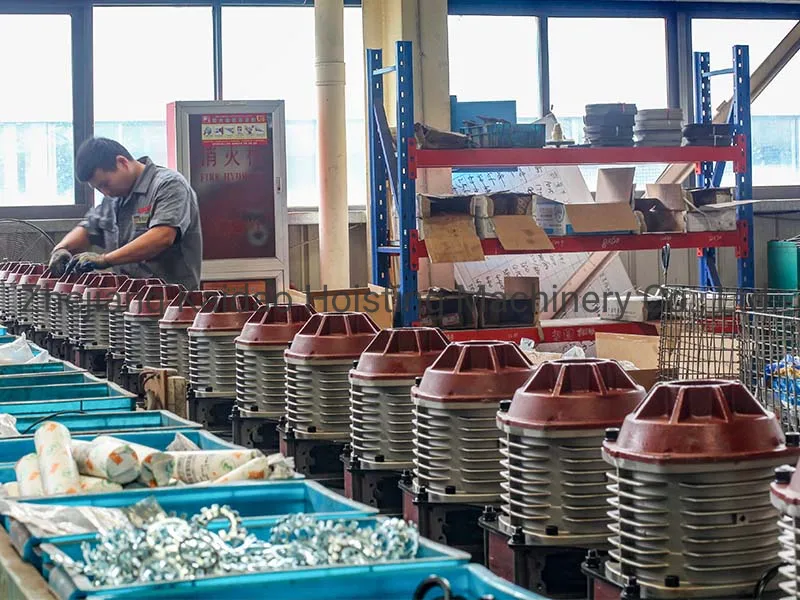

We are a manufacturer with over 10 years of experience in the industry.
Is it possible to add our own logo to the product?
Yes, absolutely. We provide OEM/ODM services and can place your logo on the hoist nameplates or cases.
How are the goods shipped and what is the delivery time?
We typically ship via LCL, FCL, or TNT based on your preference. Delivery time depends on the specific order quantity.
What is the protection level for the hoist motor and buttons?
The hoist motor features IP54 or IP55 protection, while the push button control is rated at IP65 for enhanced safety and durability.
Can the lifting speed and voltage be customized?
Yes, we offer customization for voltages ranging from 200V to 600V and control voltages of 24/36/48/110V to meet various regional standards.
What kind of chain is used in your electric hoists?
We use high-quality Japanese FEC80 or Chinese G80 load chains to ensure maximum strength and reliability during lifting operations.
