Electric Cable Hoist 1 Ton 3 Ton to Lift Light Things

1 / 5

Electric Cable Hoist 1 Ton 3 Ton to Lift Light Things

Customization:	Available
Warranty:	1 Year
Application:	Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

Type

Electric Hoist

Sling Type

Wire Rope

Lift Speed

2~8m/min

Chain Falls

Certification

CE, ISO9001:2000

Capacity

1t~32t

Power Source

220V/380V/ 415V

Package Size

1300x450x600cm

Gross Weight

400.00kg

Product Description

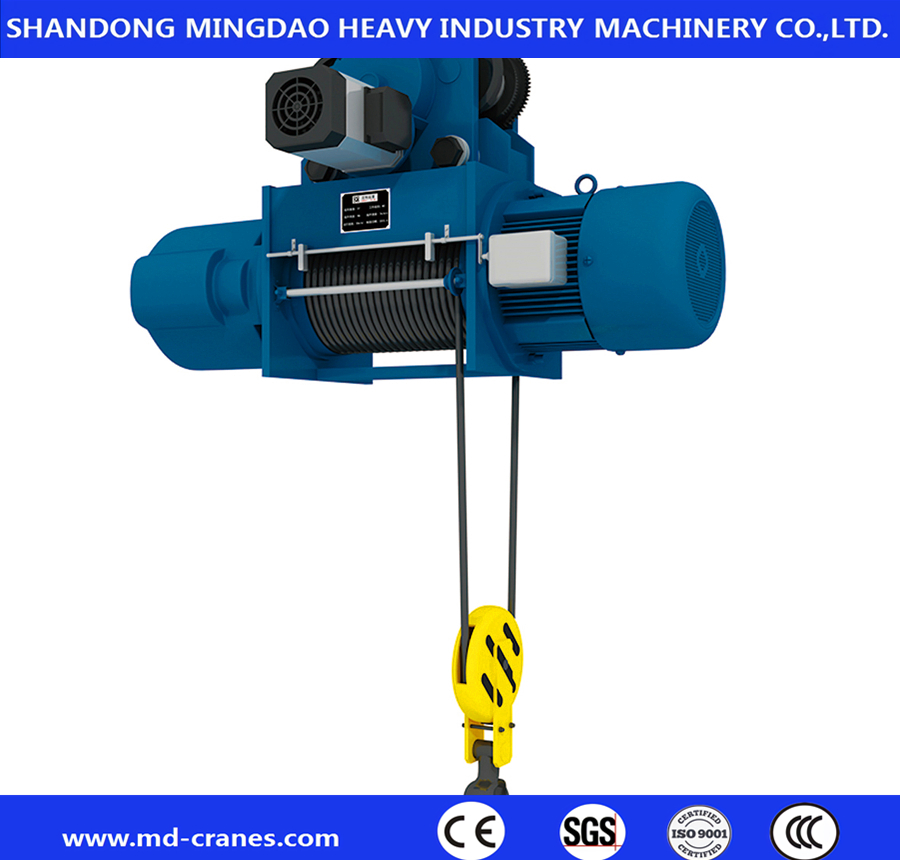

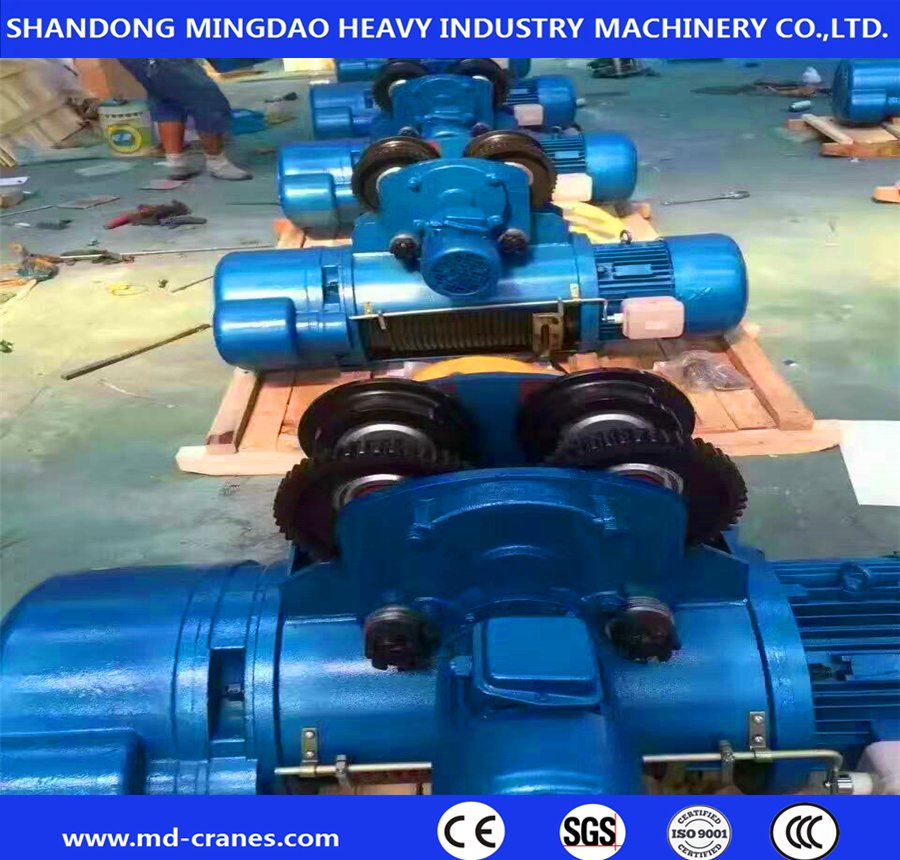

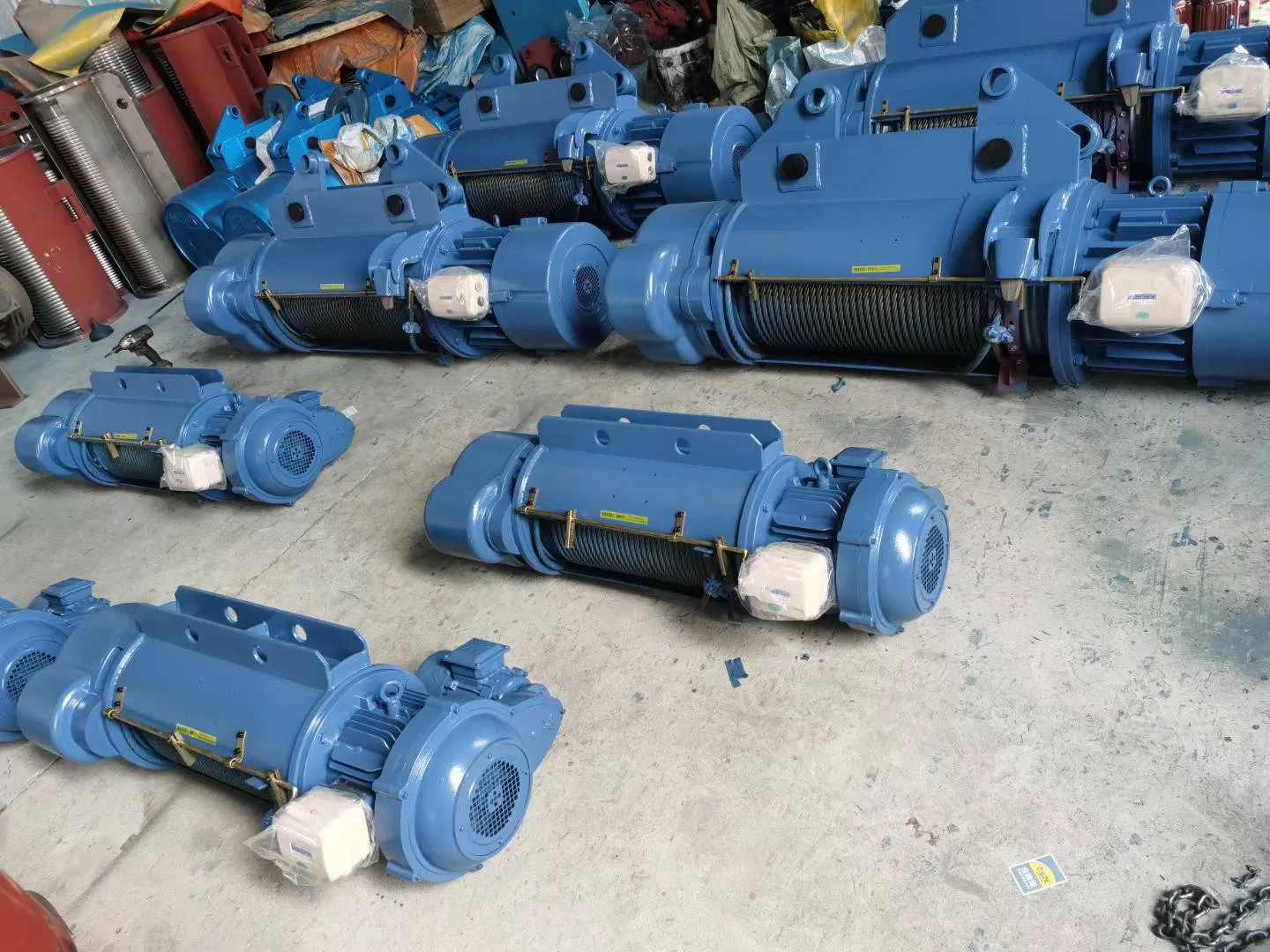

Electric Cable Hoist 1 Ton 3 Ton to Lift Light Things

CD or MD model electric hoist can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of monorail overhead cranes. They can also be used together with electric hoist gantry cranes and jib cranes.

CD model: Single lifting speed.
MD model: Dual lifting speed (normal and slow) for steady and accurate lifting.

📍Application Places

Extensively used in factories, workshops, and warehouses.
Installed on straight or curved I-steel beams of single-girder cranes.
Compatible with double-beam cranes, gantry cranes, and slewing cranes.

Technical Parameters

Model	0.25TON	0.5TON	1TON	2TON	3TON	5TON	10TON
Lifting capacity (t)	0.25	0.5	1	2	3	5	10
Lifting height (m)	3-9	6-12	6-30	6-30	6-30	6-30	6-30
Lifting speed (m/min)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	7(7/0.7)
Running speed (m/min)	20(30)
Voltage / Frequency	380V / 50Hz / 3Phase

High Configuration Components

⚙️ Motor: Conic rotor brake motor with safety limiters in both up and down directions, designed for frequent intermittent work.

⚙️ Reducers: 3-level helical gears with hard gear surfaces for long life and high mechanical efficiency.

⚙️ Main Electric Parts: Adopts top quality and famous brands like Siemens.

⚙️ Rope Guide: Two-half design for easy accessibility, encircling the drum completely to prevent uncoiling.

⚙️ Hook: Closed type high-safety hook wrought with special high-quality steel.

Frequently Asked Questions

What is the main difference between the CD and MD model electric hoists?

The CD model features a single lifting speed, while the MD model offers dual lifting speeds (normal and slow), allowing for more precise and steady material handling.

Where can these wire rope hoists be installed?

They can be used on monorail overhead cranes (straight or curved I-beams), gantry cranes, and jib cranes in factories, warehouses, and workshops.

What type of motor is used in the hoist?

The hoist uses a Conic rotor brake motor, which is specifically designed to adapt to frequent direct starts required for intermittent industrial work.

Is the rope drum durable?

Yes, the rope drum is made of cast iron and seamless steel tube, with a shell welded from steel plate, ensuring it is a robust central part of the hoist.

What information is required to get a recommendation for the right model?

To suggest the best fit, we need the required lift capacity, lift height, the type of materials to be lifted, and your local power supply (voltage/hz/phase).

Are the electric components reliable?

Yes, we use top-quality main electric parts from world-renowned brands like Siemens to ensure reliable operation and safety.
