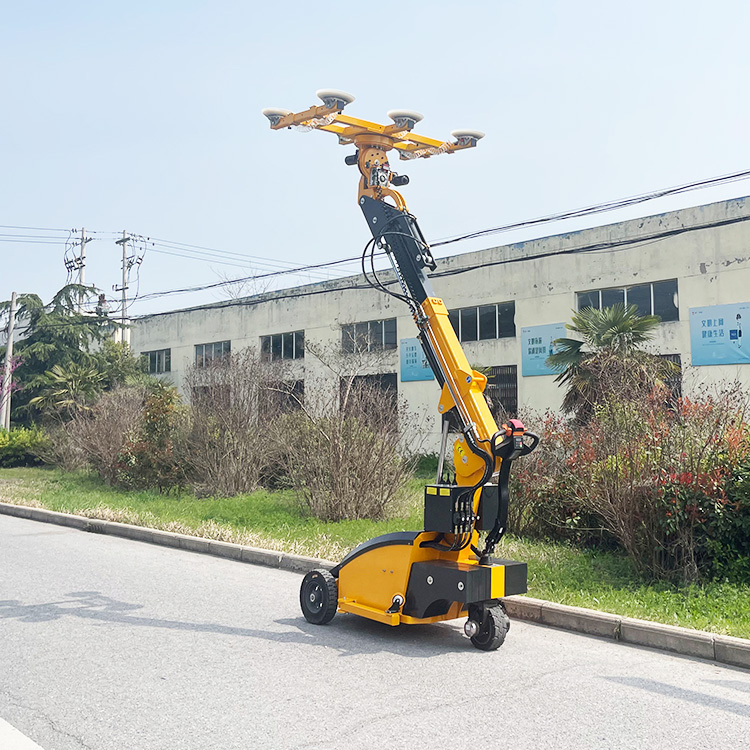

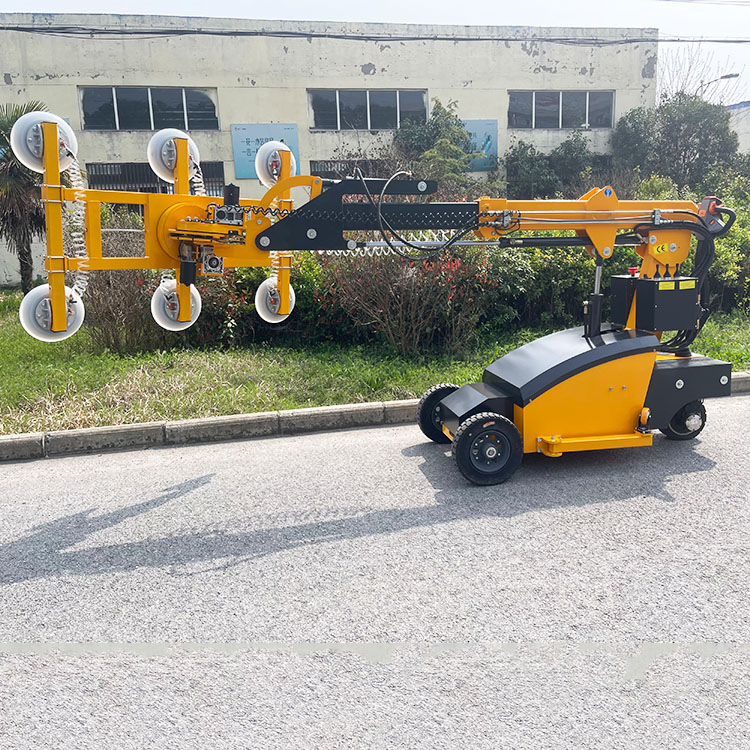

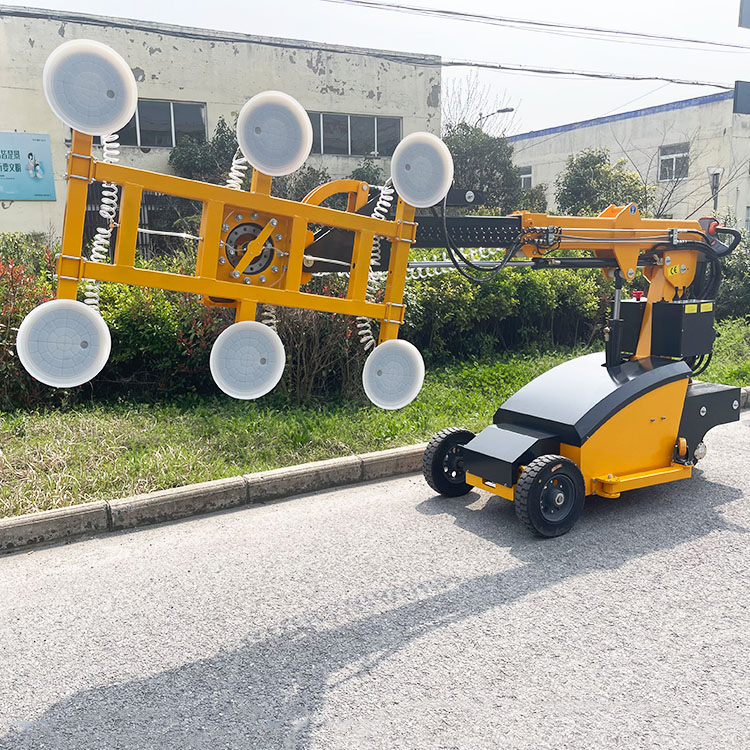

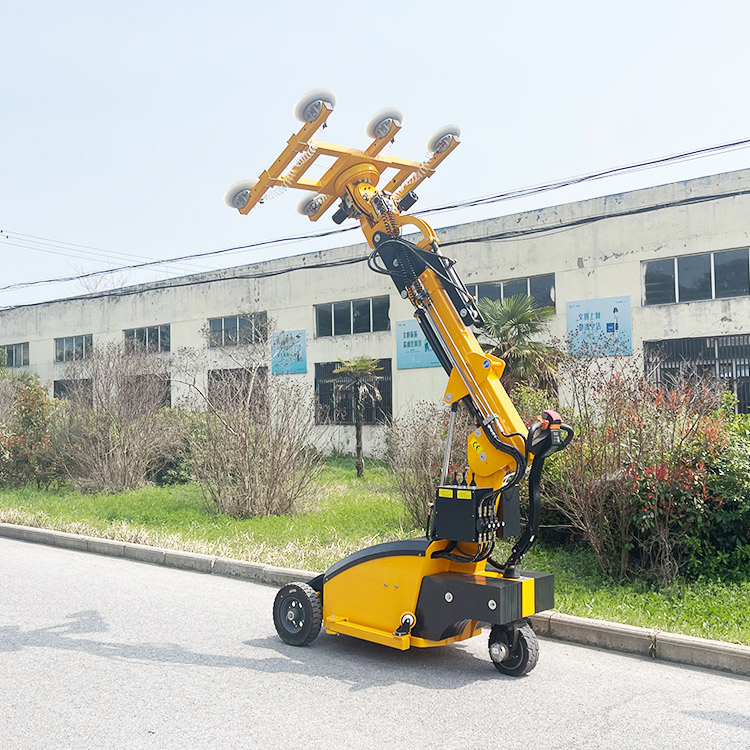

Equipment Overview
Model:RYG-600
Max. Load Capacity:600 kg

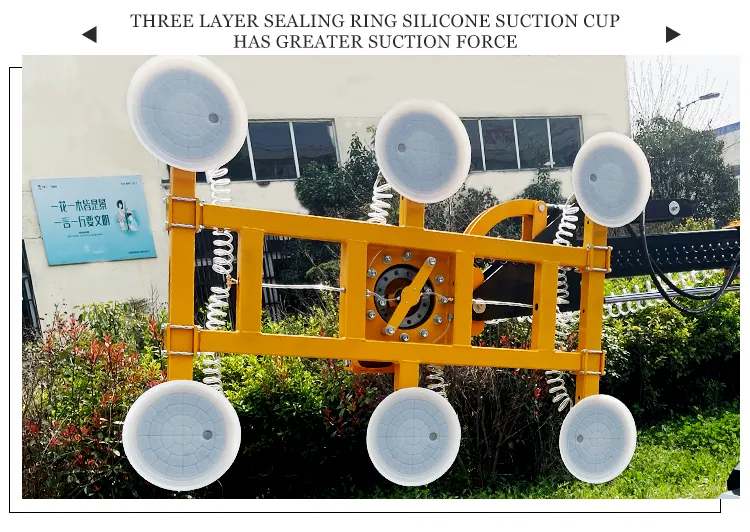

Cup Quantity:8
Manual Rotation:360°

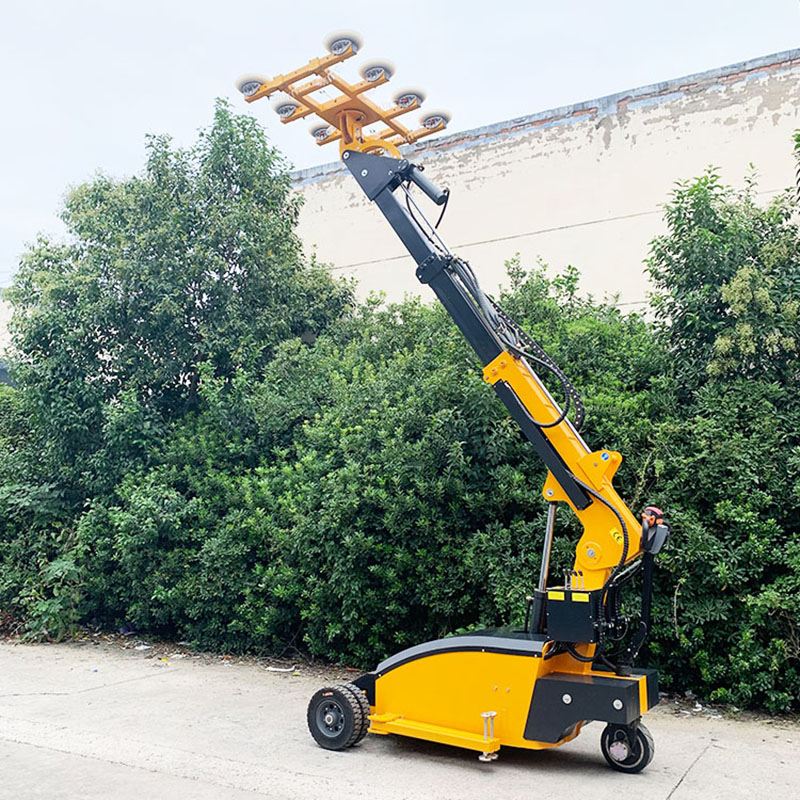

Max. Lifting Height:3500 mm
Operating Method:Walking Type
Battery:2X12V / 100Ah
Driving Motor:24V / 1500W
Lifting Motor:24V / 2200W
Body Width:840 mm
Body Length:2660 mm
Front Wheel Size:400*90 mm
Key Features & Advantages
✔All-Terrain Performance: Front driving with rough terrain wheels for stable movement on uneven site conditions.
✔Intelligent Control: DC24V reliable actuators for lifting, extension, and tilting operations.
✔Premium Components: Japan Panasonic sensors and Taiwan Airtac pneumatic systems.
✔Dual Vacuum System: Features a primary operating system and a secondary spare system for maximum safety.
✔Safety First: Equipped with a pressure auto-maintaining system that holds pressure even during power failure.
✔Side-Shift Function: Allows 100mm total side shift (50+50mm) for precise glass installation without moving the vehicle.
Frequently Asked Questions
What is the maximum lifting capacity of the RYG series?
The RYG series is versatile, with models supporting maximum loads from 200kg up to 800kg, depending on the specific model chosen.
Is this machine suitable for rough terrain construction sites?
Yes, the machine features a front-axle drive and specialized rough terrain wheels specifically designed to handle difficult road conditions on-site.
How does the dual vacuum system ensure safety?
The equipment includes two independent vacuum systems. If the primary system encounters an issue, the spare system maintains suction. Additionally, a pressure auto-maintaining system ensures the load remains secure even if power fails.
Can the glass be adjusted precisely during installation?
Absolutely. The machine is equipped with a side-shift function (50mm + 50mm) and a remote controller, allowing operators to position glass precisely without needing to reposition the entire machine.
What kind of rotation does the suction frame offer?

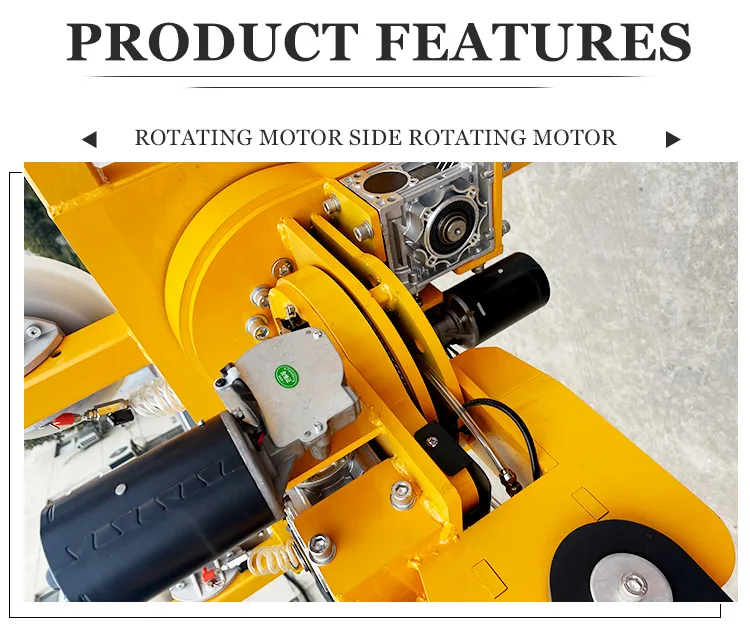

The standard models offer manual 360-degree rotation and 180-degree tilting. Electrical rotation and automatic side turning are available as optional upgrades.
What are the power requirements for the RYG-600?
The RYG-600 operates on a DC24V system with two 12V/100Ah maintenance-free batteries and an integrated 24V/15A charger.
