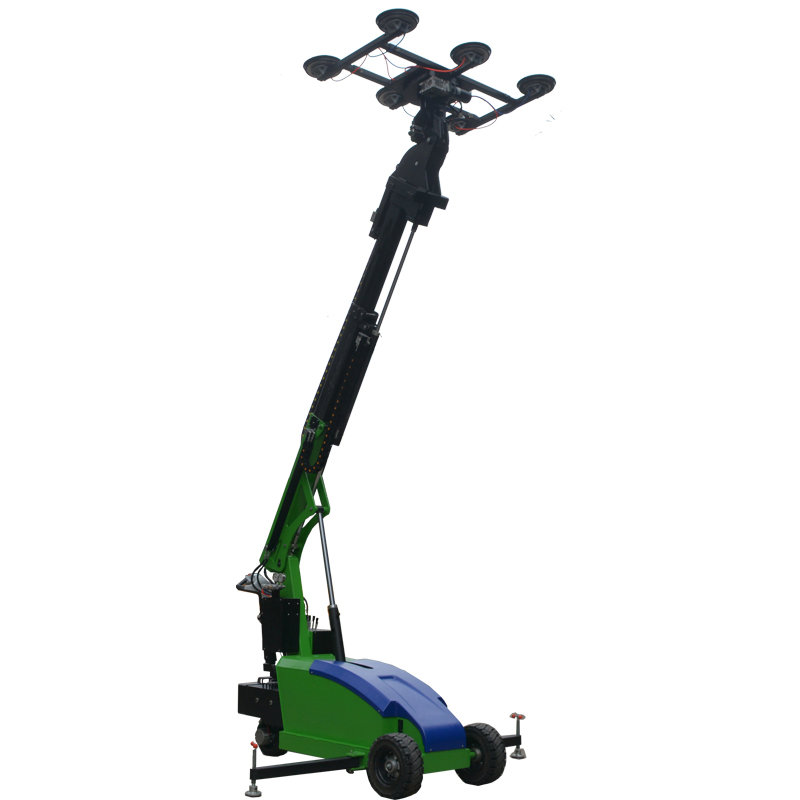

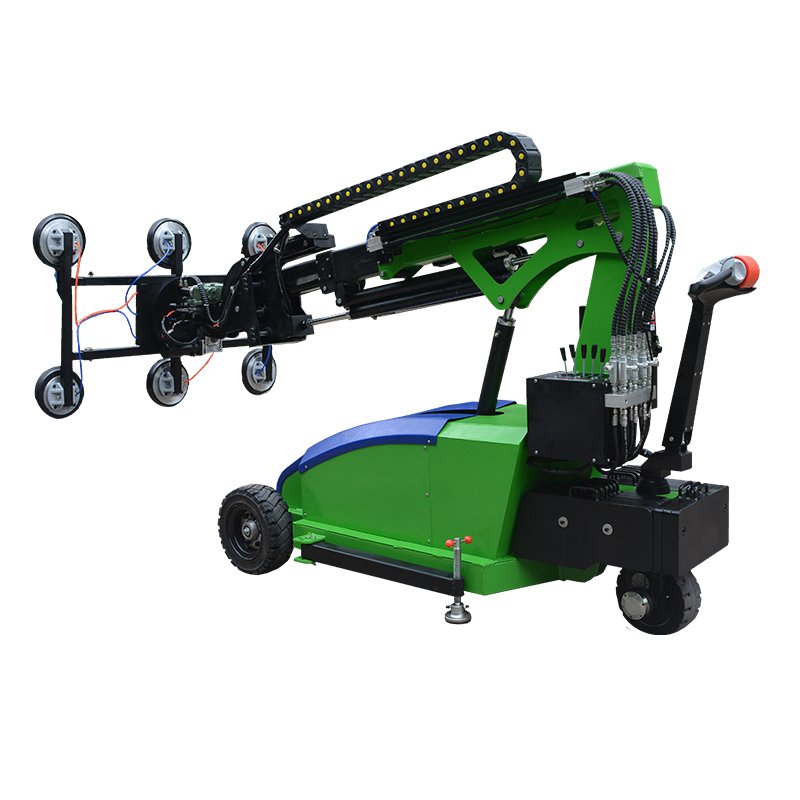

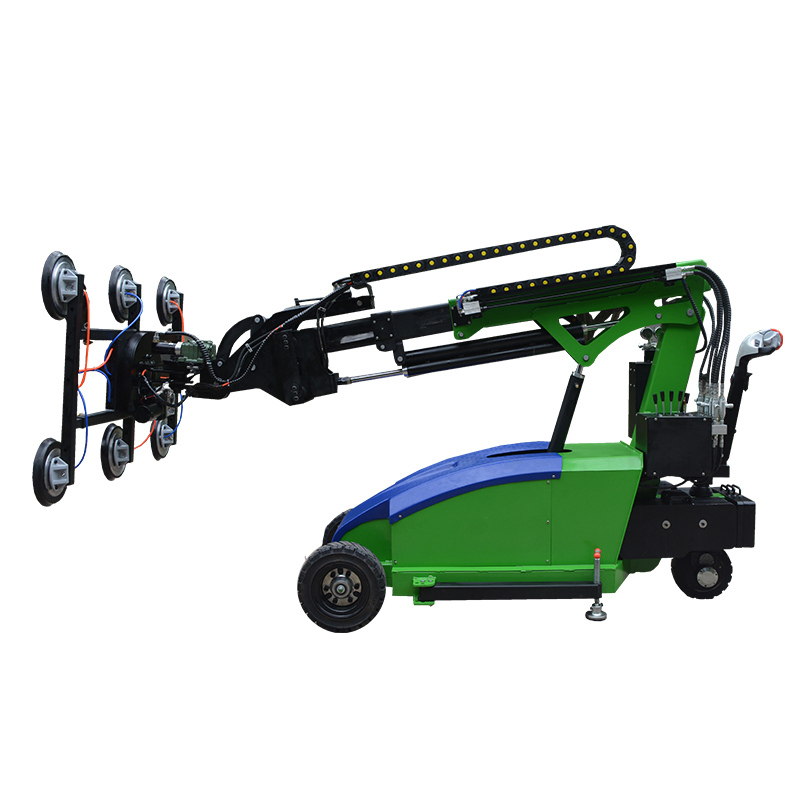

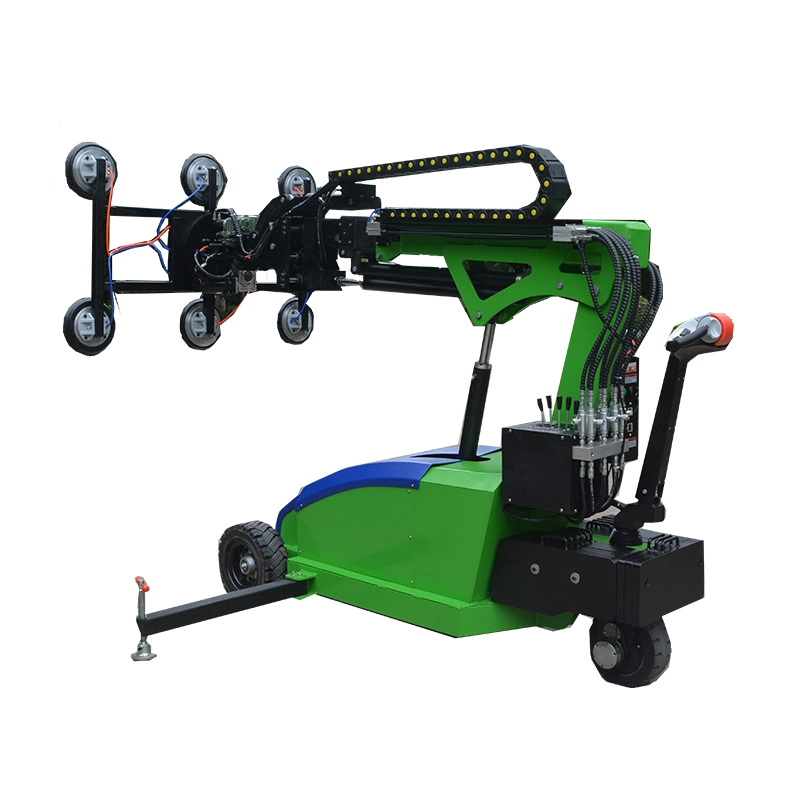

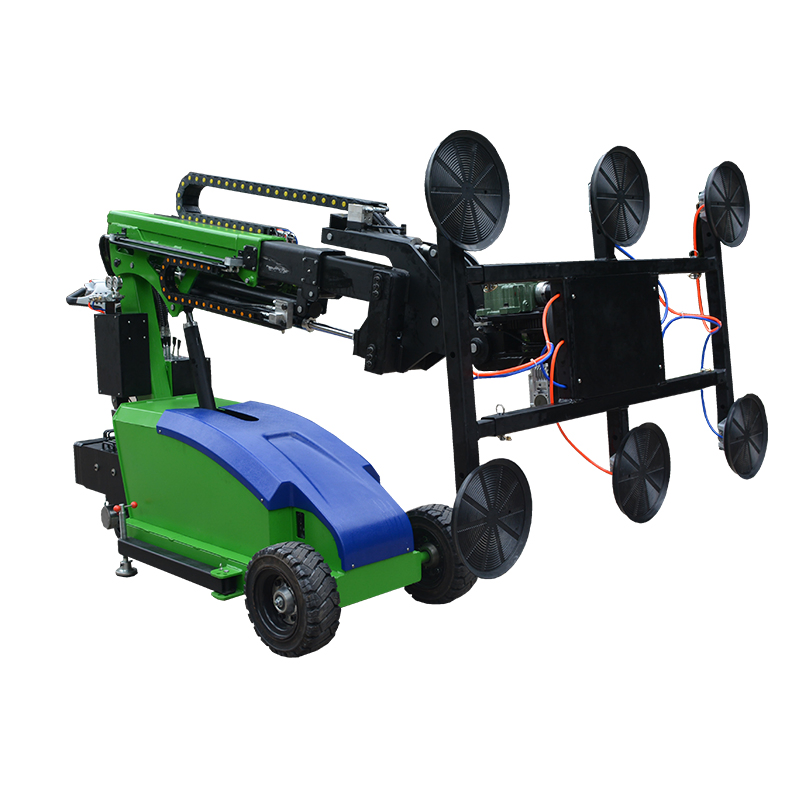

300kg-800kg Electric Vacuum Glass Lifting Equipment (OEM & ODM Service)

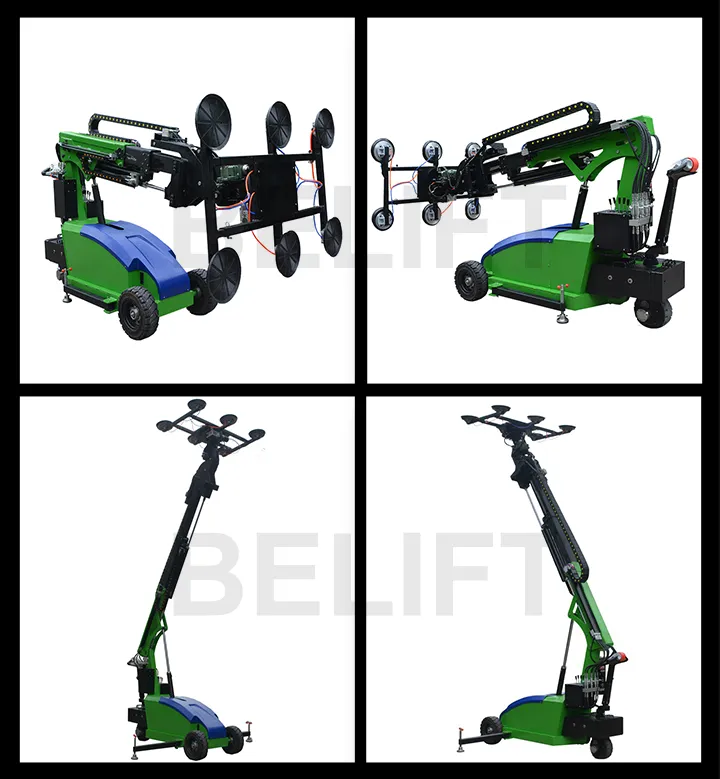

The Vacuum lifter LD Series is a fast, safe, and convenient automatic equipment. Utilizing the principle of vacuum adsorption, it employs a vacuum pump to generate a secure grip at the suction cup end. This allows for the firm handling of various workpieces, such as glass and iron plates. The equipment can pick up and transport materials to designated positions via a rotatable mechanical arm.

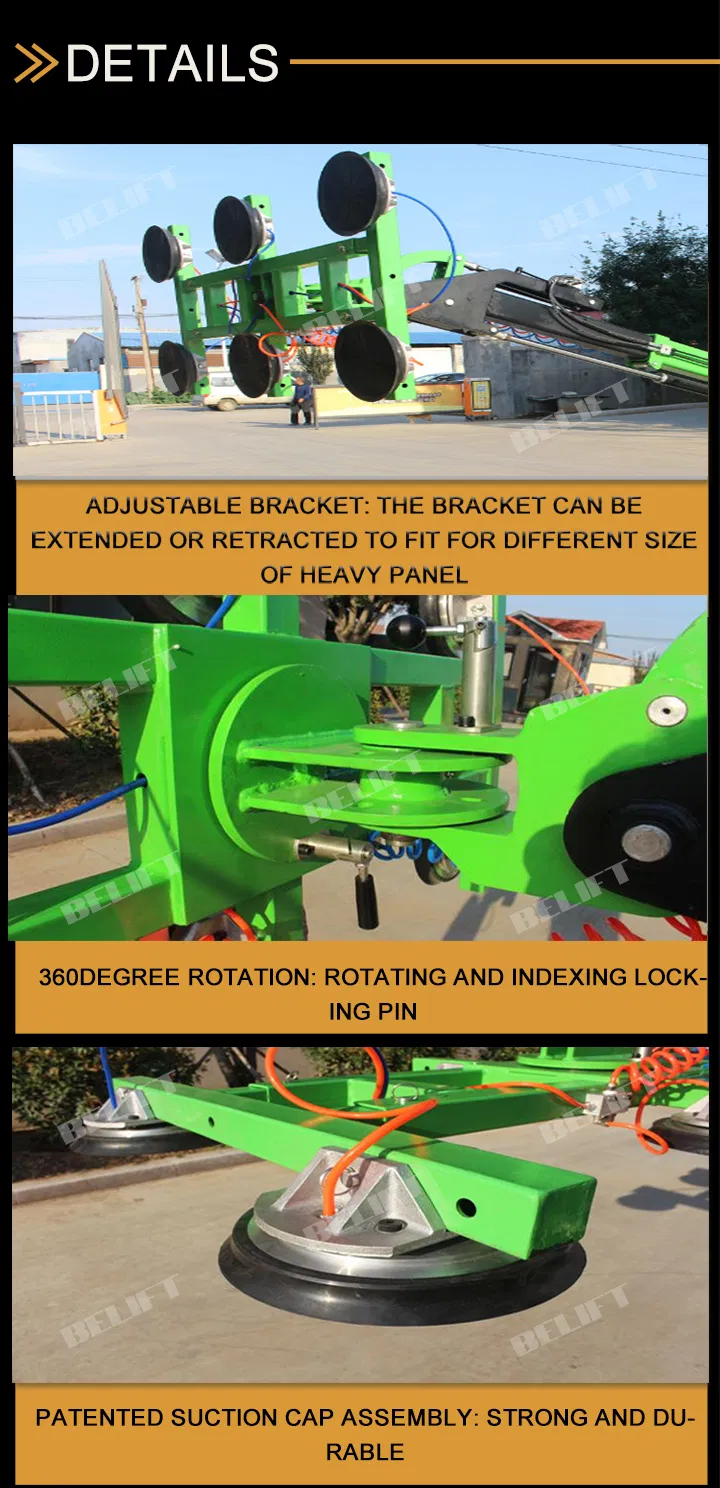

This machine is primarily suitable for the installation and transportation of glass, wood, cement, and iron plates. An adjustable bracket is included to adapt to various panel sizes. For non-glass materials, the suction cups can be replaced with sponge suction cups to ensure proper adhesion.
Features and Advantages:
| Model Type | BGL-LD-300 | BGL-LD-400 | BGL-LD-500 | BGL-LD-600 | BGL-LD-800 |
|---|---|---|---|---|---|
| Load Capacity (Retract) | 300kg | 400kg | 500kg | 600kg | 800kg |
| Load Capacity (Extend) | 150kg | 200kg | 250kg | 300kg | 400kg |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm |
| Qty of Suction Cups | 4pcs | 6pcs | 6pcs | 6pcs | 8pcs |
| Rubber Suction Cup | Ø300mm | ||||
| Maintenance-free Battery | 2x12V/100AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø310x100mm | Ø310x100mm | Ø300x125mm |
| Packing Size | Wooden carton: 3150x1100x1860mm | ||||
Our equipment is specialized for Aerial Work Platforms and Material Lift Platforms, adhering to international standards.
Certificates: CE, ROHS, SGS, ISO etc.
