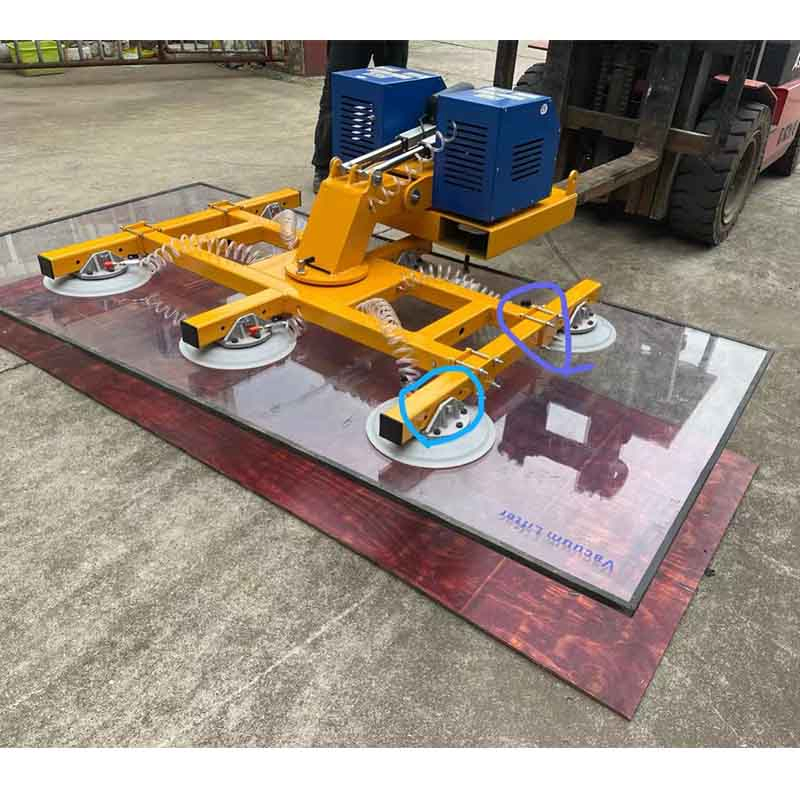

600kgs 800kgs Forklift Mounted Metal Steel Sheet Suction Vacuum Lift

1 / 5

600kgs 800kgs Forklift Mounted Metal Steel Sheet Suction Vacuum Lift

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GL-SC

Cup Quantity

Lifting Capacity

100kg per cup

Charger

AC220/110

Extension Bar

590mm

Tilting

90 Degree Manual

Color

Yellow

Power Supply

Battery

Lifting Method

Vacuum

Control

Wire Controller

Transport Package

Wooden Box

Origin

China

Product Description

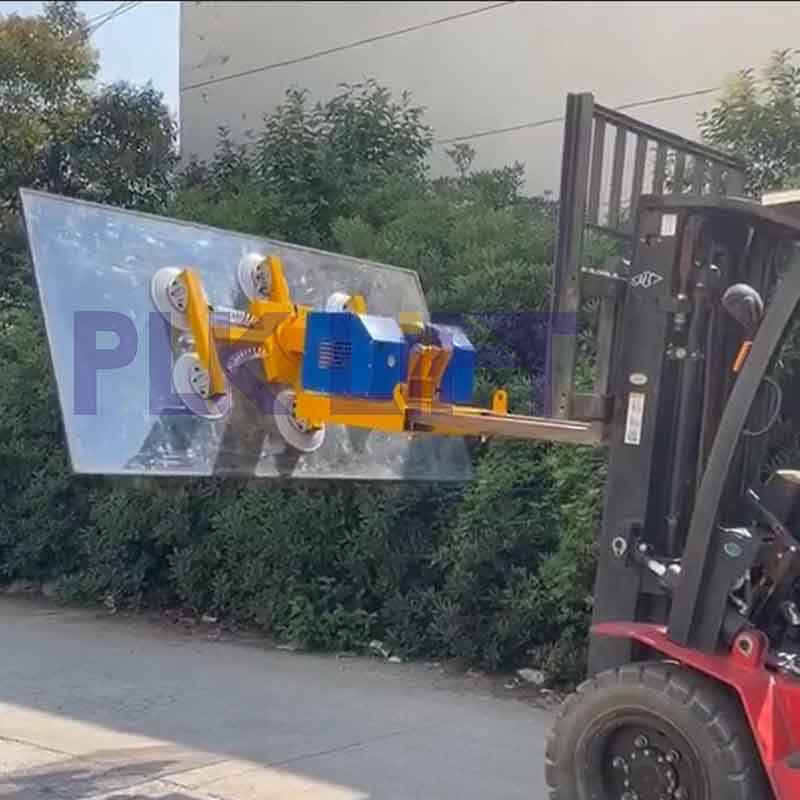

600kgs 800kgs Forklift Mounted Metal Steel Sheet Suction Vacuum Lift

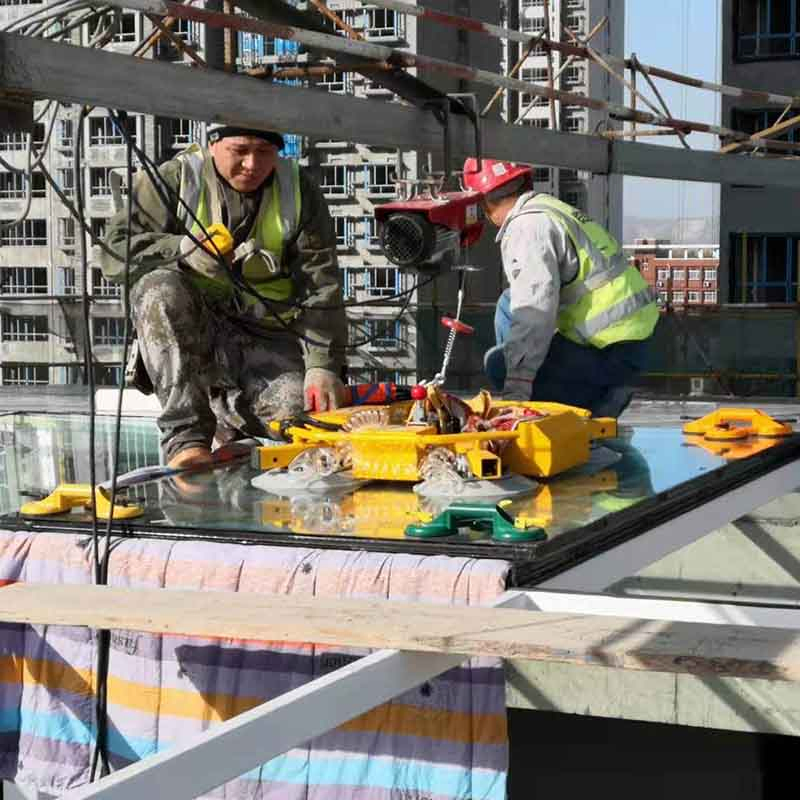

This vacuum lifting system is specially designed for handling different kinds of heavy plate, board, and glass. It is ideal for installing steel boards, glass walls, and moving materials such as granite and marble. It can be easily connected to a forklift or stacker for efficient transport.

Model	GL-SC-600H
Lifting Capacity	600 kg
Cup Qty	6
Single Cup Size	250mm
Turning up/down	Automatic 90° electrically
Rotation	Manual 360° Rotation
Tilting left/right	Manual 90° Turning

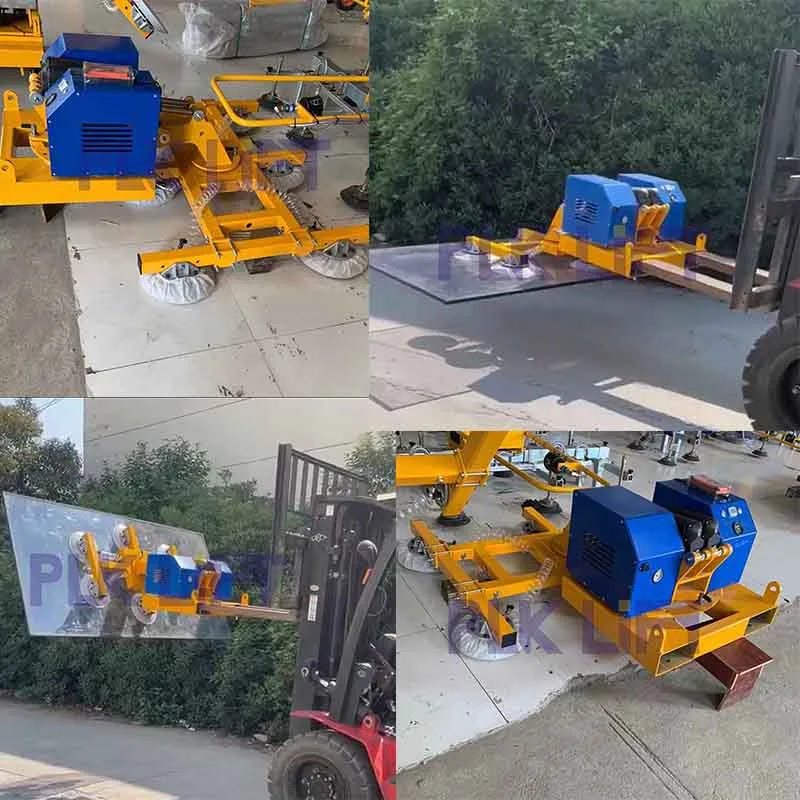

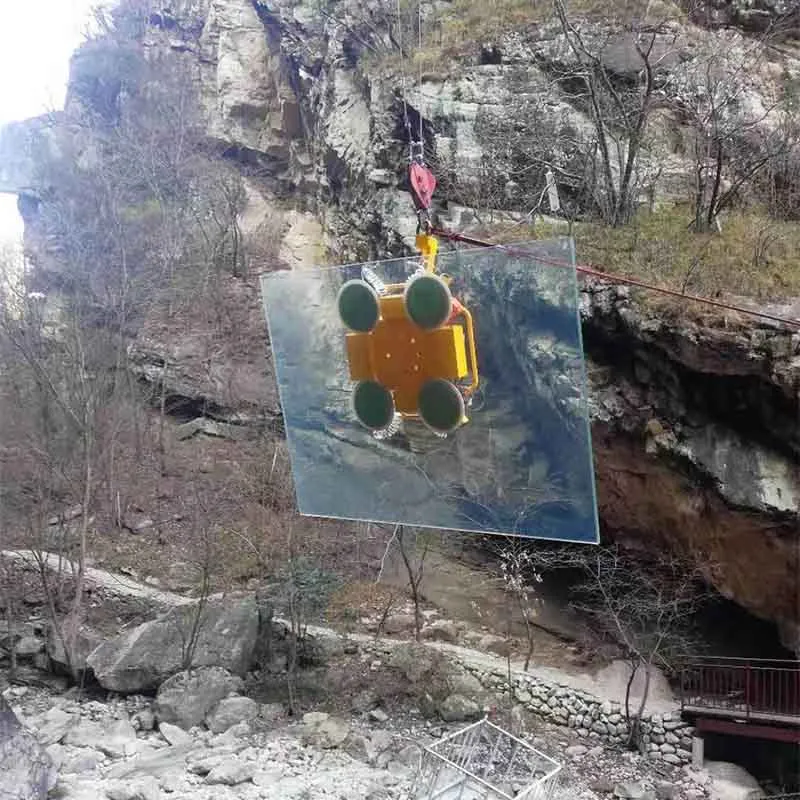

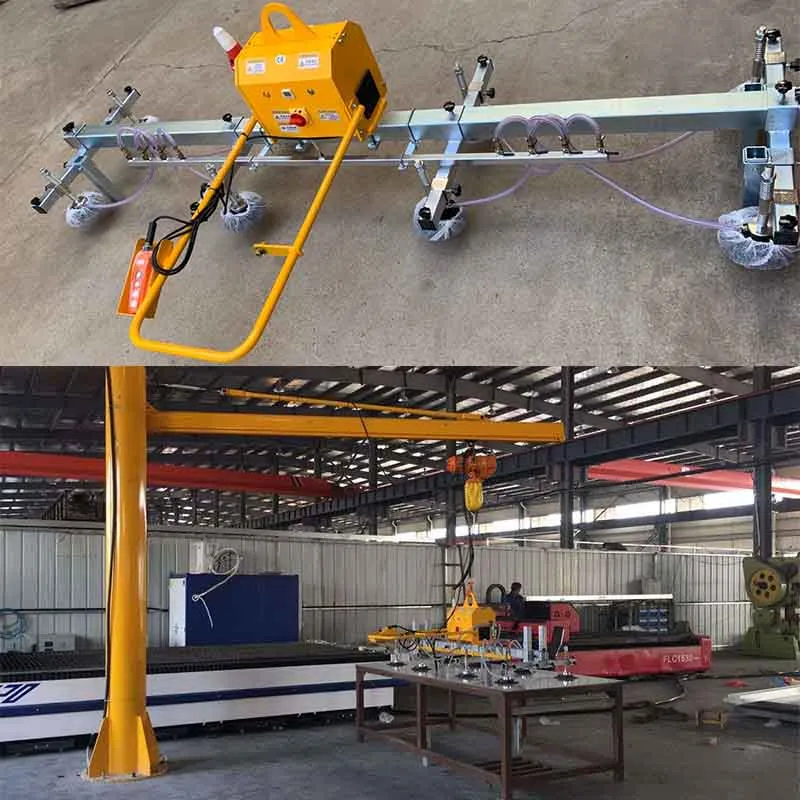

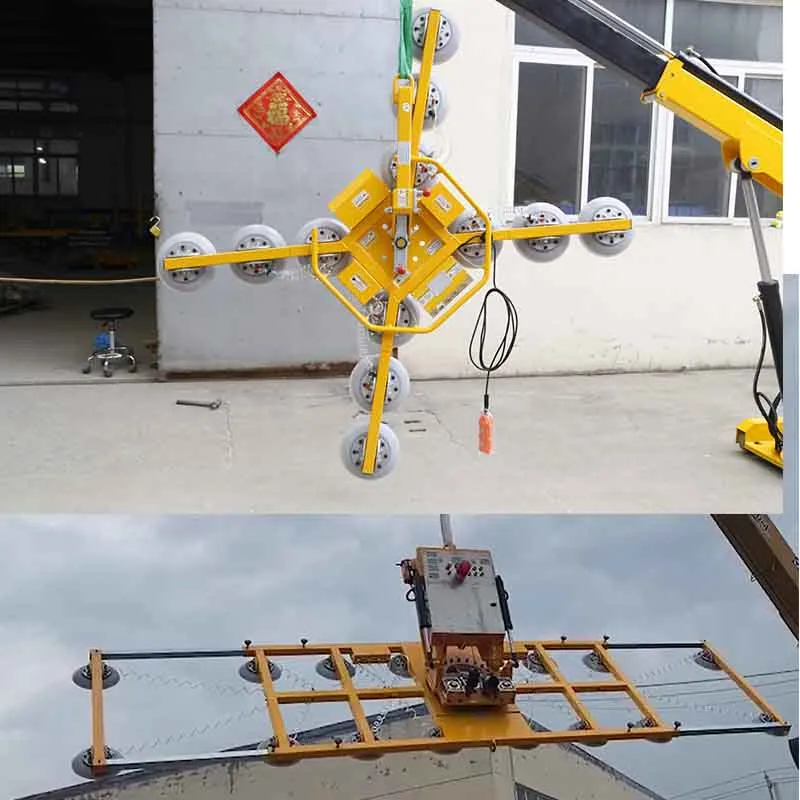

Product Display

OFFER OEM & ODM SERVICE
Customized according to different materials, size, and weight.

Features & Advantages

Sealed cover for component protection, safe and reliable for glass deep processing and curtain wall installation.
Adjustable suction cup positions to accommodate various shapes and sizes of glass or metal sheets.
Manual 360° vertical rotation and 90° horizontal rotation, with electric taking and releasing.
High-quality vacuum pump and maintenance-free battery; no external power source required during operation.
Japan Panasonic digital display vacuum pressure switch and battery fuel gauge for clear safety monitoring.
Vacuum pressure auto-supply system ensures a constant safety pressure value during handling.
Equipped with pressure-keeping device and alarm device to maintain suction even during accidental power failure.
Customized voltage and battery chargers available to meet global standards.

Factory and Workshop Display

Frequently Asked Questions

Q1: What is the maximum lifting capacity of this vacuum lift? A: The standard model supports 600kg, but we offer customized solutions for up to 800kg or more depending on your requirements.

Q2: Can the suction cups be adjusted for different material sizes? A: Yes, it is an adjustable type. The position of the suction cups can be changed to absorb different shapes and sizes of materials.

Q3: Does it require a continuous power connection during use? A: No, it uses a high-quality maintenance-free battery, so no external air source or power supply is needed during operation.

Q4: What happens if the power fails while lifting a heavy load? A: The device is equipped with a pressure-keeping system and an alarm. It will maintain the vacuum pressure to keep the load secure for a period, allowing for safe handling.

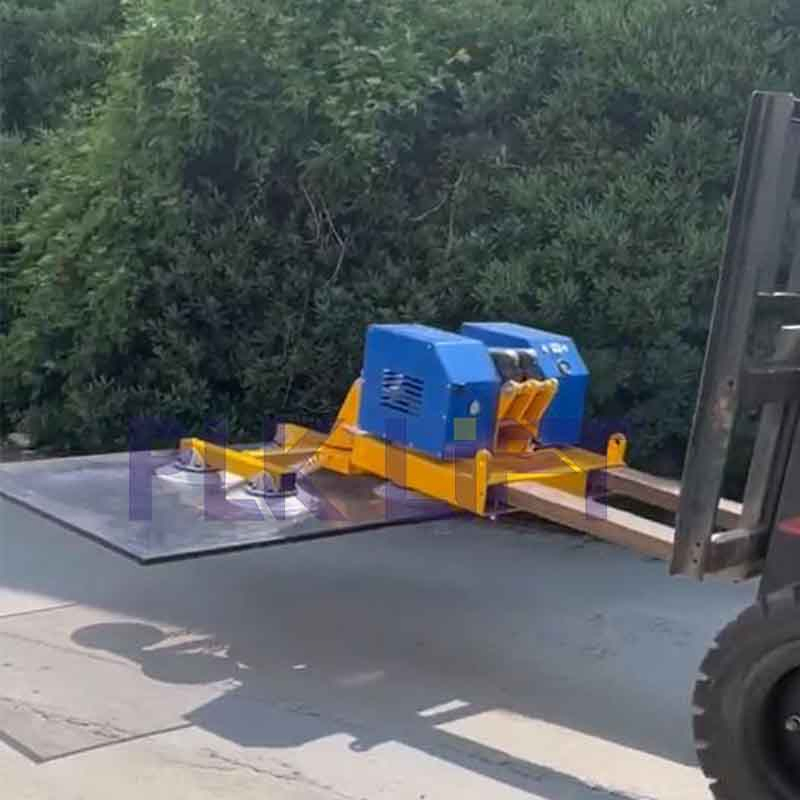

Q5: Can this be mounted on any forklift? A: It is specifically designed to be forklift-mounted, making it highly versatile for transporting panels, glass, and steel sheets.

Q6: Is the rotation and tilting manual or electric? A: It features manual 360° rotation on the vertical side and manual 90° turning on the horizontal side, while the 90° up/down turning is automatic/electric.
