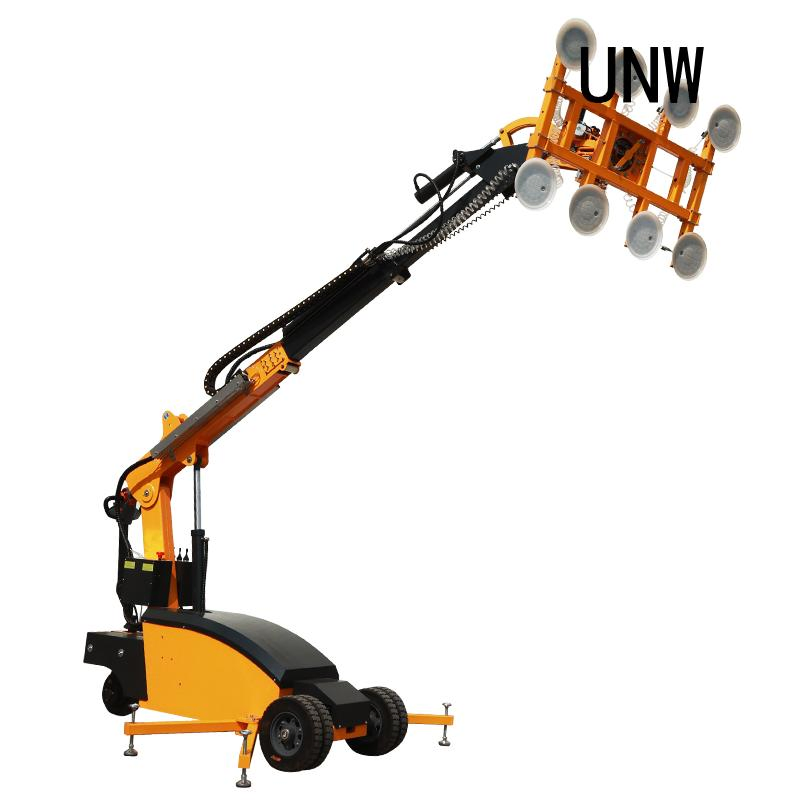

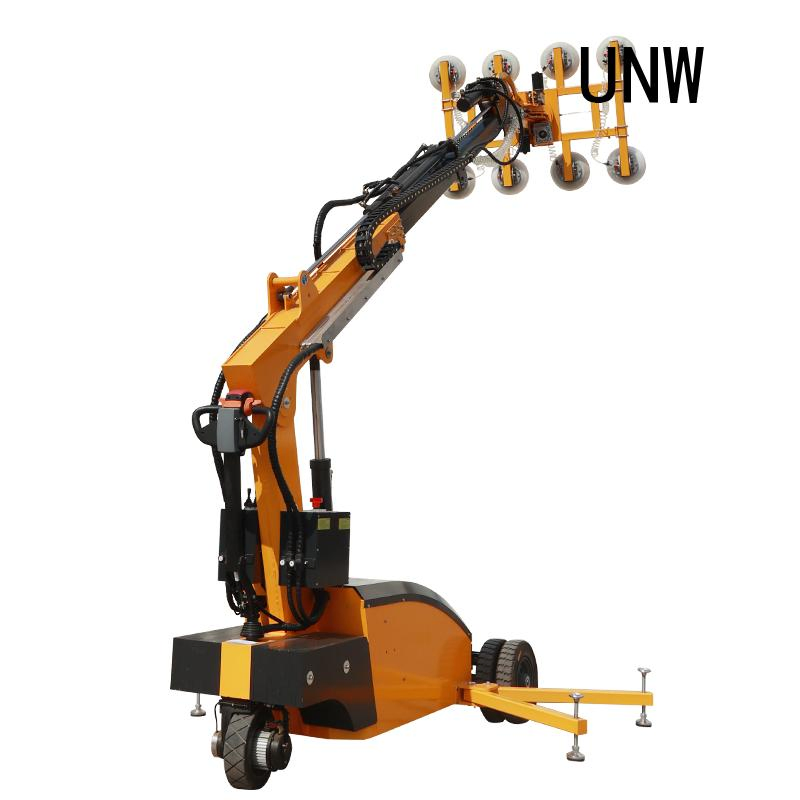

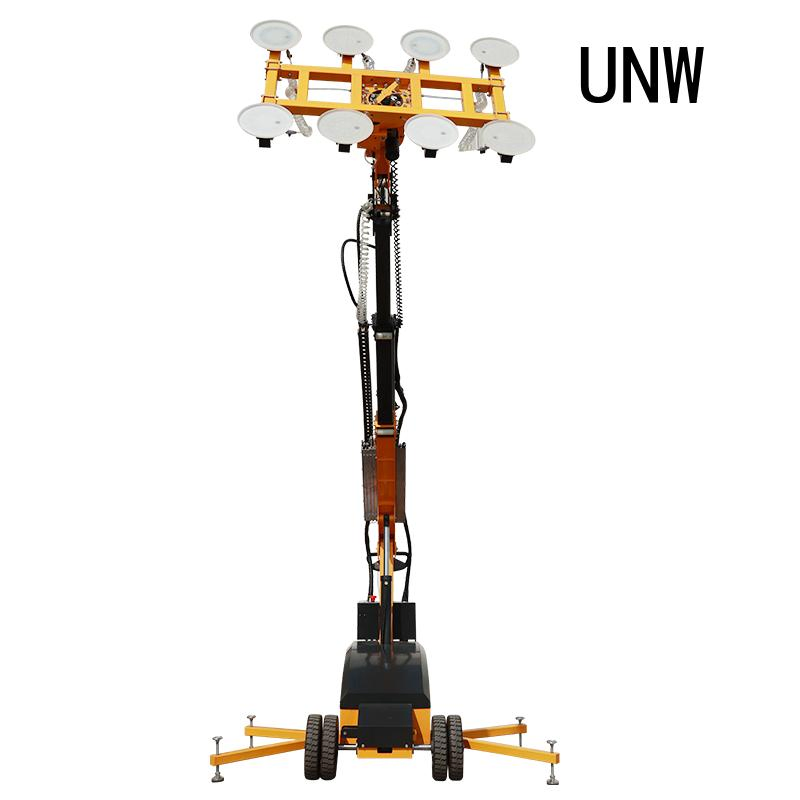

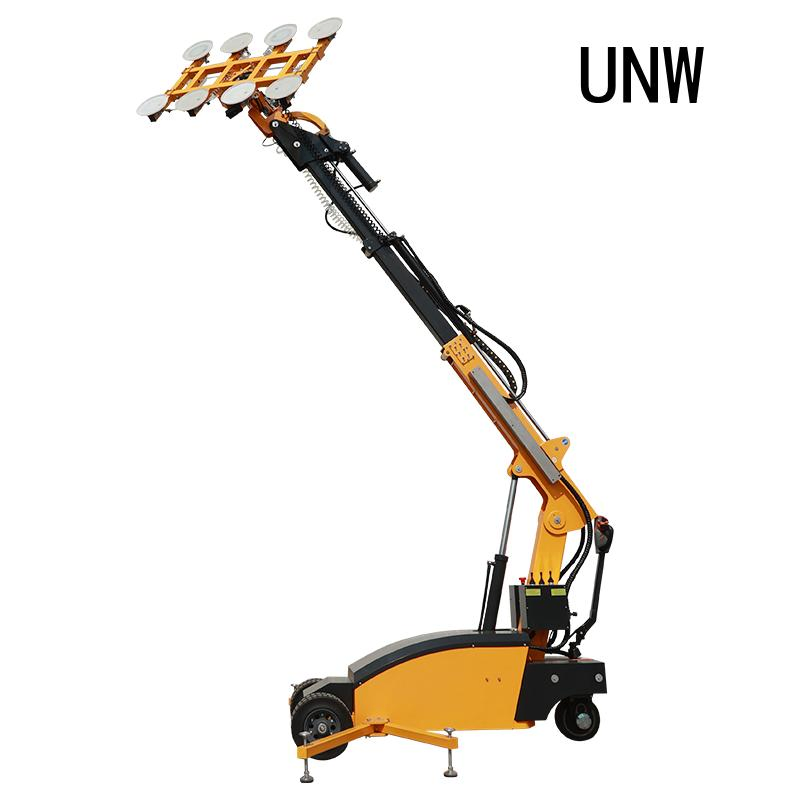

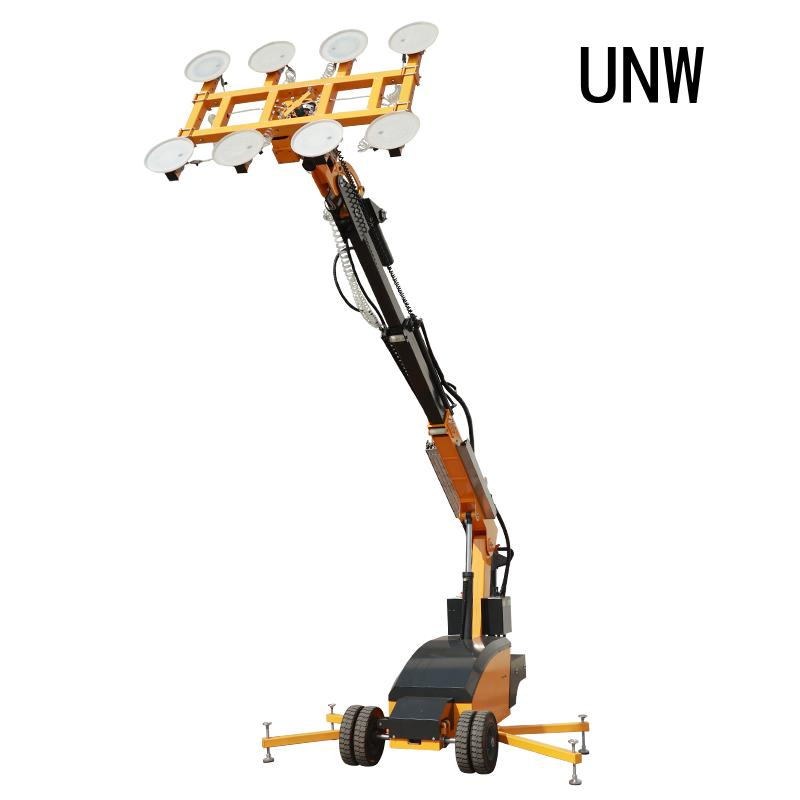

Workshop Glass Vacuum Robot 500kg Suction Cup Lifter Stone Lift with 6PCS

📊Basic Specifications

Model

BLG-LD-600

Load Capacity

600kg

Lifting Height

3880mm

System

Hydraulic

Power

Battery (2X12V/120ah)

Movement

360° Rotation / 90° Tilt

Suction Cups

6 Cups (300mm size)

Control

Smart Pneumatic Dual Circuit

⚙️Product Description

Vacuum Lifter LD Series is an advanced, fast, and safe automatic equipment. Utilizing vacuum adsorption principles with a high-performance vacuum pump, it securely handles glass, iron plates, and other workpieces.

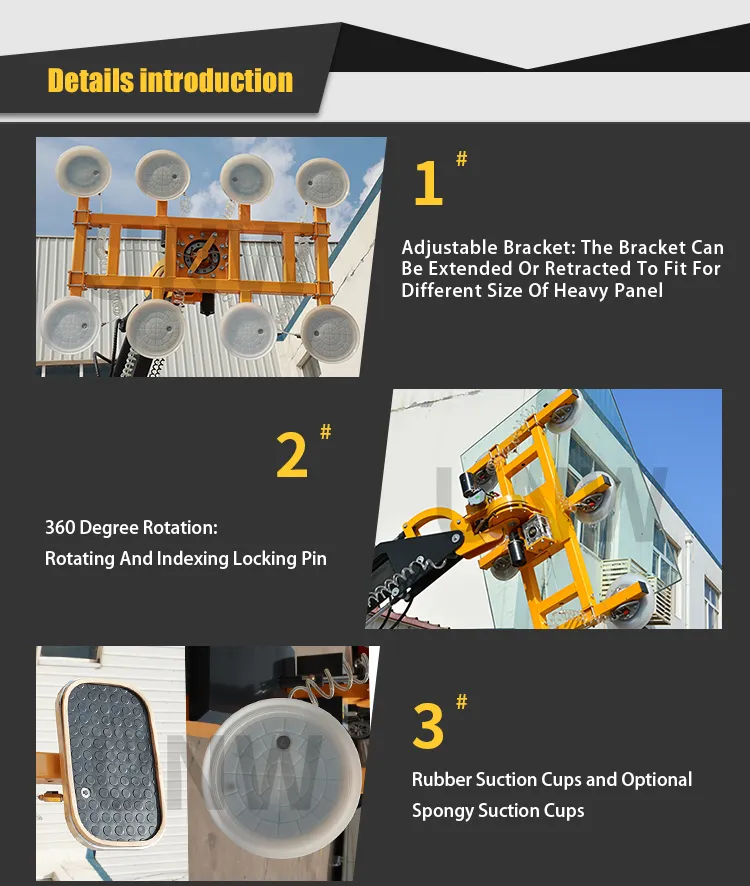

This equipment is primarily designed for the installation and transport of glass, wood, cement, and metal panels. The adjustable bracket system allows for adaptation to various panel sizes, ensuring versatility across different worksites.

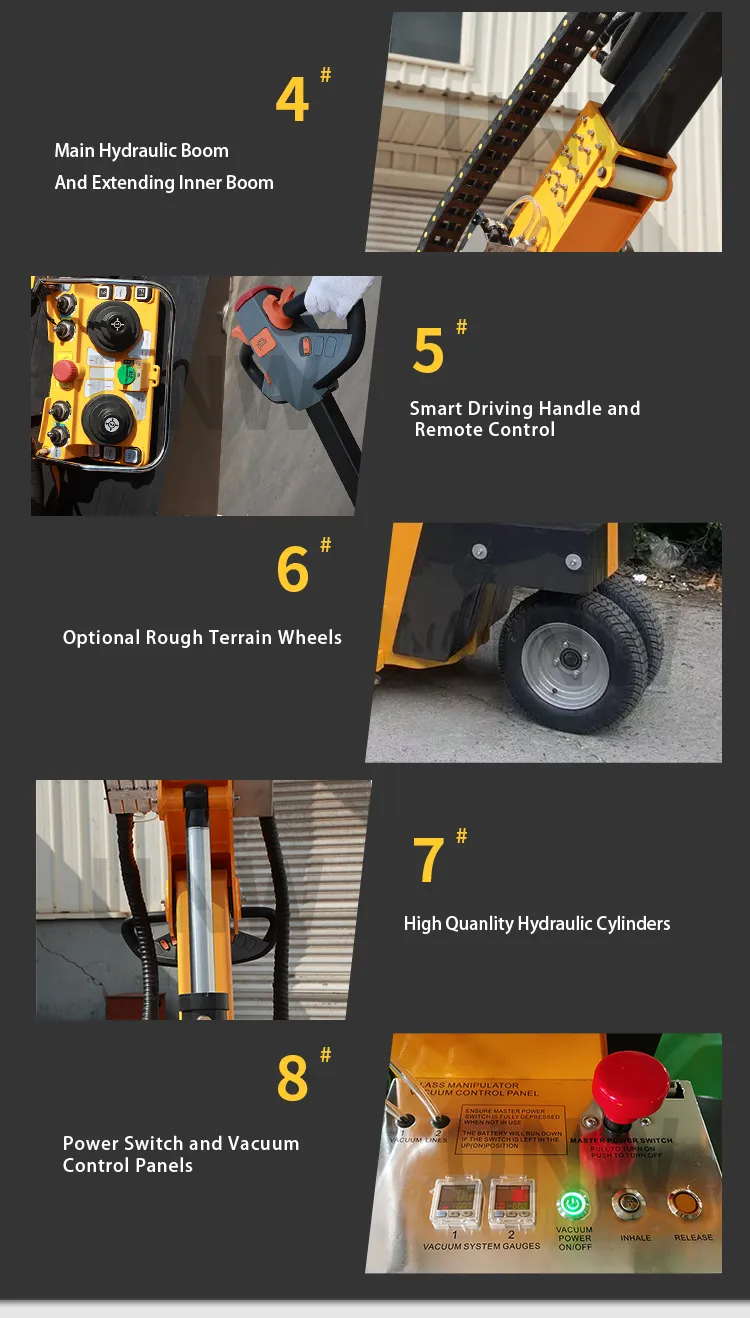

Integrated control system for rapid vertical and horizontal positioning.
Reliable DC24V actuators for efficient lifting, extension, and tipping.
180-degree automatic vertical pad frame movement.
Automatic lateral side shift of 100mm for precision alignment.
Optional 360-degree automatic rotation and left/right turning.

📋Product Parameters

Model Type	BGL-LD-300	BGL-LD-500	BGL-LD-600	BGL-LD-800
Load Capacity (Retract)	300kg	500kg	600kg	800kg
Max. Lifting Height	3880mm	3880mm	3880mm	5000mm
QTY of Suction Cups	4pcs	6pcs	6pcs	8pcs
Drive Motor	24V/600W	24V/900W	24V/1200W	24V/1200W
Battery	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH

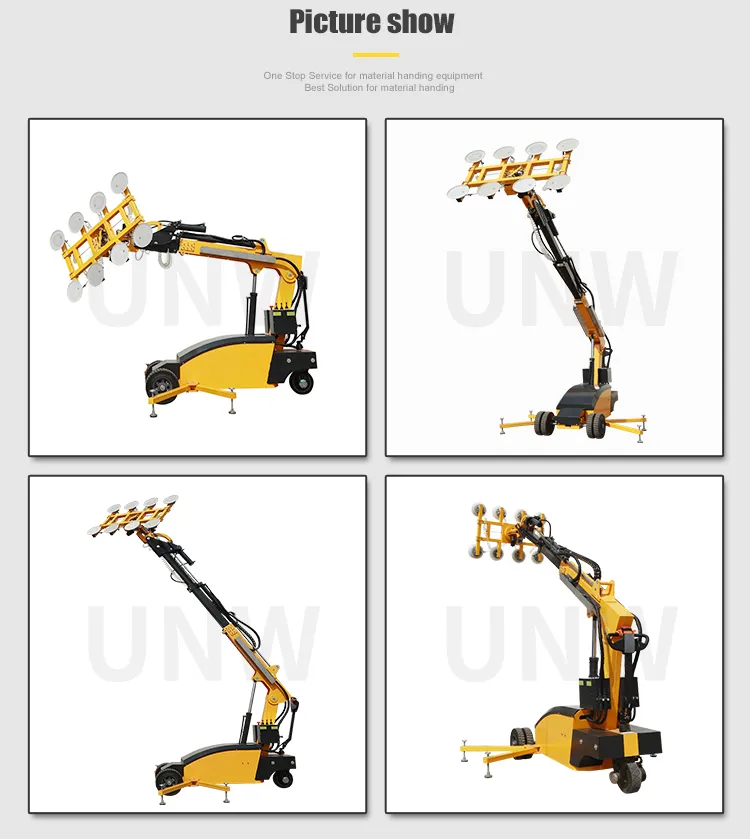

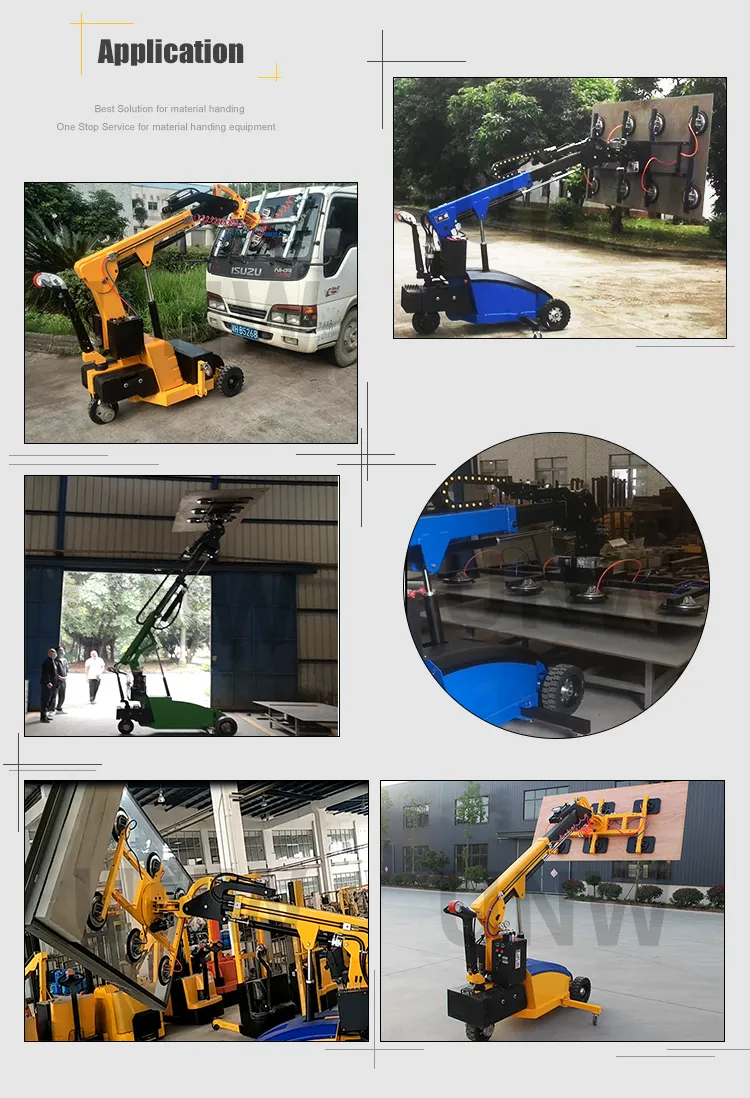

🖼️Detailed Photos & Applications

🏢Service & Certification

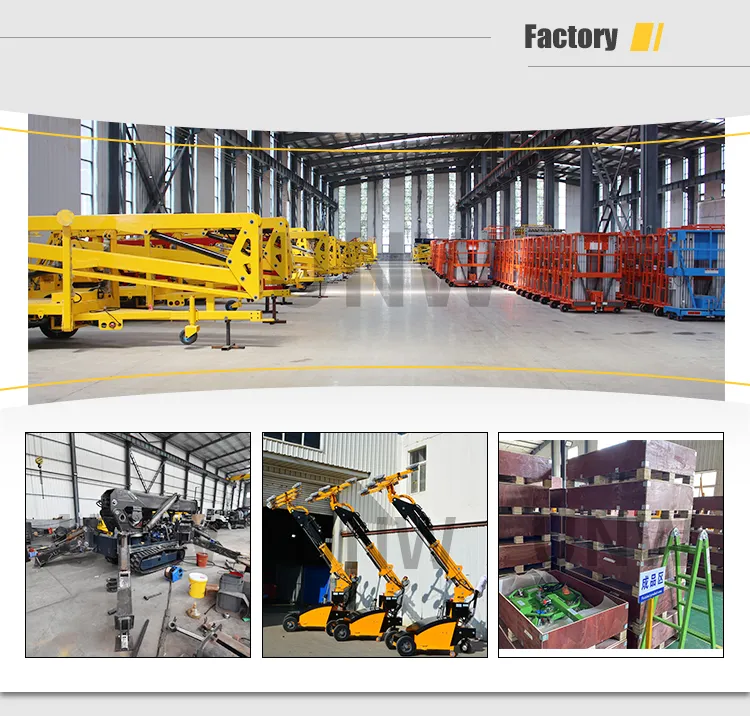

We are a leading manufacturer specializing in hydraulic lifting equipment and Aerial Work Platforms. With over 10 years of experience, we provide intelligent glazing robots and specialized vacuum lifters for glass, sandwich panels, and metal sheets.

Certifications: CE, ROHS, SGS, ISO.

After-Sales Support:

Free spare parts provided within the quality warranty period.
Comprehensive user manuals and lifetime technical support.
24-hour online and telephone service assistance.

❓Frequently Asked Questions

How can I replace parts if they break down?

The equipment uses many standard hardware components. You can easily find these parts at local hardware markets or forklift parts shops. For specialized components, we provide international shipping.

What is the maintenance requirement for this robot?

The robot features a very low failure rate. Most maintenance involves regular battery charging and checking the vacuum seals. We provide video instructions and manuals for all routine maintenance tasks.

How long is the warranty period?

We offer a one-year quality guarantee. If any components fail within this period due to manufacturing issues, we send replacement parts free of charge.

Can this handle materials other than glass?

Yes, by replacing the standard rubber suction cups with sponge suckers, the machine can handle rougher surfaces like wood, cement, or textured metal plates.

Is the vacuum system safe if power fails?

Yes, it is equipped with a dual-circuit vacuum system and check valves. These safety features ensure the vacuum pressure is maintained long enough to safely lower the load in case of power interruption.

What is the lead time for production?

Our monthly production capacity is approximately 300 units. Standard models are typically ready for dispatch within a short timeframe, secured in professional wooden packaging.
