📋 Basic Info
Main Usage
Installing and Moving Heavy Panels
Load Capacity
400kg - 1000kg

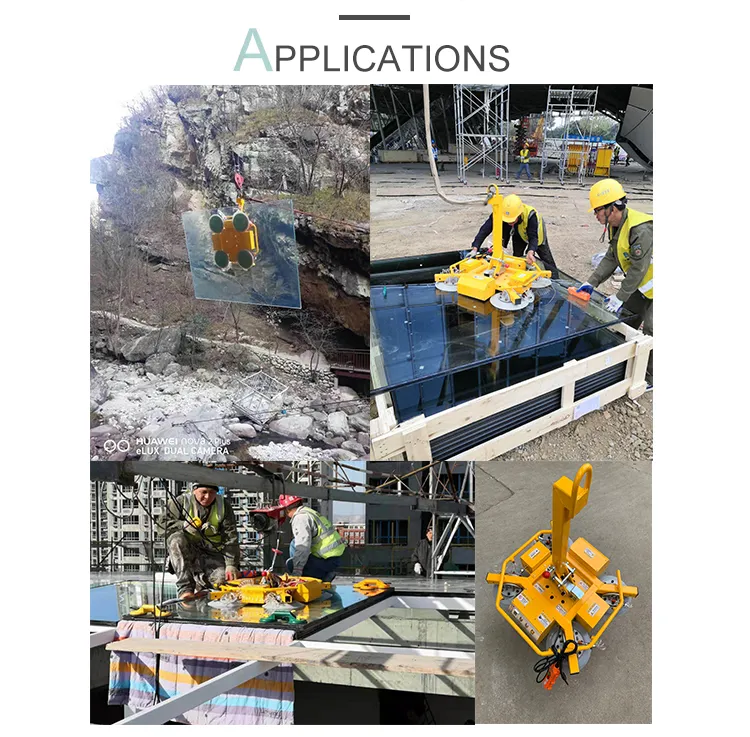

Applications
Glass, Wood, Metal, Marble
Voltage
DC12V (Battery Powered)
Control System
Integrated Cabinet & Wired Remote
Certification
CE, RoHS, ISO 9001, SGS
Packing
Strong Wooden Carton
🏗️ Product Overview

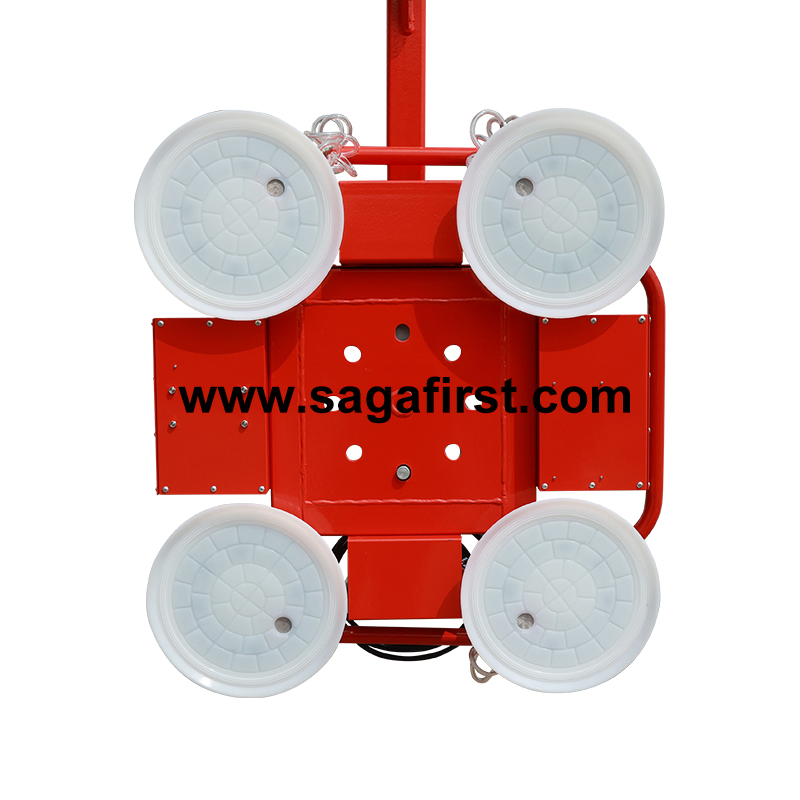

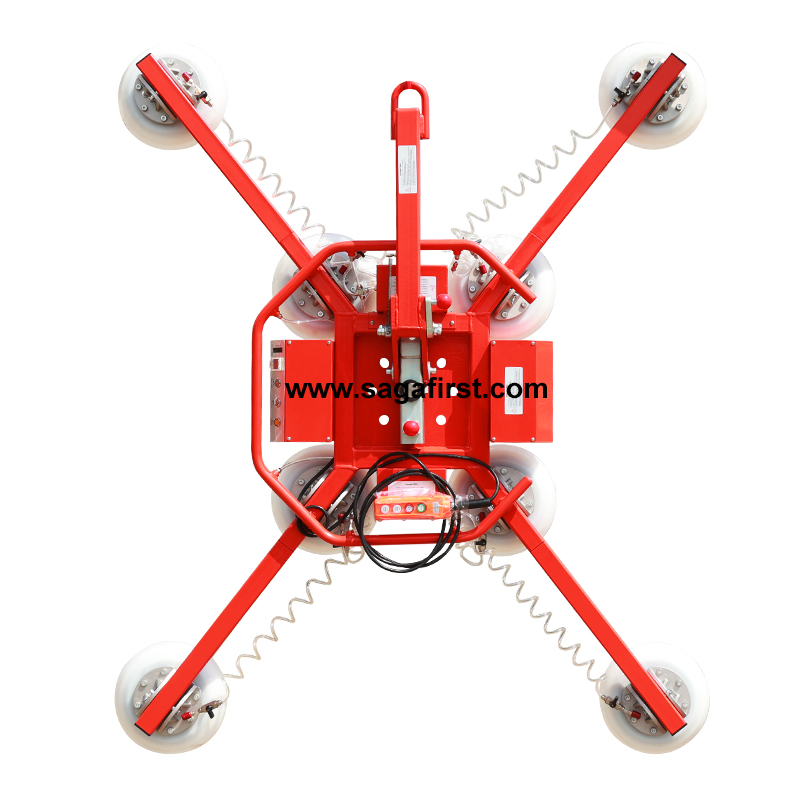

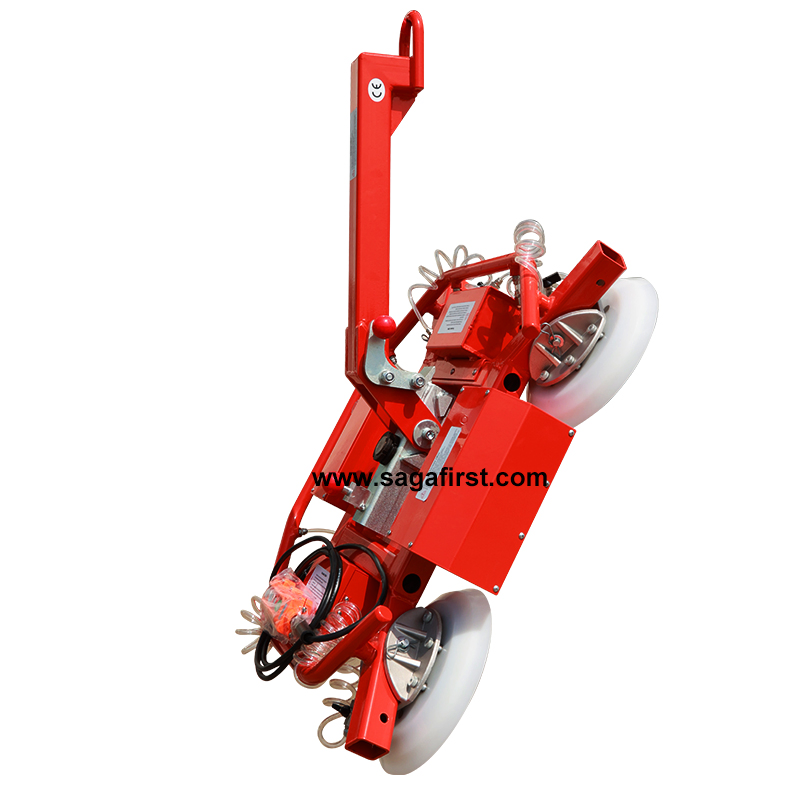

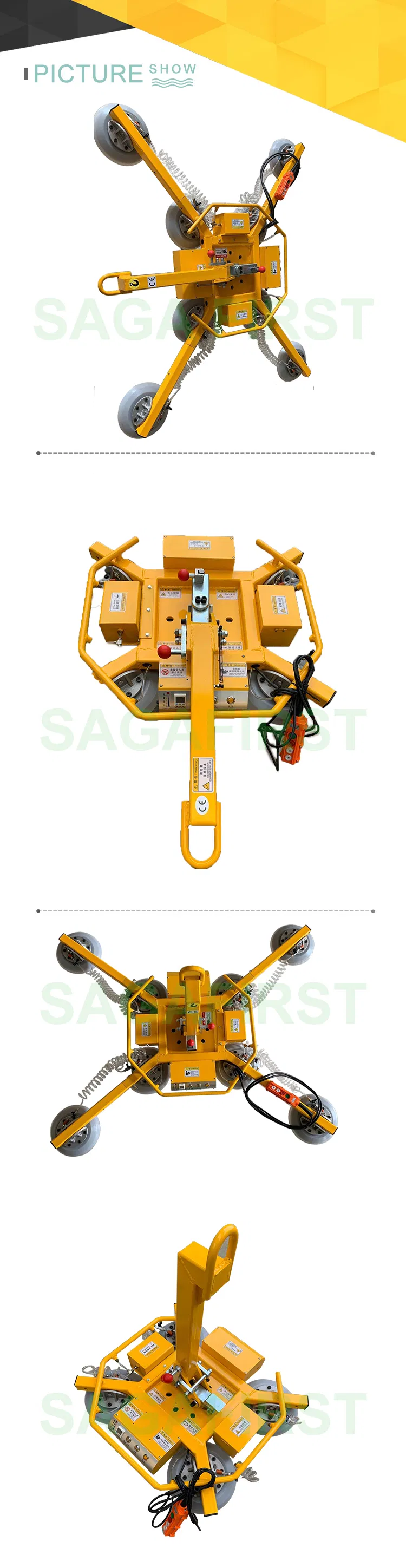

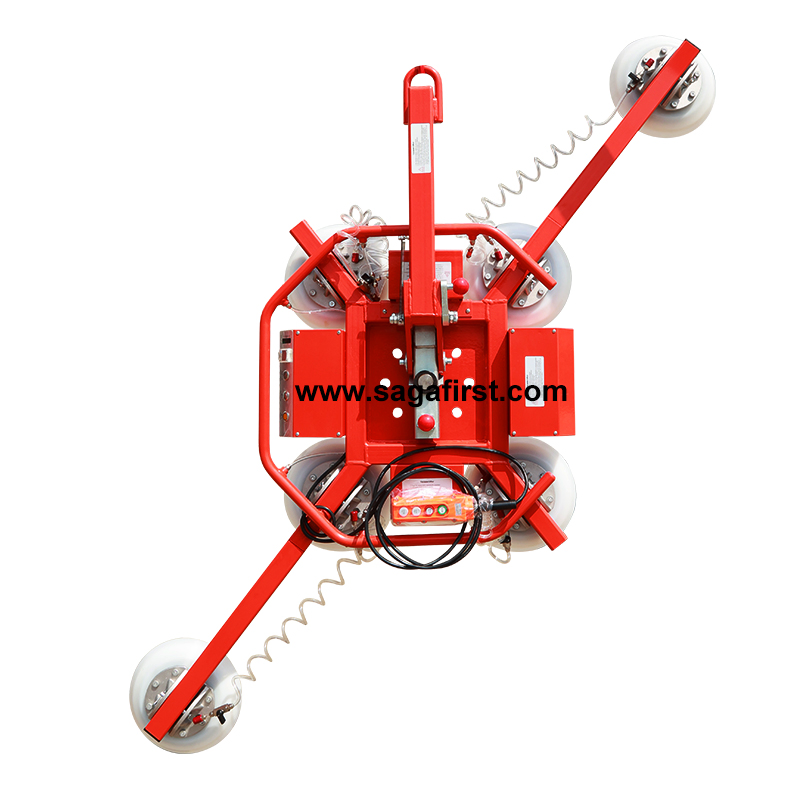

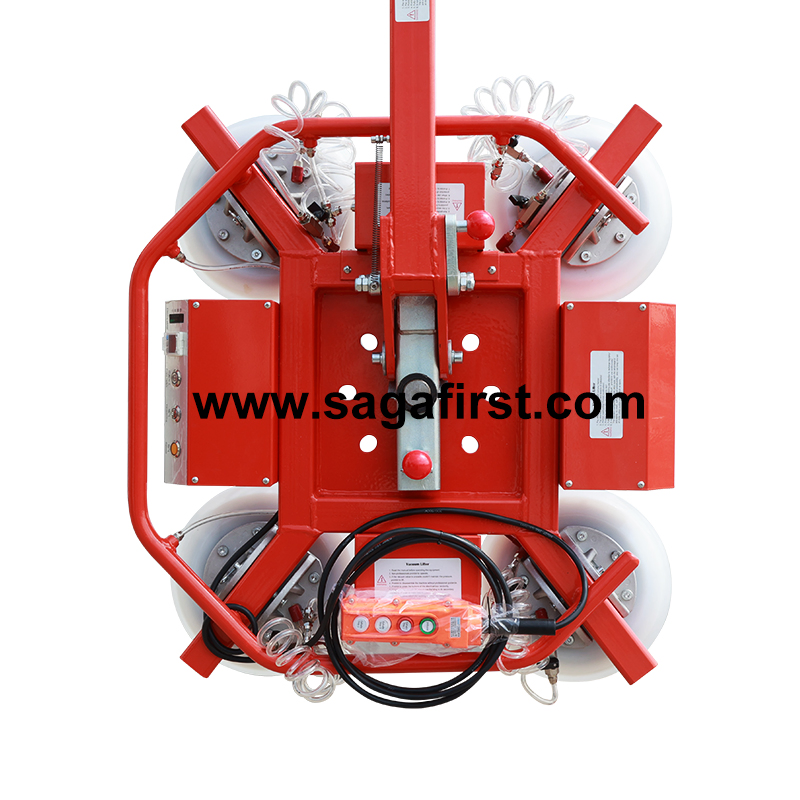

These suction caps are specially designed for handling different kinds of heavy plates, boards, and glass. They are ideal for installing steel boards and glass walls, or moving heavy materials such as granite and marble. Widely used in glass processing workshops and construction sites for window and curtain wall installations.
| Model |
Lifting Capacity (kg) |
Cup Qty |
Sucker Frame Size (mm) |
Net Weight (kg) |
| GL-SC-400 |
400 |
4 |
850*750*300 |
70 |
| GL-SC-600 |
600 |
6 |
1800*900*300 |
90 |
| GL-SC-800 |
800 |
8 |
1760*1460*300 |
100 |
| GL-SC-1000 |
1000 |
10 |
1900*1600*300 |
110 |
🌟 Features & Advantages
✔
Component Protection: Sealed cover for safety and reliability. Works with bridge or cantilever cranes.
✔
Adjustable Design: Suction cup positions can be changed to fit various glass shapes and sizes.
✔
Dual Rotation: 360° vertical and 90° horizontal manual rotation with electric release.
✔
Independent Power: Equipped with American THOMAS vacuum pump and high-quality maintenance-free battery.
✔
Digital Monitoring: Panasonic vacuum pressure switch and battery gauge for clear status monitoring.
✔
Safety First: Auto-supply system maintains constant pressure; power-cut protection with alarm device.
🛠️ Our Service
⚙️
Customized design based on specific lifting requirements.
🚢
Shipment arrangement from port to destination or doorstep.
📽️
Operation videos, maintenance guides, and user manuals provided.
📦
Spare parts available for express delivery within 7 days.
❓ Frequently Asked Questions
Q1: How can I repair the equipment if any problem occurs?
The equipment has a very low failure rate. If it breaks down, we provide video guidance and repair instructions to assist you.
Q2: What is the quality guarantee period?
We offer a 24-month quality warranty and provide free parts for replacement during this period.
Q3: Can I buy parts locally?
Yes, the lift adopts many common hardware parts that can be purchased in local hardware markets or forklift parts shops.
Q4: What are the payment terms?
For orders under USD 4,999, 100% TT in advance. For larger orders, 30% TT in advance and balance before shipment.
Q5: What is the delivery time?
Standard production time is approximately 15 to 20 days after the down payment is received.
Q6: Do you offer OEM & ODM services?
Yes, we can customize lifting capacity, size, color, logo, and manuals to meet your specific needs.
