Basic Specifications
Main Usage
Installing and Moving Heavy Panel
Load Capacity
400kg - 1000kg
Control System
Integrated Cabinet & Wired Remote
Certification
GS, CE, RoHS, ISO 9001, SGS
Capacity
5000PCS Per Month
Product Overview

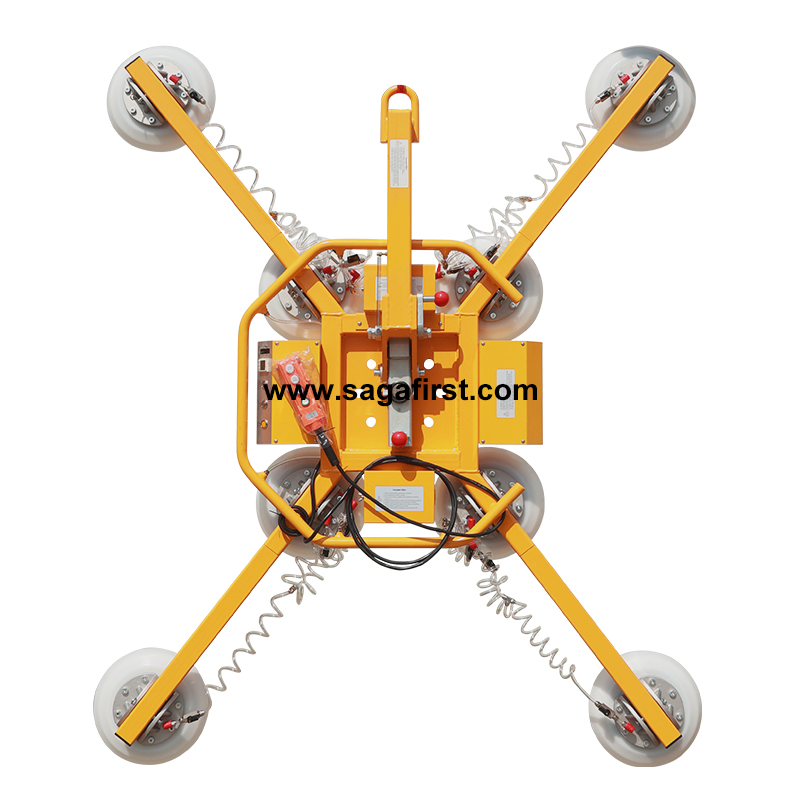

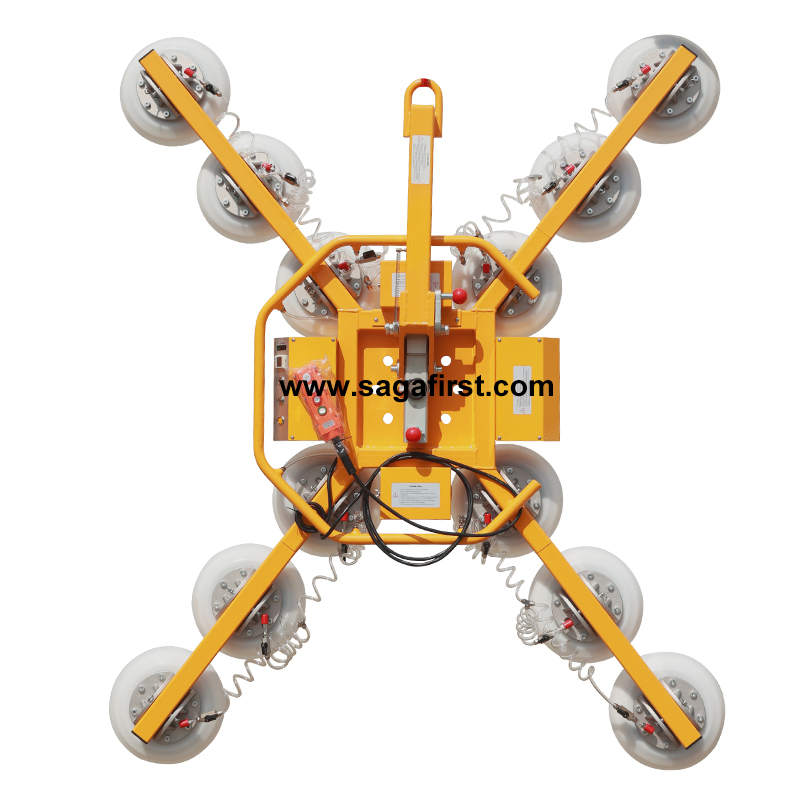

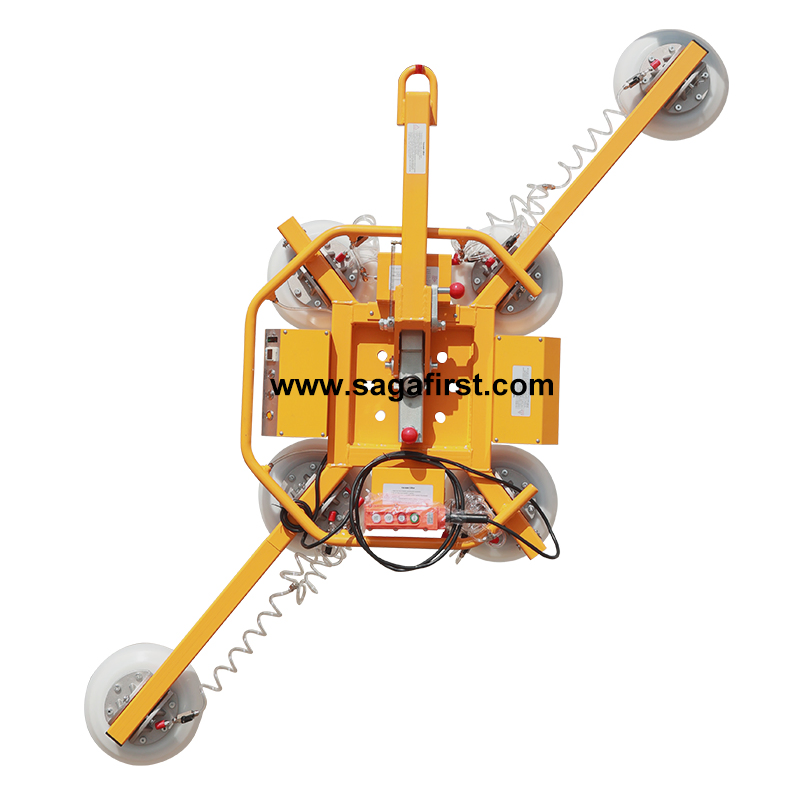

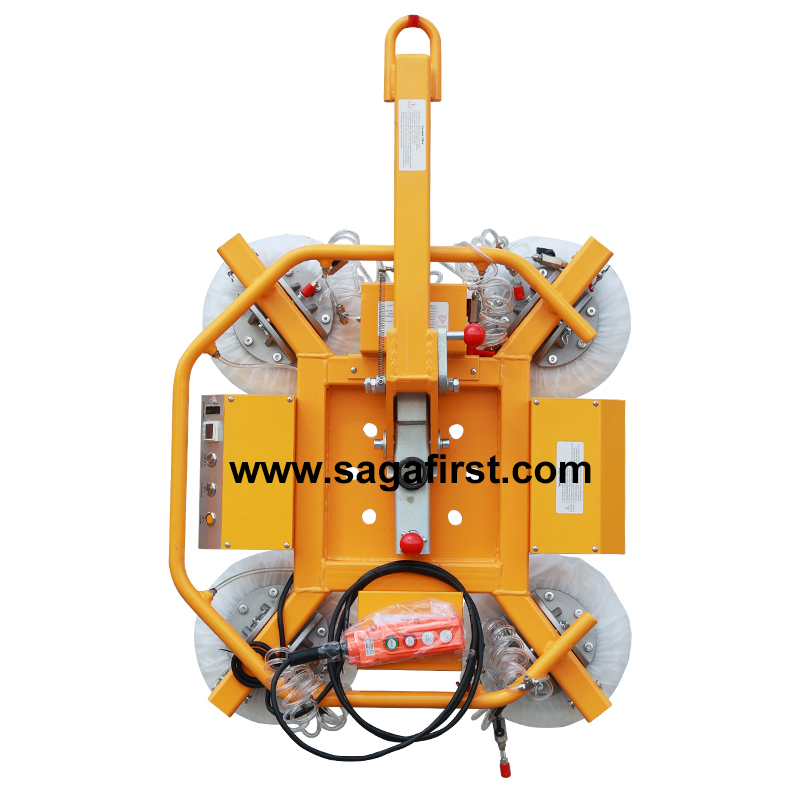

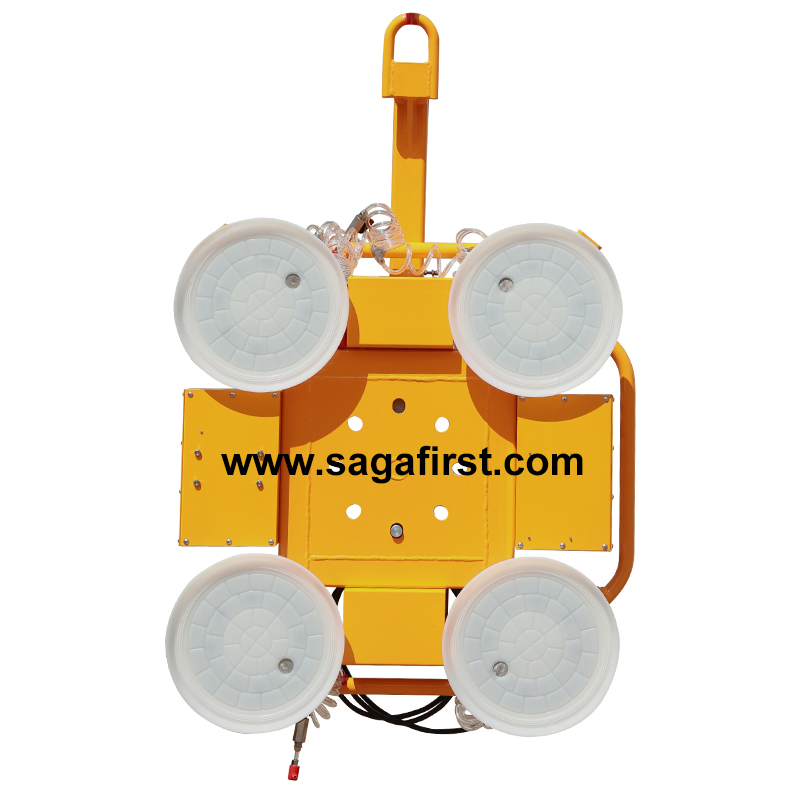

4 Cups & 8 Cups X Type Suction Caps

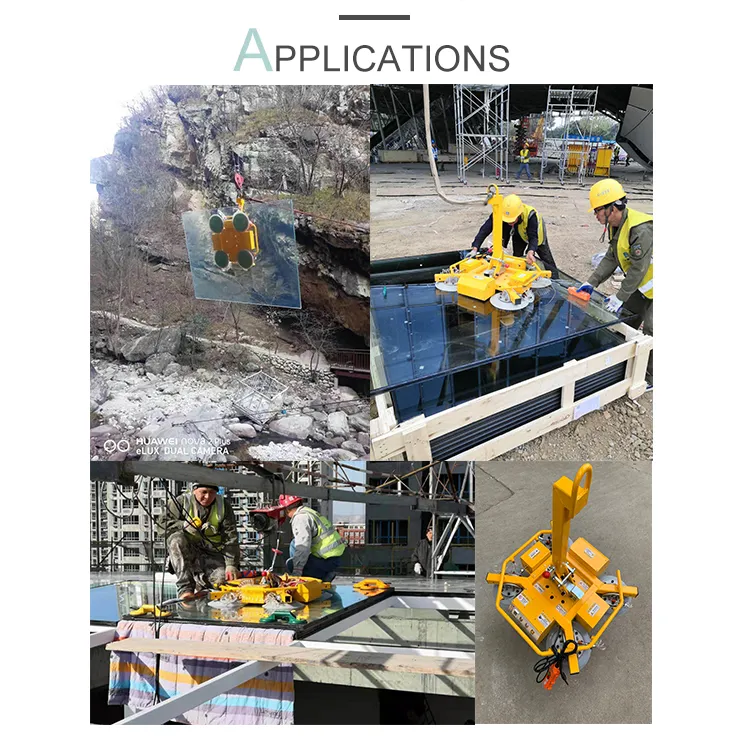

These vacuum suction caps are specially designed for handling different kinds of heavy plates, boards, and glass. They are highly efficient for installing steel boards, glass walls, and moving materials such as granite and marble. Widely used in construction for glass wall and window installation, as well as metal sheet and marble processing workshops.
OEM & ODM Service Available
| Model |
Unit |
GL-SC-400 |
GL-SC-600 |
GL-SC-800 |
GL-SC-1000 |
| Lifting Capacity | kg | 400 | 600 | 800 | 1000 |
| Cup Qty | / | 4 | 6 | 8 | 10 |
| Single Cup Size | mm | 300 | 300 | 300 | 300 |
| Rotation | / | 360° manual rotate |
| Tilting | / | 90° manual |
| Voltage | V | DC12 |
| Charger | V | AC220/110 |
| Weight | kg | 70 | 90 | 100 | 110 |
| Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 |
Features & Advantages
🔸Sealed cover for components protection, safe and reliable.
🔸Adjustable suction cup positions to absorb glass of different shapes and sizes.
🔸360° vertical manual rotation and 90° horizontal manual rotation.
🔸Equipped with American THOMAS vacuum pump and maintenance-free battery.
🔸Japan Panasonic digital display vacuum pressure switch for safety monitoring.
🔸Vacuum pressure auto-supply system maintains constant safety pressure.
🔸Pressure-keeping device and alarm system for power failure protection.
🔸12V backup battery included for continuous project progress.

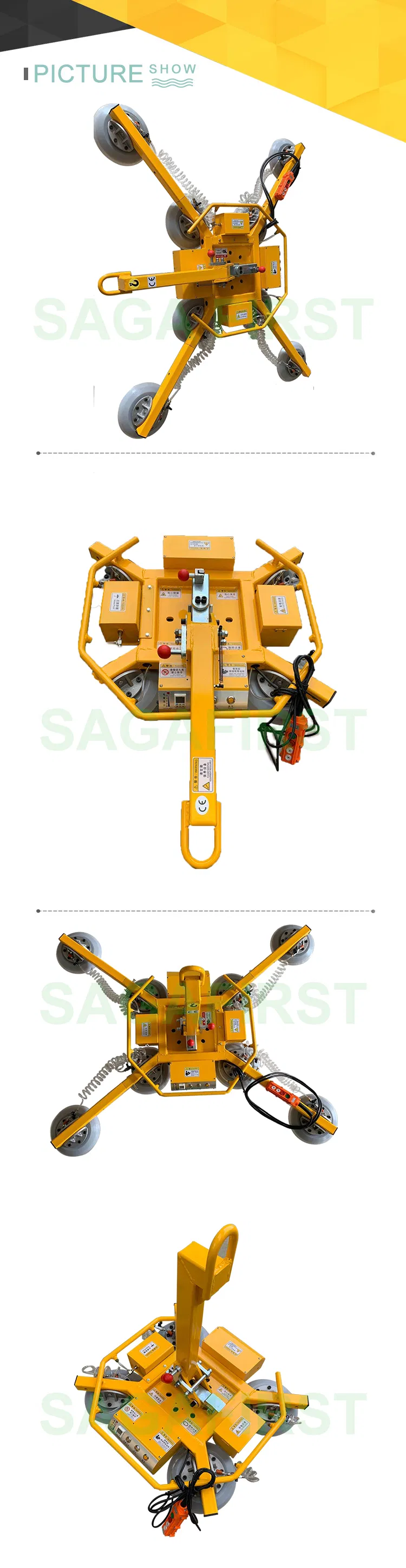

Product Visuals
Our Services
✓Customized lifter design based on specific requirements.
✓Professional model recommendations based on application needs.
✓Global shipment arrangement to destination ports.
✓Operation videos and comprehensive maintenance manuals provided.
✓Fast express delivery for replacement parts within 7 days.
Frequently Asked Questions
How can customers buy replacement parts?
The lift adopts common hardware parts. You can purchase them at local hardware markets or forklift parts shops.
How is the equipment repaired if a problem occurs?
The equipment has a very low failure rate. If issues arise, we provide guidance via video and detailed repair instructions.
What is the quality guarantee period?
We provide a one to two-year quality guarantee, offering free parts for replacement during this period.
Are you a factory or a trading company?
We are a factory with over 12 years of exporting experience.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 unit. Larger orders are eligible for additional discounts.
What are the payment terms?
For orders under USD 4,999, 100% TT in advance. For larger orders, 30% TT in advance with the balance due before shipment.
