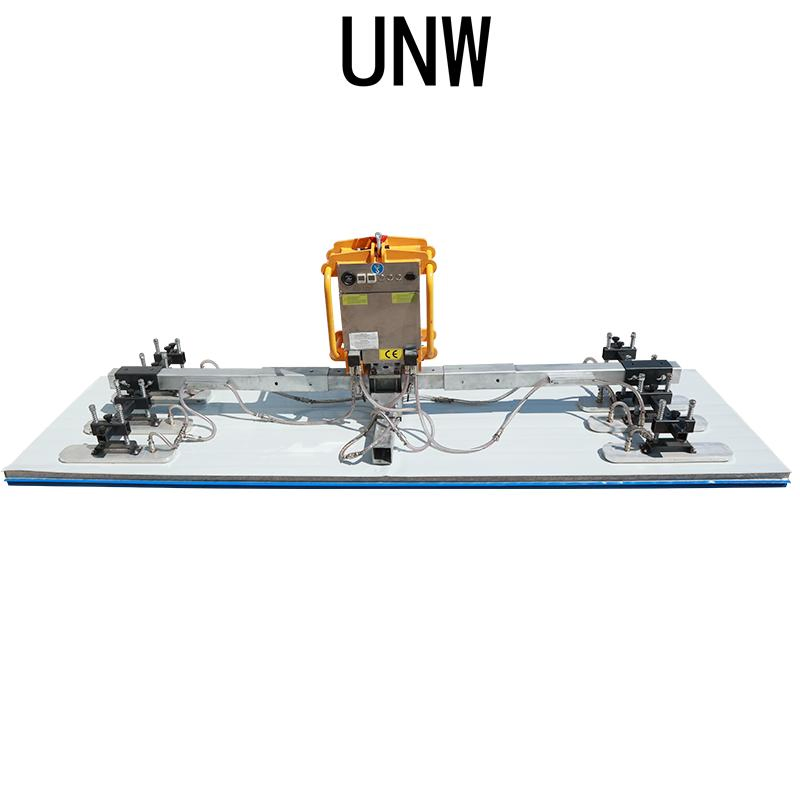

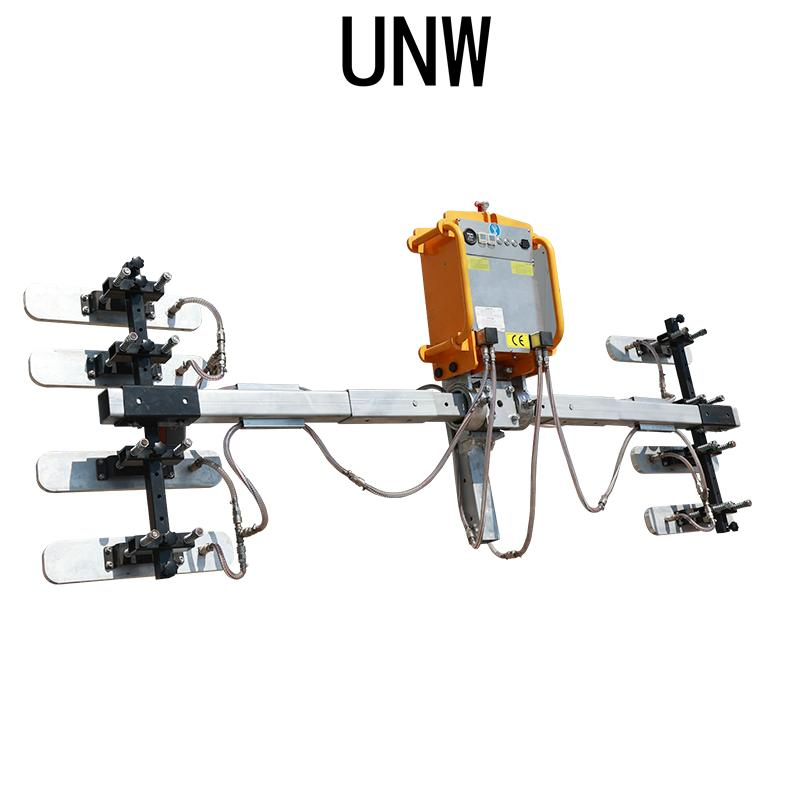

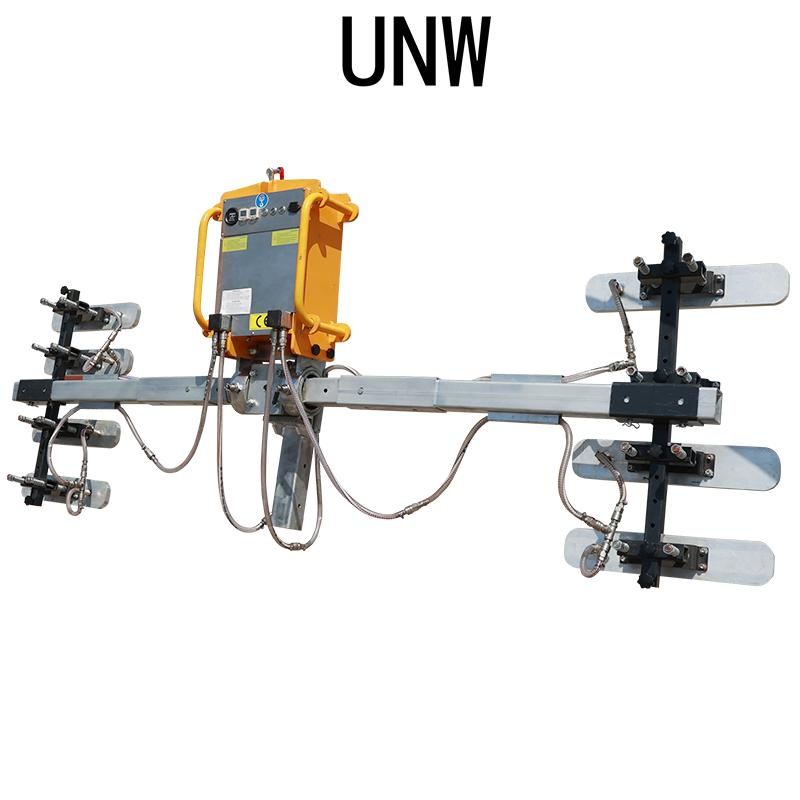

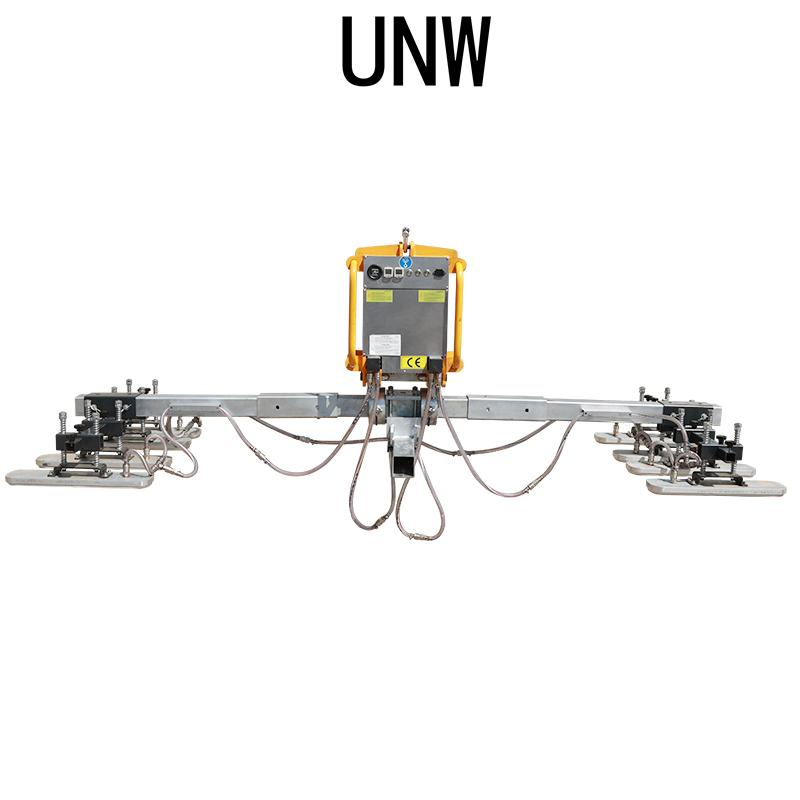

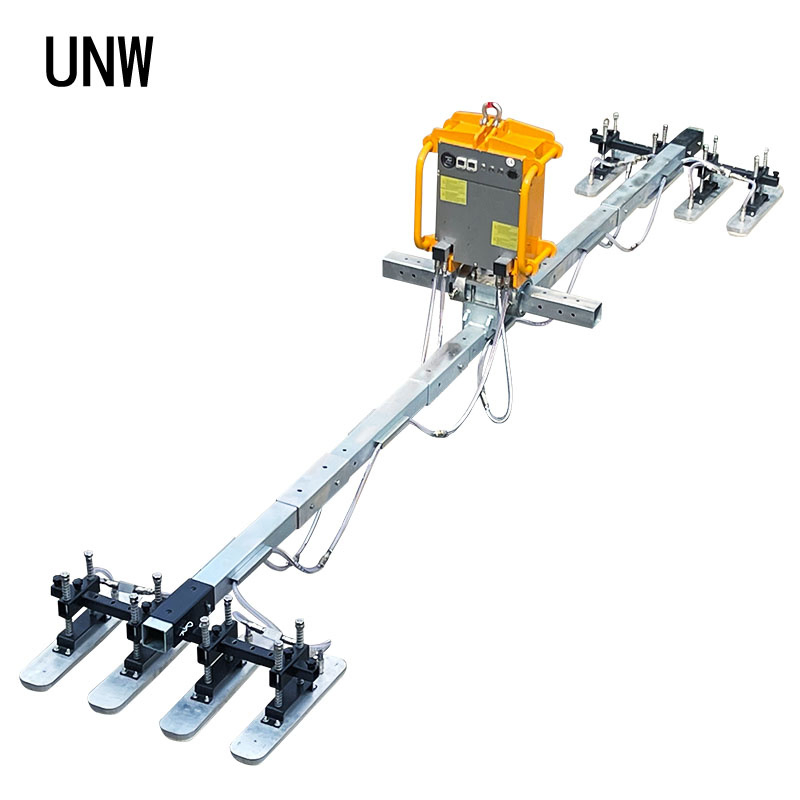

Unw Sandwich Panel Lifing Equipment Vacuum Lift Glass Suction Cup

📋 Basic Information

Model NO.

BGL2650

Products Name

Roof Sandwich Panels Lifting Equipment

Load Capacity

300-400kg

Cup Quantity

8

Power Source

DC Power (24V/20Hz)

Rotation

360 Degree Manual

Tilting

90 Degree Electric

Control System

Wireless Remote Control

Material

High-Strength Steel

Package Size

123cm * 100cm * 50cm

💡 Product Description

Electric Vacuum Lifter is a fast, safe, and convenient automatic equipment designed for handling MDF, sandwich panels, plywood, and wooden panels. By utilizing the principle of vacuum adsorption and an oil-free vacuum pump, it generates a secure hold at the suction cup end, allowing for the pick-up and transportation of workpieces to designated positions via a mechanical arm.

Versatile Rotation Manually rotated 360° vertically and 90° horizontally, with electric-powered take and release functions for maximum precision.

Adjustable Design Both ends of the suction cup holder are retractable, making it ideal for large-scale workpieces with size variations.

Safety First Equipped with an accumulator and pressure detection system to ensure safe operation even during power interruptions.

📊 Technical Parameters

Model (Roof)	Lifter Length	Max Panel Length	Ext Beam Qty	Max Load (kg)	Pad Qty	Pad Size/Load
BGL2650	2650	12000	2	300	8	110*530/75kg
BGL4450	4450	14000	4	300	8	110*530/75kg
BGL6250	6250	16000	6	300	8	110*530/75kg
BGL8050L	8050	18000	8	300	8	110*530/75kg
BGL1525LDD	15250	24000	16	500	16	110*530/75kg

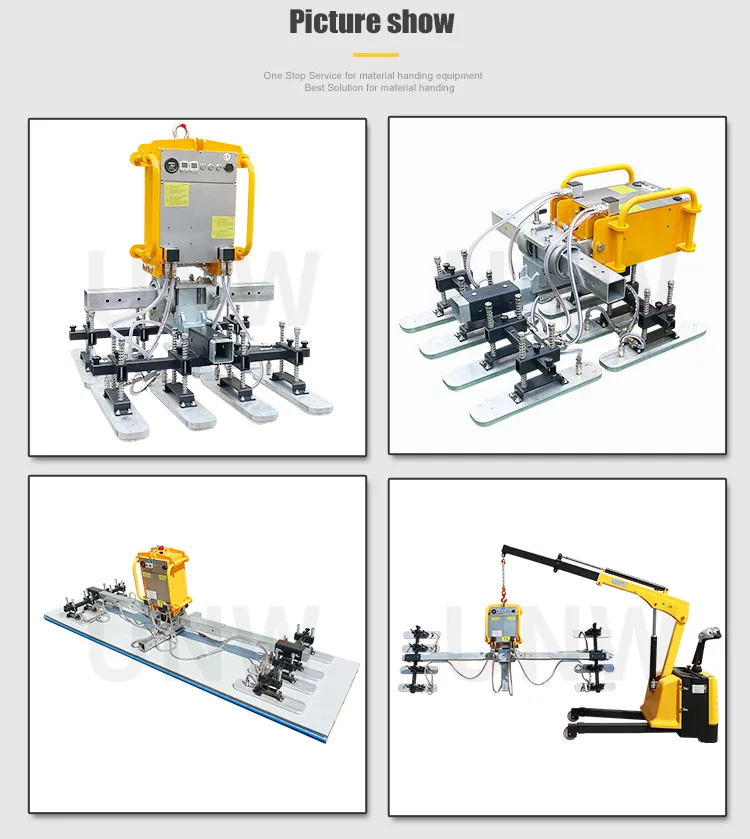

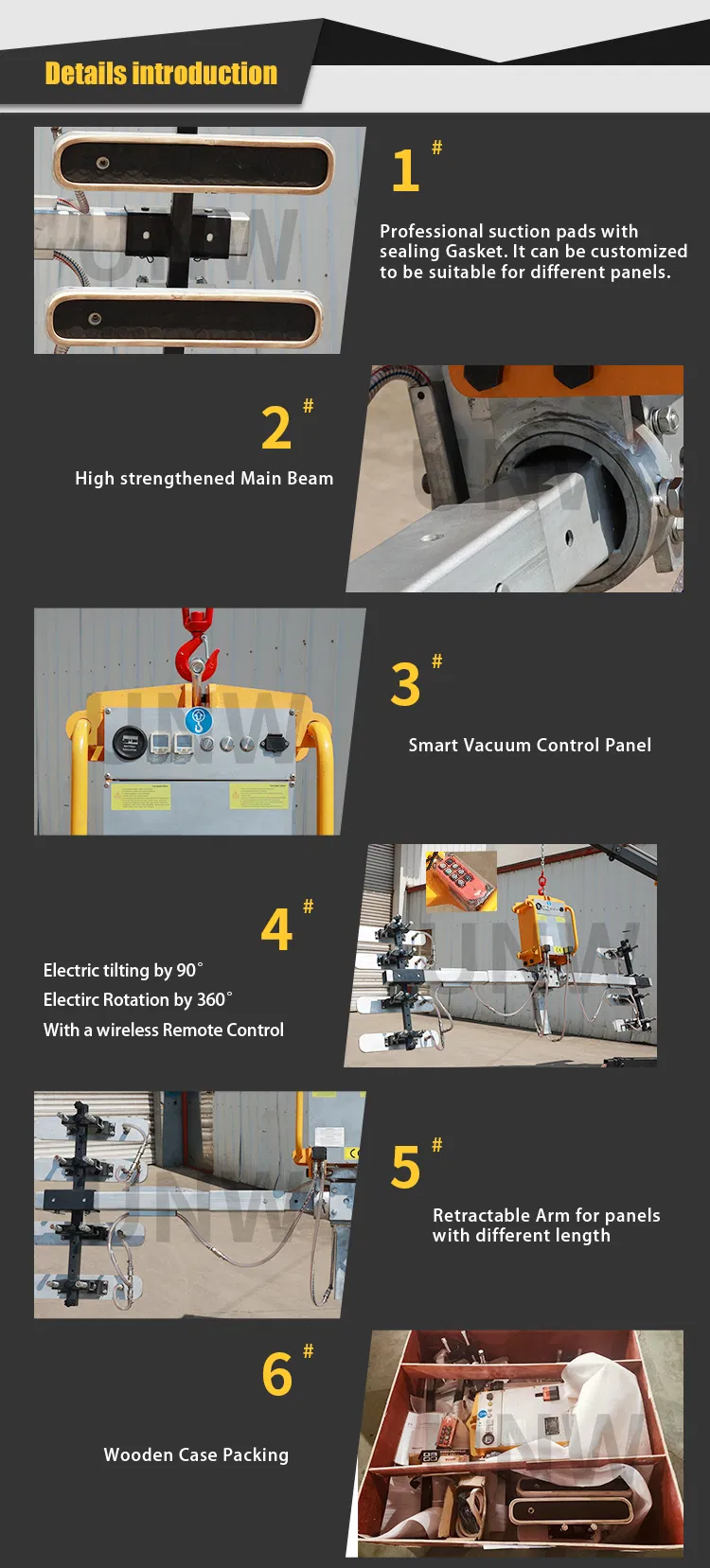

📸 Detailed Photos

🏗 Applications

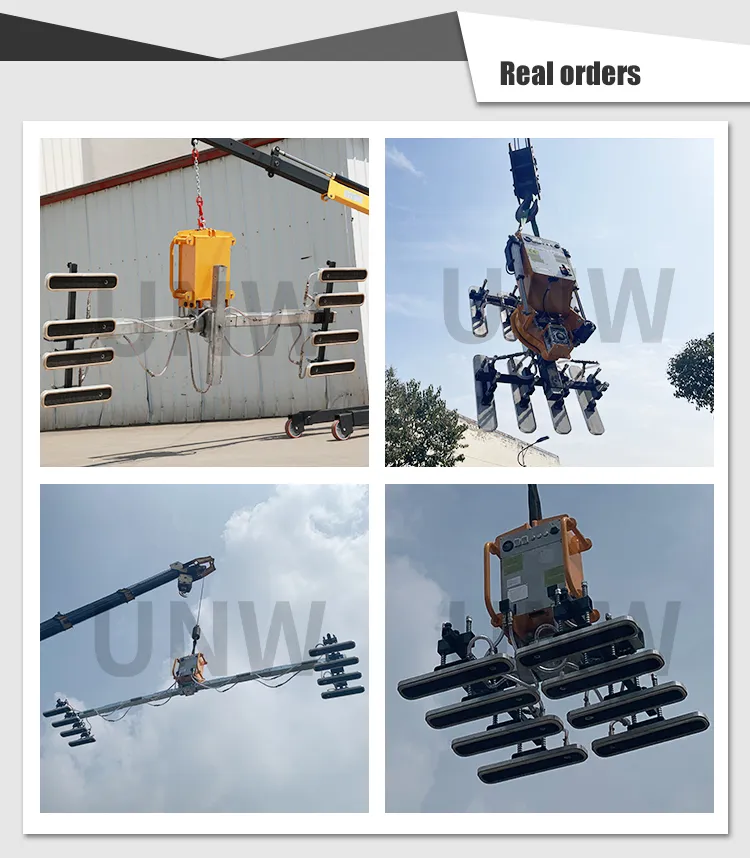

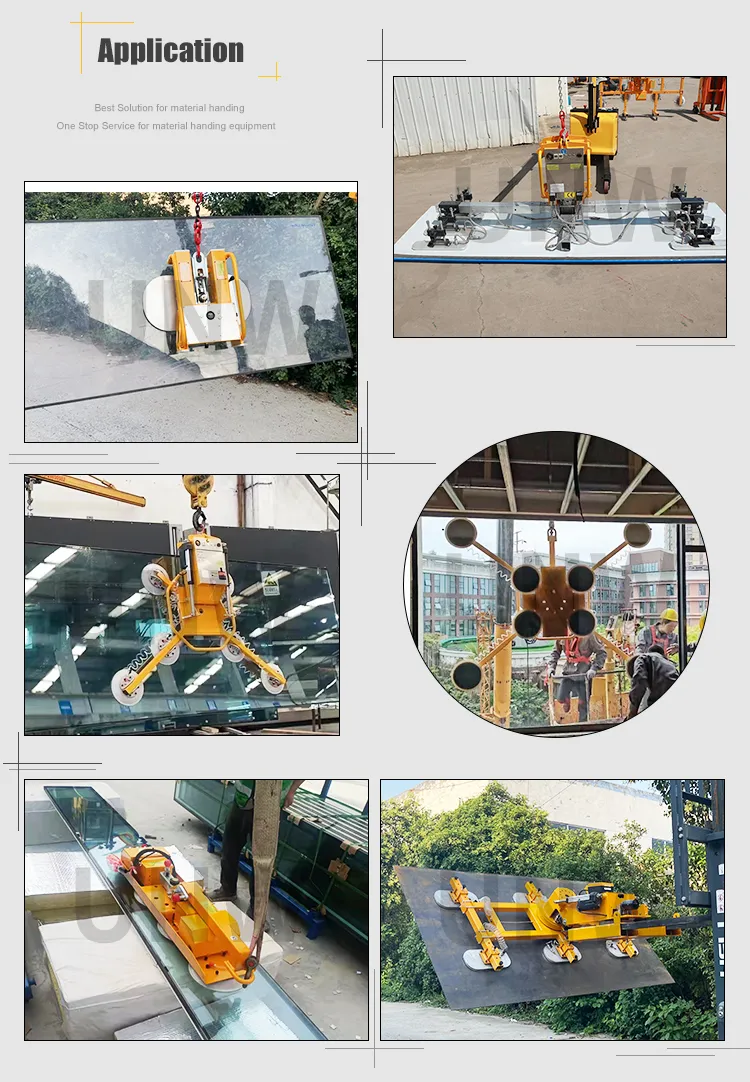

This equipment is widely used in glass processing, curtain wall installation, plastic sheet handling, sandwich panels, composite panels, steel/aluminum/copper plates, and stone industries. It is perfectly suited for workpieces with flat, dense surfaces and regular shapes.

🏭 Manufacturing Excellence

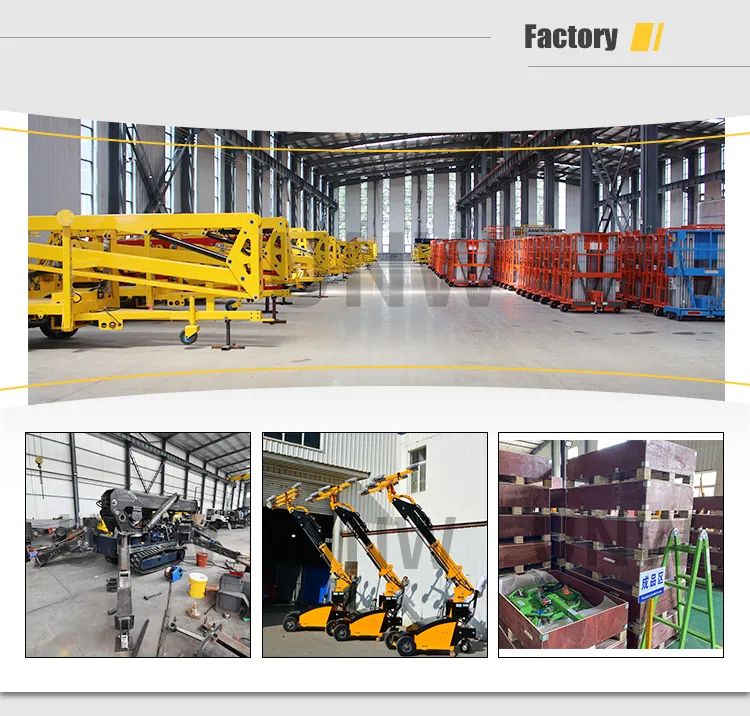

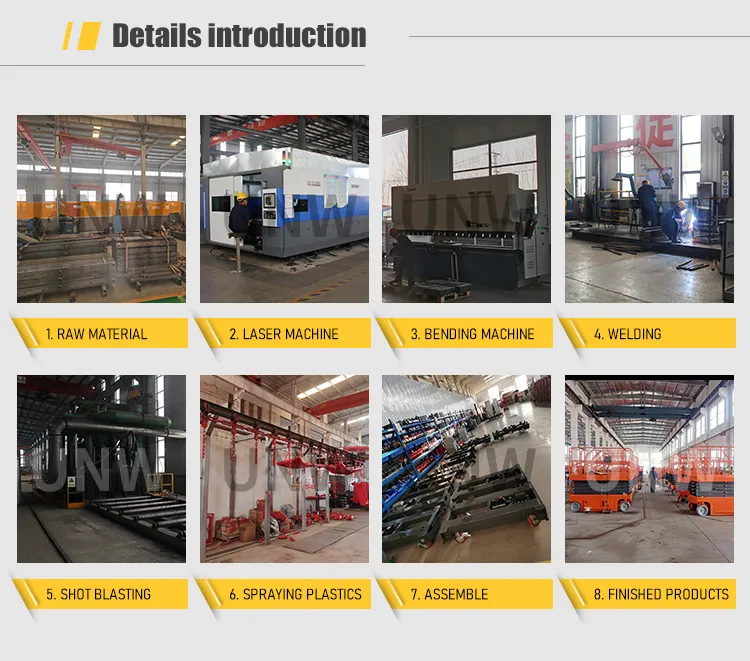

As a leading manufacturer of hydraulic lifting equipment and Aerial Work lift Platforms with over 10 years of experience, we specialize in intelligent glazing robots, suction cup vacuum glass lifters, and sandwich panel lifters. Our goal is to make construction easier, safer, and more efficient.
