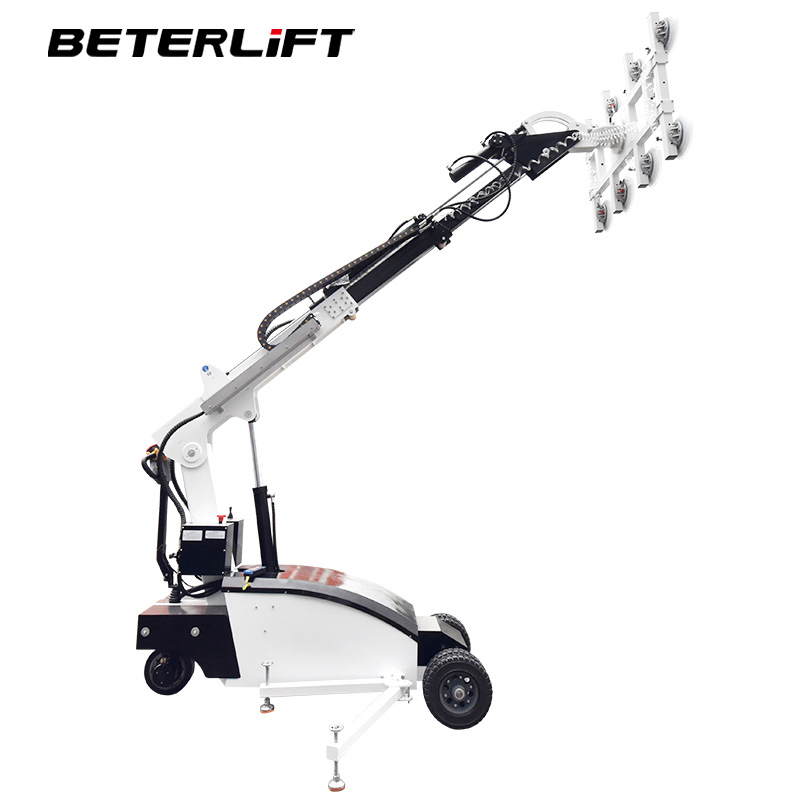

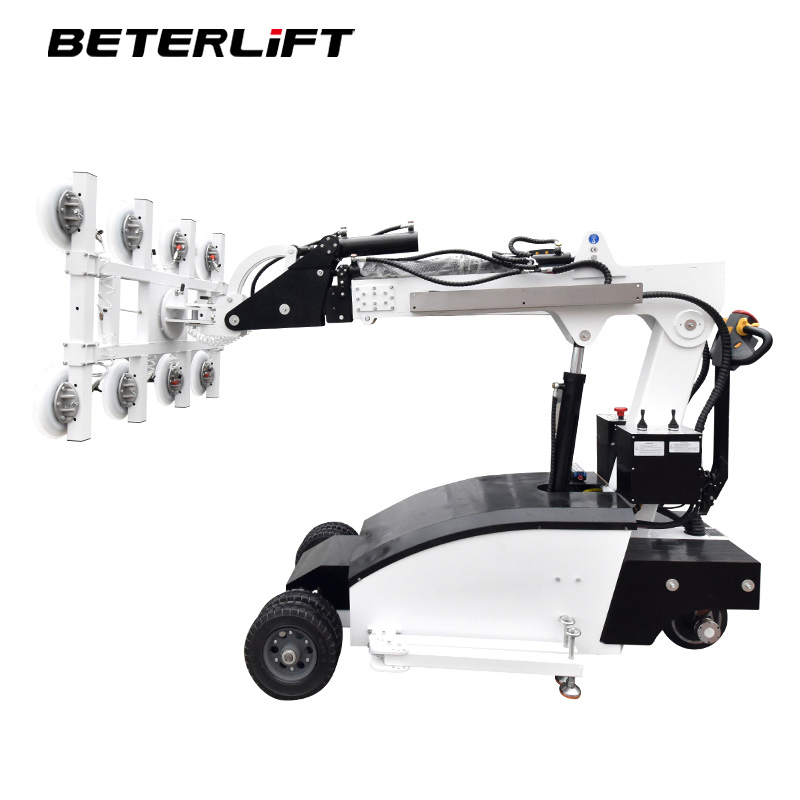

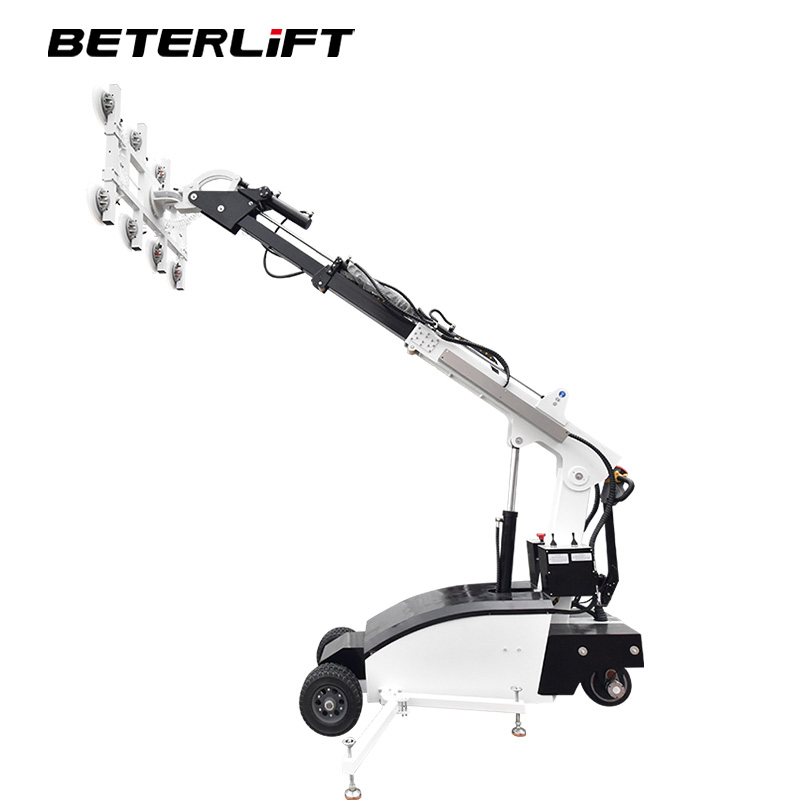

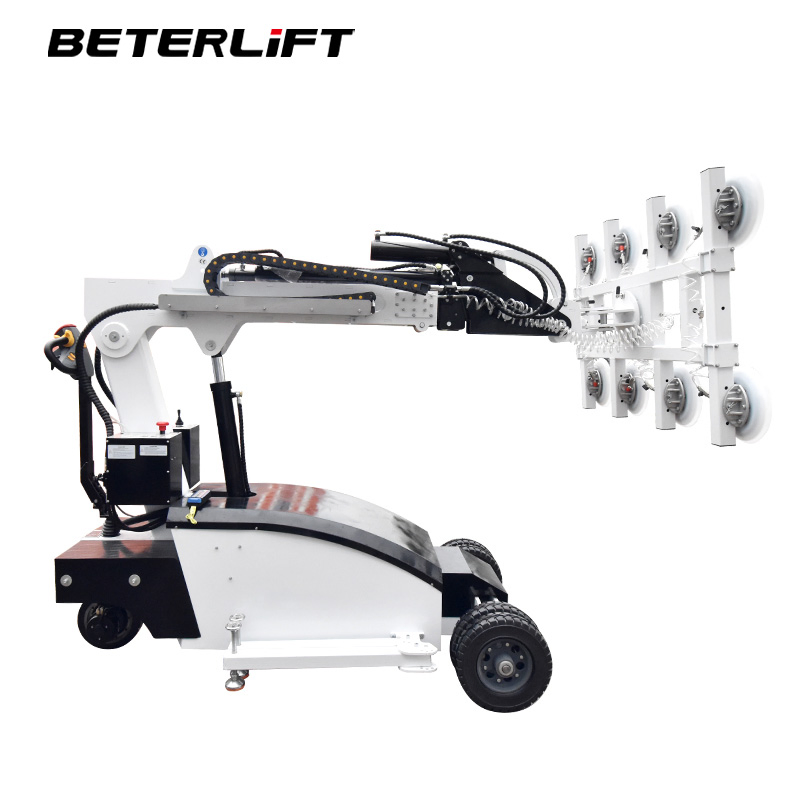

300kg-800kg Lifting Equipment - Electric Mobile Vacuum Glass Lifter Robot

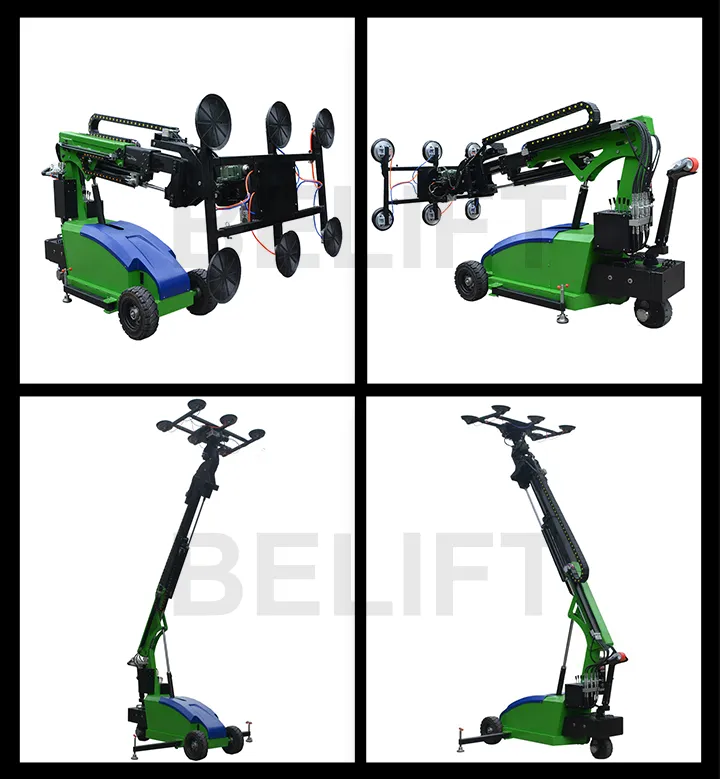

The Vacuum lifter LD Series is a fast, safe, and convenient automatic equipment. Utilizing vacuum adsorption principles with a high-performance vacuum pump, it generates suction at the cup end to firmly secure various workpieces such as glass and iron plates. It allows for efficient picking and transporting to designated positions through a rotatable mechanical arm.

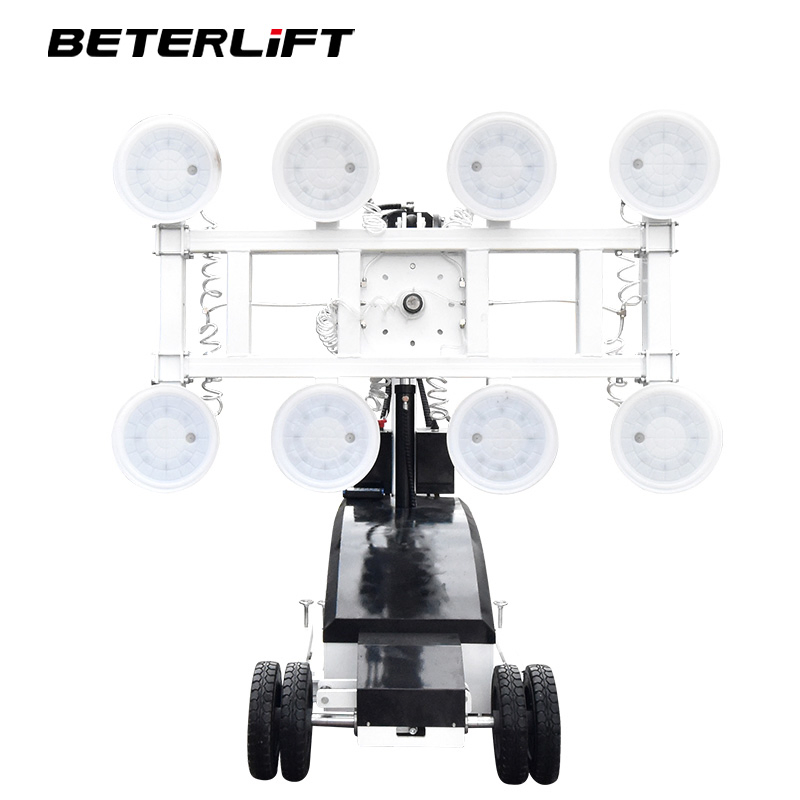

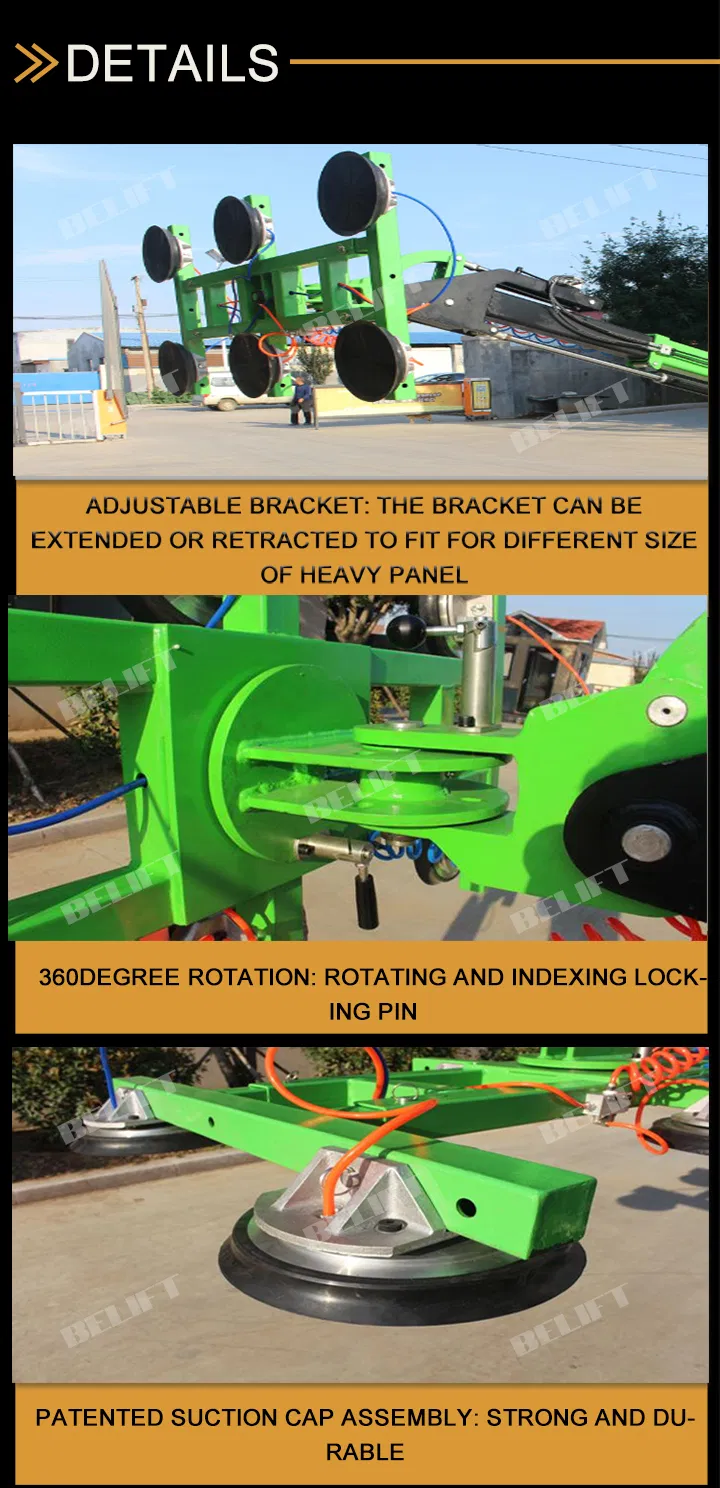

This equipment is primarily designed for the installation or transportation of glass, wood, cement, and iron plates. By replacing the sponge suction cup, it can adapt to different materials. It features an adjustable bracket that extends to accommodate panels of various sizes.
| Model Type | BGL-LD-300 | BGL-LD-400 | BGL-LD-500 | BGL-LD-600 | BGL-LD-800 |
|---|---|---|---|---|---|
| Load Capacity (Retract) | 300kg | 400kg | 500kg | 600kg | 800kg |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm |
| QTY of Suction Cups | 4pcs | 6pcs | 6pcs | 6pcs | 8pcs |
| Battery | 2x12V/100AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø310x100mm | Ø310x100mm | Ø300x125mm |
| Net Weight | 1100kg | 1280kg | 1300kg | 1400kg | 1600kg |

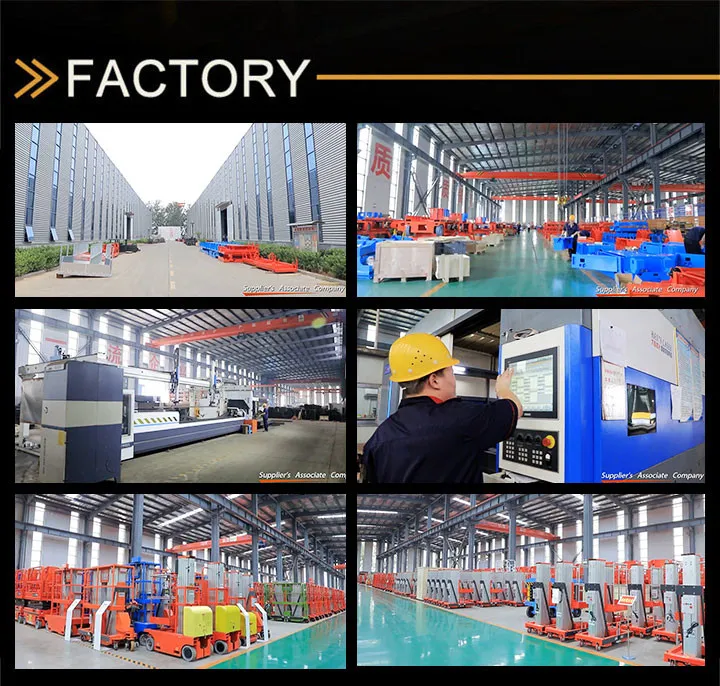

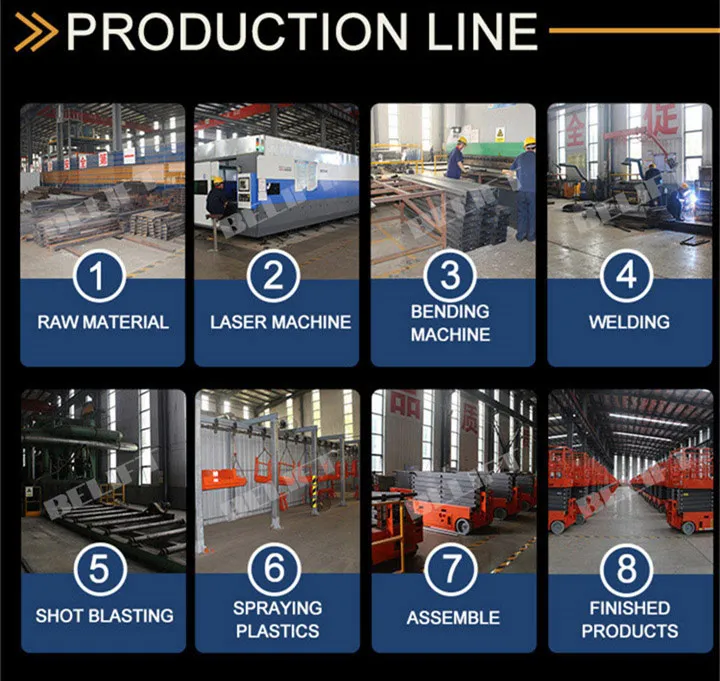

Our manufacturing facility specializes in Aerial Work Platforms and Material Lift Platforms. Since 2015, our products have served customers globally with high reliability and performance standards.
Certificates: CE, ROHS, SGS, ISO, etc.
