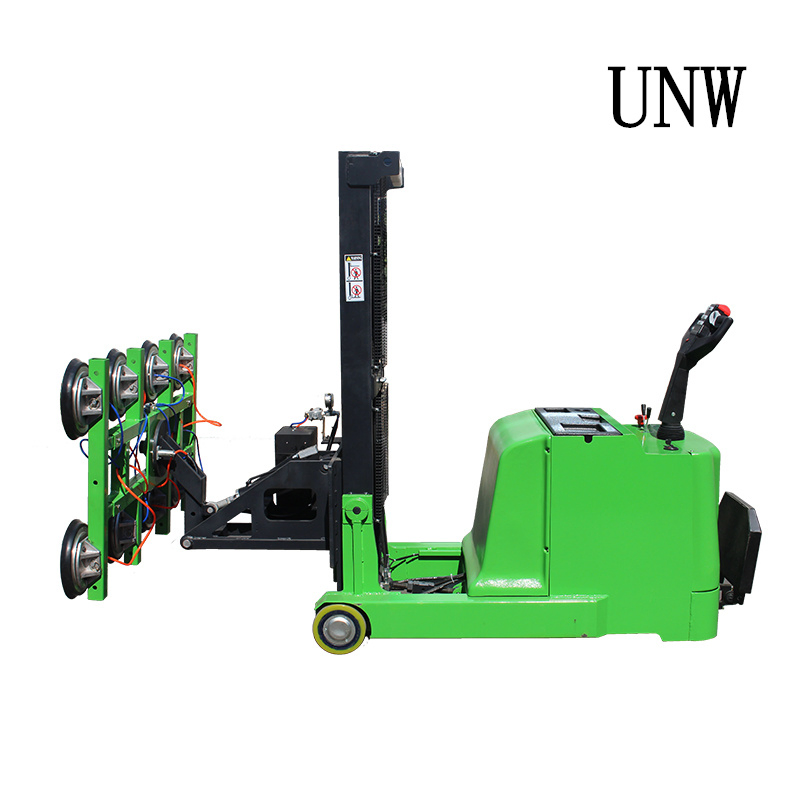

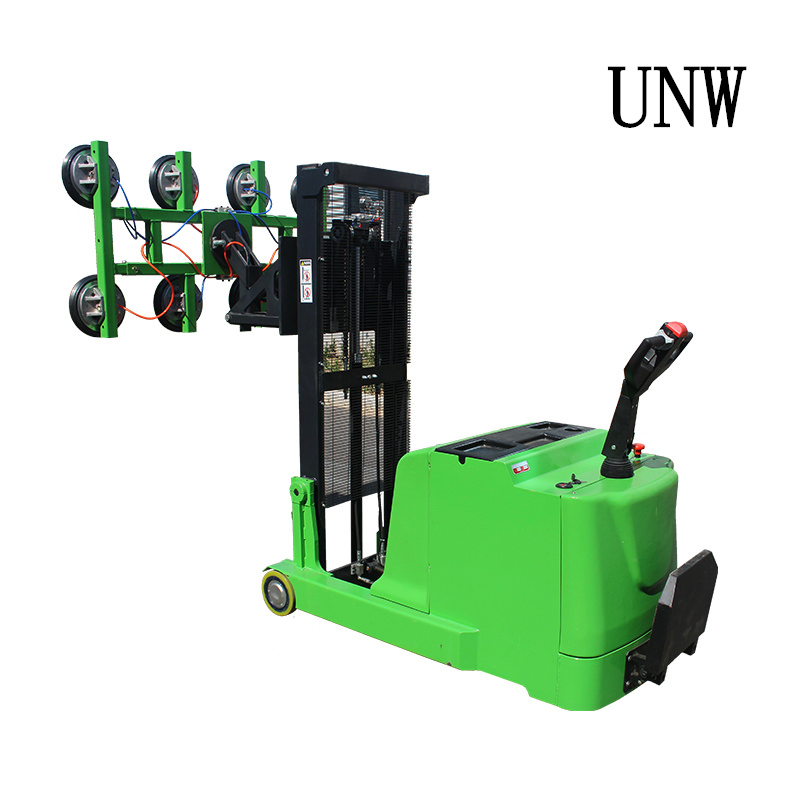

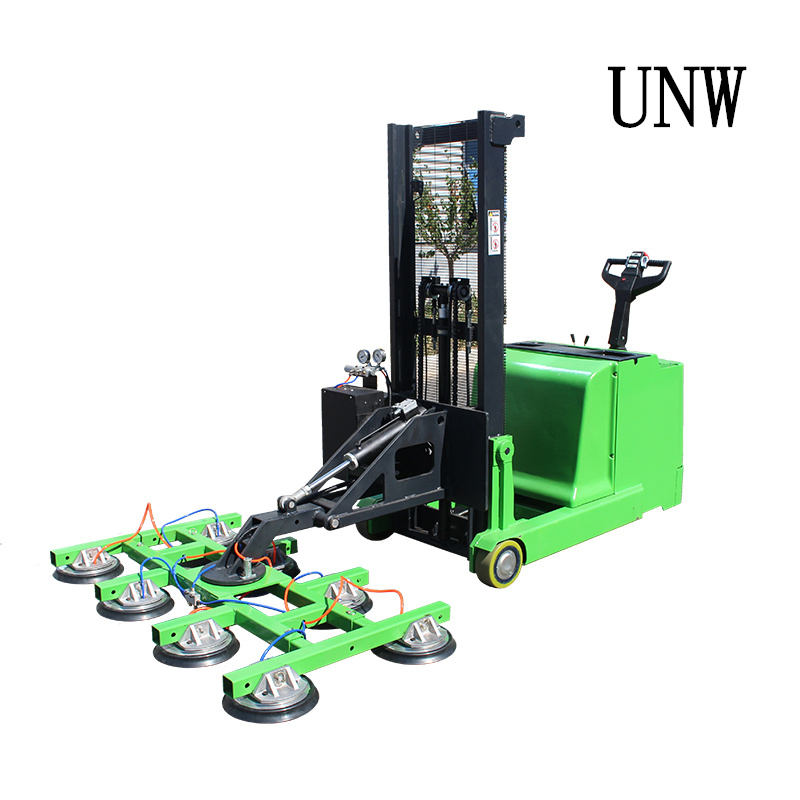

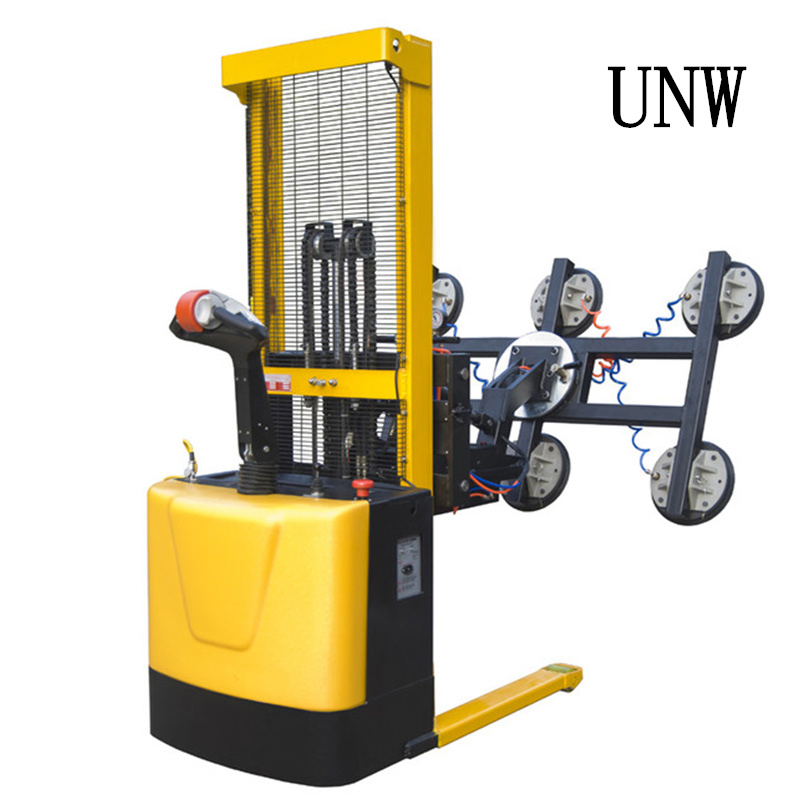

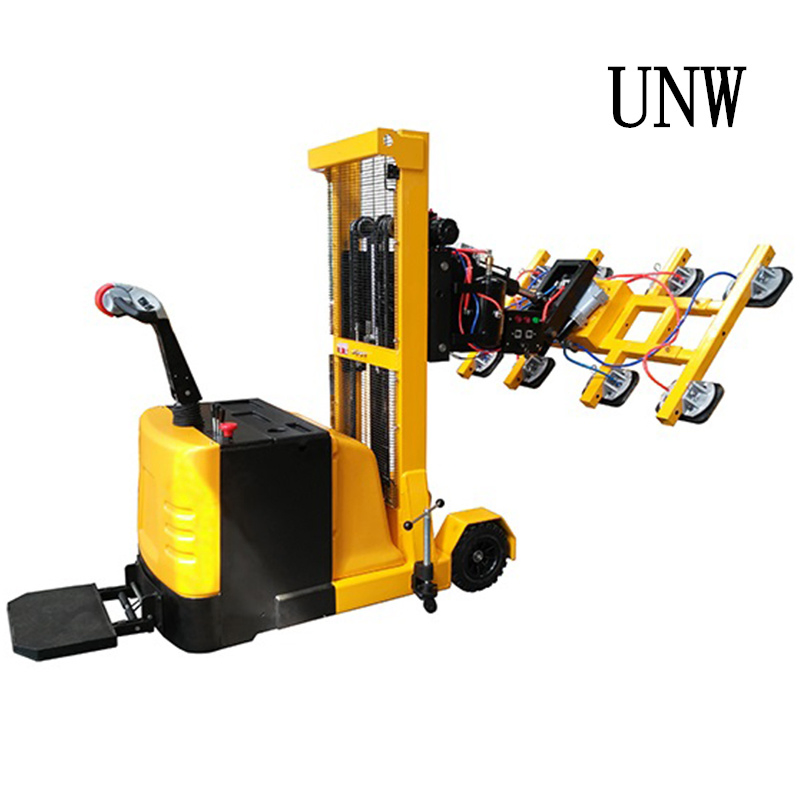

Robotic Glass Manipulator 1ton Loading Balancing Vacuum Suction Lift

i

Basic Information

Model NO.

BGL-HD-6030H

Load Capacity

600kg

Lifting Height

3880mm

System

Hydraulic

Cup Quantity

6

Movement

Rotation 360 degree / Tilt 90 Degree

Power

Battery (2X12V/120ah)

Control

Smart Driving Handle & Optional Remote

P

Product Description

Durable Counterbalance Electric Vacuum Lifter designed for fast, safe, and convenient automatic handling. Utilizing the principle of vacuum adsorption, this equipment is ideal for cement boards, glass lifting, and heavy plate installation.

This vacuum robot is specially engineered for handling heavy granite, marble, and glass walls. It features a self-propelled drive system and a powerful vacuum source to firmly hold workpieces during transport and positioning.

Key Features & Advantages

Self-propelled drive for easy maneuverability.
Electric side shift 100mm (both right & left) for precise positioning.
Electric tilting forwards & backwards from vertical to horizontal.
Dual circuit vacuum system with check valve for enhanced safety.
High-performance pump station with anti-explosion and over-flow valves.

S

Technical Parameters

1.6m Lifting Height Series:

Model	BGL-HD-6030	BGL-HD-8040	BGL-HD-1050
Rated Capacity	600kgs	800kgs	1000kgs
Safe Capacity	300kgs	400kgs	500kgs
Suction Cups	6pcs	8pcs	10pcs
Battery	2x12V/70Ah	2x12V/70Ah	2x12V/100Ah

2.5m Lifting Height Series:

Model	BGL-HD-6030H	BGL-HD-8040H	BGL-HD-1050H
Rated Capacity	600kgs	800kgs	1000kgs
Lifting Height	2500mm	2500mm	2500mm
Drive Motor	24V/500W	24V/500W	24V/700W

D

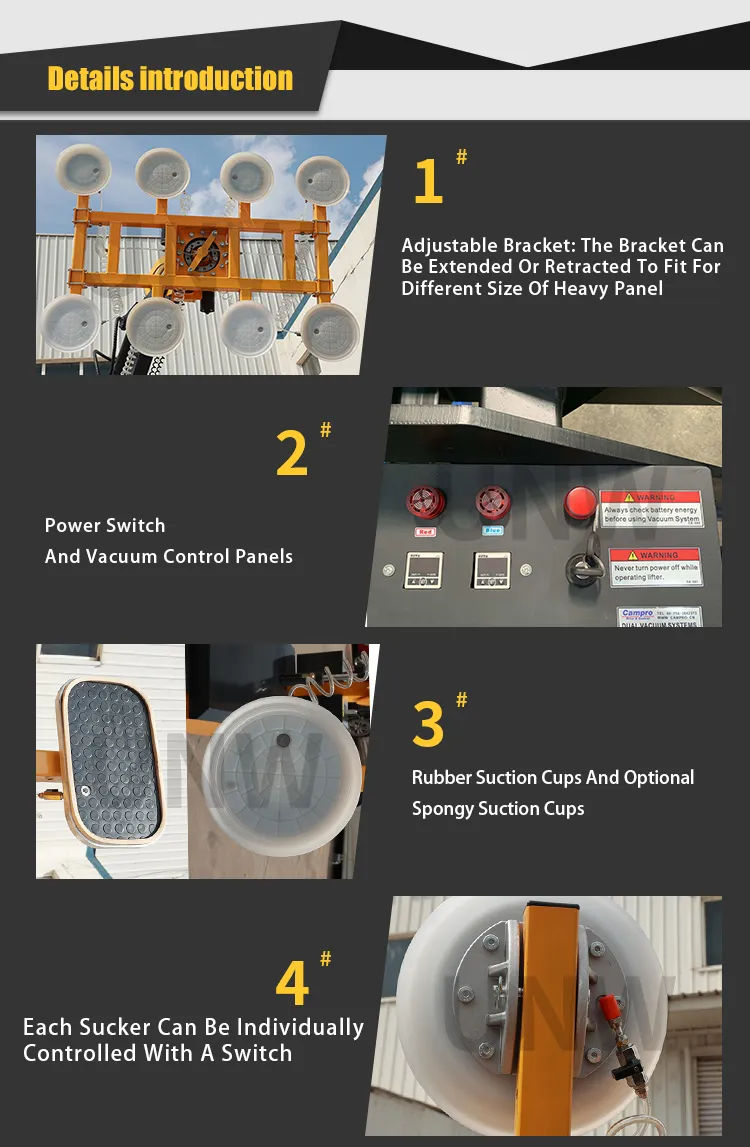

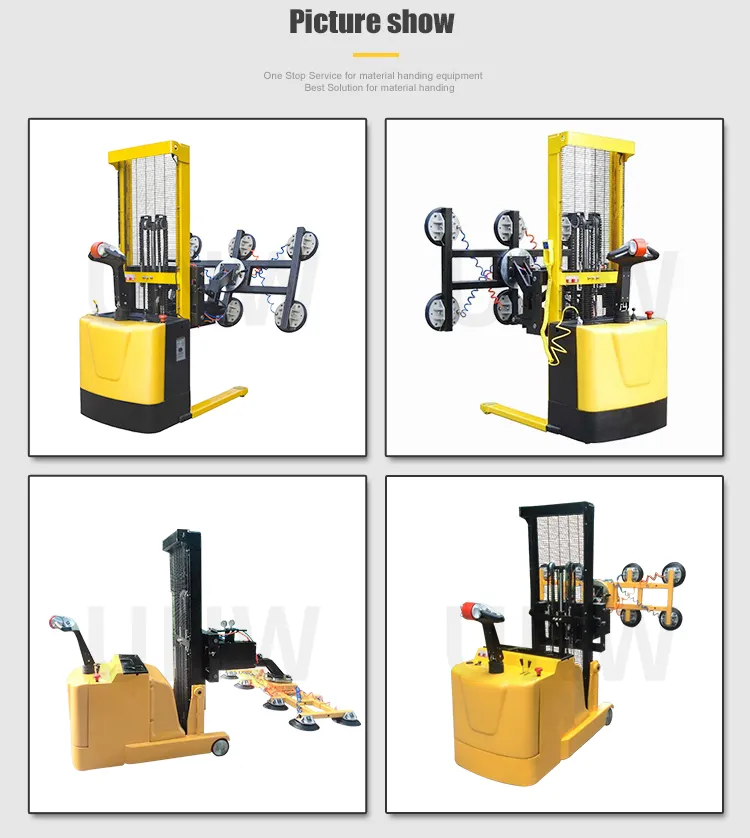

Detailed Photos

A

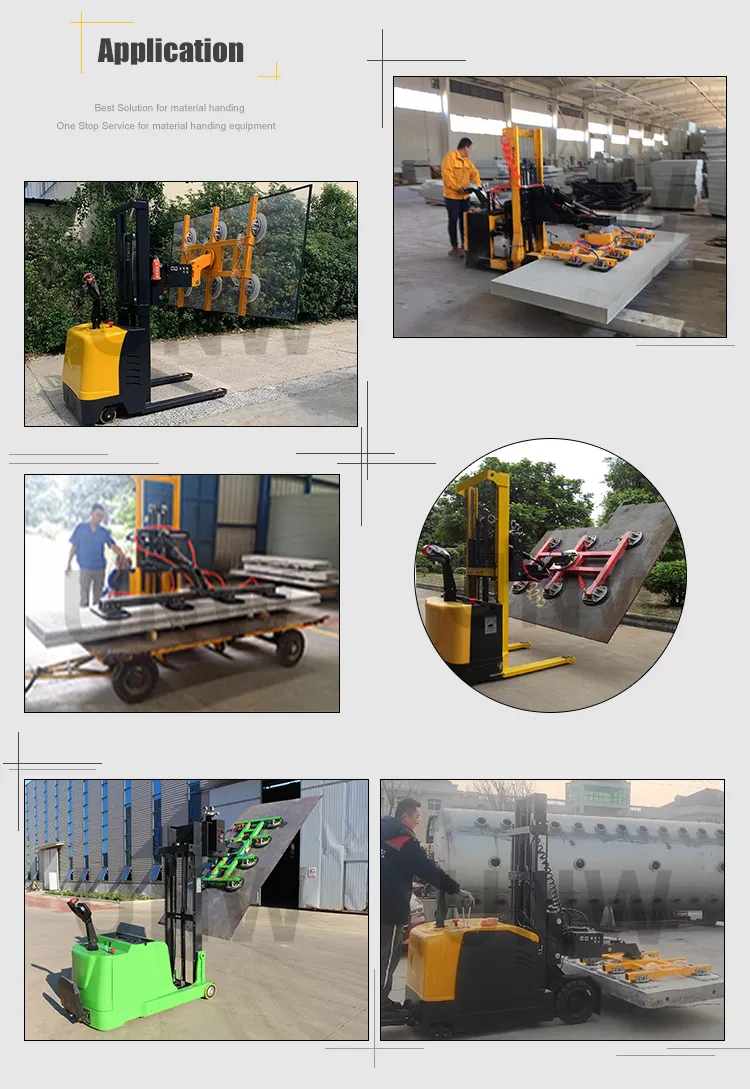

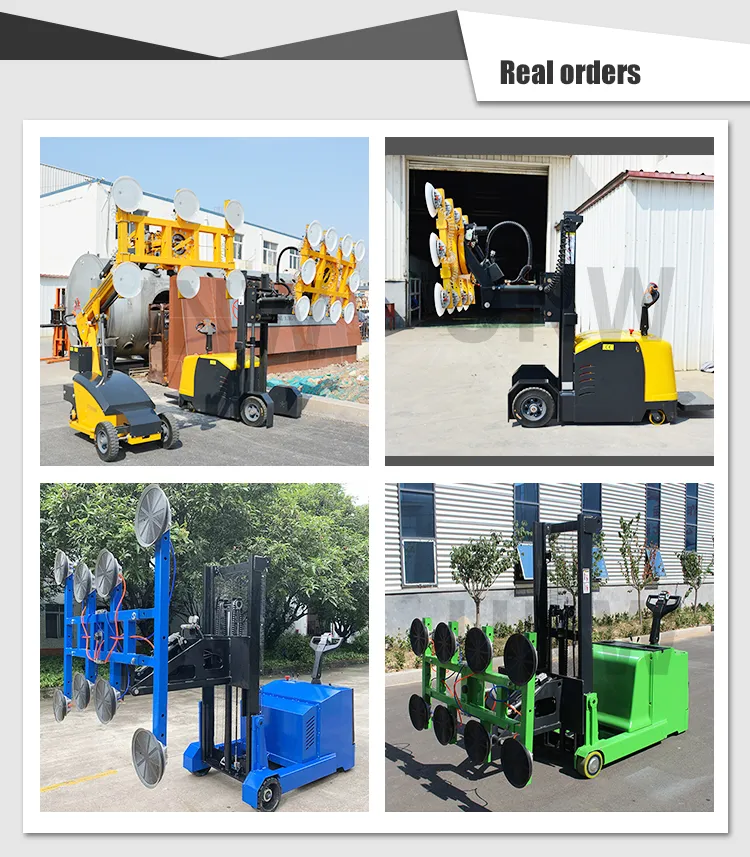

Real Order & Application

C

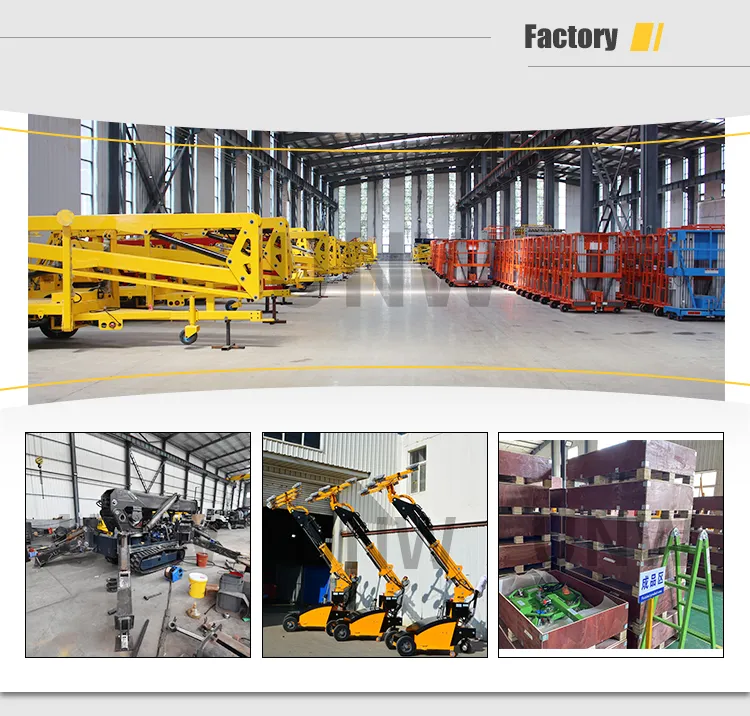

Company Profile & Service

We are a leading manufacturer of hydraulic lifting equipment and aerial work platforms with over 10 years of experience. Our product range includes intelligent glazing robots, suction cup vacuum glass lifters, sandwich panel lifters, and metal sheet lifters.

Our goal is to make construction easier, safer, and more efficient. All products meet CE, ROHS, SGS, and ISO standards.

After-Sales Support:

Free spare parts within the quality warranty period.
Comprehensive user manuals and lifetime technical support.
24-hour online and telephone service.

?

Frequently Asked Questions

How can I buy replacement parts?

The equipment uses common hardware parts. You can purchase them at local hardware markets or forklift parts shops. We also supply original components.

What if the machine breaks down?

Our equipment has a very low failure rate. If an issue occurs, we provide video guidance and detailed repair instructions to help you fix it easily.

How long is the warranty period?

We provide a one-year quality guarantee. During this period, if any part fails, we will send replacement parts to you free of charge.

What certifications do your lifters have?

All our lifting equipment is certified by CE, ROHS, SGS, and ISO standards to ensure safety and quality.

Can the suction cups be customized?

Yes, we offer optional sponge suckers (400*250mm) and can customize the pad frame and quantity based on your specific material requirements.

Is the battery maintenance-free?

Yes, the unit is equipped with maintenance-free batteries (2X12V/120ah) designed for long-term industrial use.
