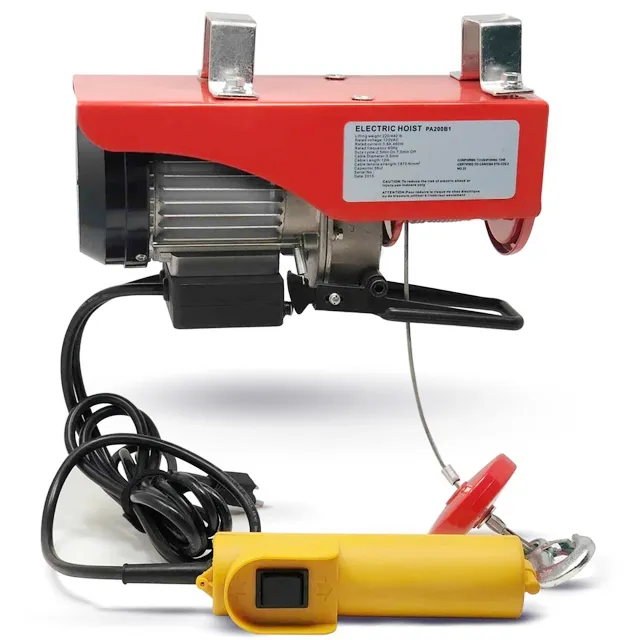

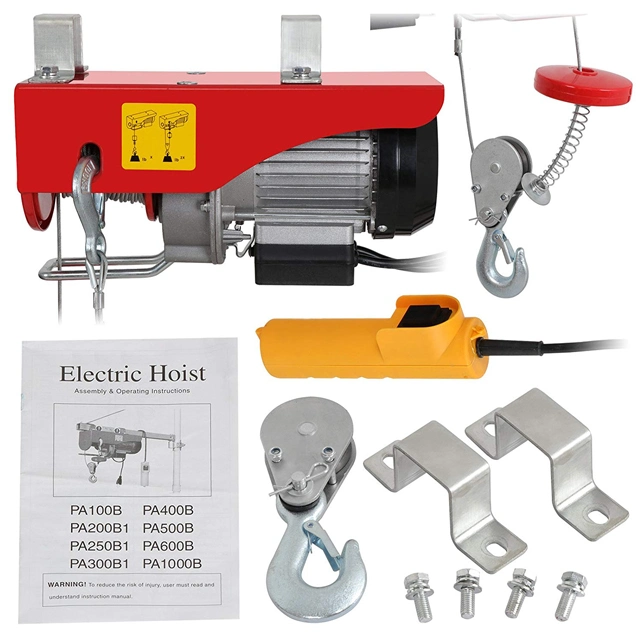

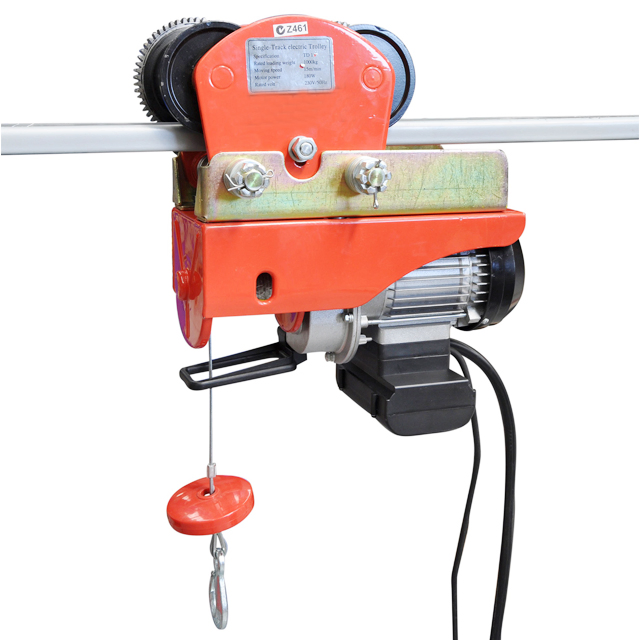

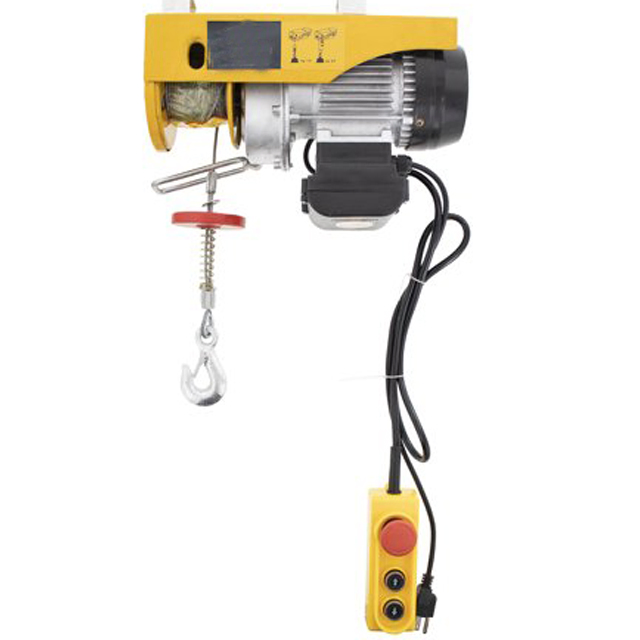

1000kg 1200kg 400kg 800 Kg 500kg 125kg 300kg 200kg Small Mini Wire Rope Electric Winch Hoist Lift Price

Basic Specifications

Sling Type

Chain

Lift Speed

2~8m/min

Maximum Lifting Height

>20m

Chain Falls

1

Certification

CE, ISO9001:2000

Condition

New

Feature

Insulating

Structure

Hook Crane

Installation

Chain Hoist

Working Group

M5

Working Temperature

-45-80 degree

Shell Material

Aluminum Alloy

Production Capacity

300 Per Day

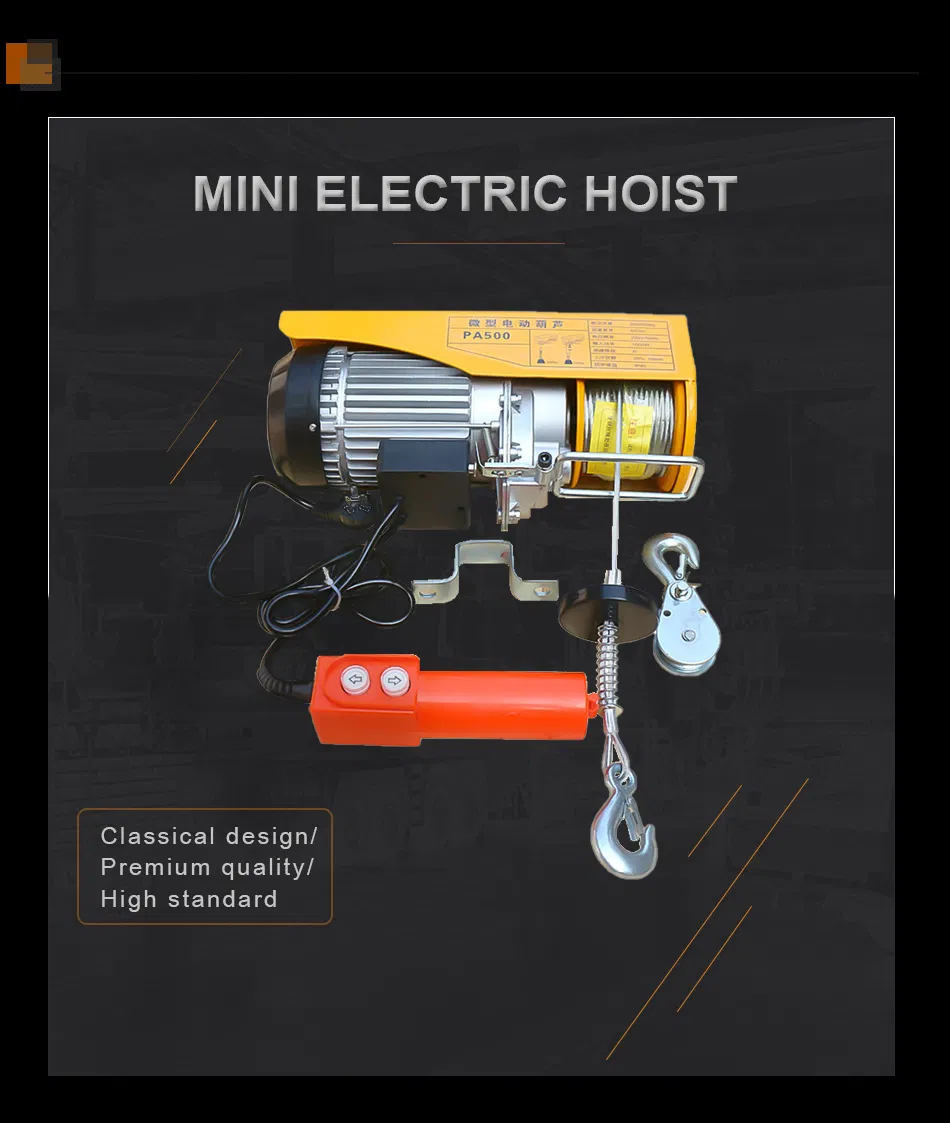

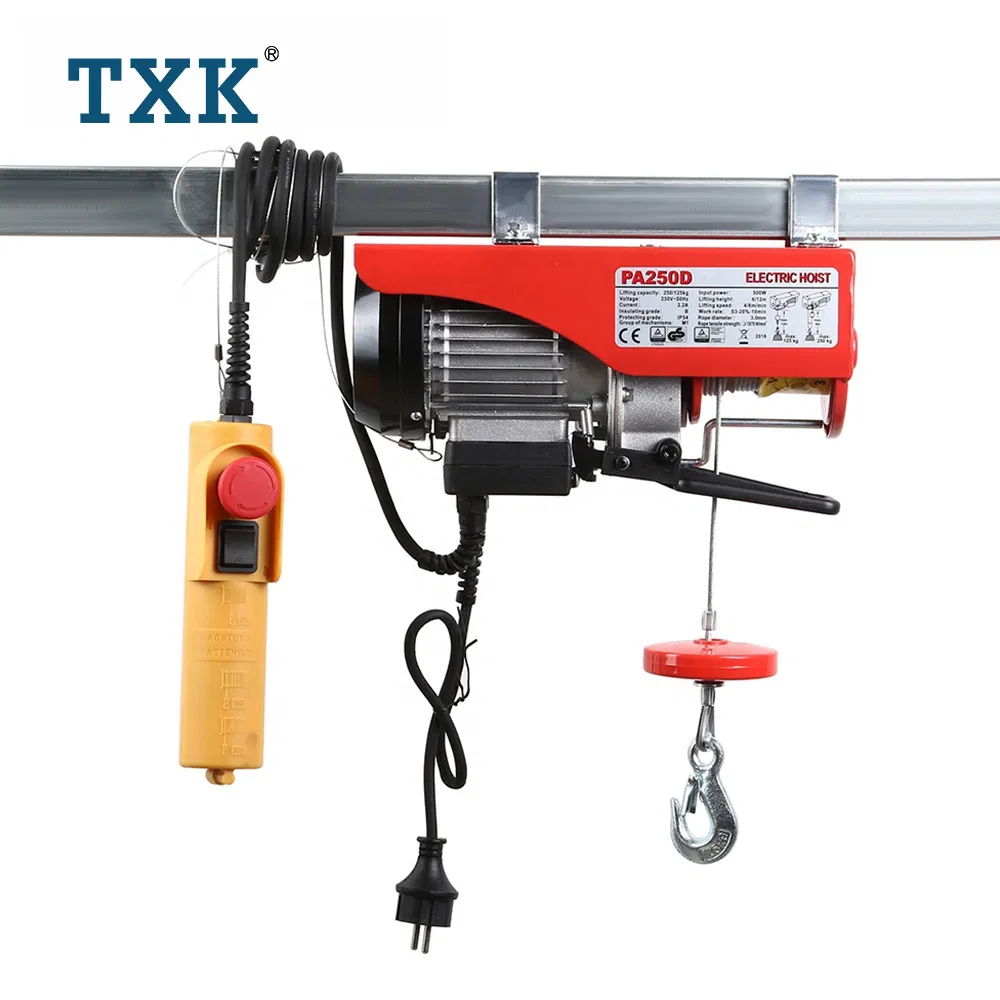

Lifting Machine 0.25 Ton Mini Electric Hoist Parameters

Model	Method of use	Rated Voltage	Input power	Rated Lifting Capacity	Lifting Height	Lifting Speed	Packing Size	N.W./GW
Pa200	Single hook	220V/50HZ	510W	100kg	12m	10m/min	463616	22/24
Pa200	Double hook	220V/50HZ	510W	200kg	6m	5m/min	463616	22/24
Pa500	Single hook	220V/50HZ	1000W	250kg	12m	10m/min	524117	34/36
Pa500	Double hook	220V/50HZ	1000W	500kg	6m	5m/min	524117	34/36
Pa1000	Single hook	220V/50HZ	1850W	500kg	12m	10m/min	531835	30/32
Pa1000	Double hook	220V/50HZ	1850W	1000kg	6m	5m/min	531835	30/32
Pa1200	Single hook	220V/50HZ	2100W	600kg	12m	10m/min	531835	31.4/33.5
Pa1200	Double hook	220V/50HZ	2100W	1200kg	6m	5m/min	531835	31.4/33.5

Product Technical Features

Electric Motor Outer Cover Made of high-strength aluminum system through compression casting. Advantages: Solid, light, fast heat release, suitable for continuous use in chemical and electroplating factories.

Side Braking System Masterly structure ensures absolute safety during power failure or excess load. Combine with motor braking for a double brake system.

Advanced Gearing Gears are made of high-quality alloy steel and subjected to professional heat treatment for durability.

Antiphase Protector Special control circuit that prevents movement if the power-supply wiring is incorrect.

Heat-Treated Chain FEC80 ultra-strong alloy steel chain. Safely operates in rain, sea water, and chemical environments.

Protection & Noise Control IP54 protection class for hoist and push buttons; operation noise levels maintained at approx 81dB.

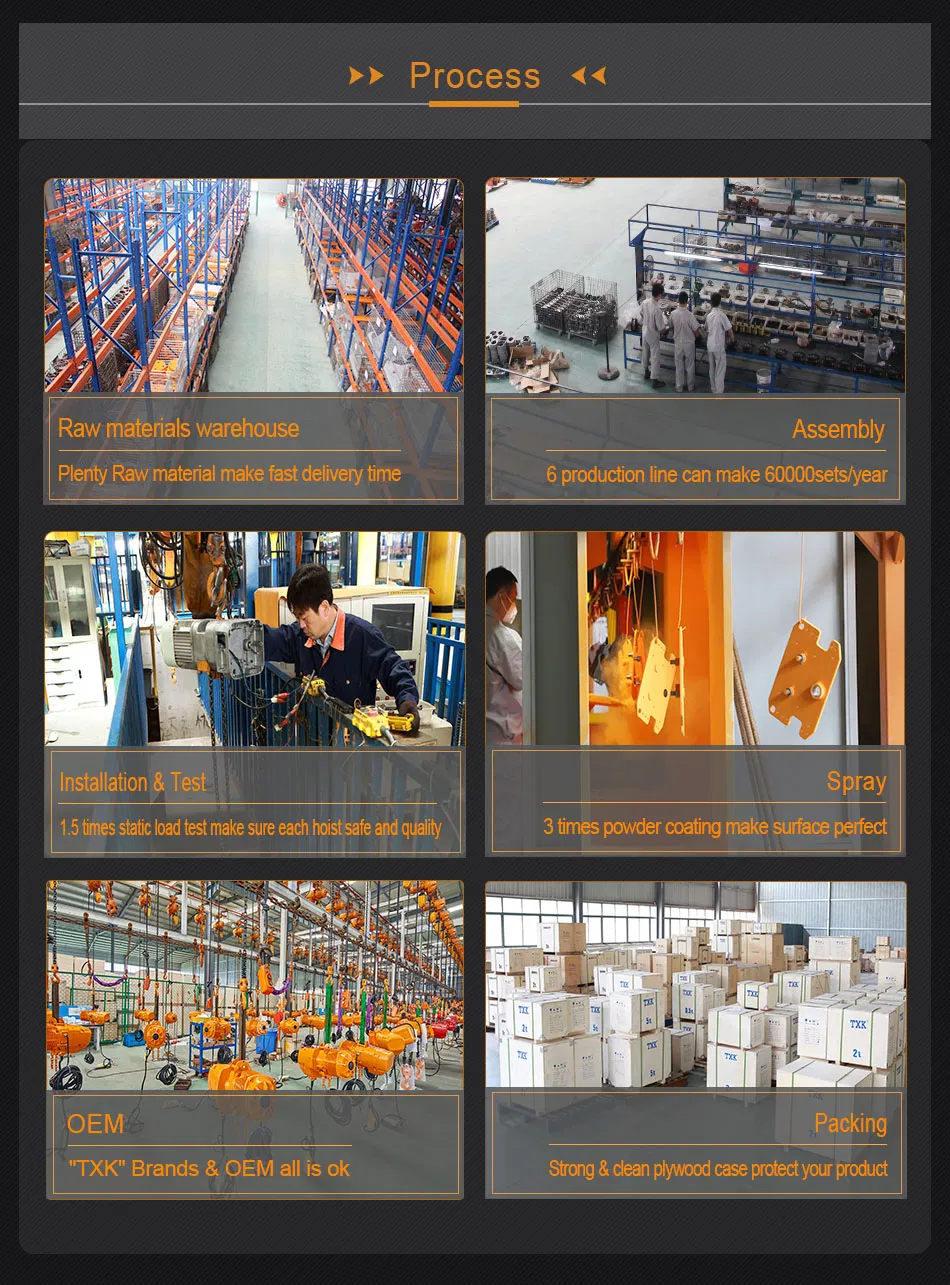

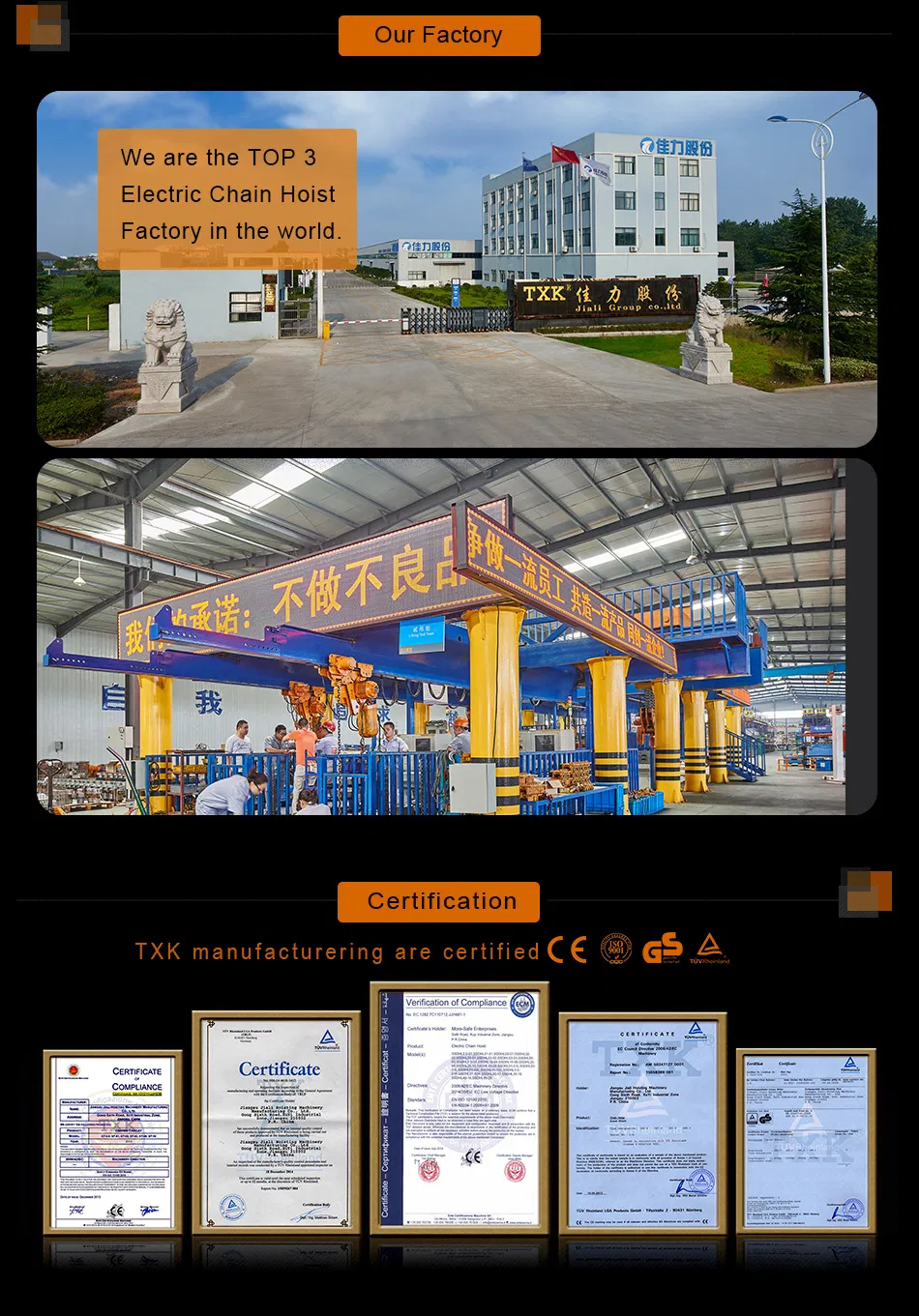

Manufacturing Capabilities

With over 15 years of industry experience, the manufacturing facility covers an area of 66,000 square meters. The production line provides quality, safe, and stable products to meet the highest industrial standards, including ISO9001:2008, TUV, CE, GS, and SGS certifications.

Products are widely utilized across various sectors such as mold manufacturing, wind power, logistics, railways, shipbuilding, bridge construction, and factory assembly lines.
