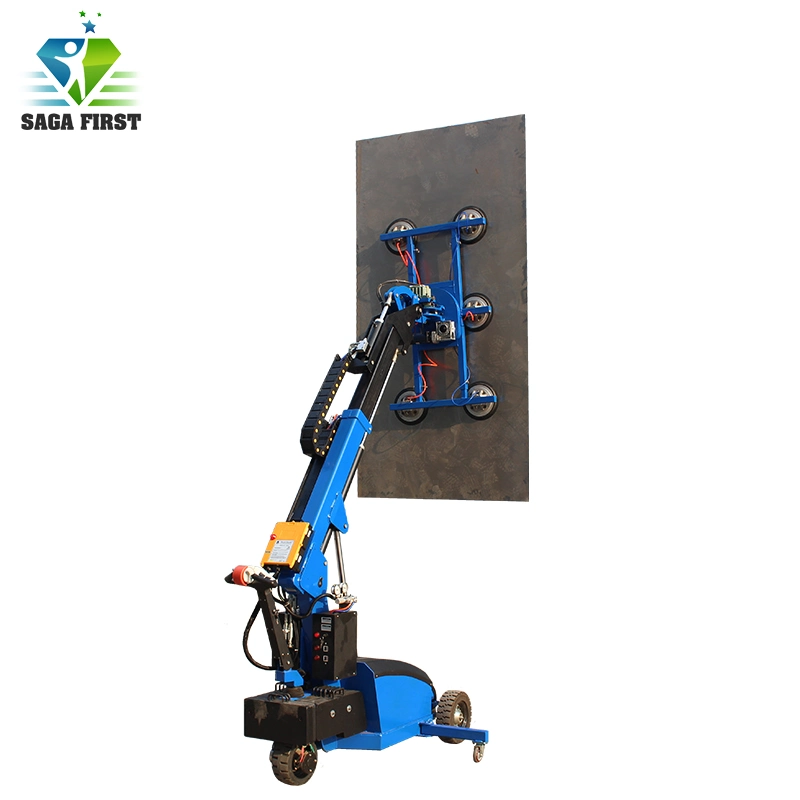

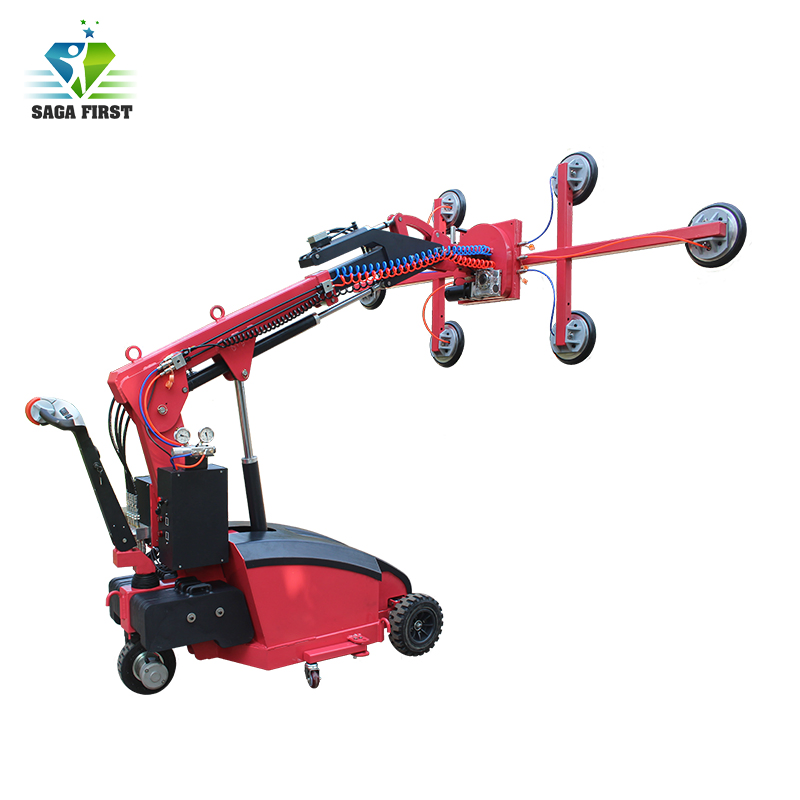

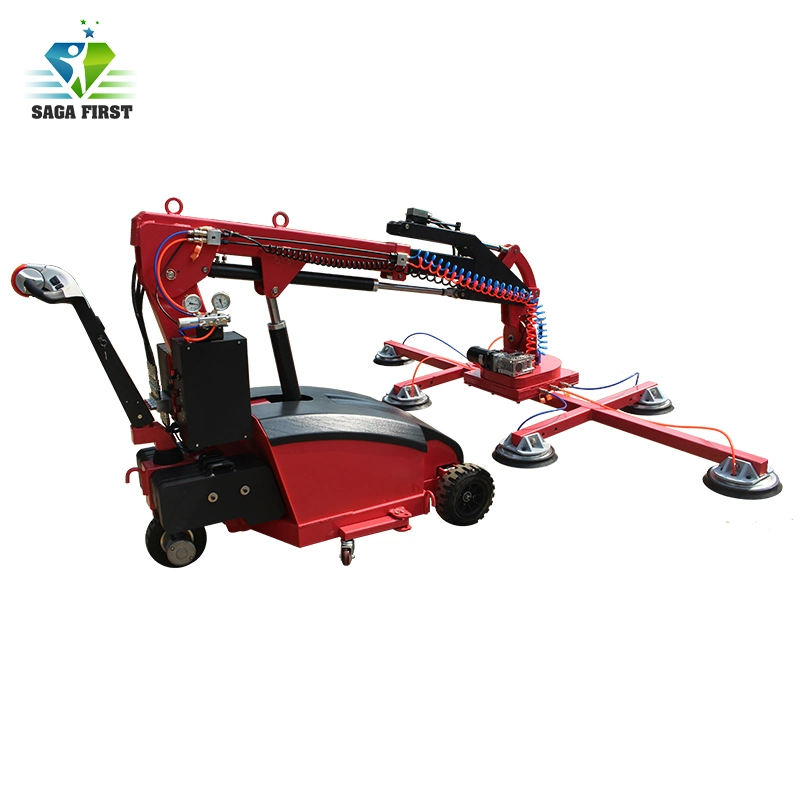

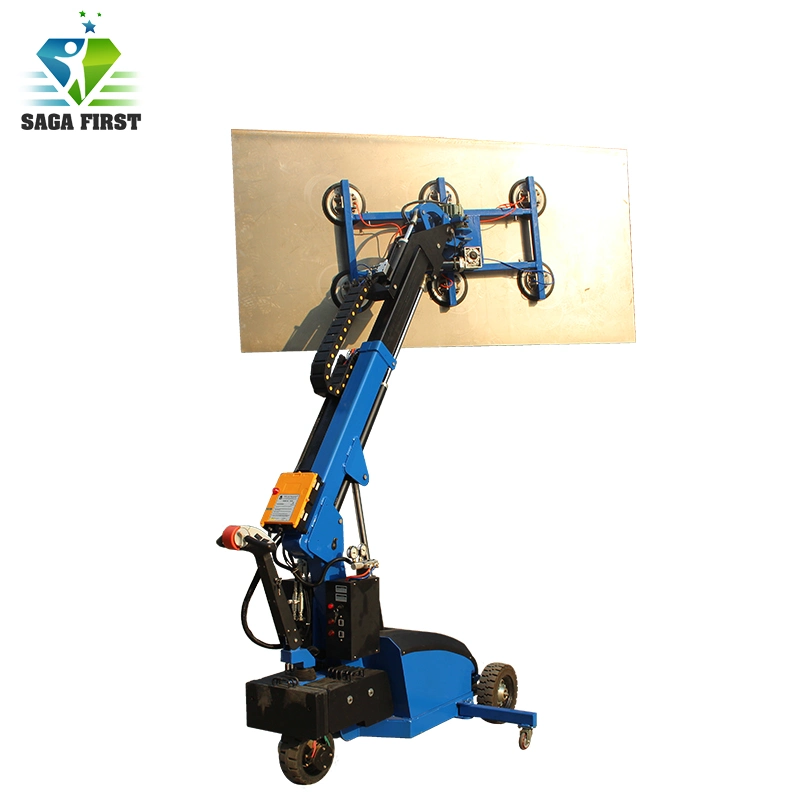

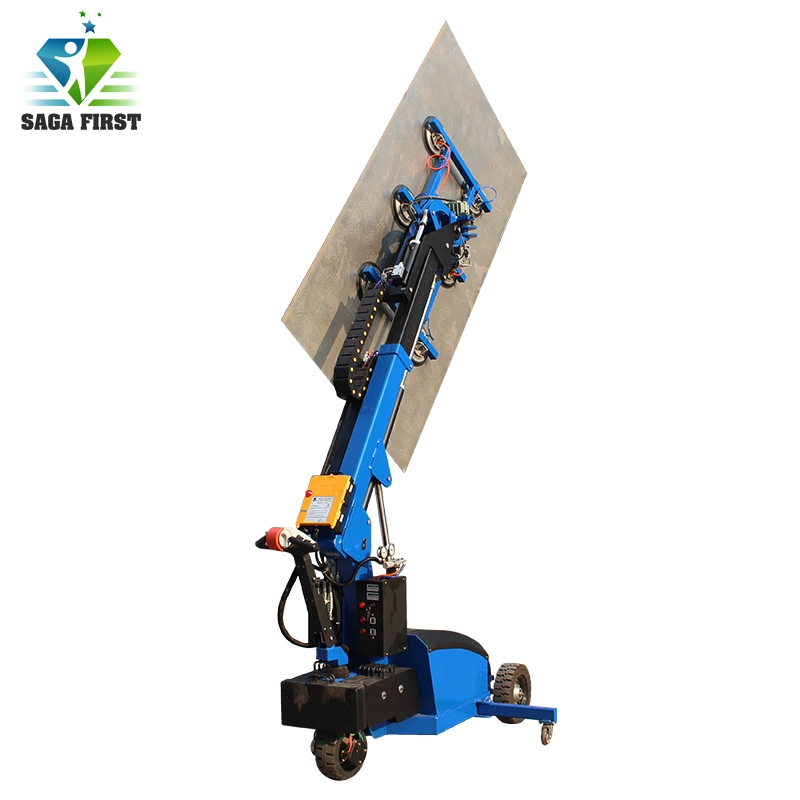

Electric Drivable Glass Vacuum Lifter
Professional OEM & ODM Service for Heavy Plate Handling

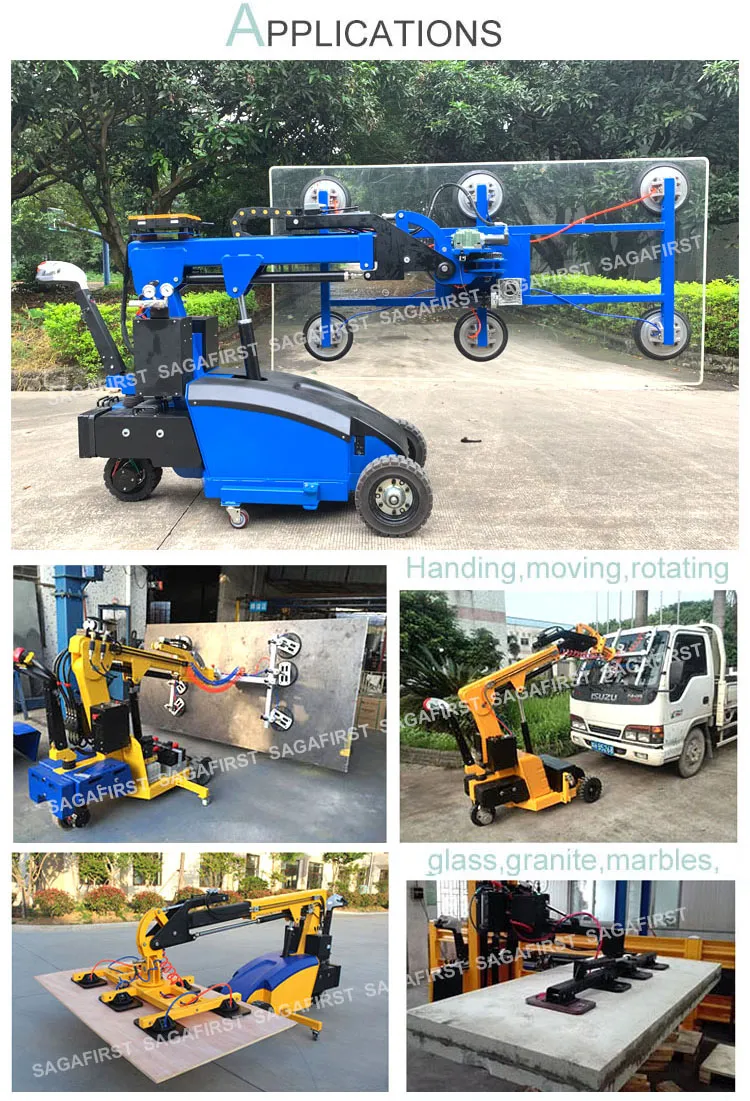

This vacuum lifter is specially designed for handling different kinds of heavy plate, board, and glass. It is ideal for installing steel boards, glass walls, and moving materials such as granite and marble. The system allows for easy lifting, moving, and rotating using powerful vacuum suction caps and a robust drive system.
| Model Type | VGL-LD-350 | GL-LD-600 |
|---|---|---|
| Load Capacity | 350kg (retract) / 175kg (extend) | 600kg (retract) / 300kg (extend) |
| Lifting Height | 3500mm | 3500mm |
| Suction Cap QTY | 4pcs (standard) | 6pcs (standard) |
| Battery | 2x12V / 100AH | 2x12V / 120AH |
| Drive Motor | 24V / 600W | 24V / 900W |
| Hydraulic Power | 24V / 2000W / 5L | 24V / 2000W / 5L |
Customization Available:
We can customize the lifter based on your specific requirements. Please provide the weight, material size, and required lifting height for a tailored design.

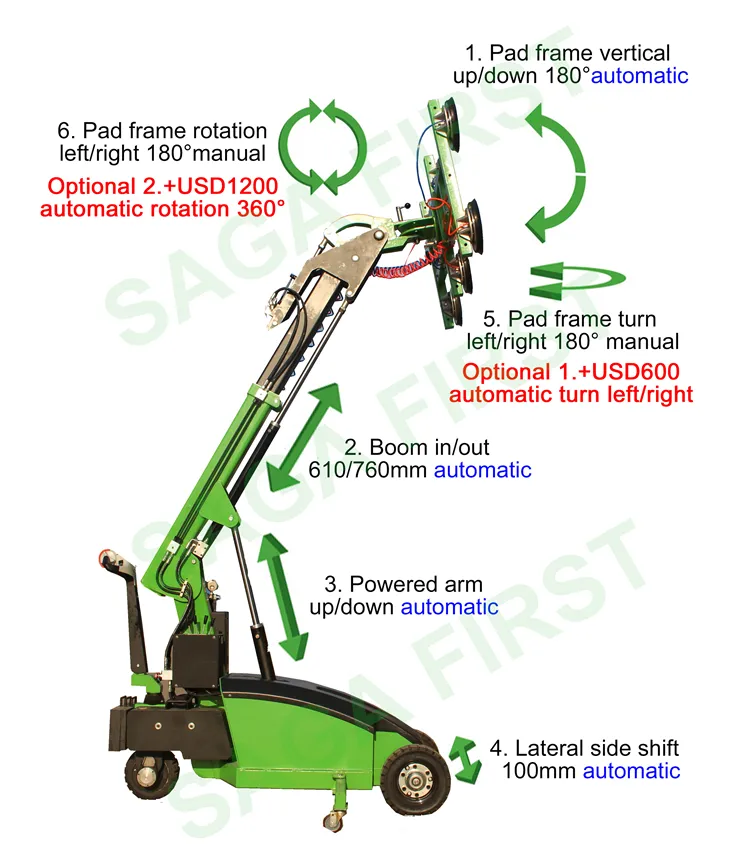

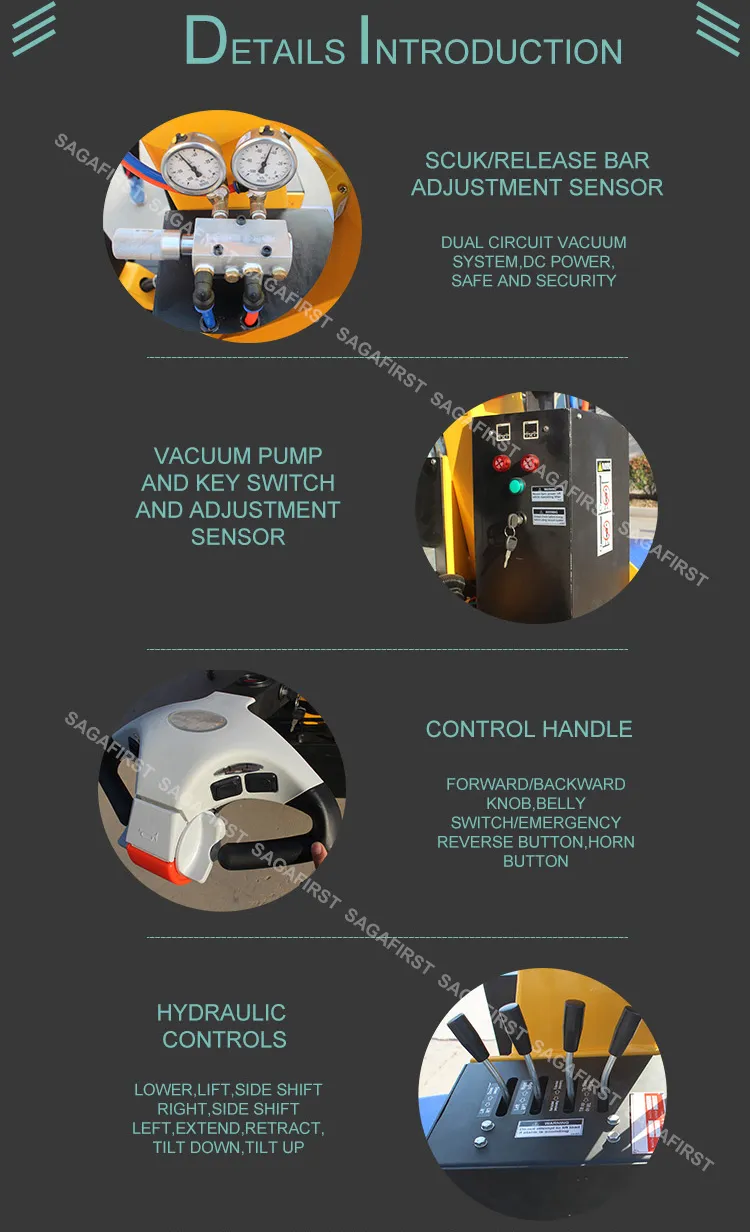

The GL-LD series offers 6 different types of movements to meet various site conditions. The boom arm is highly flexible with 360° rollover and 180° tilt frame pads.
Certificates: CE, ROHS, ISO, SGS. All equipment is packed in strong wooden cartons for safe sea transport.
