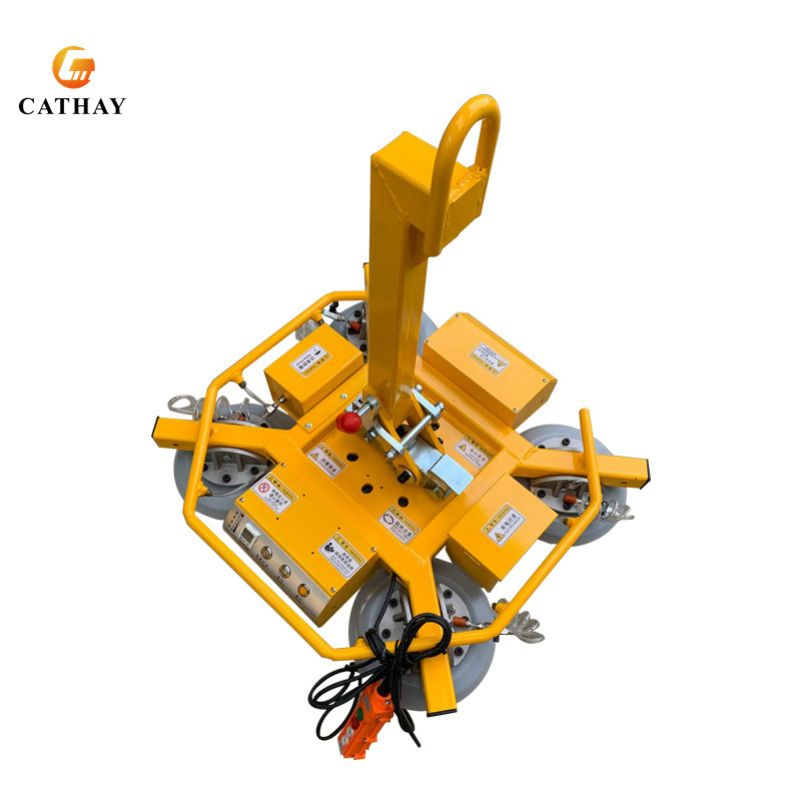

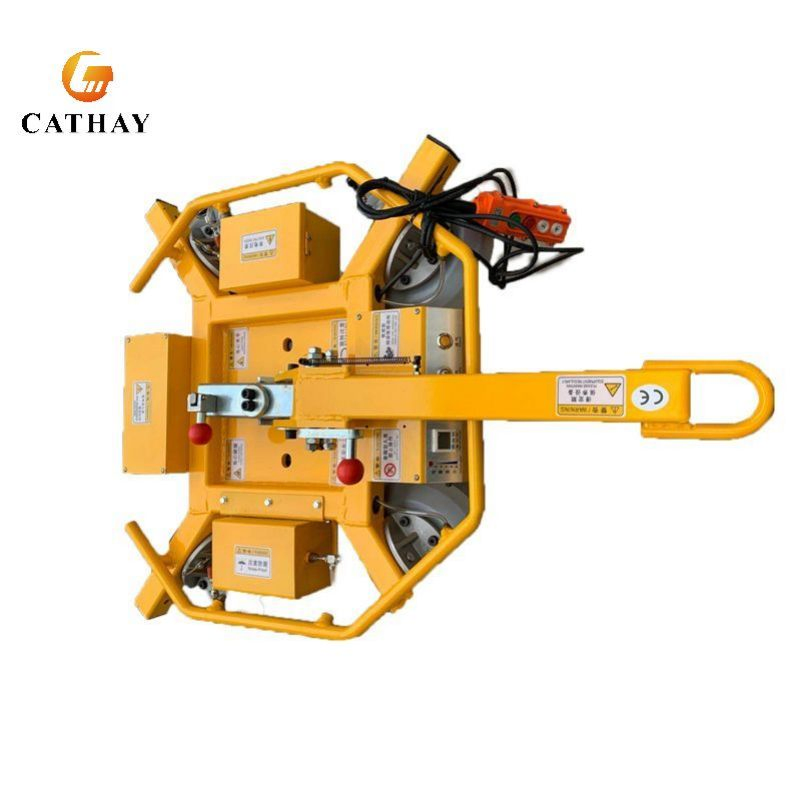

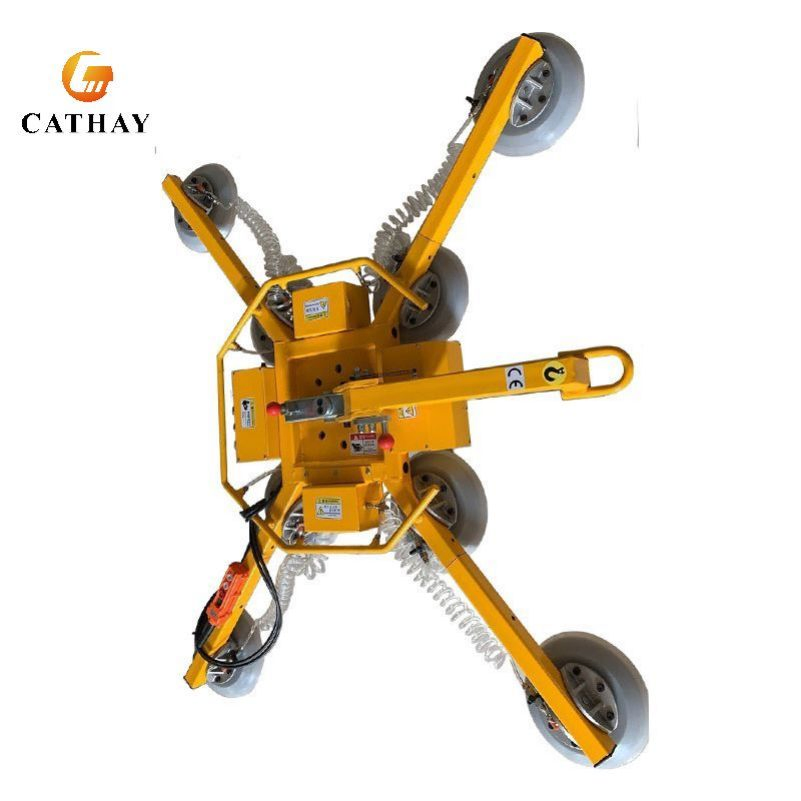

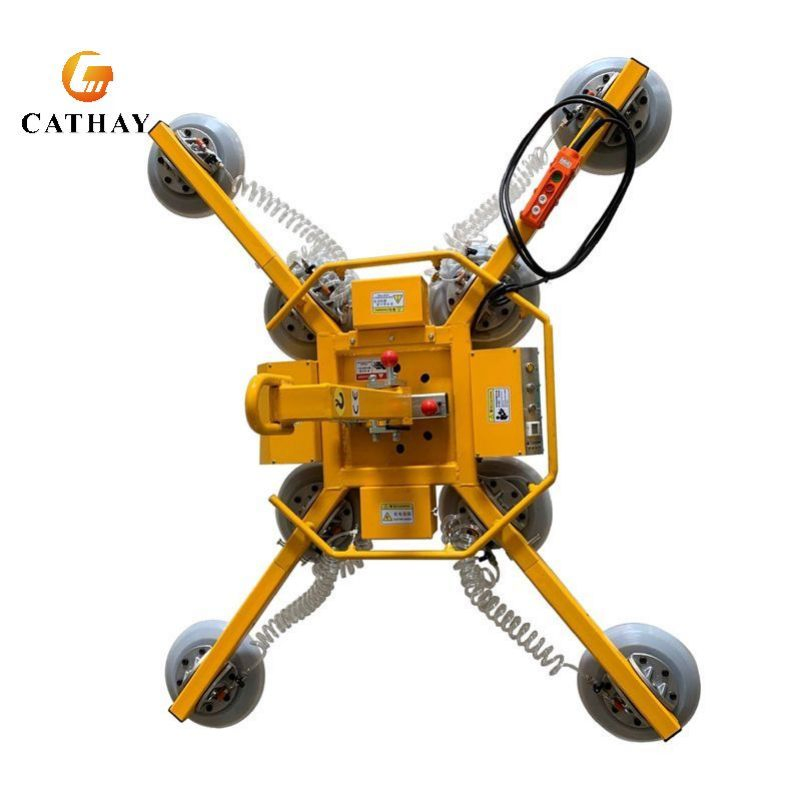

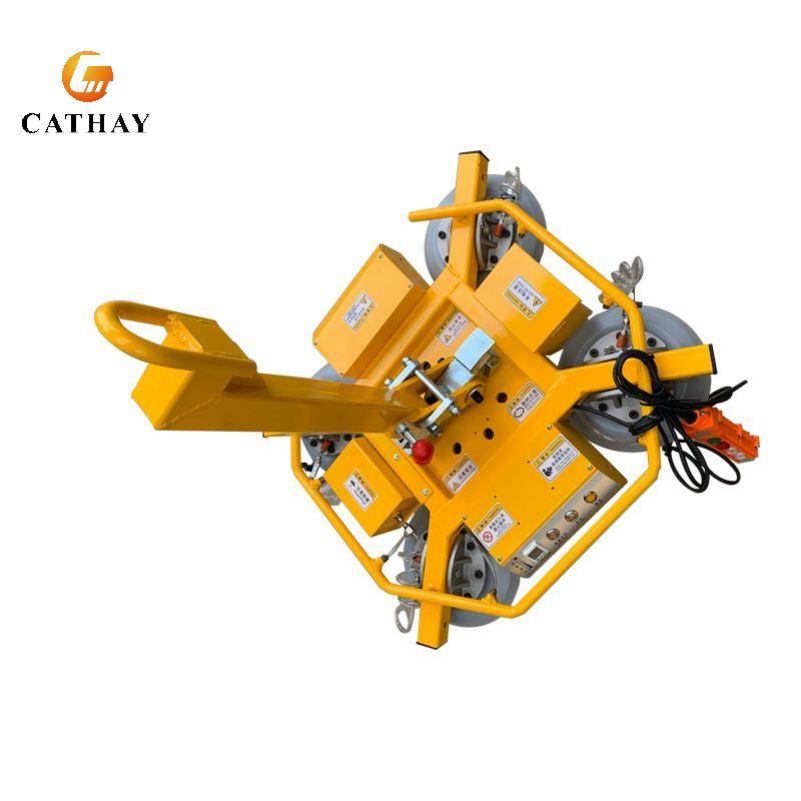

Popular Tile Suction Lifter 800kg Marble Glass Lifting 8PCS Portable Vacuum Lift

1 / 5

Popular Tile Suction Lifter 800kg Marble Glass Lifting 8PCS Portable Vacuum Lift

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.	XC-S400, XC-S600, XC-S800, XC-S1000, XC-S1200
Cup Quantity	4/6/8/10/12 PCS
Load Capacity	300/400/600/800/1000/1200kg
Rubber Suction Cap	Ø300mm (100kg capacity per cup)
Rotation & Tilting	360° Manual Rotate / 90° Manual Tilt
Voltage	DC 12V (Charger: AC 220V/110V)
Control System	Integrated Control Cabinet and Wired Remote Control
Package	Wooden Box (130.00cm * 130.00cm * 25.00cm)

🏗️

Product Description

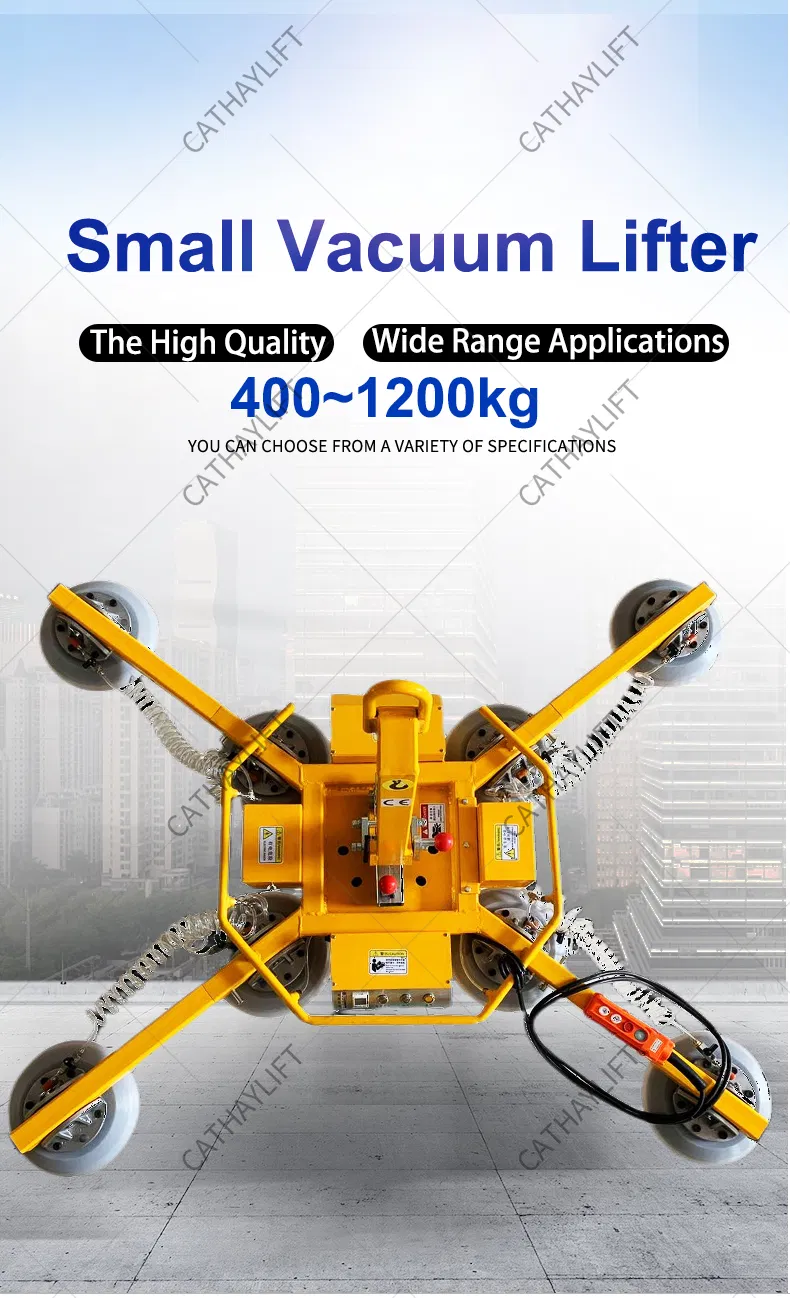

400KG - 1200KG Porcelain Tile Marble Glass Vacuum Suction Cup Lifter

This glass vacuum suction cup lifter is small and light in appearance, designed for single-person operation to save labor costs. It features non-destructive handling of plates, a brushless motor, and a DC vacuum pump. The adjustable suction cup combination ensures high safety and a long service life for construction and industrial applications.

⚙️

Technical Parameters

Model	XC-S400	XC-S600	XC-S800	XC-S1000	XC-S1200
Lifting Capacity (kg)	400	600	800	1000	1200
Cup Qty	4	6	8	10	12
Sucker Frame Size (mm)	850*750	1800*900	1760*1460	1900*1600	1900*1600
Gross Weight (kg)	97	110	123	150	163

🌟

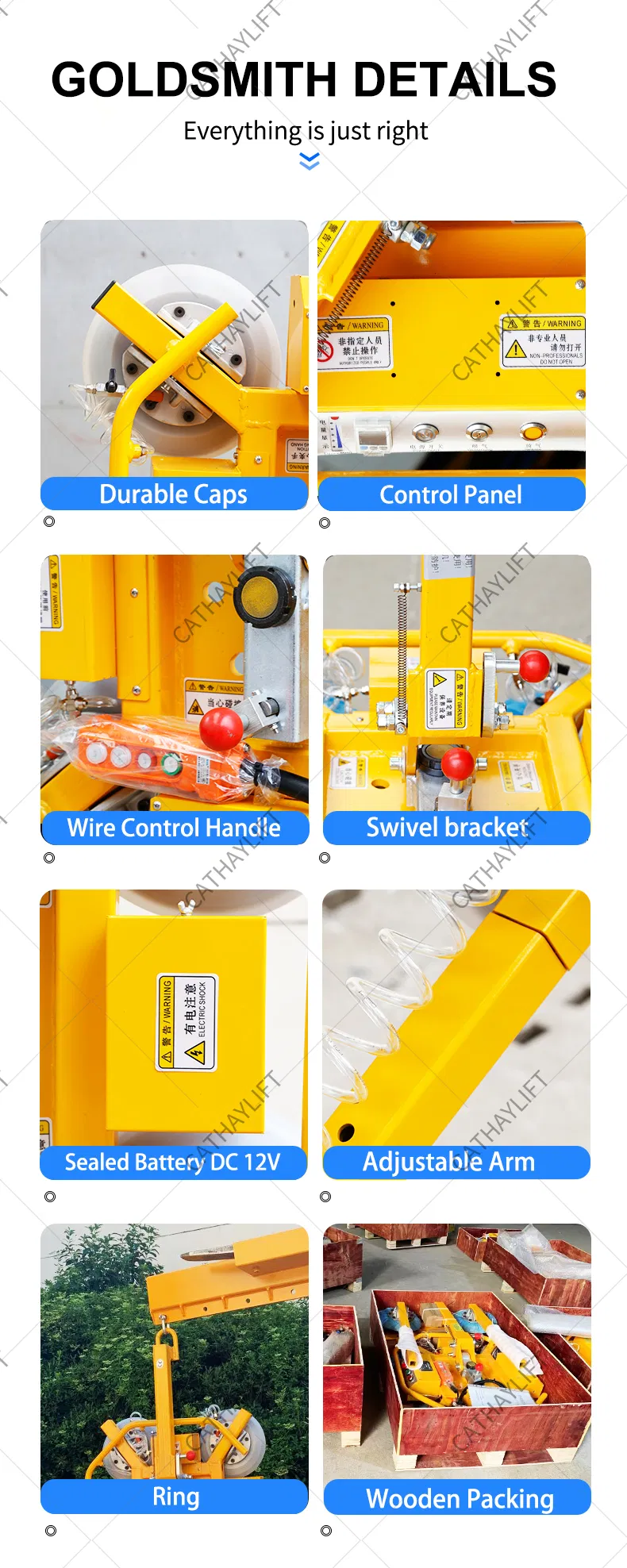

Product Advantages

✔ Protection: Sealed cover for component protection, safe and reliable for deep processing.

✔ Adjustability: Suction cup positions can be changed to absorb different shapes and sizes.

✔ Flexibility: 360° vertical rotation and 90° horizontal rotation with electric release.

✔ High Quality: American THOMAS vacuum pump and maintenance-free battery.

✔ Monitoring: Panasonic digital display vacuum pressure switch and fuel gauge.

✔ Safety: Equipped with power-cut pressure-keeping device and alarm system.

🛠️

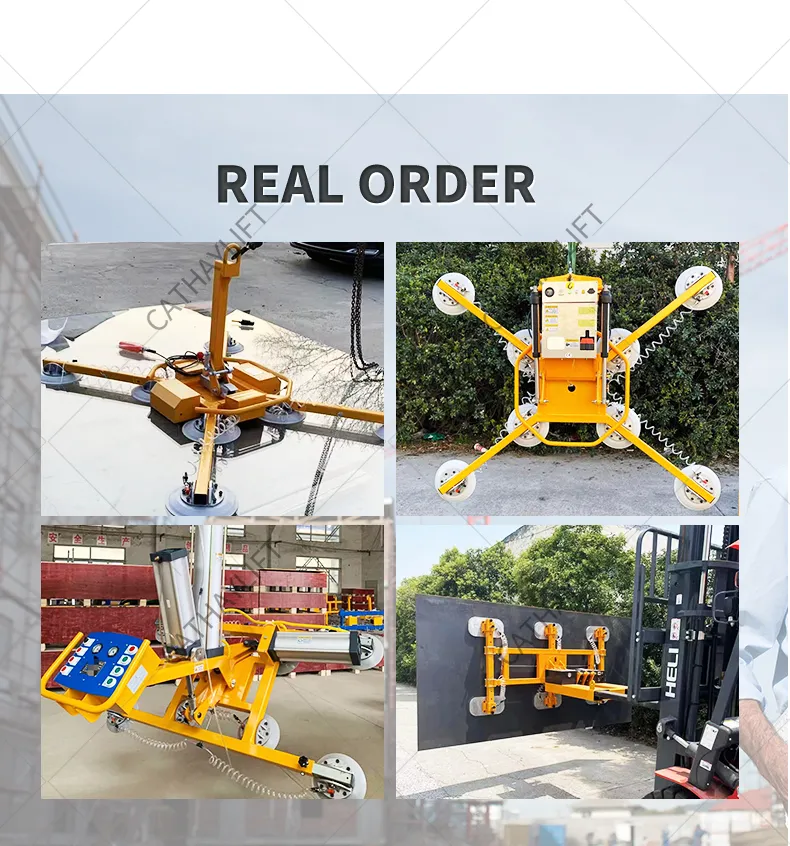

Application & Real Orders

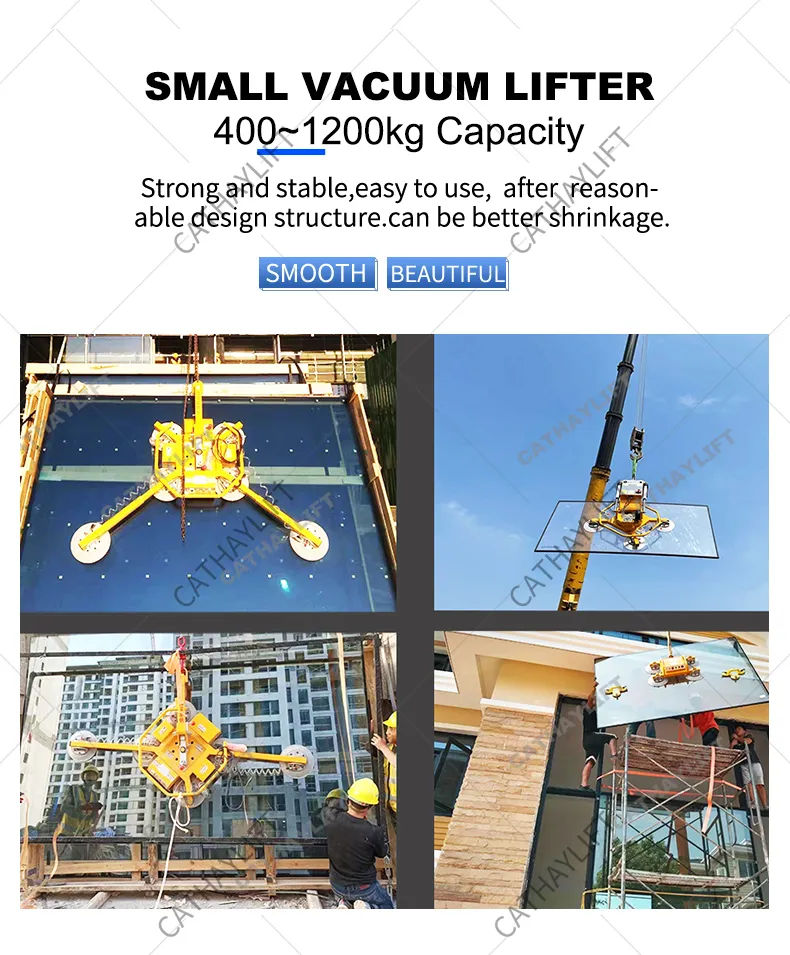

The vacuum suction cup lifter cooperates with lifting equipment like bridge cranes or cantilever cranes. It can be connected with a simple hook. The suction cup position and extension rods can be used in any combination to meet different sizes of plates for curtain wall installation or factory handling.

📸

Visual Display

🔗

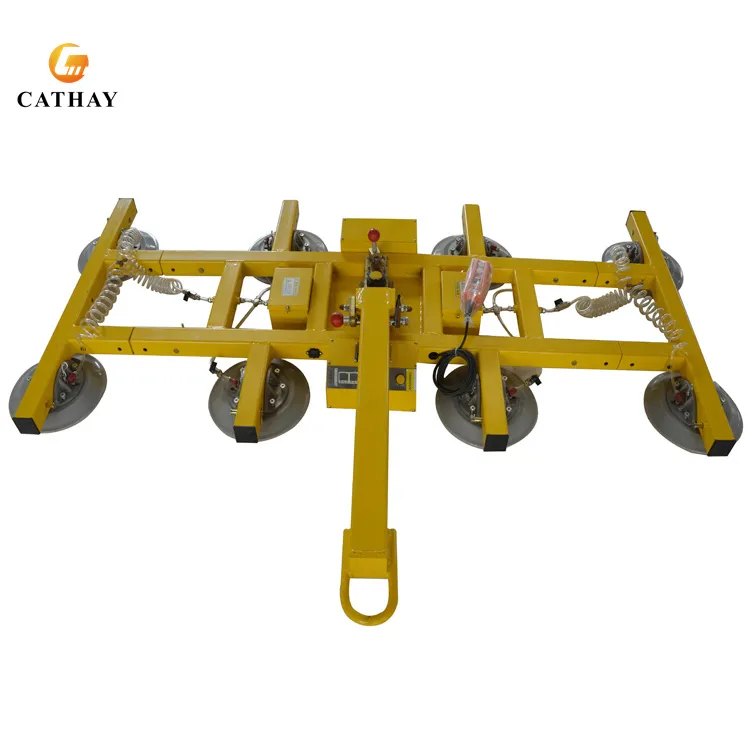

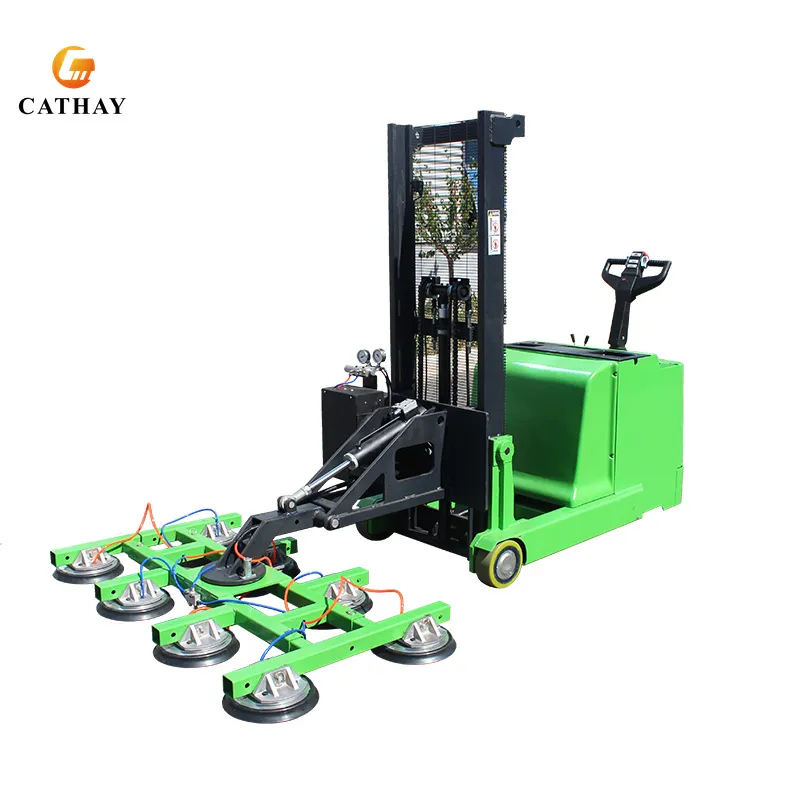

Related Products

❓

Frequently Asked Questions

Q1: What materials can this vacuum lifter handle? A: It is specifically designed for smooth, non-porous materials such as glass, porcelain tiles, marble slabs, and steel plates.

Q2: How does the safety alarm system work? A: The lifter is equipped with a digital vacuum pressure switch. If the pressure drops below the safety threshold, an acoustic alarm sounds to alert the operator immediately.

Q3: Is the battery rechargeable and how long does it last? A: Yes, it uses a 12V maintenance-free battery. It comes with a charger (110V/220V) and is designed to last for a full shift of typical operation.

Q4: Can the suction cup configuration be customized? A: Yes, the suction cups are adjustable and can be rearranged or combined with extension bars to fit various dimensions of plates.

Q5: Does the machine require an external power source during use? A: No, it is a self-contained DC-powered unit, meaning no external air lines or power cables are needed during the actual lifting and moving process.

Q6: What is the maximum rotation and tilting capability? A: The standard unit supports 360° manual rotation and 90° manual tilting, allowing for precise vertical or horizontal placement.
