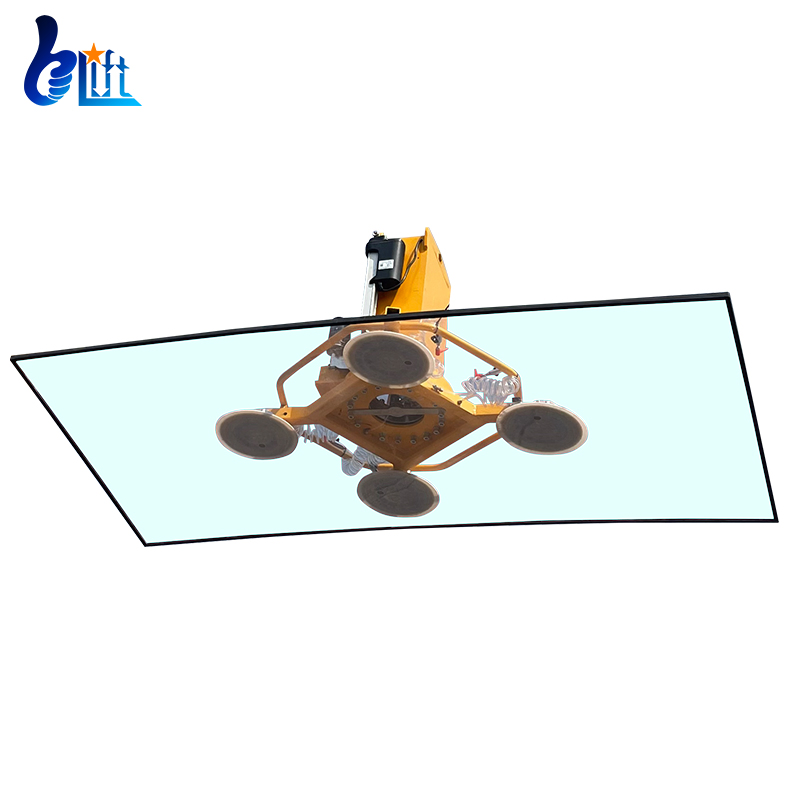

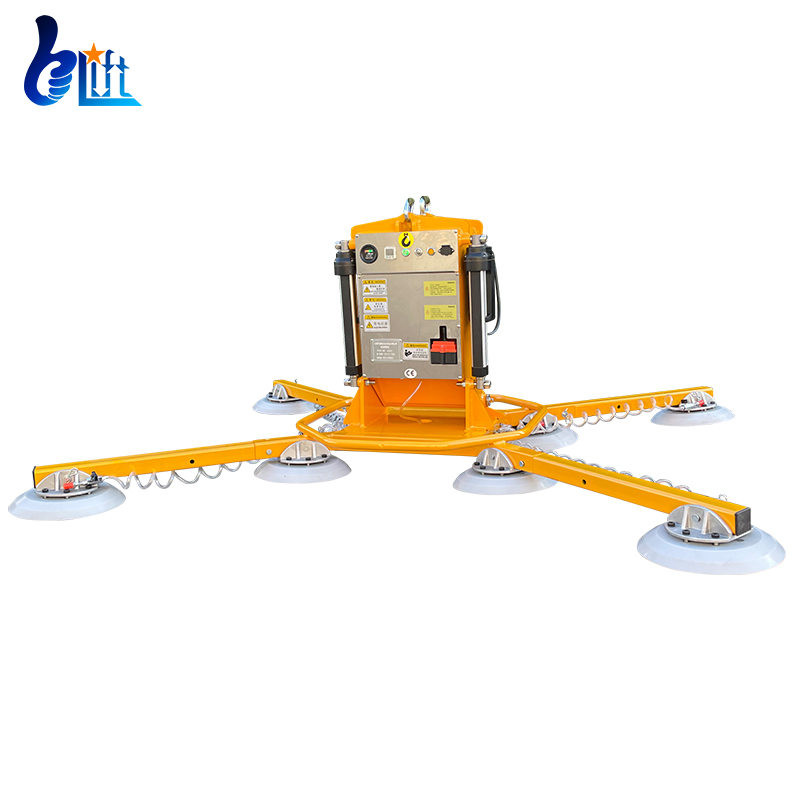

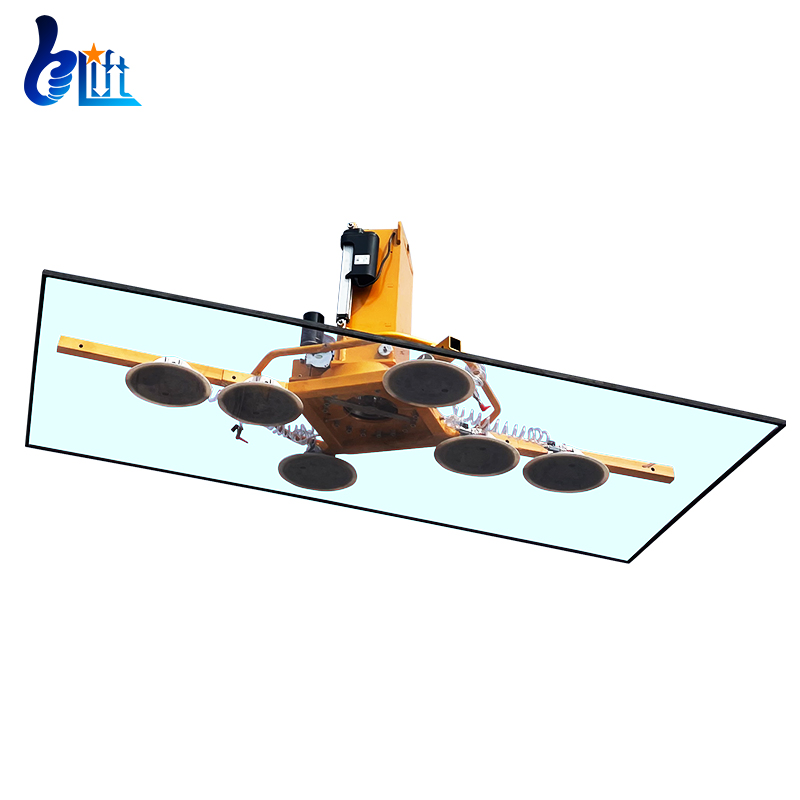

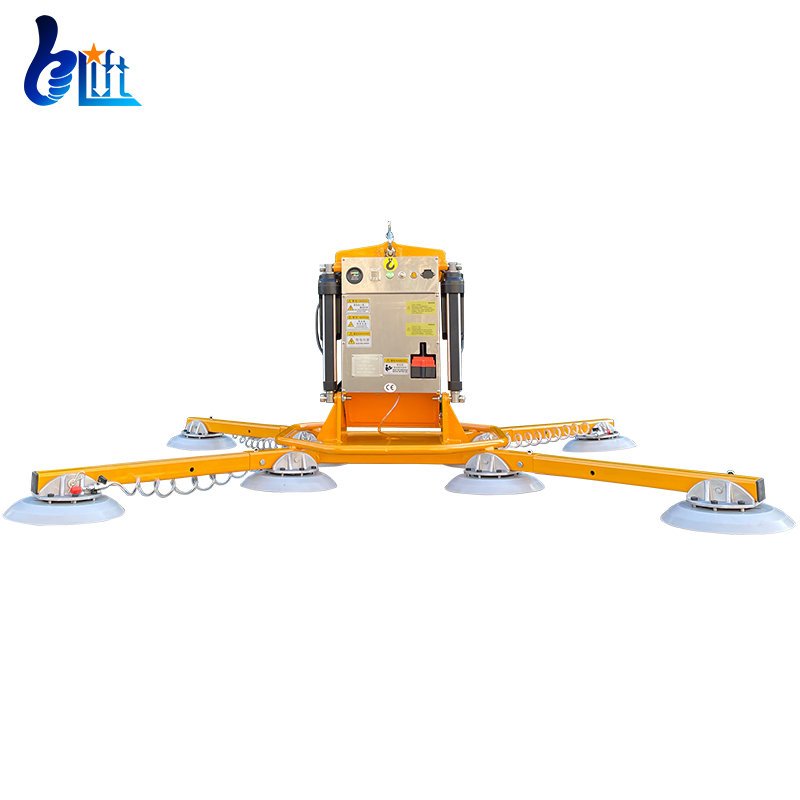

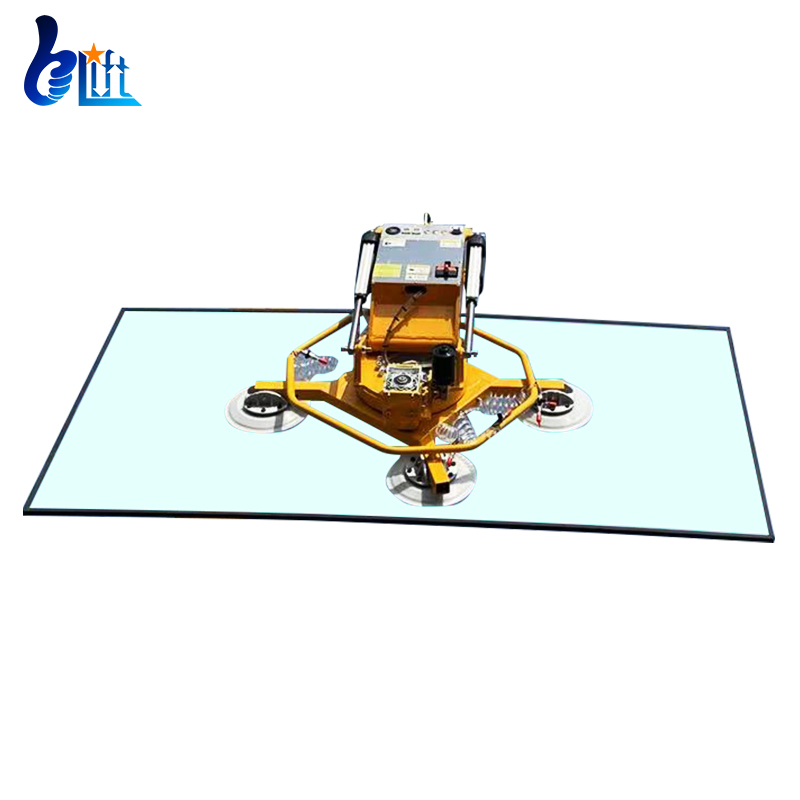

X Shape Glass Vacuum Lift with Rubber Pads Sponge Pads H Shape Suction Lifting Vacuum Used in Glass Marble Moving and Installation

Basic Info

Cup Quantity

4

Color

Yellow

Type

X or H

Usage

Glass & Board Lifting

Power

DC Battery (12V)

Loading Capacity

400-1200kg

Rotation

360° Manual

Material

Steel

Product Description

400kg-1200kg Portable Electric Small Suction Caps Vacuum Glass Lifting Equipment

This portable vacuum lifting machine is a fast, safe, and convenient automatic equipment solution. By utilizing the principle of vacuum adsorption and an integrated vacuum pump, it generates a secure hold at the suction cup end to lift various workpieces like glass and iron plates. The rotatable mechanical arm allows for efficient transport to designated positions.

Features and Advantages:

Manual 360° vertical rotation and 90° horizontal rotation; electric take and release system.
Retractable suction cup holders at both ends, ideal for varying workpiece sizes.
Equipped with imported oil-free vacuum pumps and high-quality valves.
Built-in accumulator and pressure detection system for enhanced safety.
Adjustable suction cup positions with manual closing capability.
Compatible with bridge cranes for deep processing or cantilever cranes for curtain wall installation.

Technical Parameters

Items	Unit	BGL-SC-400X	BGL-SC-600X	BGL-SC-800X	BGL-SC-1000X	BGL-SC-1200X
Lifting Capacity	kg	400	600	800	1000	1200
Cup Qty	/	4	6	8	10	12
Cup Diameter	mm	300	300	300	300	300
Rotation	/	360° Manual
Tilting	/	90° Manual
Voltage	V	DC12
Weight	kg	70	90	100	120	120
Frame Size	mm	850*750	1800*900	1760*1460	1900*1600	1900*1600

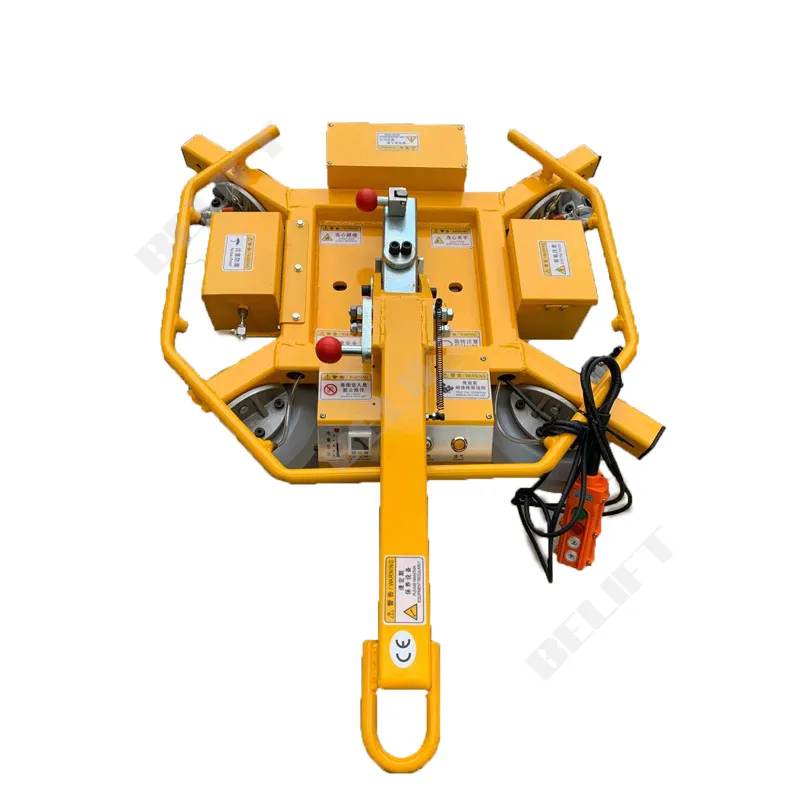

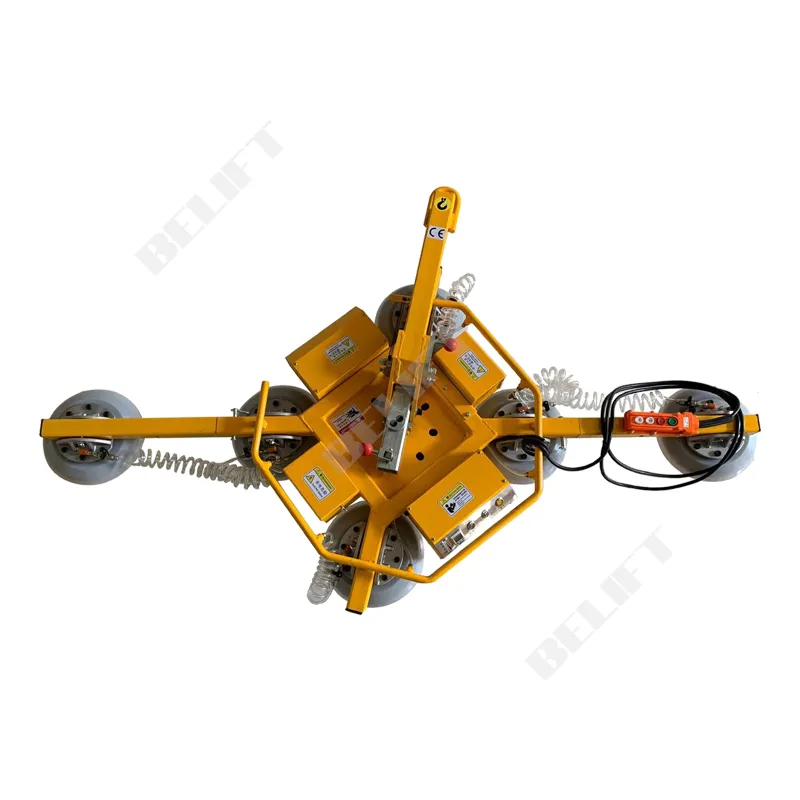

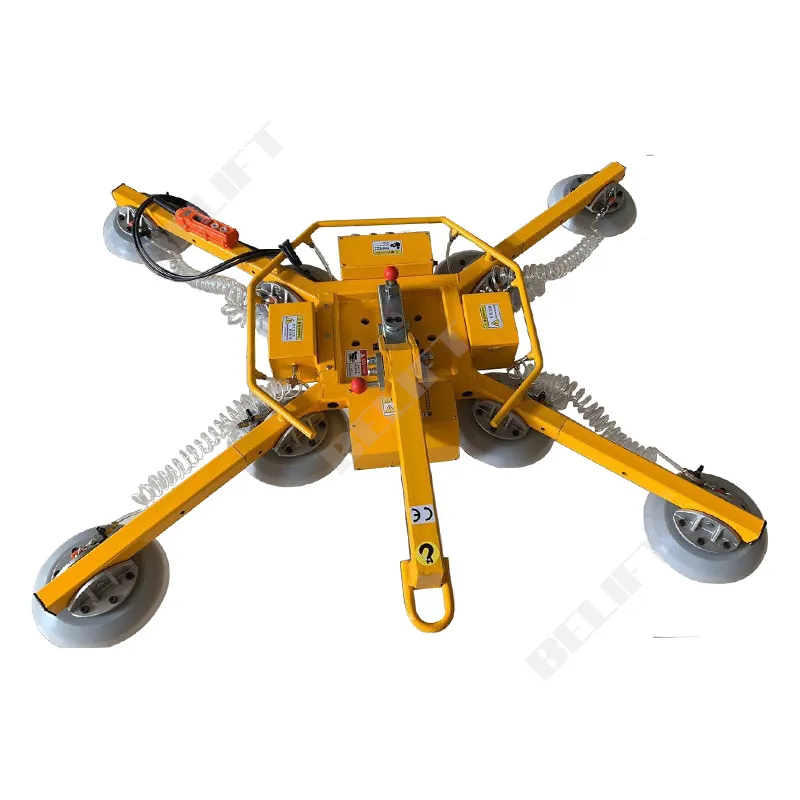

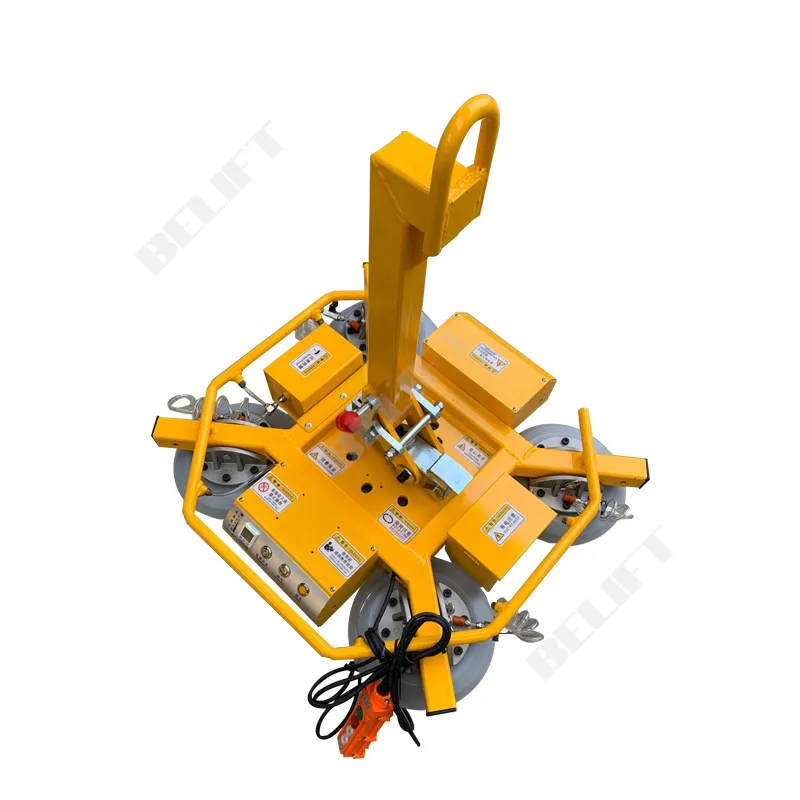

Detailed Photos

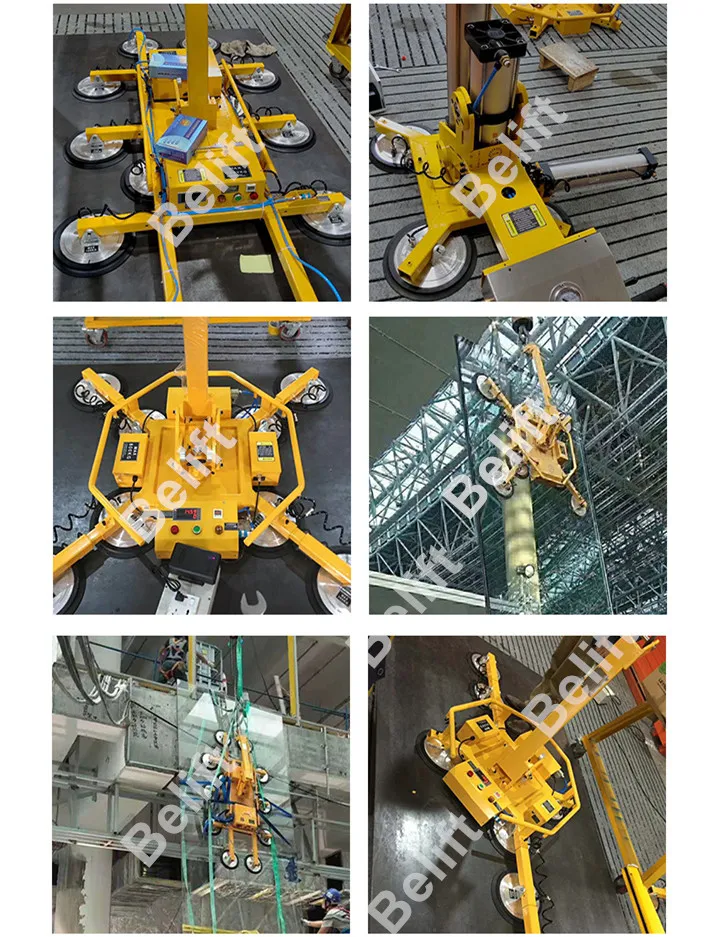

Applications

This equipment is widely used in glass processing, loading/unloading, and curtain wall installation. It is also highly effective for handling plastic sheets, sandwich panels, composite panels, steel, aluminum, copper plates, and stone. It is designed for any workpiece with a relatively flat, dense surface and regular shape.

Quality Standards

Specializing in Material Lift Platforms, our products are built to meet international standards. We maintain rigorous quality control across our manufacturing lines.

Certifications: CE, ROHS, SGS, ISO etc.

After Sales Service

Spare parts provided freely within the quality warranty period.
Comprehensive user manual included with every unit.
Lifetime technical support and guidance.
24-hour online and telephone service for troubleshooting.

FAQ

How can I replace parts if they break down?

The equipment uses common hardware parts. You can easily find replacements at local hardware markets or forklift parts shops.

How is the equipment repaired?

The failure rate is extremely low. If an issue occurs, we provide video tutorials and detailed instruction manuals to guide you through the repair process.

What is the duration of the quality guarantee?

We offer a one-year quality guarantee. If the machine breaks down within this period, we provide replacement parts free of charge.

What kind of surfaces can the suction cups handle?

It is suitable for workpieces with flat and dense surfaces, such as glass, marble, steel plates, and plastic sheets.

Is the lifting capacity adjustable?

We offer different models ranging from 400kg up to 1200kg to suit your specific lifting requirements.

What power source does it use?

The system is powered by a 12V DC battery, making it portable and easy to use without a constant power cable connection during operation.
