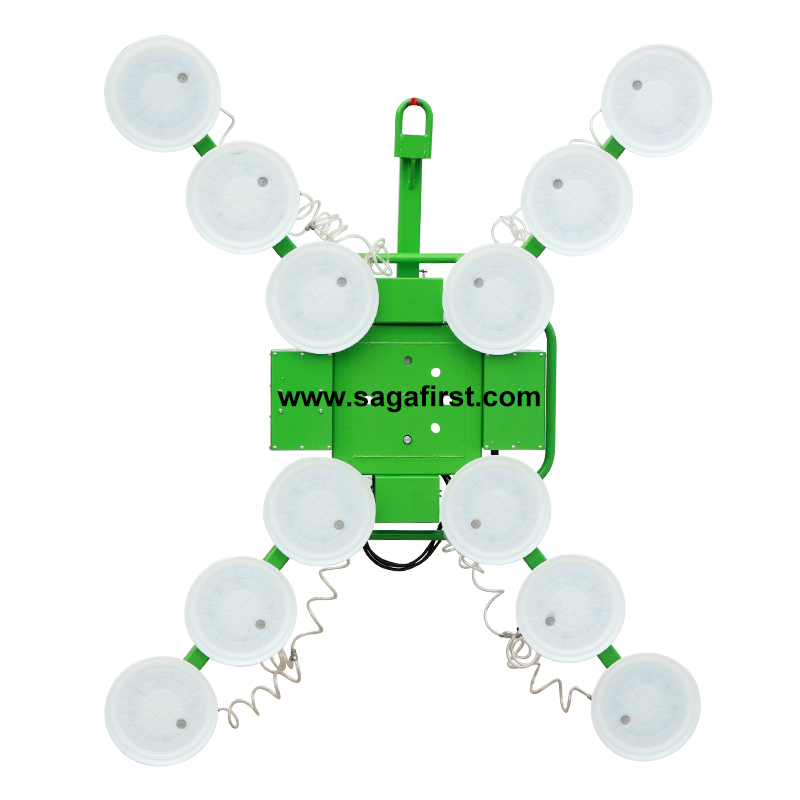

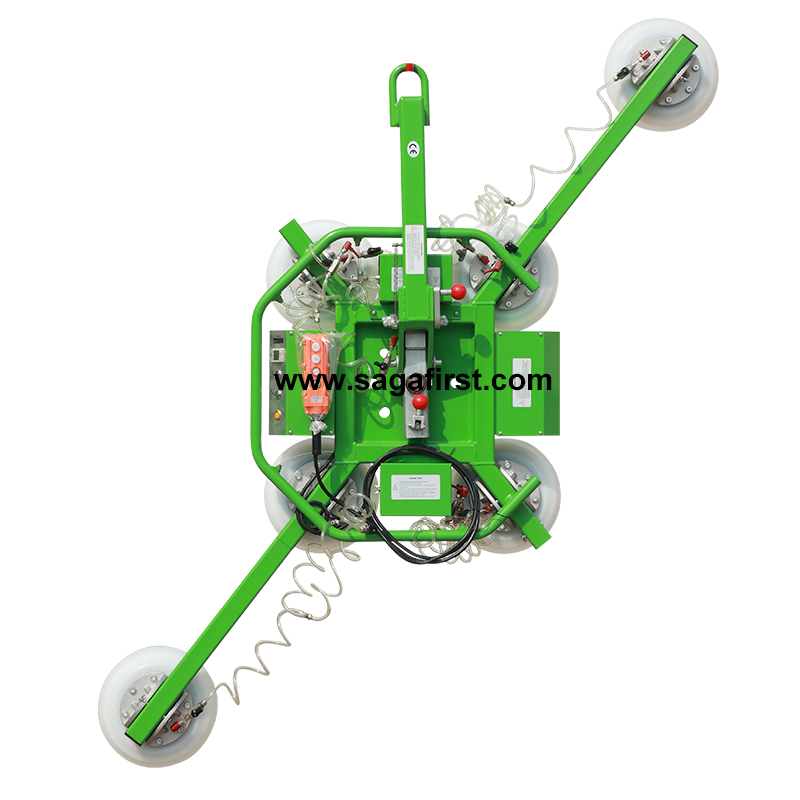

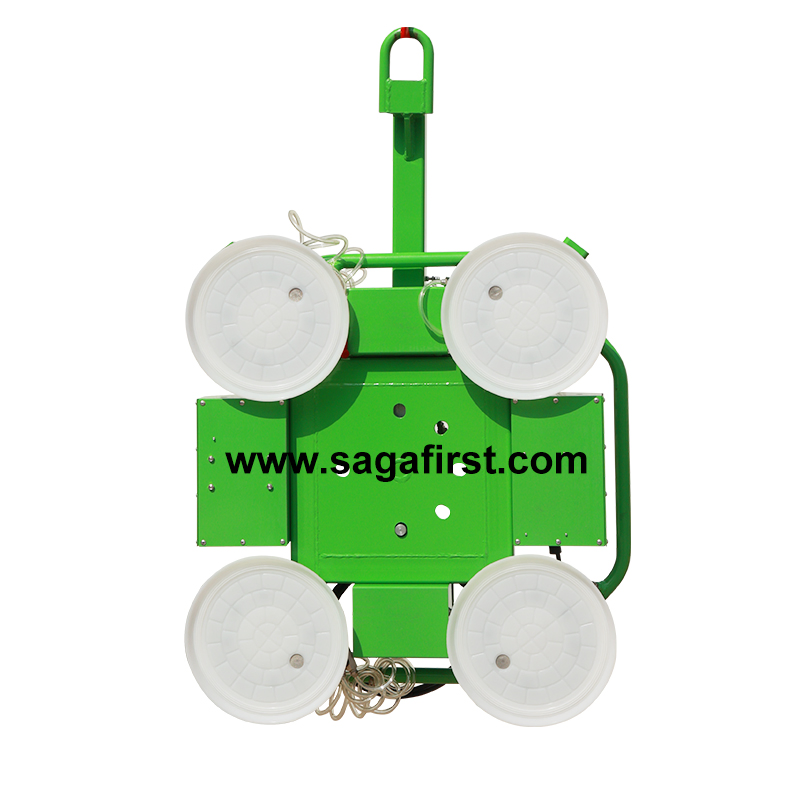

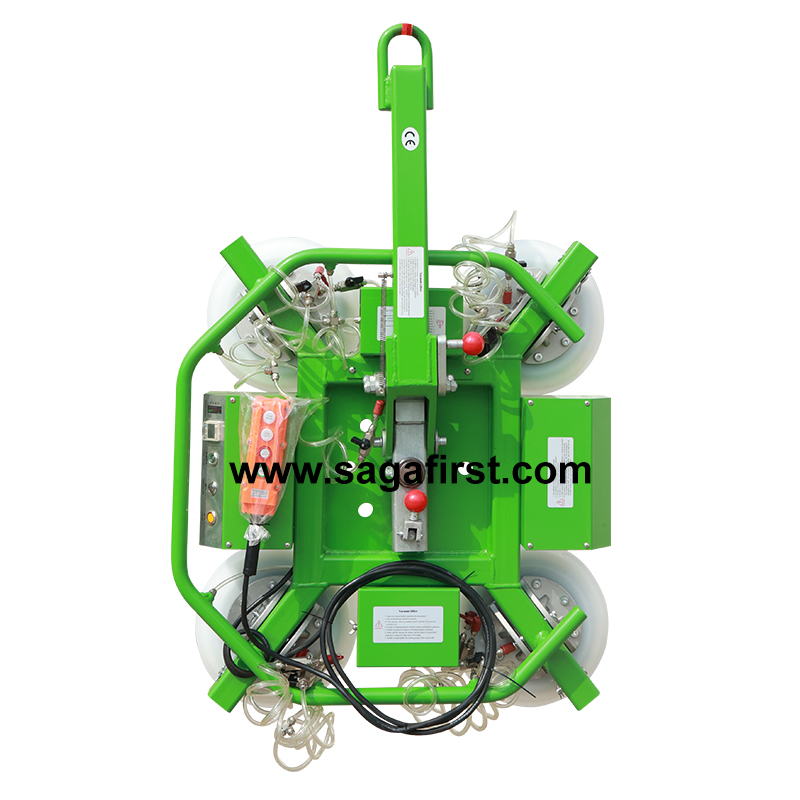

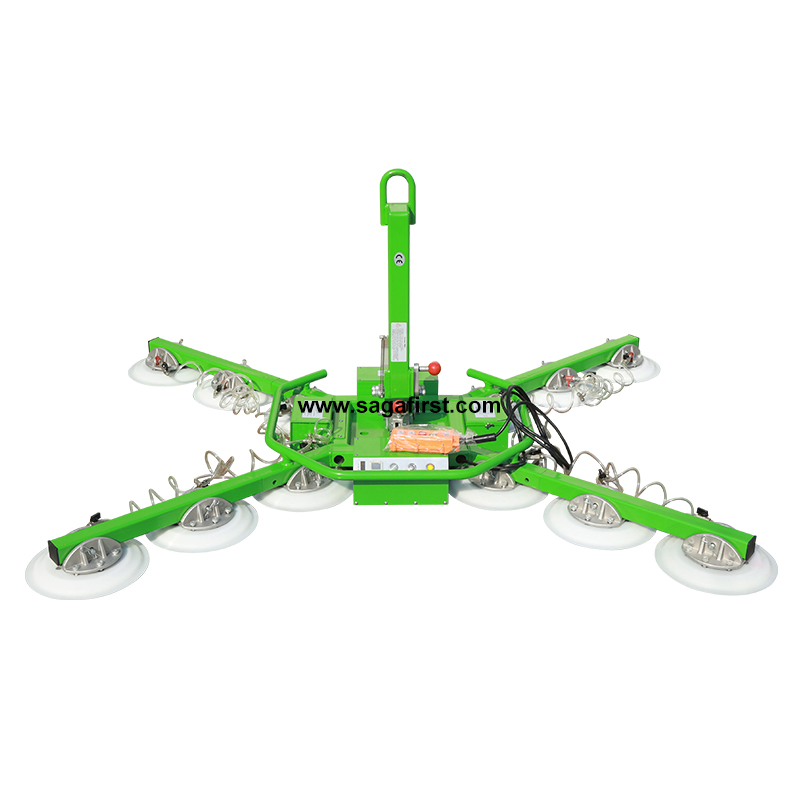

X Type Line Type Suction Caps, All-Electric Vacuum Lift for Sale

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.
GL-SC
Main Usage
Installing and Moving Heavy Panel
Load Capacity
400kg / 600kg / 800kg / 1000kg
Charger
AC220/110
Rotation
360 Degrees Manual
Tilting
90 Degrees Manual
Cup Diameter
300mm
Control System
Integrated Control Cabinet
Certification
GS, CE, RoHS, ISO 9001, SGS
Production Capacity
5000PCS Per Month

Product Overview

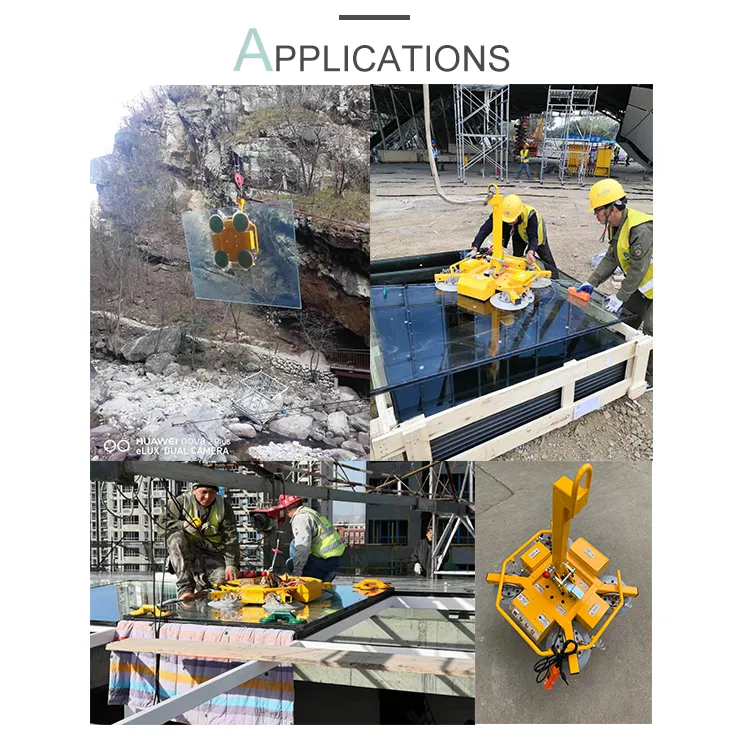

Vacuum suction caps are specially designed for handling different kinds of heavy plate, board and glass. They are highly effective for installing steel boards, glass walls, and moving materials such as granite and marble. These units are widely used in construction for glass wall and window installation, as well as in workshops for metal sheet and marble processing.

Model Capacity (kg) Cup Qty Single Cup Size Weight (kg) Frame Size (mm)
GL-SC-4004004300mm70850*750*300
GL-SC-6006006300mm901800*900*300
GL-SC-8008008300mm1001760*1460*300
GL-SC-1000100010300mm1101900*1600*300

Features & Advantages

Sealed cover for components protection, safe and reliable for glass deep processing and handling.
Adjustable cup positions to absorb glass of different shapes and sizes.
360° vertical manual rotation and 90° horizontal manual rotation with electric release.
High-quality American vacuum pump and maintenance-free battery; no external power source needed during use.
Digital display vacuum pressure switch and battery fuel gauge for clear safety monitoring.
Auto-supply vacuum system ensures constant safety pressure during handling.

Professional Service

We provide comprehensive support including customized lifter design, shipment arrangement to destination ports, and detailed operation videos. All equipment comes with maintenance and user manuals. Parts can be sent via express within 7 days if required. Equipment is packed in strong wooden cartons for safe sea transport.

?

Frequently Asked Questions

How can I buy replacement parts?
The lift adopts common hardware parts. You can purchase them at your local hardware market or forklift parts shop.
What is the quality guarantee period?
We offer a one to two-year quality guarantee depending on the model, including free parts for replacement.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 unit. Better pricing is available for larger quantity orders.
How do you handle repairs if a problem occurs?
The equipment has a very low failure rate. If an issue arises, we provide technical guidance via video and instruction manuals immediately.
What is the delivery time after payment?
Standard delivery time is between 15 to 20 days after receiving the down payment.
Do you offer OEM & ODM services?
Yes, we can customize lifting capacity, size of platform, color, logos, and manuals to meet your specific requirements.
